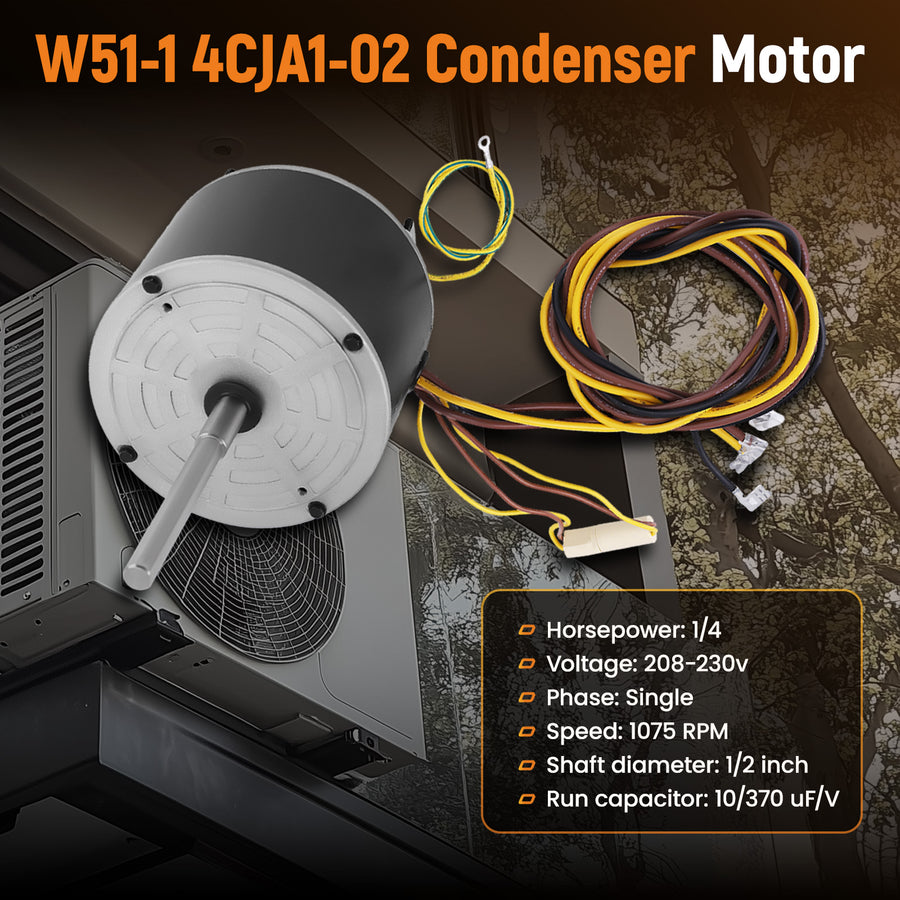

W51-14CJA1-02 Condenser Fan Motor 1/4 HP 208/230V 1075RPM Reversible Replacement

Compatible Vehicles

• For 1/4HP,208/230V Condenser Fan Motor,1075RPM Replacement Condenser Fan Motor Reversible Rotating Condenser Fan Motor

Specification

• 1/4HP condenser fan motor
• Overall motor length:9-5/16 inch
• Overall shaft length：5 inch
• Shaft diameter:1/2 inch
• Run capacitor：10/370 uF/V
• Input voltage：208-230v /1.4 amps 1075（rpm）high speed

Feature

The Condensing Motor is designed to be used in HVAC systems to cool the condenser coil. The condenser coil is responsible for removing heat from the refrigerant, which is then used to cool the air in the home. The condenser fan motor helps to circulate air over the condenser coil, which helps to improve the efficiency of the cooling system.

Package included

• 1*capacitor
• 1*connecting wires

Note

Please refer to the specifications of your previous machine before purchasing to make sure it matches the H/P you need

OE/Part number

W51-14CJA1-02
