VZ21 Turbocharger Turbo for Small Engines Snowmobiles Motorcycle ATV RHB31

Compatible Vehicles

• For Small engine snowmobiles Quads Rhino Motorcycle ATV 500-600ccm 100HP，
• Compatible for Suzuki ALTO Works with YA1 F6AT Engine，
• Compatible for Suzuki ALTO Works with 21R707-0011-G1 Engine

Specification

• Turbo Model ：RHB31
• Engine ：YA1, F6AT, compatible for Isuzu 4TNA，21R707-0011-G1 Engine
• Cooled Type: water and oil cooled
• Bearing Type: Journal Bearing
• Thrust Bearings: 360 Degrees
• Fit for ：500 cc to about 1000cc
• Internal-wastegate: 15psi
• Horse Power: 23-100HP
• Compressor Exducer: 37.1mm
• Compressor Inducer: 24.2 mm
• Compressor Trim: 42.5
• Compressor A/R: 0.7
• Turbine Inducer: 35mm
• Turbine Exducerr:26.7mm
• Turbine Trim: 58.2
• Turbo Type: Individual
• Universal Fitment: Yes
• Finish: no
• Condition: Brand New
• Package Size:26x 25 x 23 cm
• Package Weight: 3400g
• Accessories: You will receive the parts exactly as shown in the picture above

Feature

• *Product Material

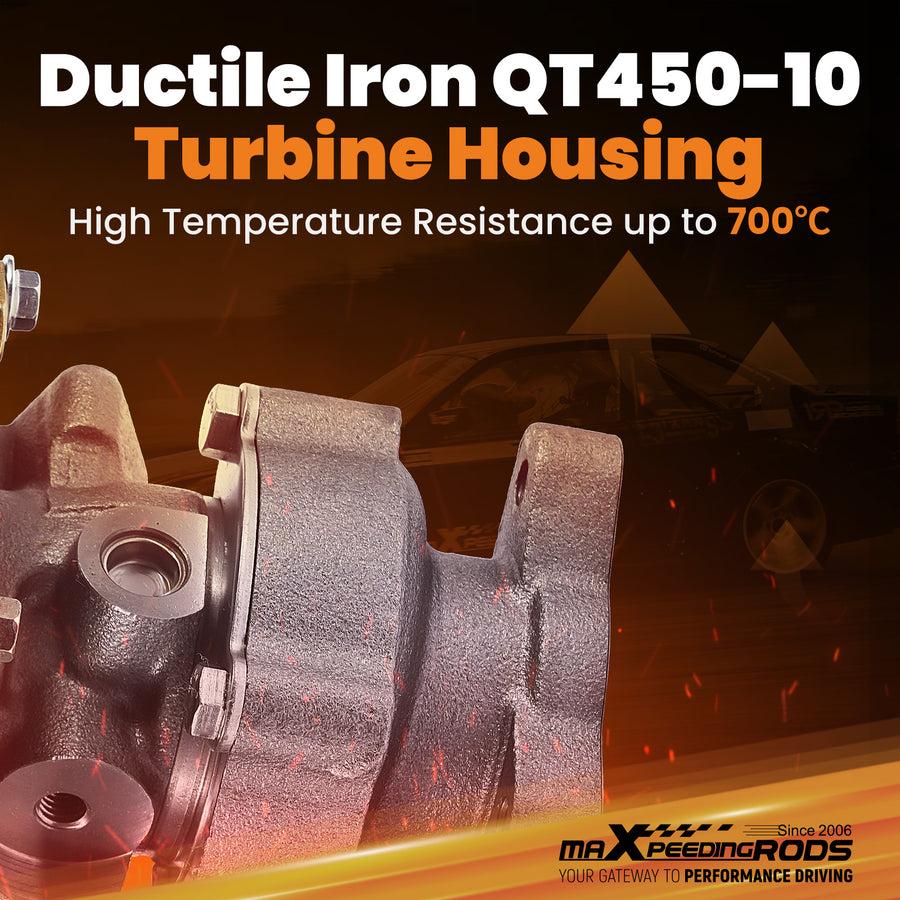

• 1. Turbine housing ：Ductile iron QT450-10 - temperature resistant up to 700℃

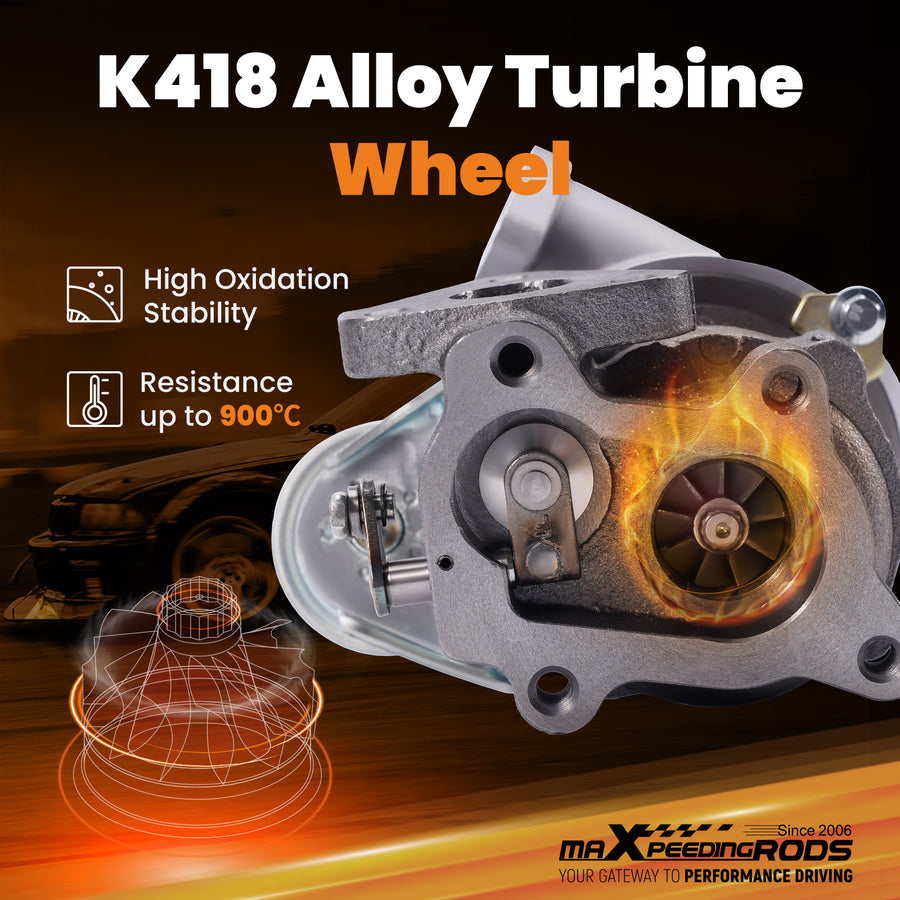

• 2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃

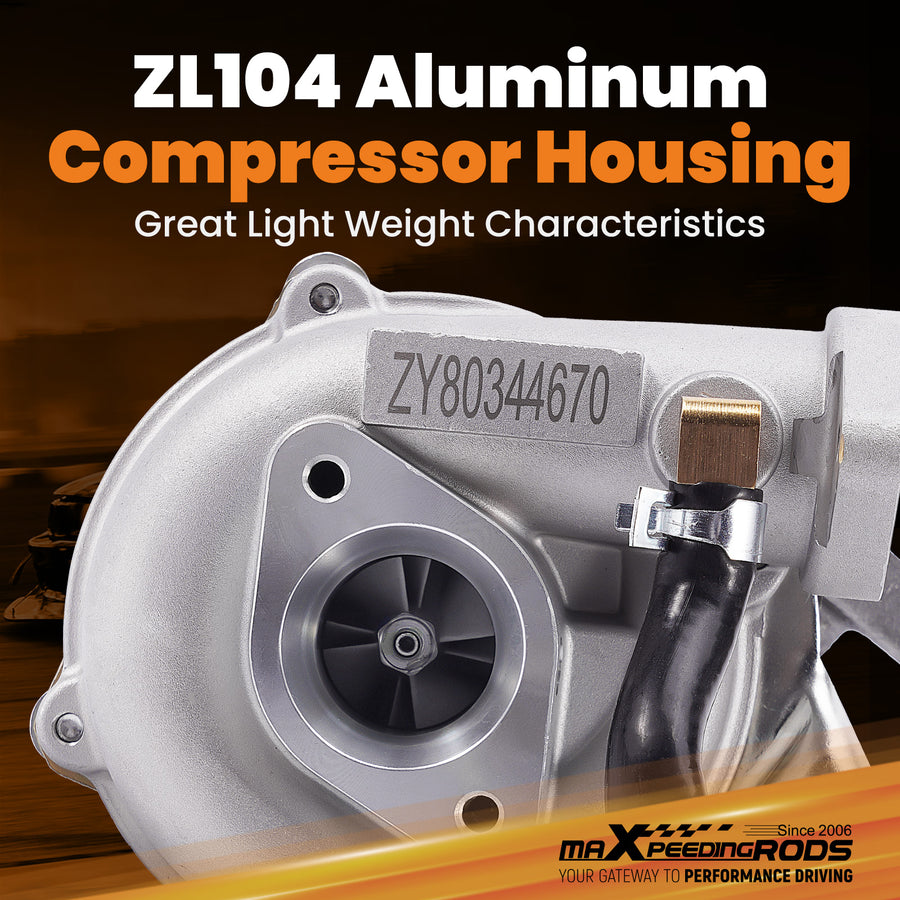

• 3. Compressor housing：ZL104 aluminium with lightweight

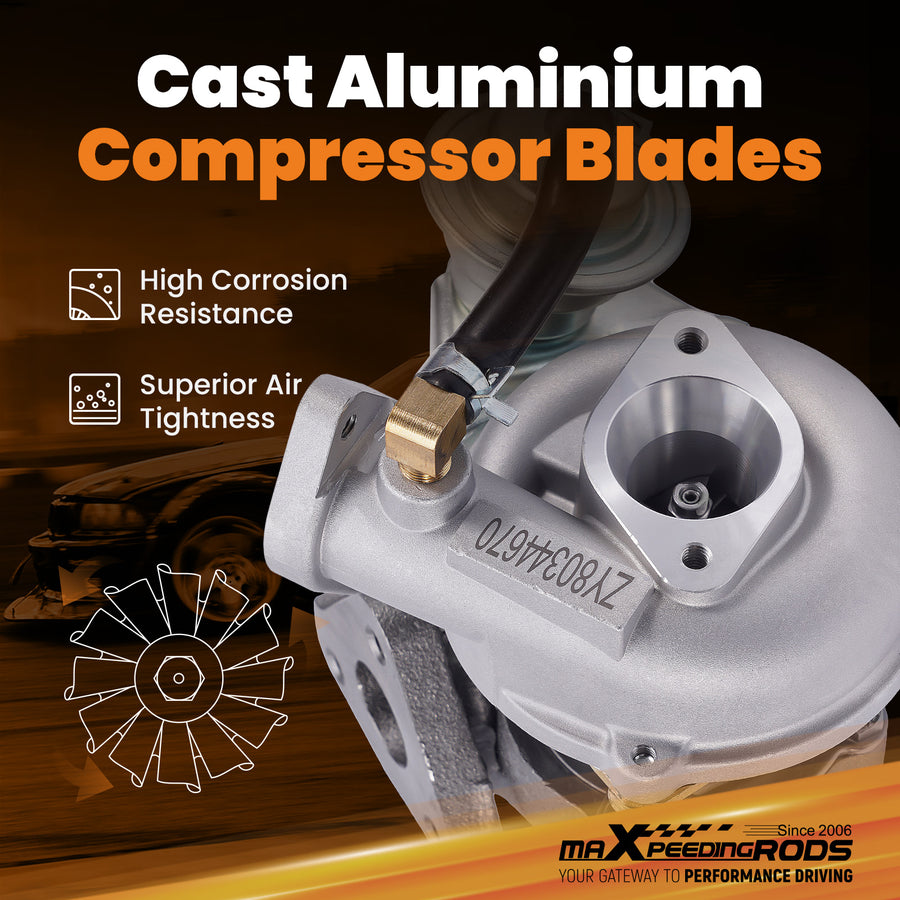

• 4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance
• *Product Performance
• 1. Cost-effective turbo increase 20-40% power for your car

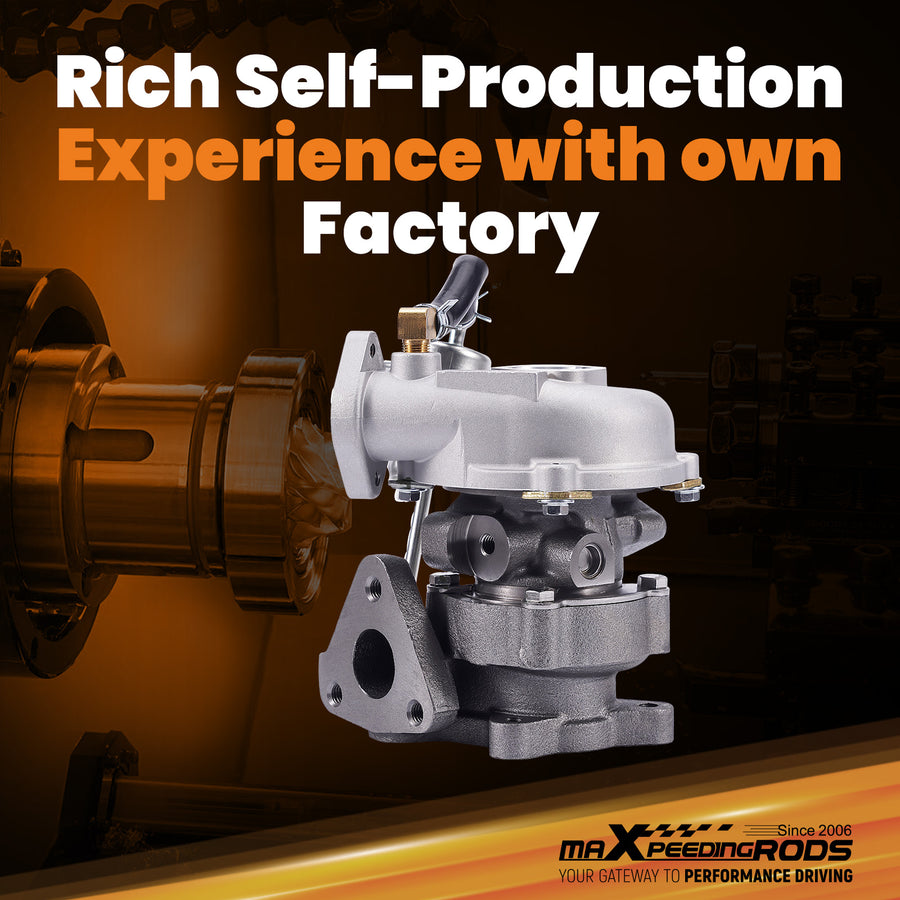

• 2. Rich self-production experience with own factory
• 3. High-Speed oil seal ring and Precision clearance
• 4. Built for thermal stability and strength
• * Technology Advantage:
• 1. 100% balancing Test by TURBOTECHNICS VSR3
• 2. G3-min-Flow VNT Turbo testing
• 3. Advanced Actuator Tester/Programmer

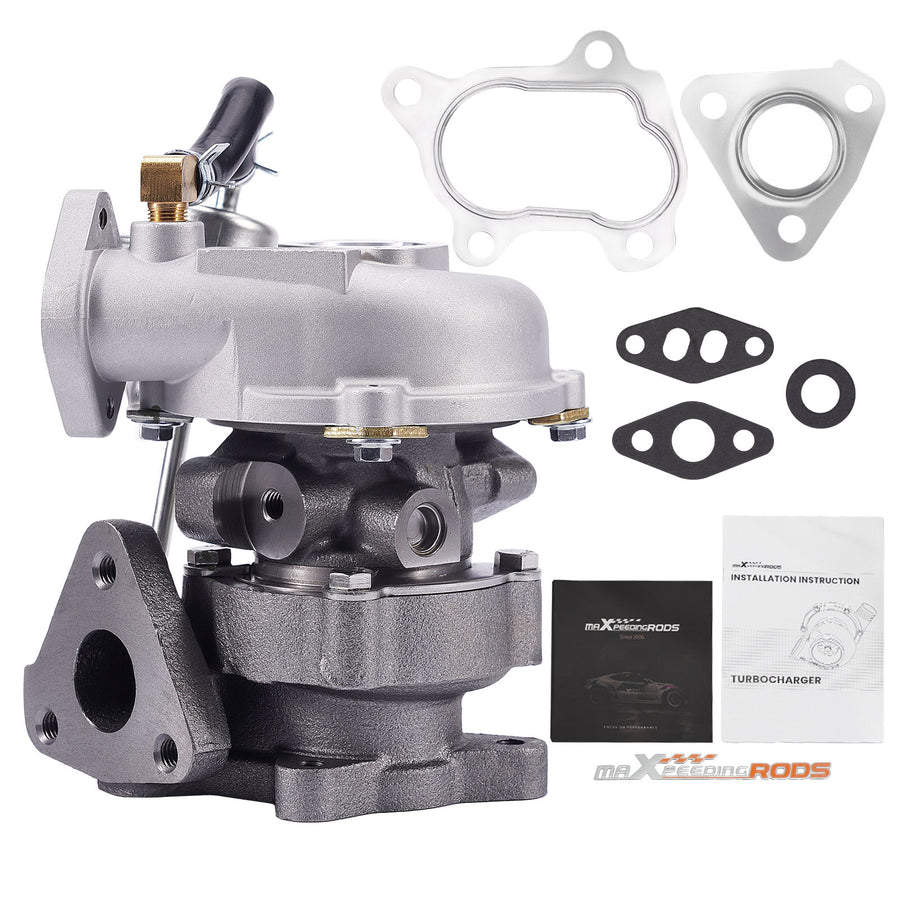

Package included

• 1 xTurbocharger
• 2 x Flange gaskets
• 3 x Oil feed/drain gaskets
• 1 x Manual
• 1 x Brochure
• 1 x Sticker

Note

• Note 1：All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
• Note 2: Not For Sale or Use in Carlifornia, or New York(for all vehicles registered in these states)

OE/Part number

• VZ21,13900-62D51, 1390062D51,
• 1390062D50, 13900-62D50，VE110069
