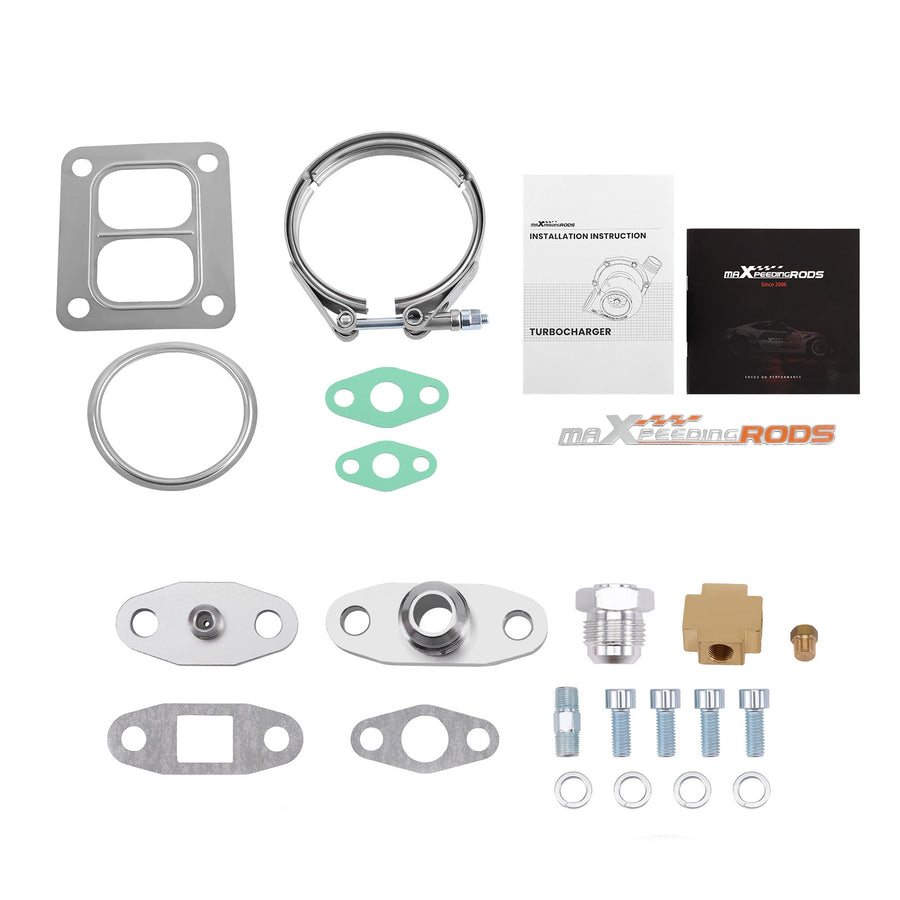

Upgraded Billet GT45 Turbo T4 V-BAND 1.05 A/R 600+HPS Oil Feed Return Line Kit

Compatible Vehicles

• This turbo is a universal application turbo, some modification may be required based on individual vehicle.
• for the vast majority of 4.0L - 6.0L engine

Specification

• Exhaust Inlet (Turbo Manifold) Flange:  T4 Twin Scroll Flange
• Exhaust Outlet  Flange:  3.25 " Inlet Flange 4.25"  Clamp V-Band

Features

• 1. Turbine housing: Silicon-Molybdenum - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases durability and reliability.
• 2. Turbine Wheel: K419 alloy - High temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown for smooth reliable operation.
• 3. Billet Compressor Wheel: Forged billet aluminium CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.
• 4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.

Note

• * Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
• * Make sure the oil drain line is lower than the turbo itself.
• * Ensure exhaust outlet are well sealed by welding
• * Professional installation is highly recommended.
• * This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
• * Before installing the new turbocharger, the cause that led to the failure of the turbo must be analysed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
• Notice
• All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
• <div

Condition

Brand New

Compressor Trim

49.6

Compressor Inducer Diameter

69 mm

Compressor Exducer Diameter

98 mm

Compressor Air Inlet Size

107mm

Compressor Air outlet Size

86.3mm

Compressor A/R

0.66

Turbine Trim

77.6

Turbine Inducer Diameter

88 mm

Turbine Exducer Diameter

77.5 mm

Turbine A/R

1.05

Oil Inlet

M9 & 2*M8*1.25

Oil Outlet

M19 & 2*M8*1.25

Bearing Type

Wet Float

Cooling Type

Oil Cooled

Wastegate

W/o Wastegate

Horse Power

Up to 600+HP

Package Size

30x 30x 27 cm

Package Weight

16400g

Oil Lines

• * Oil Return Line: Length: 550mm || Inner Diameter: 21mm
• ​* Oil Feed Line: Length: 1000mm || Inner Diameter: 14mm
