Compatible Vehicles
- Perfect for all 4/6 cylinder and 2.5L-6.0L engines
- Capable of Boosting Horse Power up to 600HP
- *Note:
- 1. Please confirm that there is enough space in your car to install this turbo before purchasing.
- 2. Lack of oil will cause the turbocharger shaftplay and damage, please adjust the oil pressure and ensure that the turbocharger is fully lubricated.
Features
- *Product Material

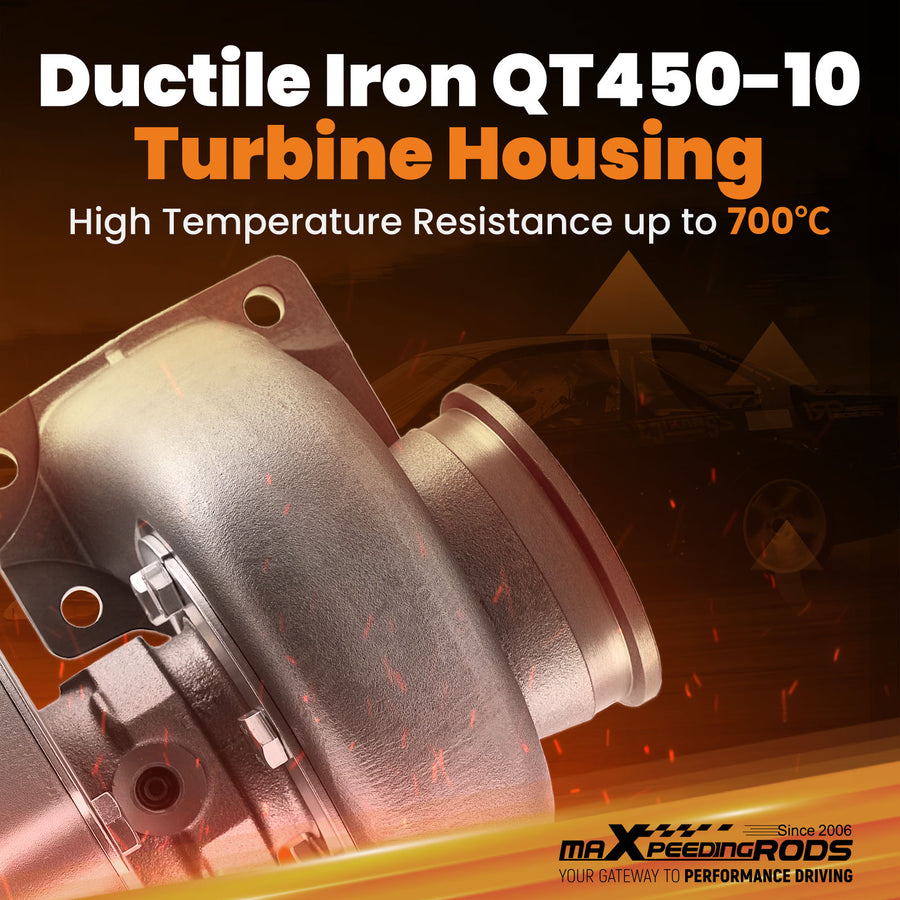

- 1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃

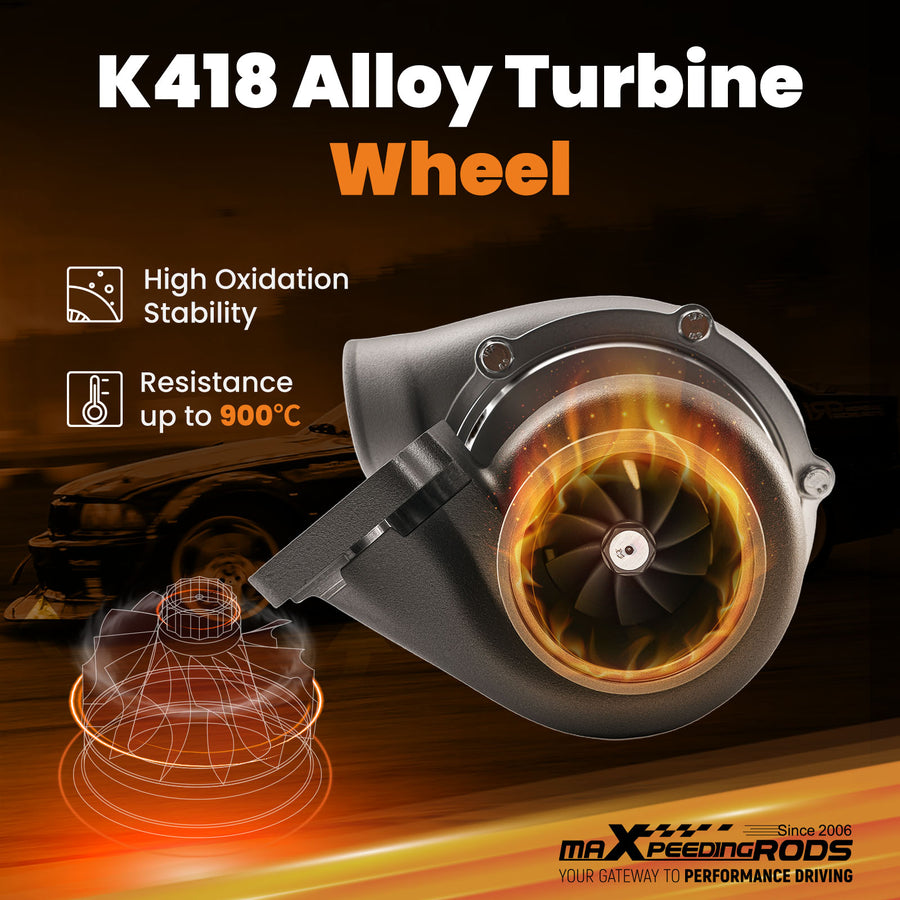

- 2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃

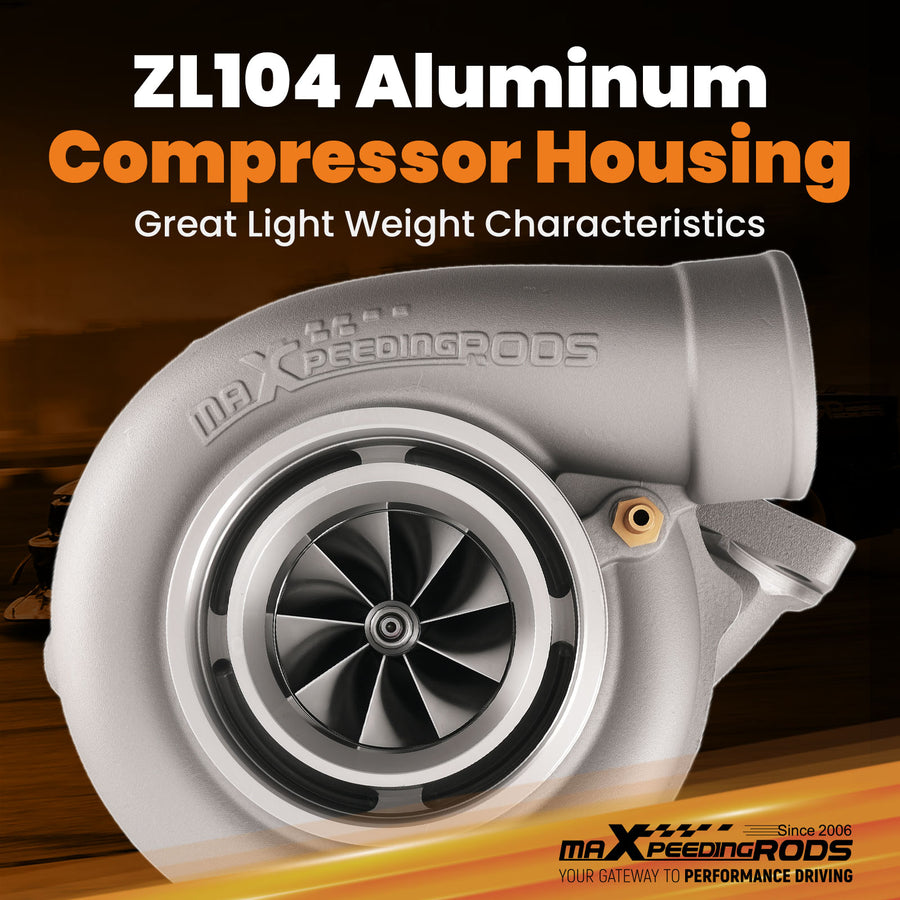

- 3. Compressor housing: ZL104 aluminium with lightweight
- 4. Billet Compressor Wheel: Forged billet aluminium CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.
- 5. Appearance upgrade
- (1) Turbine outlet V-BAND: Easy installation
- (2) Anti-surge compressor housing: Increase air intake
- (3) New compressor wheel design
Note
- * Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
- * Make sure the oil drain line is lower than the turbo itself.
- * Gasoline car must install a water cooling device to avoid overheating.
- * Ensure exhaust outlet are well sealed by welding
- * The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
- * This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
- * Before installing the new turbocharger, the cause that led to the failure of the turbo must be analysed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
- Notice
- All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
- <div
Condition
100% Brand New

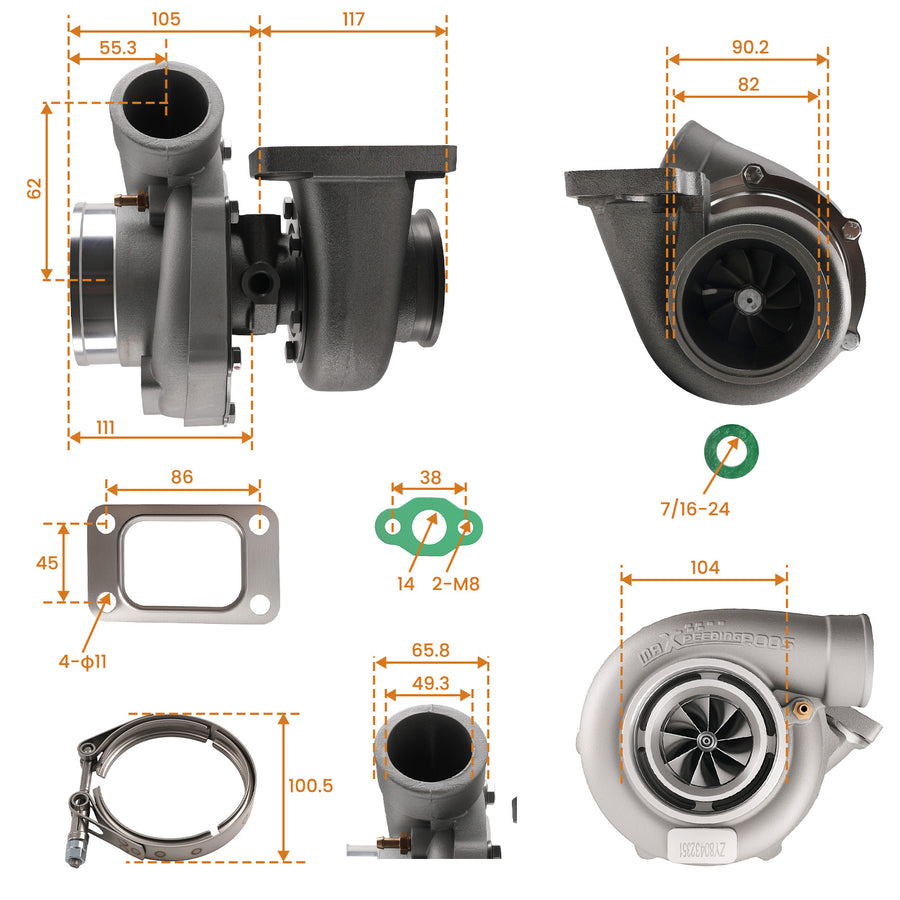

Exhaust Inlet Flange
T3 Flange
Exhaust Outlet Flange
V-Band
Turbine Trim
84.2
Turbine A/R
0.63
Turbine Inducer Diameter
68mm
Turbine Exducer Diameter
62.4mm
Compressor Trim
56.9
Compressor A/R
0.7
Compressor Inducer Diameter
61.5mm
Compressor Exducer Diameter
- 81.5mm
- Compress Inlet Size(Air intake): 4 inch (103.5mm)
Compressor Outlet Size
2.5 inch (63.6mm)
Bearing Type
Floating/Journal Bearing
Thrust bearing
270 degree
Cooling Type
Water + Oil Cooling
Horse Power
Up to 600HP
Turbo Type
Individual
Wastegate
W/O Wastegate
Oil Feed/Inlet
M10*7/16-24
Oil Drian/Outlet
M14.1 & 2*M8*1.25
Water Inlet/Outlet
M14* 1.5
Maximum PSI
22
Accessories
You will get exactly as shown as picture above
Pakage Size
26 x 25 x 23 cm
Pakage Weight
8350g

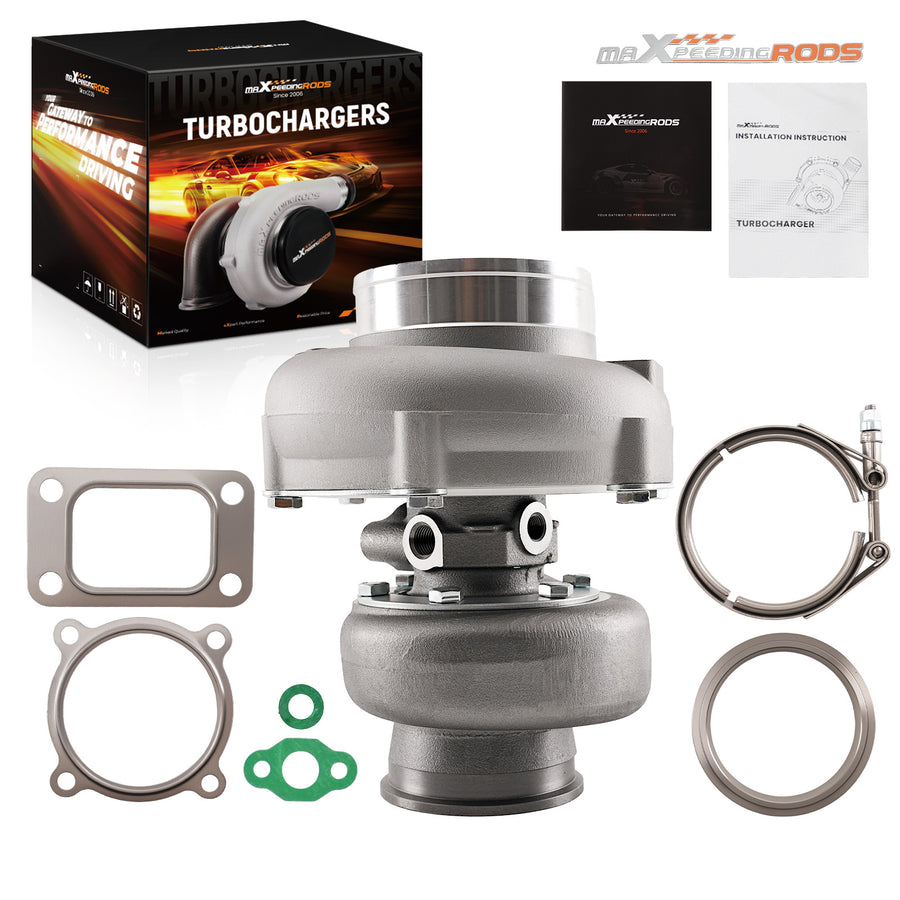

Package Included
- 1x Turbocharger
- 2x Flange gaskets
- 2x Oil feed/drain gaskets
- 1x V-Band flange adapter ring & Clamp
- 1x Manual
- 1x Brochure
- 1x Sticker
