Universal Turbo Kit 10pc,T3 T4,T04E,T3/T4,350hp For 1.5L-3.0L engine

Compatible Vehicles

• Universal Turbo Kit Perfect For 1.5L-3.0L engine
• This Kit Will be able to add 350+HP at 7.5-14.5 PSI.
• (You will need Turbo Manifold, Modification and other accessories to complete the Turbo Kit Project)
• *Notice:Please confirm that your vehicle displacement is 1.5L-3L before purchasing. Otherwise, if you buy the wrong one, you will not be able to use it normally.

Specification

• Turbine Side:
• Exhaust Inlet Flange: T3 T4 4 bolt Flange Patterns
• Exhaust Outlet pipe Flange: 5 bolt Flange
• Turbine Trim: 74.2
• Turbine Inducer Diameter: 64.8 mm
• Turbine Exducer Diameter: 55.8mm
• Turbine A/R: 0.63
• Compressor Side:
• Compressor Trim: 48.1
• Compressor Inducer Diameter: 52.7mm
• Compressor Exducer Diameter: 76 mm
• Compressor A/R: 0.5
• Compressor Inlet Diameter: 72mm(2.8")
• Compressor Outlet Diameter: 53mm（2"）
• Bearing Type: Wet Float Bearing
• Cooling Type:Oil Cooling
• Thrust Bearing:270 degree
• Horsepower:Up to 400HP
• Oil Inlet: M12*1.25& 2*M8*1.25
• Oil Outlet:2*M8*1.25
• Maximum Oil Pressure: 1.31 Bar
• Kit Spring Rate: 14.5 PSI
• Turbo Type:Individual
• Condition: 100% Brand New
• Accessories: You will get exactly as shown as picture above
• Other specification in the kit :
• *1 x Intercooler: Size 27'' x 7'' x 2.5'' inch. Inlet size is 2.5 inch.
• Support up to 350 hp for this small intercooler size - tube and fin style .
• Intercooler core size: 21*7*2.5
• *1 x Universal turbo intercooler piping kit including:
• 2 x Straight Aluminium Pipe
• 2 x 45°Aluminium Pipe
• 2 x 75°Aluminium Pipe
• 2 x 90°Aluminium Pipe
• 6 x 2.5" Straight Silicon Hose (Blue)
• 2 x 2.5" 90 Degree Hose (Blue)
• 16 x 2.5" Stainless Steel T-Clamp
• *1 x Type-S Blow Off Valve: 2.5" Inch Type S/Rs Flange Pipe. 25PSi Boost!
• *1 x BOV pipe: can install anywhere suitable
• *1 x 35/38MM Wastegate: 35/38mm External Waste Gate Kit
• *1 x Turbo Boost Gauge: 2" (52mm) Turbo Boost Meter Gauge.
• *1 x Turbo Boost Controller:
• *1 x Turbo Oil Return / Feeding Line Kit: Turbo Oil Feed + Return Drain Line Kit Combo.
• *1x 5 Bolt pipe: 2.5" t3/t4 5-bolt stainless steel TIG welded pipe. pipe length: 13“
• Package Size:94x 46 x 45 cm
• Package Weight: 24600g

Feature

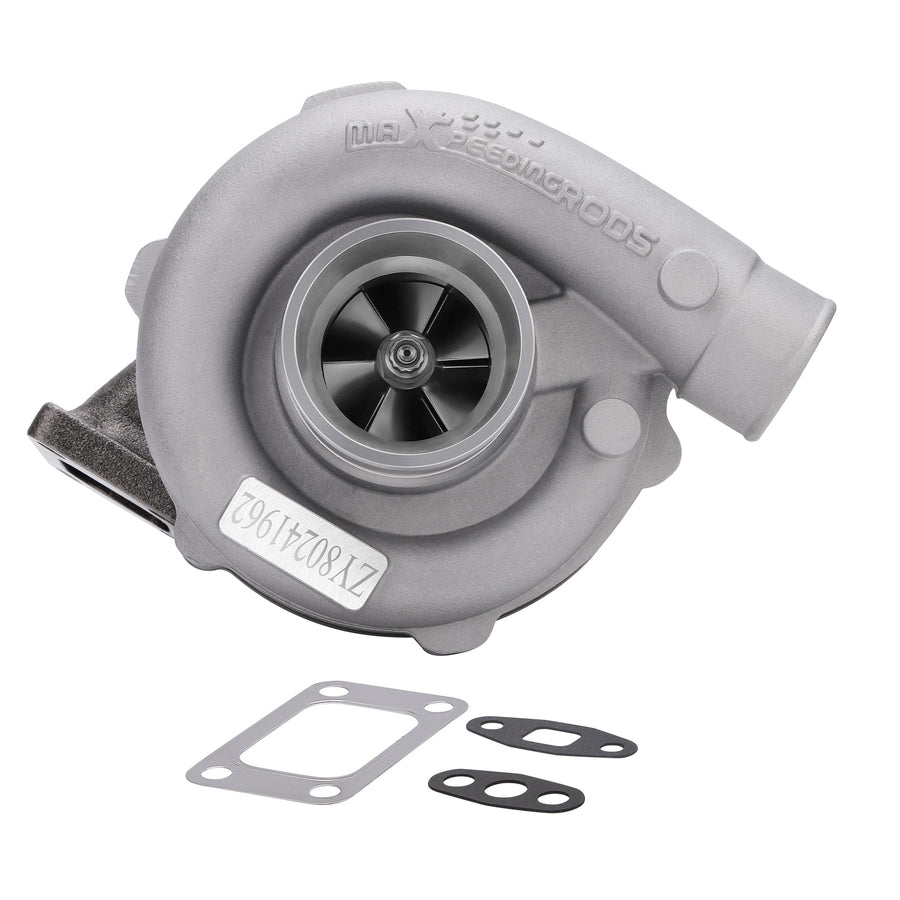

• 1.Turbo charger:
• *Turbine housing ：Ductile iron QT450-10 - temperature resistant up to 700℃
• *Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
• *Compressor housing：ZL104 aluminium with lightweight
• *Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance
• *Product Performance
• Cost-effective turbo increase 20-40% power for your car
• Rich experience in turbo production and own factory
• High-Speed oil seal ring and Precision clearance
• Built for thermal stability and strength
• * Technology Advantage:
• 100% balancing Test by TURBOTECHNICS VSR3
• G3-min-Flow VNT Turbo testing
• Advanced Actuator Tester/Programmer
• 2. Intercooler
• * core size:21*7*2.5 cools down the turbocharged air efficiently
• * Lightweight aluminium racing intercooler，
• * Strong TIG welds will support high PSI levels
• 3.Boost controller
• * Can be setup to adjust boost PSI on the fly
• * Can be adjusted for any PSI level desired
• * Control your boost with a precise click
• * Includes complete install kit
• * Anodized aluminium finish
• * CNC machined design
• 4. Intercooler piping kit
• * Made of 6061 aluminium
• * Lightweight yet strong aluminium piping
• * High pressure silicone couplers and T-bolt clamps
• 5. Turbo Oil returen /Feeding line kit
• * Stainless Steel Braided
• * Includes complete install kit
• * It helps circulate oil from the turbo charger to the oil pan.
• * The kit provides a anodized look
• * gives a best cooling performance on your turbo and long lasting life.
• 6.Blow Off Valve Kit
• * CNC Billet Aluminium Type RS Style Blow off Valve
• * Easy Mount Piping Set Included For Bolt-On.
• * Including all necessary hardwares.
• * easily adjustable to prevent both permature boost leakage and compressor surge.
• * Fast response One For Low And High Boost Pressure.
• * Performance design produces a powerful and aggressive sound
• * Quality design will not leak under high boost conditions
• * Flanges can be installed at user discretion
• 7. 38MM Wastegate
• * Most reliable wastegates For competition vehicles.
• * accurate boost control
• * high quality appearance features Dual port design
• * comes with waste gate spring (fully adjustable, up to 15 psi), allow you to add the spring to get desired high psi.
• 8. 5 Blot Turbo pipe
• * CNC machined surface
• * Fits all of our turbo kits that feature a turbocharger with a 5-bolt exhaust housing.
• 9. BOV pipe/Adapter
• * can install anywhere suitable
• 10.Turbo Boost Gauge
• * Red LED Illuminated Needles.
• * Comes with All the Wiring Necessary for Installation.
• * All Accessories are Included for Installation.
• * Accurately monitor boost pressures from the turbo system
• * Back lit for use at night time

Package included

• 1x Turbocharger
• 1x Oil Feed / Return Line
• 1x 35/38mm Wastegate
• 1x 5 Bolt Turbo pipe
• 1x Turbo Boost Gauge
• 1x Turbo Intercooler
• 1x Tubo Boost Controller
• 1x Type-S Blow Off Valve(Random Colour)
• 1x BOV Adapter/pipe
• 1x Turbo Piping Kit
• 1x Manual
• 1x Brochure
• 1x Sticker

Note

• Note 1：All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
• Note 2: Not For Sale or Use in Carlifornia, or New York(for all vehicles registered in these states)
