Universal T3/T4 T04E Turbocharger Kit for 1.5L-3.0L Engine w/ Intercooler BOV Wastegate

Compatible Vehicles

• Universal Turbo Kit Perfect For 1.5L-3.0L engine
• This Kit Will be able to add 350+HP at 7.5-14.5 PSI.
• (You will need Turbo Manifold, Modification and other accessories to complete the Turbo Kit Project)
• *Notice:Please confirm that your vehicle displacement is 1.5L-3L before purchasing. Otherwise, if you buy the wrong one, you will not be able to use it normally.

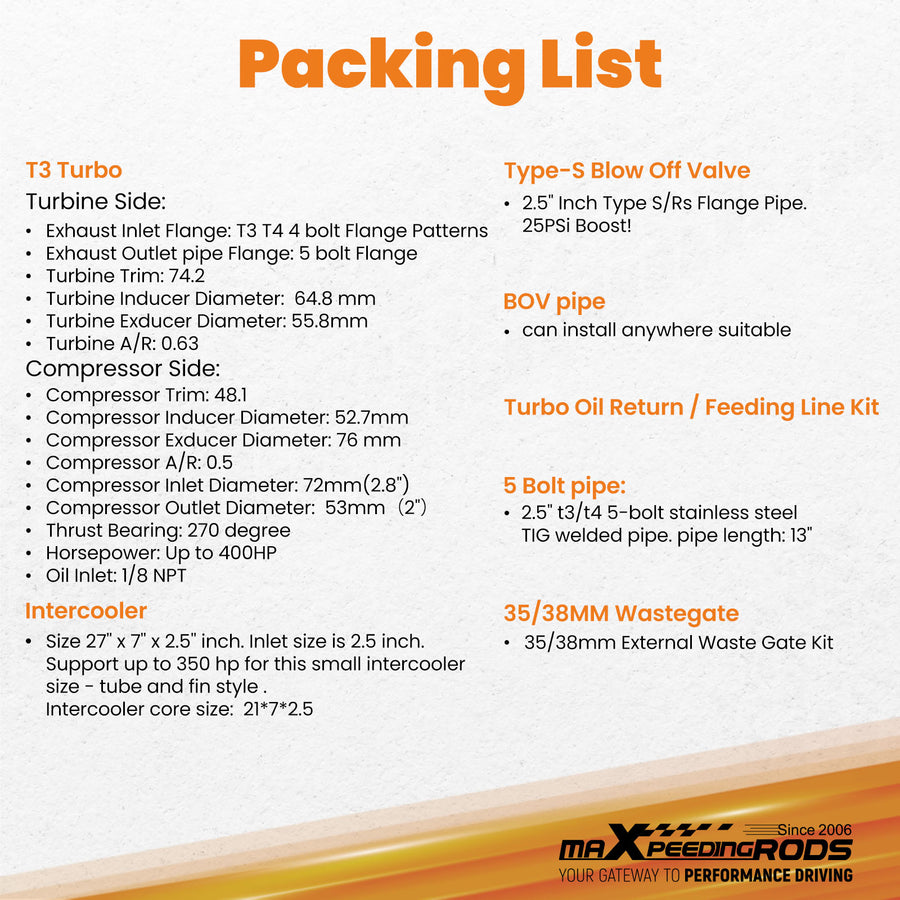

Specification

• Turbine Side:
• Exhaust Inlet Flange: T3 T4 4 bolt Flange Patterns
• Exhaust Outlet pipe Flange: 5 bolt Flange
• Turbine Trim: 74.2
• Turbine Inducer Diameter: 64.8 mm
• Turbine Exducer Diameter: 55.8mm
• Turbine A/R: 0.63
• Compressor Side:
• Compressor Trim: 48.1
• Compressor Inducer Diameter: 52.7mm
• Compressor Exducer Diameter: 76 mm
• Compressor A/R: 0.5
• Compressor Inlet Diameter: 72mm(2.8")
• Compressor Outlet Diameter: 53mm（2"）
• Bearing Type: Wet Float Bearing
• Cooling Type:Oil Cooling
• Thrust Bearing:270 degree
• Horsepower:Up to 400HP

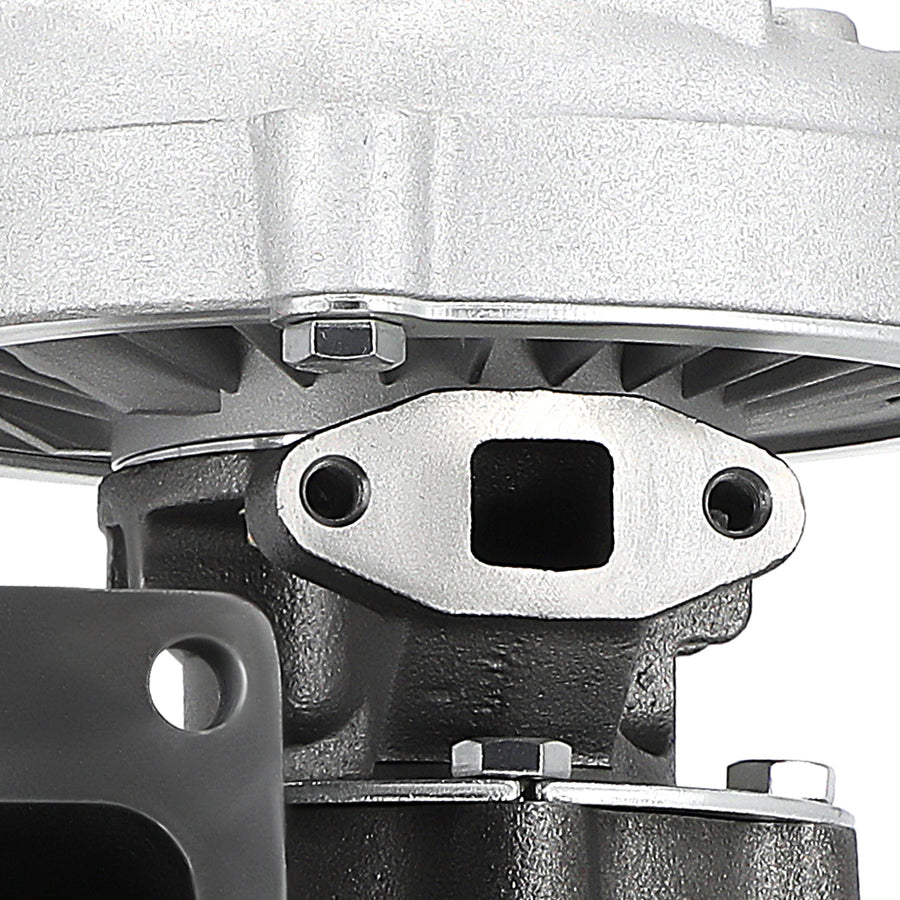

• Oil Inlet: M12*1.25& 2*M8*1.25
• Oil Outlet:2*M8*1.25
• Maximum Oil Pressure: 1.31 Bar
• Kit Spring Rate: 14.5 PSI
• Turbo Type:Individual
• Condition: 100% Brand New
• Accessories: You will get exactly as shown as picture above
• Other specification in the kit :
• *1 x Intercooler: Size 27'' x 7'' x 2.5'' inch. Inlet size is 2.5 inch.
• Support up to 350 hp for this small intercooler size - tube and fin style .
• Intercooler core size: 21*7*2.5
• *1 x Type-S Blow Off Valve: 2.5" Inch Type S/Rs Flange Pipe. 25PSi Boost!
• *1 x BOV pipe: can install anywhere suitable
• *1 x 35/38MM Wastegate: 35/38mm External Waste Gate Kit
• *1 x Turbo Oil Return / Feeding Line Kit: Turbo Oil Feed + Return Drain Line Kit Combo.
• *1x 5 Bolt pipe: 2.5" t3/t4 5-bolt stainless steel TIG welded pipe. pipe length: 13“
• Package Size:77x 41 x 32 cm
• Package Weight: 15950g

Feature

• 1.Turbo charger:
• *Turbine housing ：Ductile iron QT450-10 - temperature resistant up to 700℃
• *Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
• *Compressor housing：ZL104 aluminium with lightweight

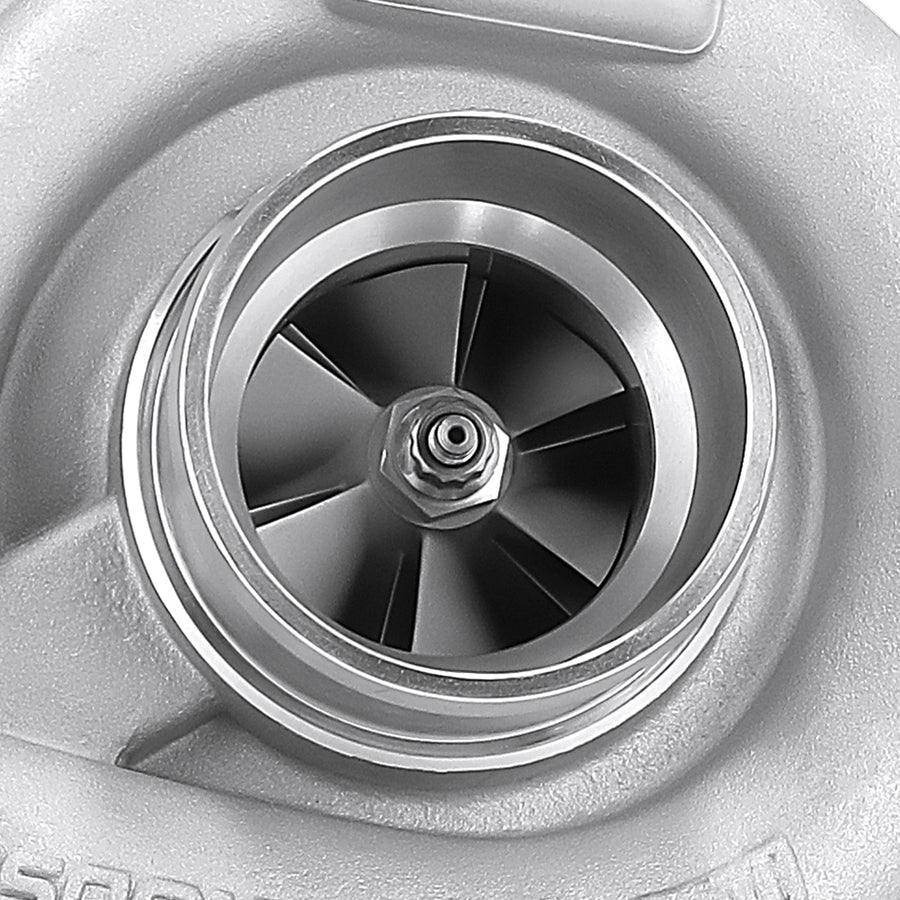

• *Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance
• *Product Performance
• Cost-effective turbo increase 20-40% power for your car
• Rich experience in turbo production and own factory
• High-Speed oil seal ring and Precision clearance
• Built for thermal stability and strength
• * Technology Advantage:
• 100% balancing Test by TURBOTECHNICS VSR3
• G3-min-Flow VNT Turbo testing
• Advanced Actuator Tester/Programmer
• 2. Intercooler
• * core size:21*7*2.5 cools down the turbocharged air efficiently
• * Lightweight aluminium racing intercooler，
• * Strong TIG welds will support high PSI levels
• 3. Turbo Oil returen /Feeding line kit
• * Stainless Steel Braided
• * Includes complete install kit
• * It helps circulate oil from the turbo charger to the oil pan.
• * The kit provides a anodized look
• * gives a best cooling on your turbo and long lasting life.
• 4.Blow Off Valve Kit
• * CNC Billet Aluminium Type RS Style Blow off Valve
• * Easy Mount Piping Set Included For Bolt-On.
• * Including all necessary hardwares.
• * easily adjustable to prevent both permature boost leakage and compressor surge.
• * Fast response One For Low And High Boost Pressure.
• * Performance design produces a powerful and aggressive sound
• * Quality design will not leak under high boost conditions
• * Flanges can be installed at user discretion
• 5. 38MM Wastegate
• * Most reliable wastegates For competition vehicles.
• * accurate boost control
• * high quality appearance features Dual port design
• * comes with waste gate spring (fully adjustable, up to 15 psi), allow you to add the spring to get desired high psi.
• 6. BOV pipe/Adapter
• * can install anywhere suitable

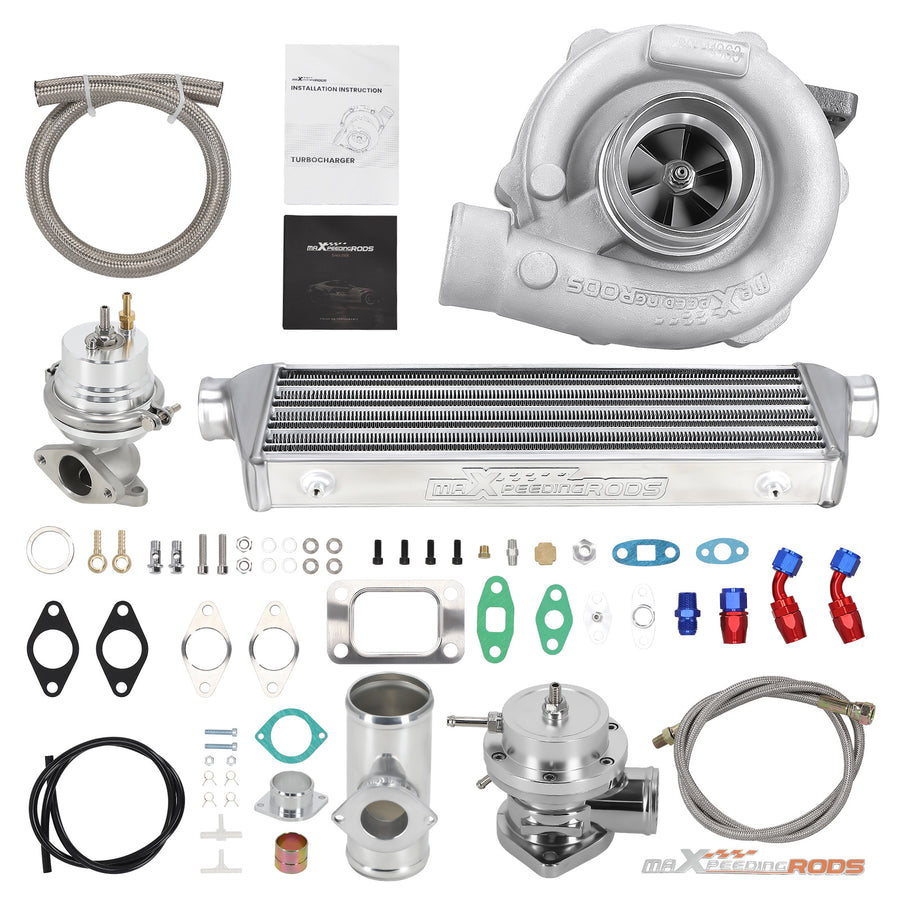

Package included

• 1x Turbocharger
• 1x Oil Feed / Return Line
• 1x 35/38mm Wastegate
• 1x Turbo Intercooler
• 1x Type-S Blow Off Valve(Random Colour)
• 1x BOV Adapter/pipe
• 1x Manual
• 1x Brochure
• 1x Sticker

Note

• Note 1：All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
• Note 2: Not For Sale or Use in Carlifornia, or New York(for all vehicles registered in these states)
