Compatible Vehicles
- Universal for Car Pickup Truck offroad UTV ATV Boat
Specification
- Button quantity：12 Gang
- Button type：Touch
- Control Modes：4 types，Toggle (Red Light), Momentary (Blue Light), slow Strobe (Purple Light), and Fast strobe (Green Light).
- Backlight colour:RGB
- Backlight adjustment：automatic
- Max current：80A
- Rated power：960W/12A,1920W/24V
- Voltage:12-24V
- Housing Material：aluminium
- Housing colour：black
- panel mounting bracket：2 ways
- control box mounting bracket：2 ways
- mounting bracket Material：carbon steel

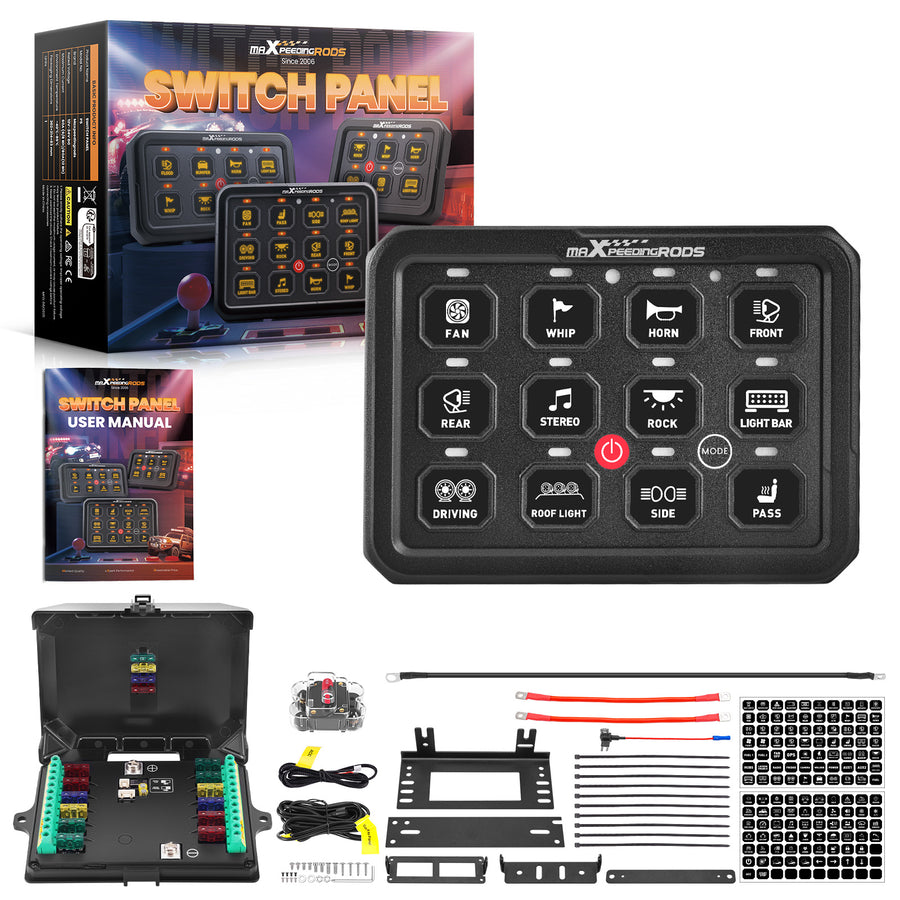

- Pckage include：1*switch panel，1*switch control box，1* Breaker，4*Spare fuse，2*panel mounting bracket，2*control box mounting bracket，10*Zip Tie，1*Installation Instruction，2*70pcs Stickers，1*set of wiring harness，1* set of mounting accessories
Feature
- *4 Control Modes with Colour Indicators - Master different devices with ease using the 4 distinct control modes, each with a corresponding colour indicator: Toggle (Red Light), Momentary (Blue Light), slow Strobe(Purple Light), and fast strobe (Green Light). At the same time, the buttons have a memory function.
- *Maxpeedingroads 12 gang RGB switch panel has 8 backlight colours and 3 effects (gradient, jumping, breathing)，which can be freely selected according to your needs.It has automatic dimmable feature. When in a tunnel or dark place, the panel will dim to reduce the impact on the driver's vision. When on the road or in bright places, it will be brighter to make it easier for the driver to control. Of course, you can also close it at any time.
- *The control box switch provides two power supply methods: connecting ACC or battery through the switch. The power supply mode can be selected by turning the power switch, without the need for wire connection again.
- *Using high-quality aluminium and ABS heat-resistant materials, it has good heat resistance, corrosion resistance, and good heat dissipation. The metal material button can be pressed up to 200000 times or more. At the same time, it is equipped with dual overload protection and Positive and negative pole connection error protection, making it safe, reliable, sturdy and durable.
- *Customise your own panel, with 140 switch panel stickers, you can customise your unique personal switch panel according to certain needs.
- *It allows you to add integrated professional controls for the electronic devices needed in any vehicle, making the wiring inside the car neat and orderly. For example, installed on trucks, pickups UTV、 On vehicles such as sedans, ships, ATVs, UTVs, and RVs.
Note
*This kit has everything you need for installation and use. No need to buy extra parts.
