Universal for Turbo Manifold with T3 Flange. Perfect for all 2.0L-3.0L engines

Compatible Vehicles

• Universal for Turbo Manifold with T3 Flange. Perfect for all 2.0L-3.0L engines.
• *Notice:DO NOT for 3 INCH VBAND.The vband size of this turbo is 2.5 inch.Please confirm the size before purchasing.

Specification

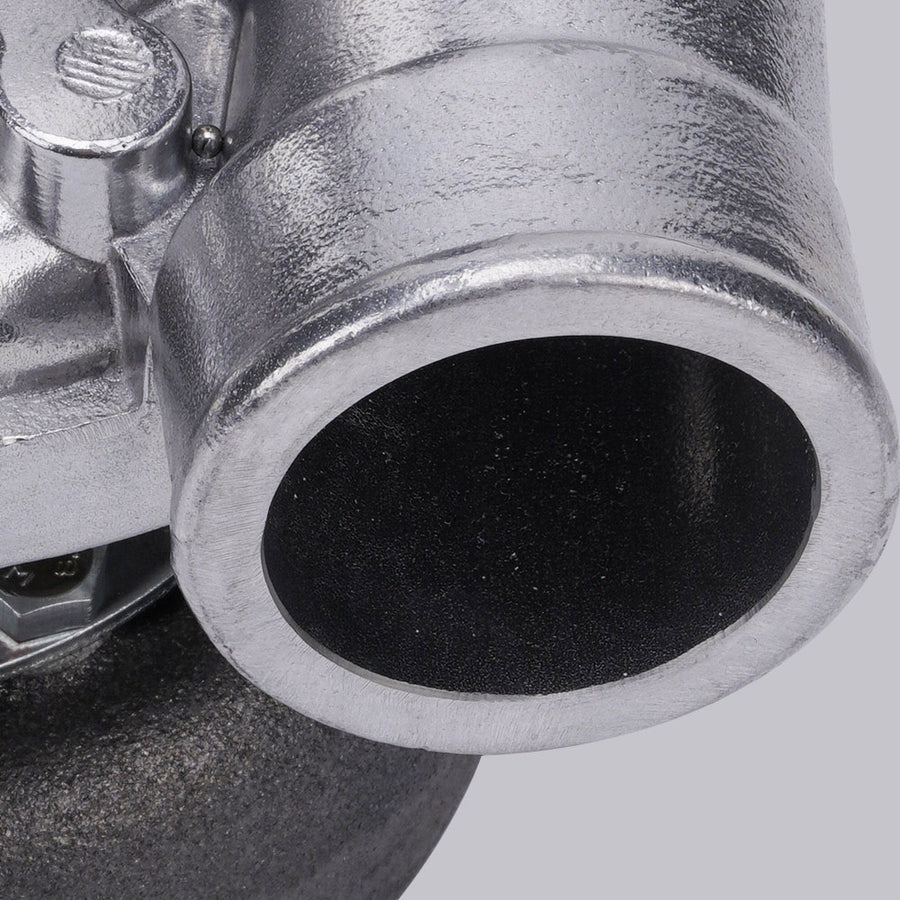

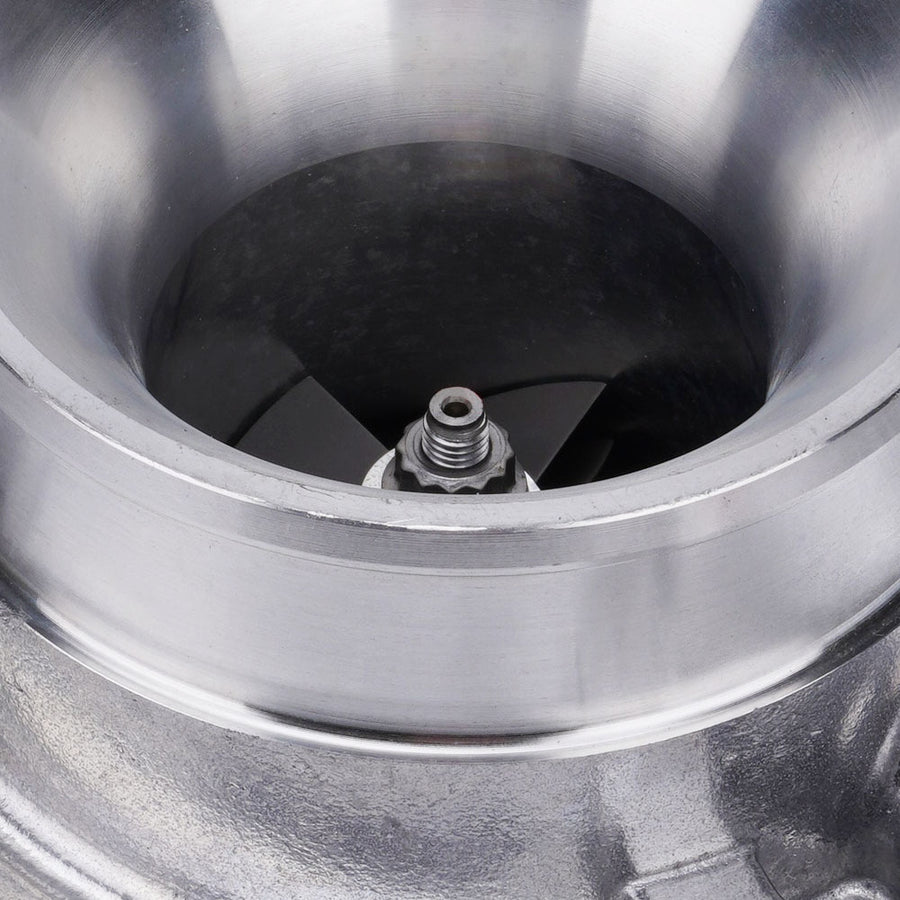

• Compressor Size:
• * Trim: 57
• * Inducer Diameter: 56.6 mm
• * Exducer Diameter: 75 mm
• * A/R: 0.82
• Turbine Size:

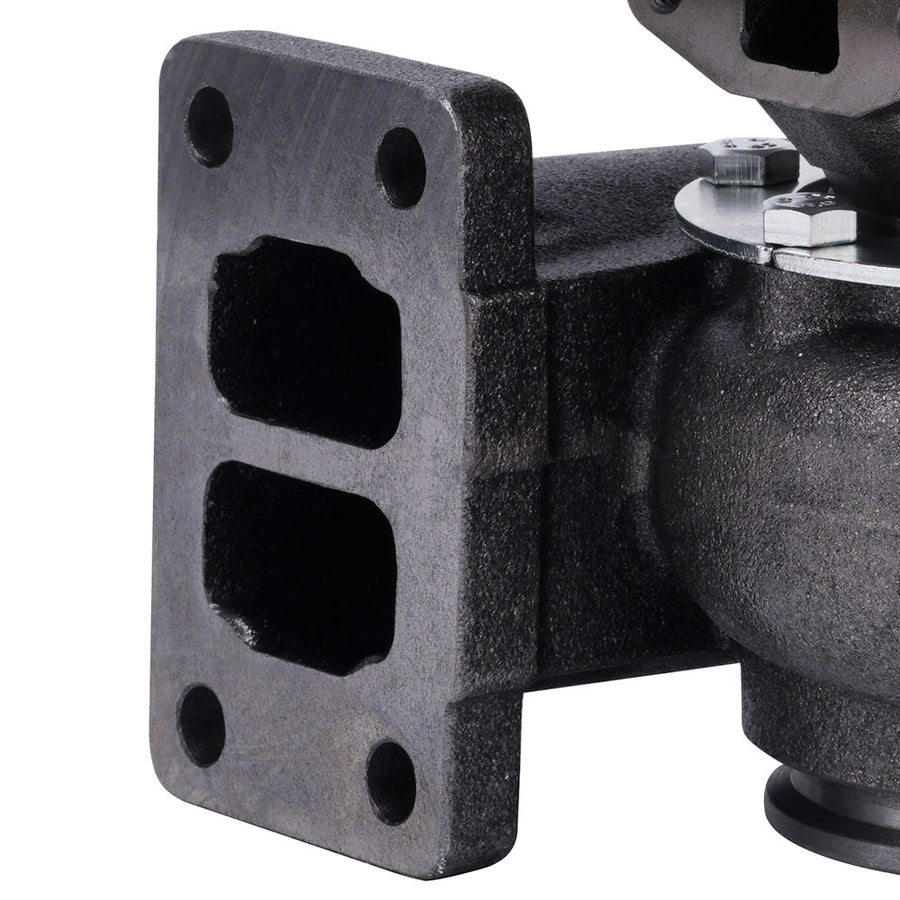

• * Exhaust Inlet Flange: T3 Twin Scroll Flange
• * Exhaust Outlet Flange: 2.5" V Band Flange
• *Turbine exhaust outlet : 79.8 mm(OD) / 63 mm（ID）
• * Trim: 61.6
• * Inducer Diameter: 74.4 mm
• * Exducer Diameter: 58.4 mm
• * A/R: 0.7

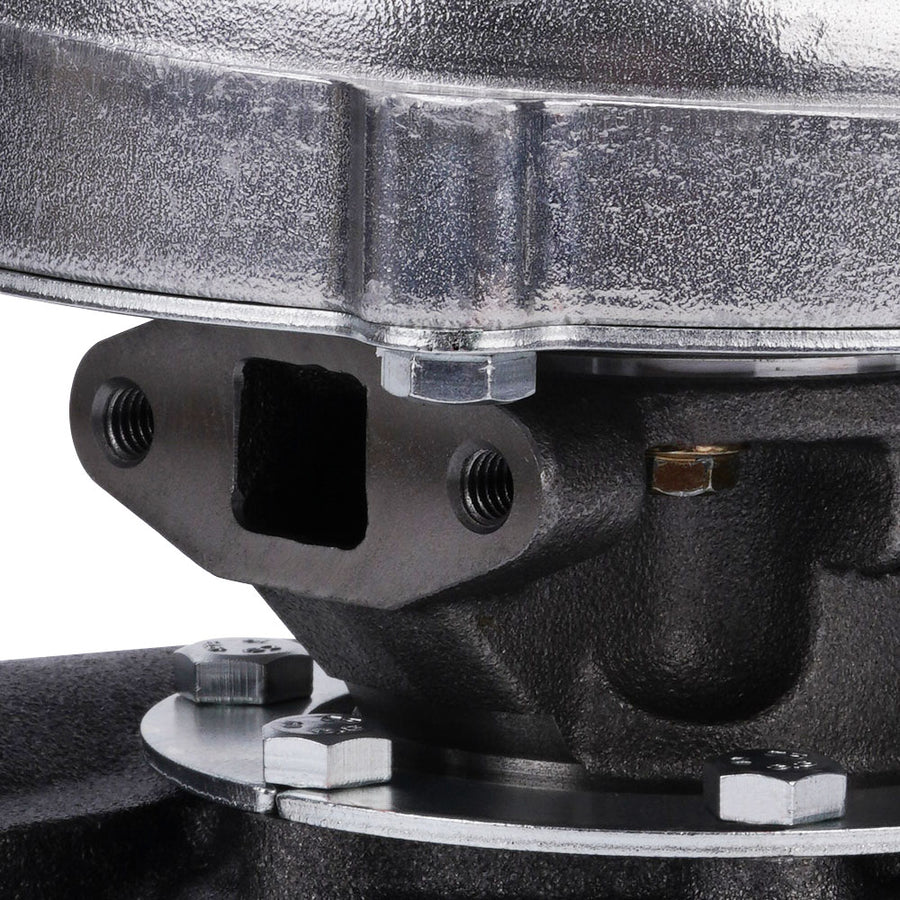

• Oil Inlet: M12*1.25 & 2*M8*1.25
• Oil Outlet: 2*M8*1.25
• Cooling Type:  Oil Cooled
• Horse Power:  up to 500HP
• Wastegate：Without Wastegate
• Bearing Type:  Floating Bearing
• Thrust bearing: 270 Degrees
• Turbo Type:Twin-Scroll
• Universal Fitment: Yes
• Finish: Polished
• Condition: 100% Brand New
• Accessories: You will get exactly as shown in the picture above
• Package Size: 25*24*23cm
• Package Weight: 9560g

Feature

• *Product Material
• 1. Turbine housing ：Ductile iron QT450-10 - temperature resistant up to 700℃
• 2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
• 3. Compressor housing：ZL104 aluminium with lightweight
• 4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance
• *Product Performance
• 1. Cost-effective turbo increase 20-40% power for your car
• 2. Rich experience in turbo production and own factory
• 3. High-Speed oil seal ring and Precision clearance
• 4. Built for thermal stability and strength
• * Technology Advantage:
• 1. 100% balancing Test by TURBOTECHNICS VSR3
• 2. G3-min-Flow VNT Turbo testing
• 3. Advanced Actuator Tester/Programmer

Package included

• 1xTurbocharger
• 1xFlange gaskets
• 2xOil port gaskets
• 1xBolts
• 1xManual
• 1xBrochure
• 1xSticker

Note

• Note 1：All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
• Note 2: Not For Sale or Use in Carlifornia, or New York(for all vehicles registered in these states)
