Compatible for Isuzu Engine: 4BD1-T, 4BD1-PTH, 4BD1-PTV, 6SD1T, 6SD1-T
For JCB Construction JS110, JS130 Offway with 6SD1T, 4BD1-PTH Engine
compatible for Isuzu, JCB Earth Moving with 4BD1-T Engine
compatible for Isuzu Offway With 4BD1-T Engine
compatible for Isuzu Excavator, Construction with 4BD1-PTV Engine
compatible for Isuzu Construction, Hitachi Offway with 6SD1T Engine
For Hitachi EX120-1, EX150 Offway With 4BD1-PTH Engine
Specification

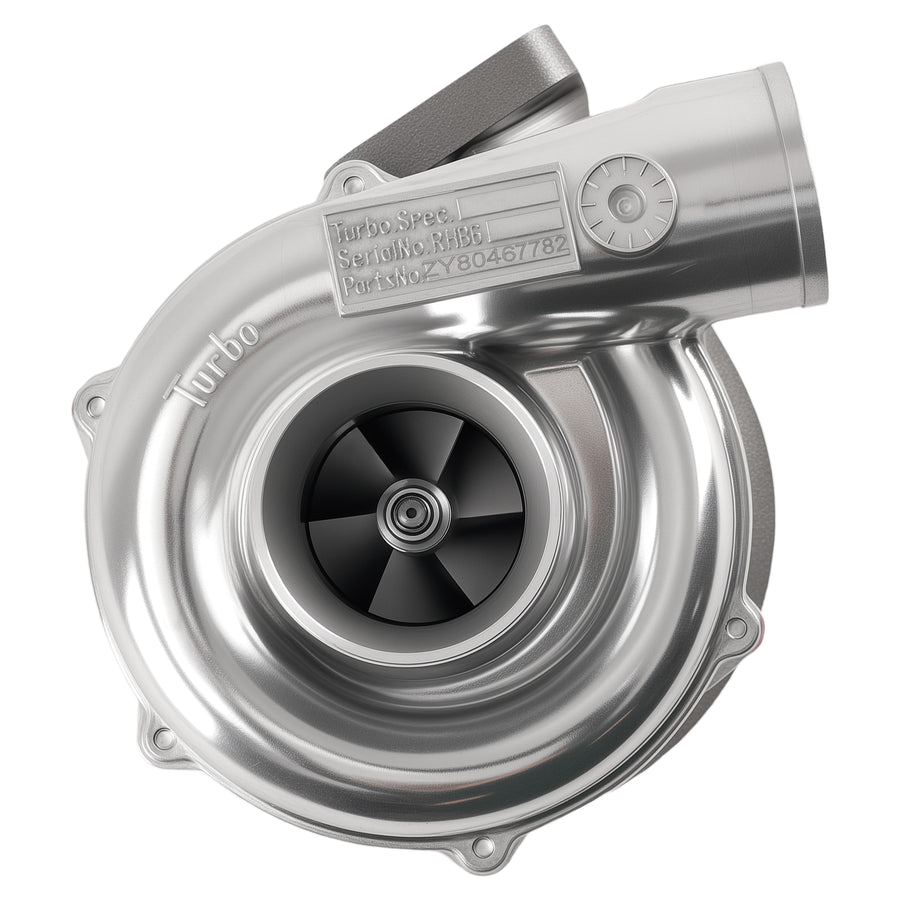

Turbo Model: RHB6A-65003P16NFBRL376B
Engine Code: 4BD1-T, 4BD1-PTH
Cooling Type: Oil Cooling
Features: Individual
Bearing Type: Journal Bearing/Floating Bearing
Finish: Matte
Condition: 100% Brand New

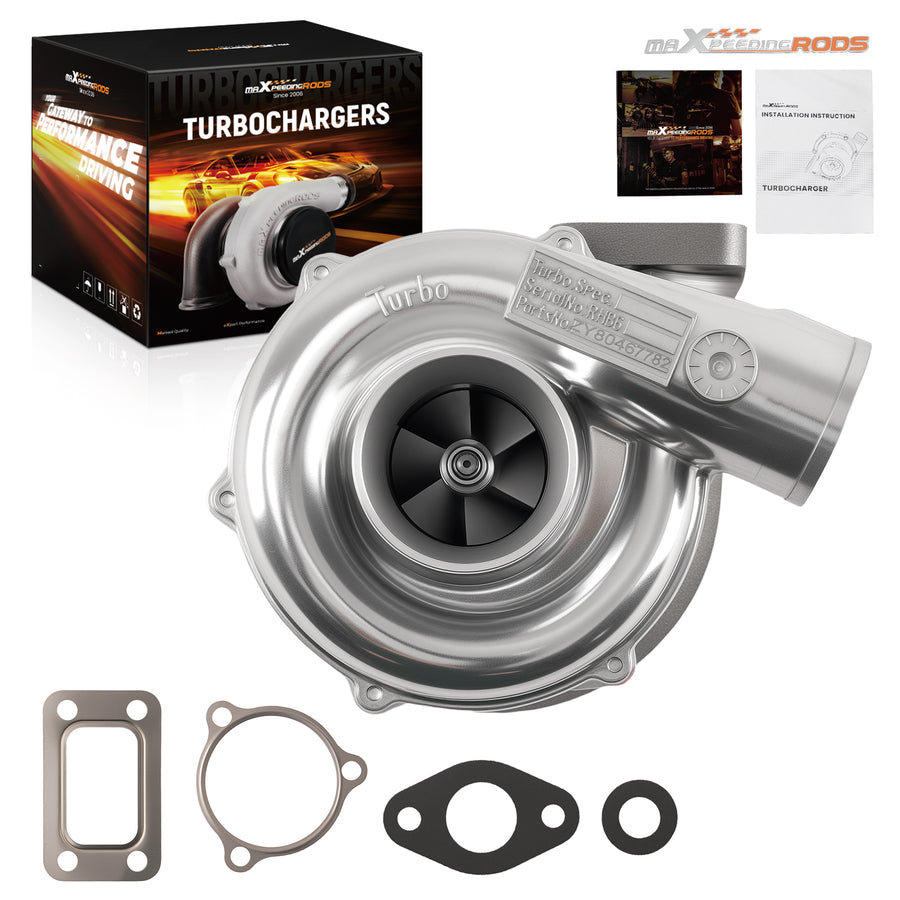

Accessories: You will get what you can see in the pictures exactly
Feature
* Product Material

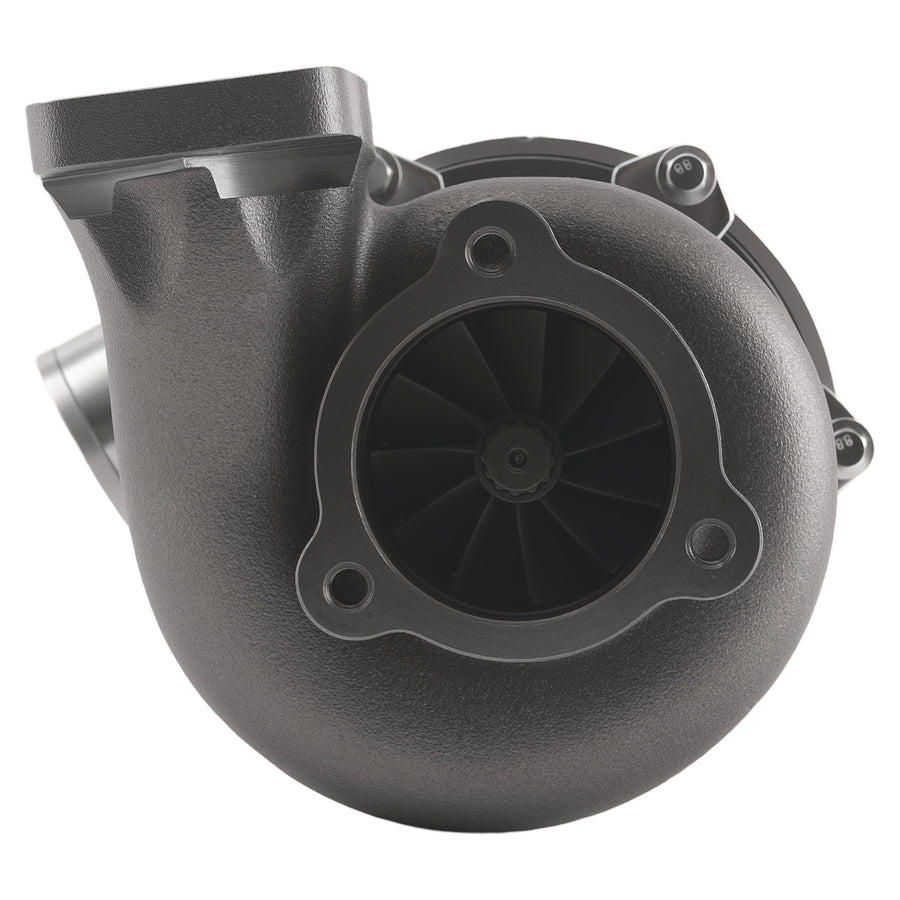

1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminium with lightweight
4. Compressor wheel：Cast aluminium blades – superior air tightness & corrosion resistance
* Product
1. OEM size can be directly replaced
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
Note
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analysed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
* Please confirm your original turbo PART NUMBER before Purchasing.
* Professional installation is highly recommended,
* Before installation, please check the oil supply sufficient, clearnliness the air filter and gasoline , and the gasoline air tightness.
