Turbo Turbocharger For Motorcycle ATV Bike Small Engine 100-225+ HP Universal

Compatible Vehicles

• 2-4 Cylinders Small Engine GT15 T15

Specification

• Cooling Type: Oil Cooling
• Bearing Type: Floating Bearing

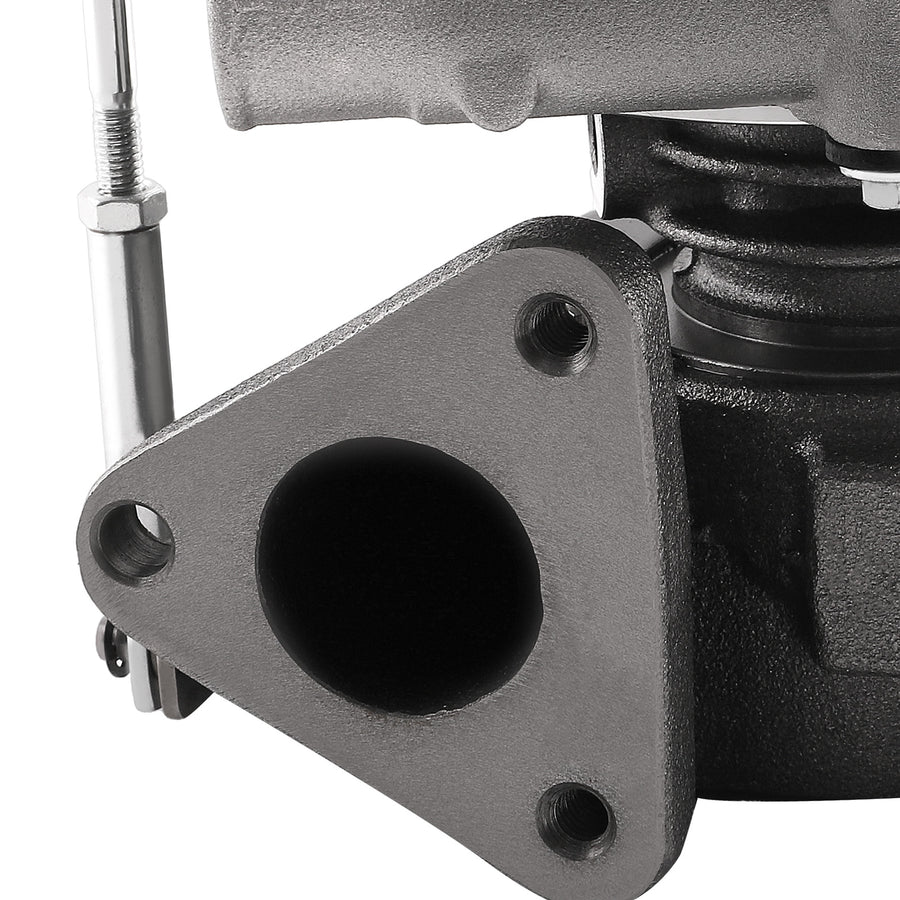

• Exhaust Inlet Flange: 3 bolt flange
• Exhaust Outlet Flange: 4 bolt flange
• HP:100-225+ WHP
• Turbine:
• Turbine Inducer Diameter: 41.35mm
• Turbine Exducer Diameter: 34.95mm
• Compressor:
• Compressor A/R: .42
• Compressor Inducer Diameter:49mm
• Compressor Exducer Diameter:36.4mm
• Turbo Type: Individual
• Universal Fitment: Yes
• Finish: Matte
• Condition: 100% Brand New
• Accessories: You will get exactly as shown as picture above
• Package Size:24x 22 x 25.5 cm
• Package Weight: 4620g

Feature

• *Product Material
• 1. Turbine housing ：Ductile iron QT450-10 - temperature resistant up to 700℃
• 2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
• 3. Compressor housing：ZL104 aluminium with lightweight
• 4. Compressor wheel/blades：Cast aluminium blades – superior air tightness & corrosion resistance
• 1. Cost-effective turbo increase 20-40% power for your car
• 2. Rich experience in turbo production and own factory
• 3. High-Speed oil seal ring and Precision clearance
• 4. Built for thermal stability and strength
• * Technology Advantage:
• 1. 100% balancing Test by TURBOTECHNICS VSR3
• 2. G3-min-Flow VNT Turbo testing
• 3. Advanced Actuator Tester/Programmer

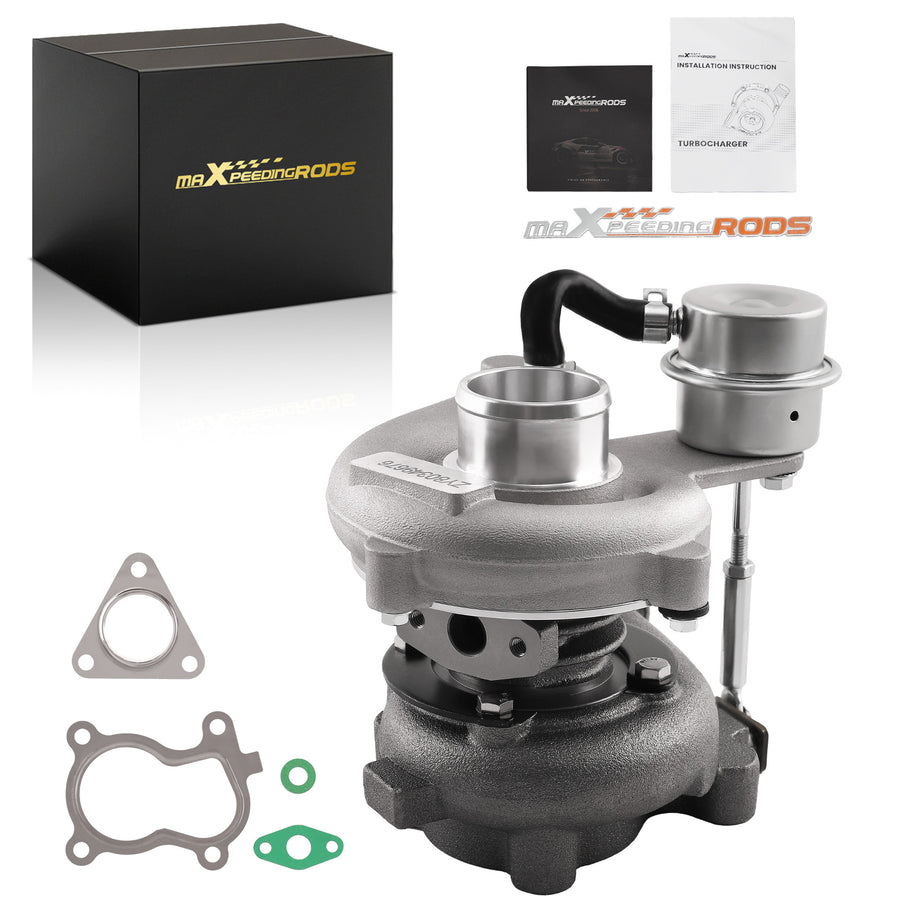

Package included

• 1x Turbocharger
• 2x Oil Gaskets
• 2x Flange Gaskets
• 1x Manual
• 1x Brochure
• 1x Sticker

Note

• Note 1：All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
• Note 2: Not For Sale or Use in Carlifornia, or New York(for all vehicles registered in these states)

OE/Part number

452213-0001,452098-0004
