Turbo T04e Turbocharger Blow Off Valve BOV KIT for 1.5L-2.5L4 / 6 CYL

Compatible Vehicles

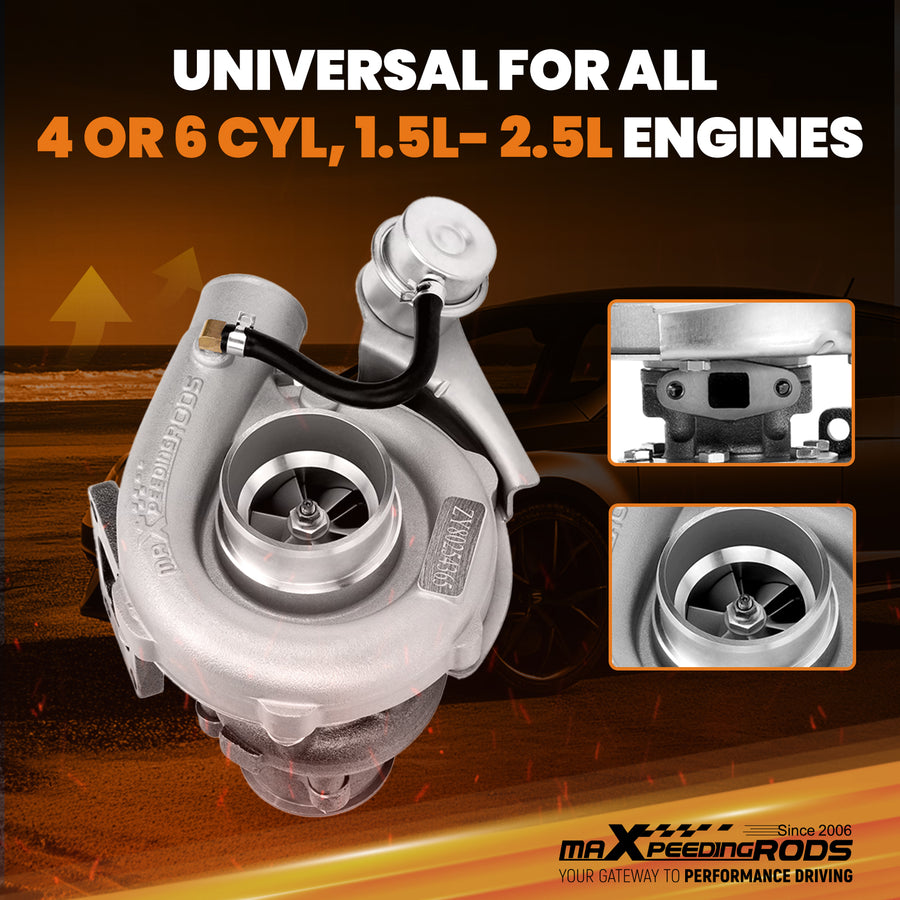

• Perfect for all 4 or 6 CYL, 1.5L-2.5L Engines

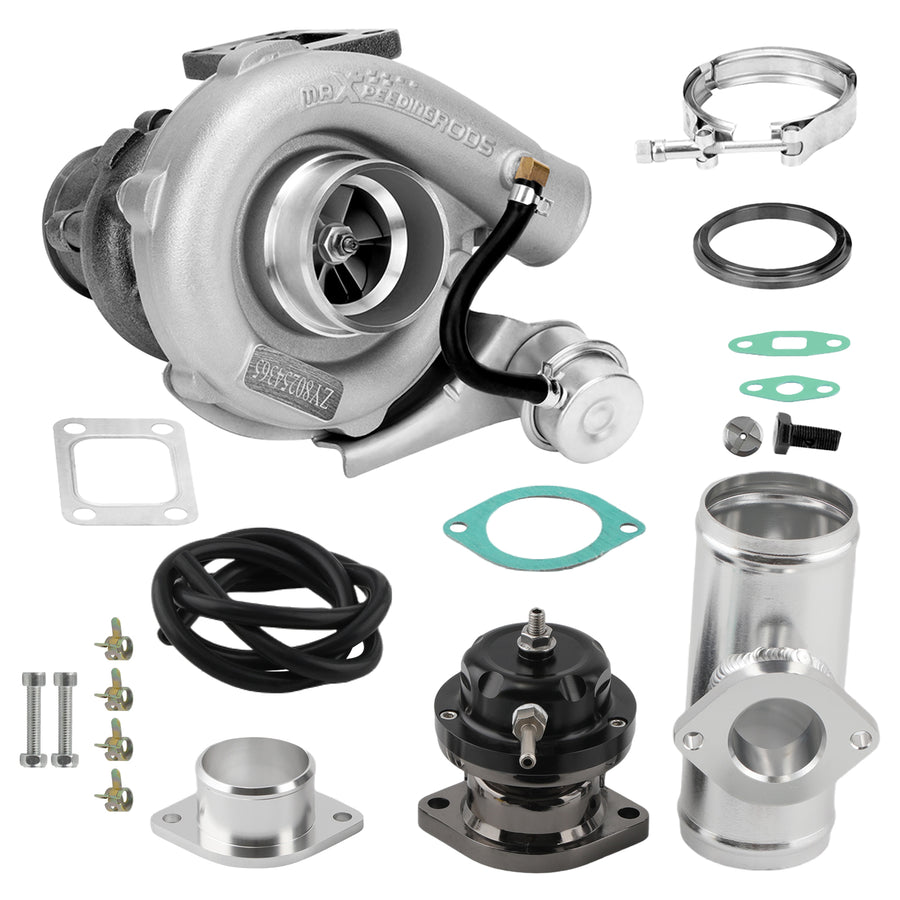

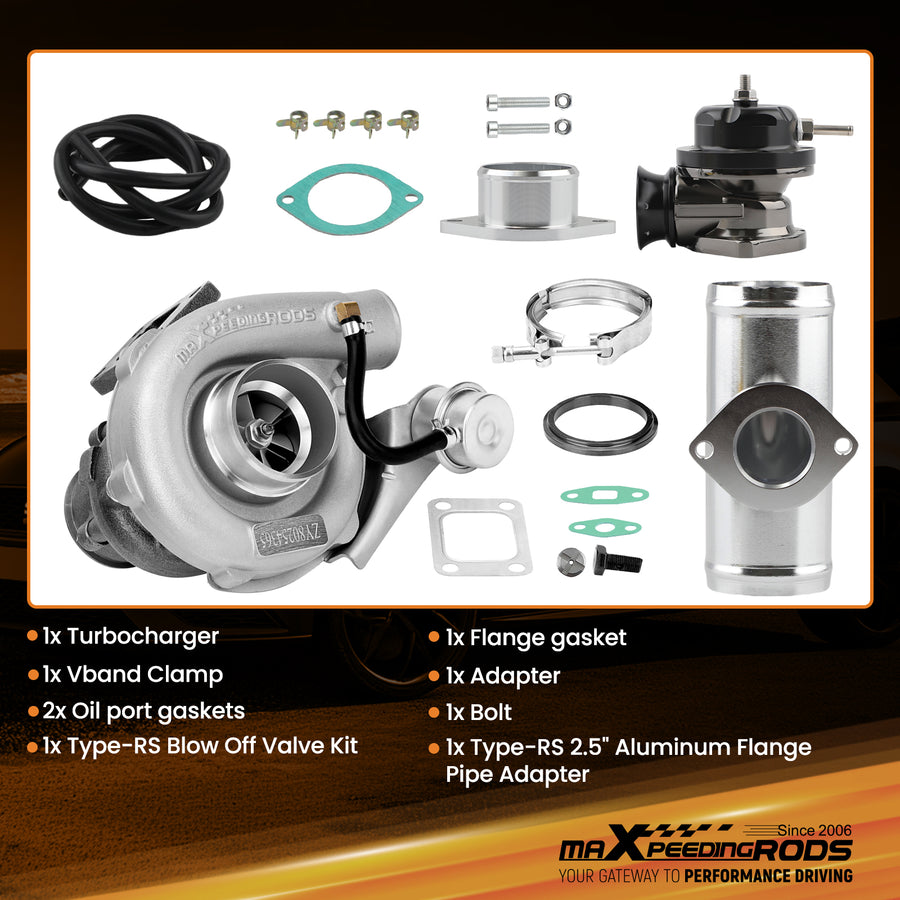

Package Includes

• 1xT3 T04E V-band Turbocharger
• 1x Type-RS Blow Off Valve Kit
• 1x Type-RS 2.5" Aluminium Flange Pipe Adapter
• (You will get exactly as shown in the picture above)

Exhaust Inlet Flange

• T3 4 bolt Flange Patterns
• Exhaust Outlet  Flange: V-Band Flange (ID/OD: 2.5"/3.1")

Turbine Trim

74.2

Turbine A/R

0.63

Turbine Inducer

64.8mm

Turbine Exducer

55.8mm

Turbine exhaust outlet

79mm

Turbine exhaust inlet

44.7mm (length) / 85.8mm (width)

Compressor Trim

48.1

Compressor A/R

0.5

Compressor Inducer

52.7mm

Compressor Exducer

76mm

Compressor outlet

78 mm

Compressor inlet

51.5 mm

Oil Inlet

M12*1.25 & 2*M8*1.25

Oil Outlet

2*M8*1.25

Bearing

Journal Bearing

Cooling Type

Oil Cooled

Wastegate

W/ Wastegate

Thrust Bearings

270 Degrees

Horsepower

• Up to 420 HP
• 2. About Blow Off Valve:

Blow Off Valve

• Holds Up to 30PSI Boost Pressure
• Easy Assembly,Aluminium Flange, CNC Machined Billet Aluminium Body
• Dual Spring System Promoted Response & Allows for High Boost Pressures
• Hard-Anodized Valve for Increased Air Flow
• Powder-Coated Anodized and Polished Finish
• 2 Bolts Mounting Design

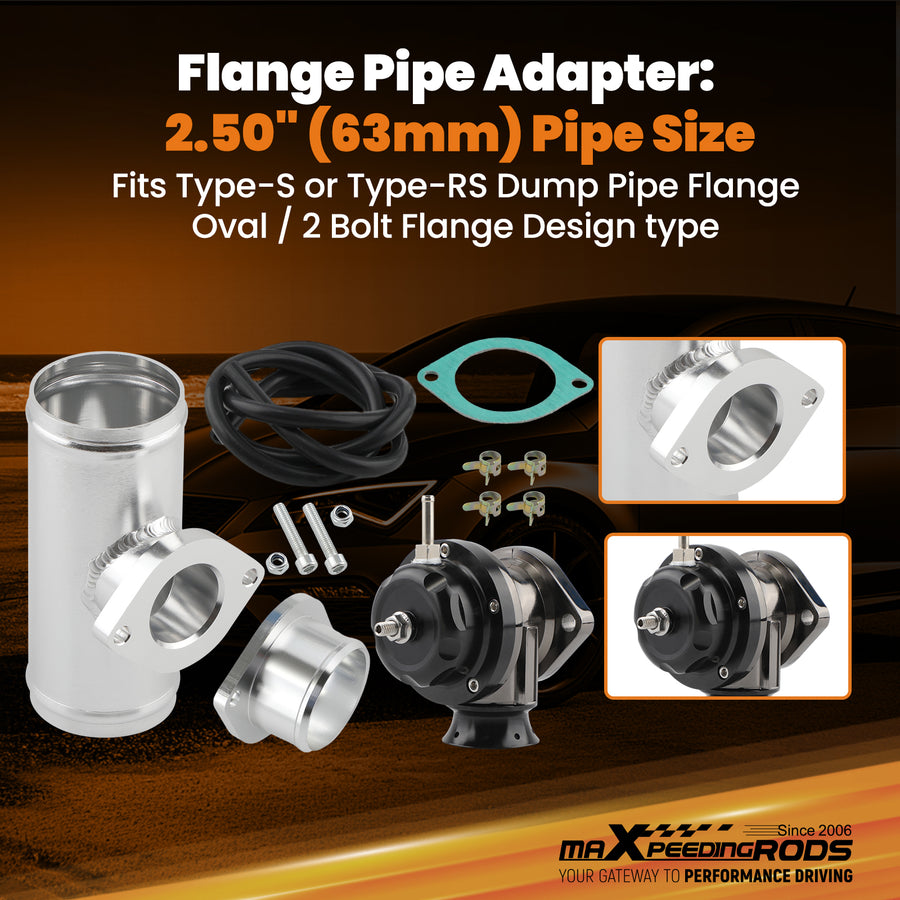

Flange Pipe Adapter

• 2.50" (63mm) Pipe Size
• Fits Type-S or Type-RS Dump Pipe Flange
• Oval / 2 Bolt Flange Design type

NOTE

• * Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
• * Make sure the oil drain line is lower than the turbo itself.
• * Ensure exhaust outlet are well sealed by welding
• * The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
• * This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
• * Before installing the new turbocharger, the cause that led to the failure of the turbo must be analysed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
• Notice
• All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
