Compatible Vehicles
- For International Highway Truck Bus Navistar DT466 7.6L Engine 1993-2006
Note
- 1. professional install is highly recommend
- 2. The turbo is not a model with internal wastegate
- <div
Horsepower
Up to 275hp
Turbo Model
GTA3776B, GTA3782B
Fit Engine Type
DT466, DT466E, DT408P, DT466P, I530E
Turbine Inducer
72.72 mm
Turbine Exducer
64.06 mm
Turbine Weehl
10 Blades
Compressor Trim
52
Inducer
59.2 mm
Exducer
82.04 mm
Wheel
6+6 Blades
Fuel
Diesel
Cooling
- Oil cold
- Replace & Part Number:
- 2506765C91, 1825632RX1, 1826344C93, 1826344C91, 1826344092
- 1825632C93, 1825632091, 1806077C91, 1806078C91, 1806079C91
- 4097700019, 409770-0019, 4097700020, 409770-0020, 4097700021
- 409770-0021, 4097700022, 409770-0022, 4097705019, 409770-5019
- 4097705020, 409770-5020, 4097705021, 409770-5021, 4097705022
- 409770-5022, 4097709019, 409770-9019, 4097709020, 409770-9020
- 4097709021, 409770-9021, 4097709022, 409770-9022, 4307268R91
- 684663C92, 684937C91, 691020C91, 691059C91, 691409C91, 691409C92
- 735095C91, 735270C91, 991522C91, 991523C91, 991524C91, A184787
- 751400-0001, 751400-5001S, 466803-0003, 466803-5003, 466803-5003S
- 466803-0008, 466803-5008, 466803-5008S, 466803-0012, 466803-5012
- 466803-5012S, 471097-0003, 471097-5003, 471097-5003S, 471097-0008
- 471097-5008, 471097-5008S, 471097-0010, 471097-5010, 471097-5010S
- 715134-0005, 715134-5005, 715134-5005S, 751363-0001, 751363-5001
- 1825632092, 1826344RX1, 1836093C92, 2506782C91
- 751363-5001S, 684663C91, DT466, DT466E, DT466P
Package includes

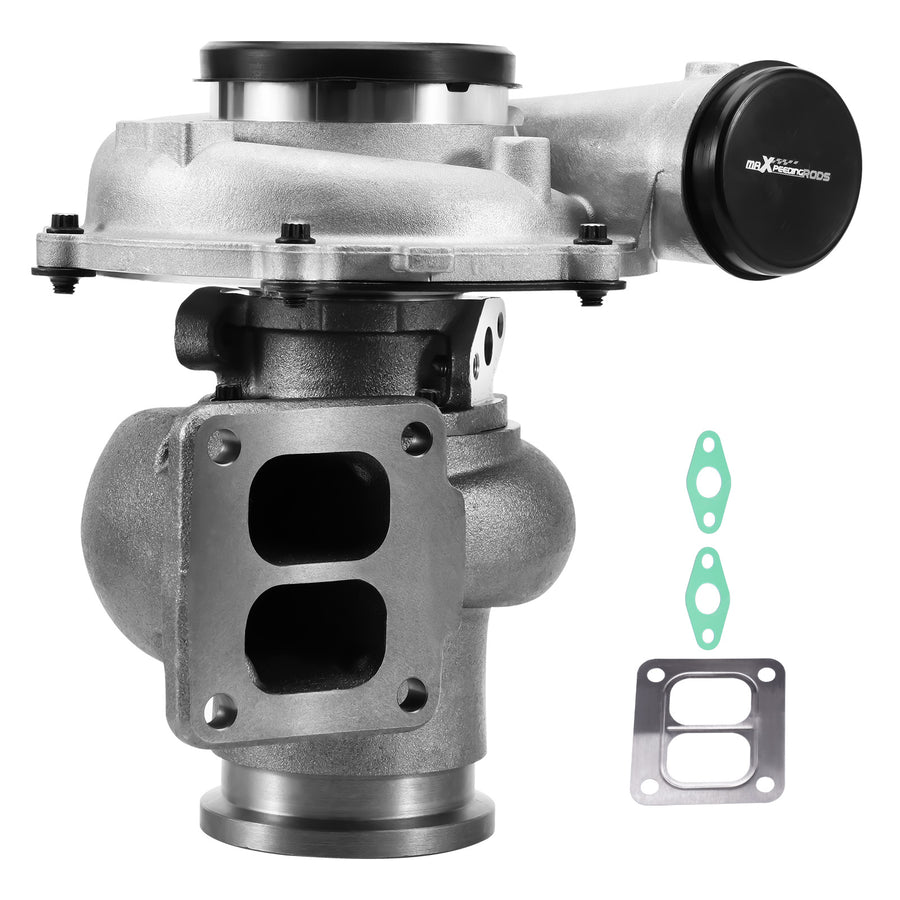

1x DT466 Turbocharger
Warranty
One year with any manufacture defective
