Compatible Vehicles

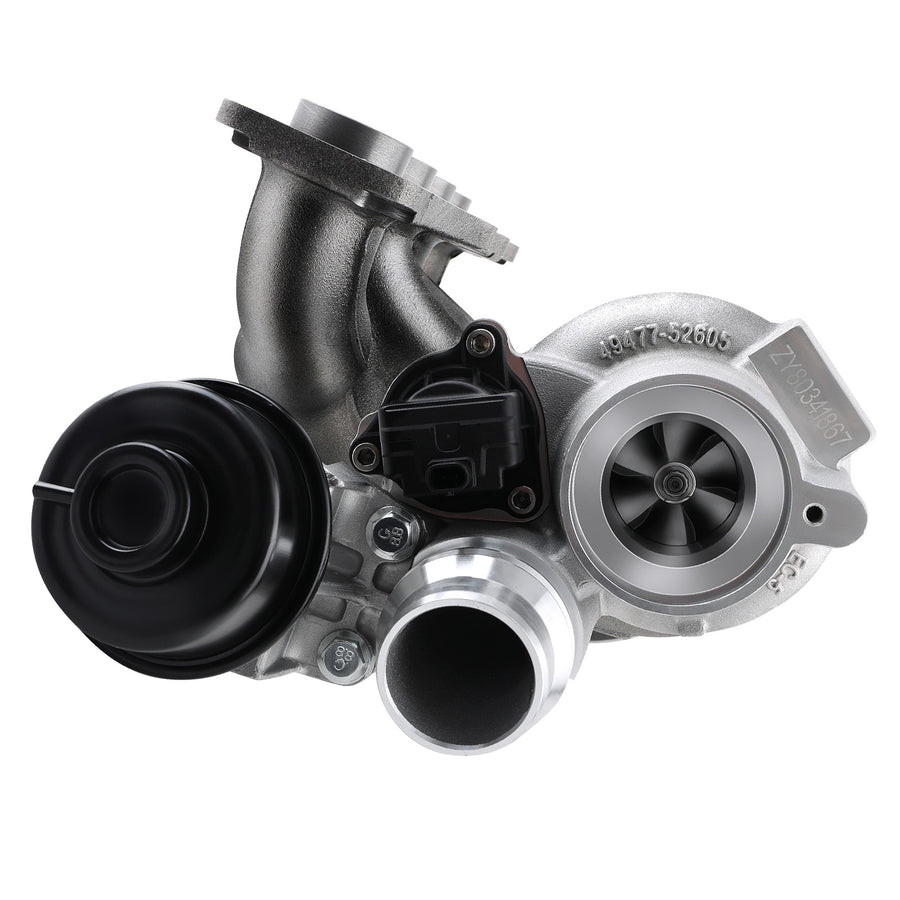

- BMW X1 X3 Z4 320i 328i 520i 528i xDrive 2.0L N20B20 TD04 Turbocharger
Features
- * Product Material
- 1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
- 2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
- 3. Compressor housing: ZL104 aluminium with lightweight

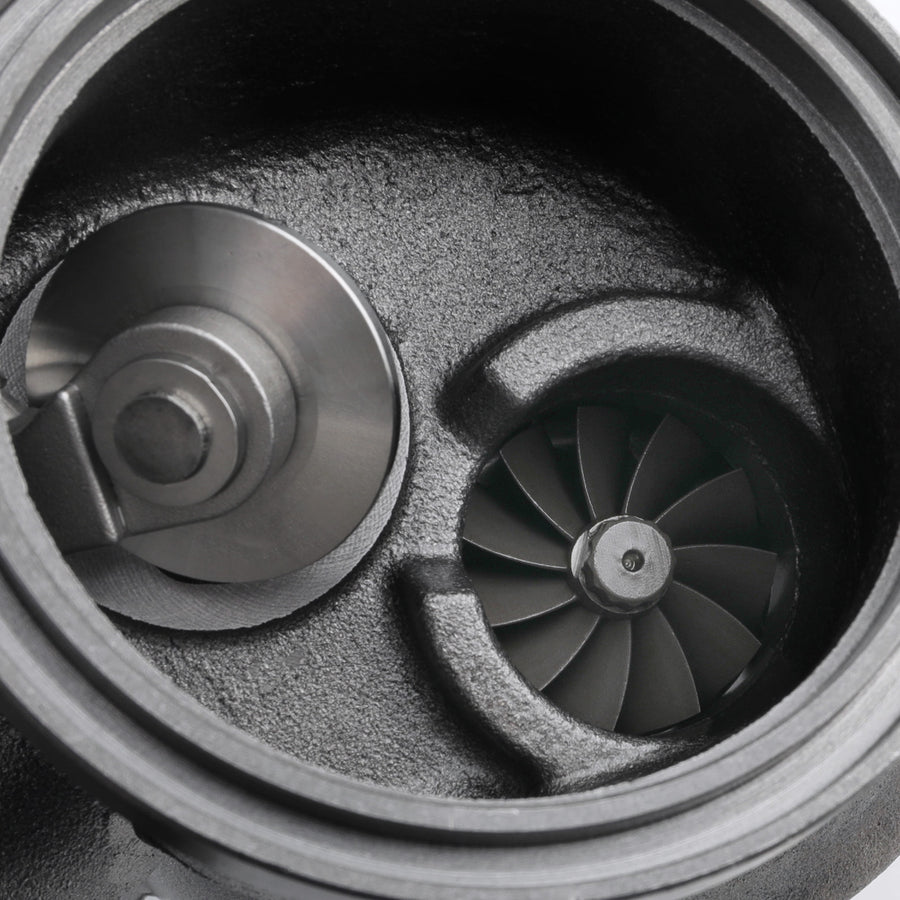

- 4. Compressor wheel: Cast aluminium blades – superior air tightness & corrosion resistance
- * Product Features
- 1. OEM-quality and size with little modification
- 2. Rich experience in turbo production and own factory
- 3. High-Speed oil seal ring and Precision clearance
- * Technology Advantage:
- 1. 100% balancing Test by TURBOTECHNICS VSR3
- 2. G3-min-Flow VNT Turbo testing
- 3. Advanced Actuator Tester/Programmer
Note
- * Please confirm your original turbo PART NUMBER before Purchasing
- * Professional installation is highly recommended
- * Before installation, please check the oil supply sufficient, clearnliness the air filter and gasoline , and the gasoline air tightness.
- <div
Condition
- 100% Brand New
- Accessories: You will get what you can see in the pictures exactly
Applications
- Compatible for BMW 320i (F30, F35, F80) with N20B20 Engine 2012-
- Compatible for BMW 320i xDrive (F30, F35, F80) with N20B20 Engine 2012-
- Compatible for BMW 328i (F30, F35, F80) with N20B20 Engine 2012-
- Compatible for BMW 328i xDrive (F30, F35, F80) with N20B20 Engine 2011-
- Compatible for BMW 328i Touring (F31) with N20B20 Engine 2012-
- Compatible for BMW 520i (F10, F18) with N20B20 Engine 2011-
- Compatible for BMW 528i (F10, F18) with N20B20 Engine 2011-
- Compatible for BMW 528i xDrive (F10, F18) with N20B20 Engine 2011-
- Compatible for BMW 520i Touring (F11) with N20B20 Engine 2011-
- Compatible for BMW 528i Touring (F11) with N20B20 Engine 2011-
- Compatible for BMW 528i xDrive Touring (F11) with N20B20 Engine 2011-
- Compatible for BMW X1 sDrive 20i (E84) with N20B20 Engine 2011-
- Compatible for BMW X1 xDrive 20i (E84) with N20B20 Engine 2011-
- Compatible for BMW X1 xDrive 28i (E84) with N20B20 Engine 2011-
- Compatible for BMW X3 xDrive 20i (F25) N20B20 Engine 2011-
- Compatible for BMW X3 xDrive 28i (F25) with N20B20 Engine 2011-
- Compatible for BMW Z4 sDrive 20i (E89) with N20B20 Engine 2011-
- Compatible for BMW Z4 sDrive 28i (E89) with N20B20 Engine 2011-
- Compatible for Peugeot 508 2.2L, HDi FAP 205 with DW12C Engine 2011+
- Replacement & Part Number:
- 49477-02001, 49477-02002, 49477-02003, 49477-02004, 49477-02005,
- 49477-02006, 49477-02007, 49477-02008, 49477-02051, 49477-02052,
- 49477-02053, 49477-02054, 49477-02055, 49477-02056, 49477-02057,
- 49477-02058, 11657588938, 11657635803, 7635803, 7588938
- 4947702001, 4947702002, 4947702003, 4947702004, 4947702005,
- 4947702006, 4947702007, 4947702008, 4947702051, 4947702052,
- 4947702053, 4947702054, 4947702055, 4947702056, 4947702057,
- 4947702058, 49477 02001, 49477 02002, 49477 02003, 49477 02004,
- 49477 02005, 49477 02006, 49477 02007, 49477 02008, 49477 02051,
- 49477 02052, 49477 02053, 49477 02054, 49477 02055, 49477 02056,
- 49477 02057, 49477 02058
Engine
N20B20
Turbo Model
TD04, TD04LR6
Fuel Type
GAS
Cooling Type
Water Cooling
Bearing Type
Journal Bearing/Floating Bearing
Universal Fitment
No
Finish
- Matte
- with Exhaust Manifold & Wastegate Actuator & Gasket
Turbo Type
Individual
Package Size
55*41*29 cm
Package Weight
11.65 kg

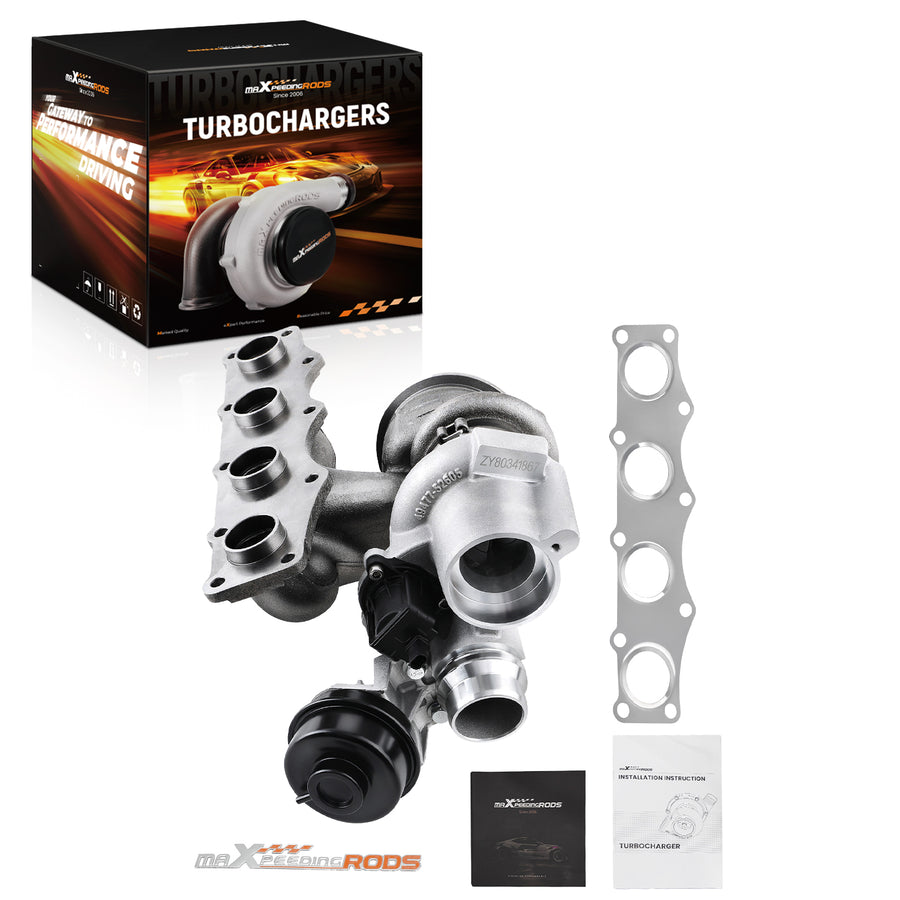

Package Included
- 1x Turbocharger
- 1x Flange Gasket
- 2x Oil port gaskets
- 1x Manual
- 1x Brochure
- 1x Sticker
