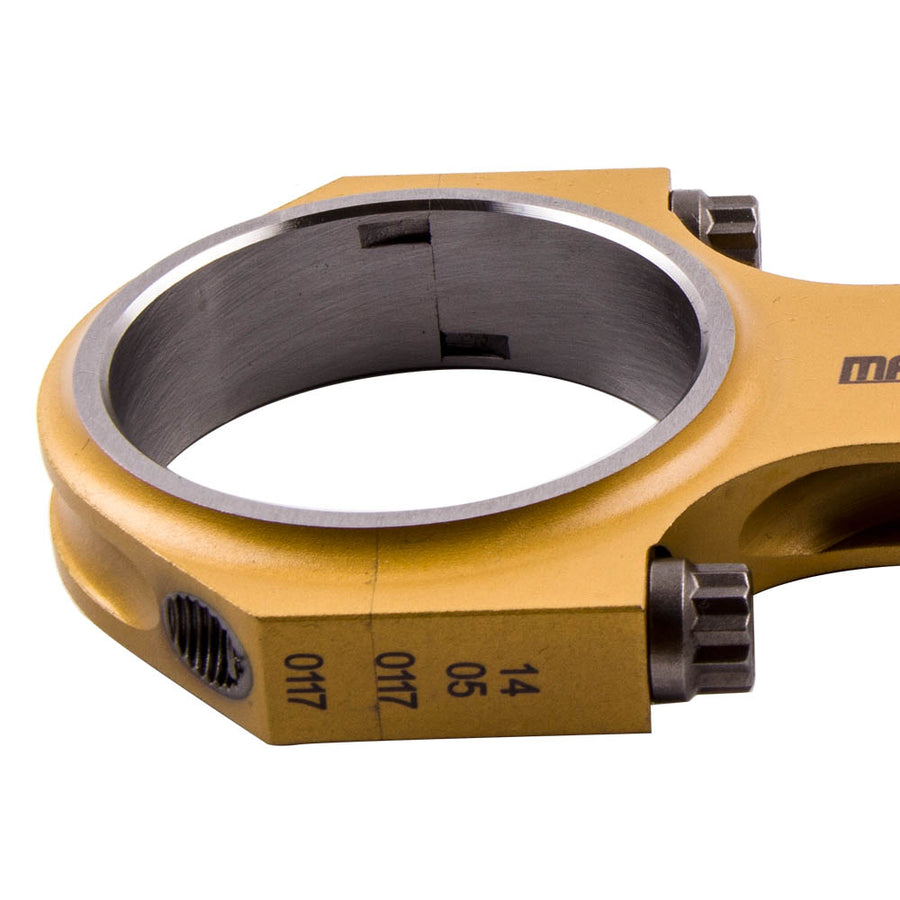

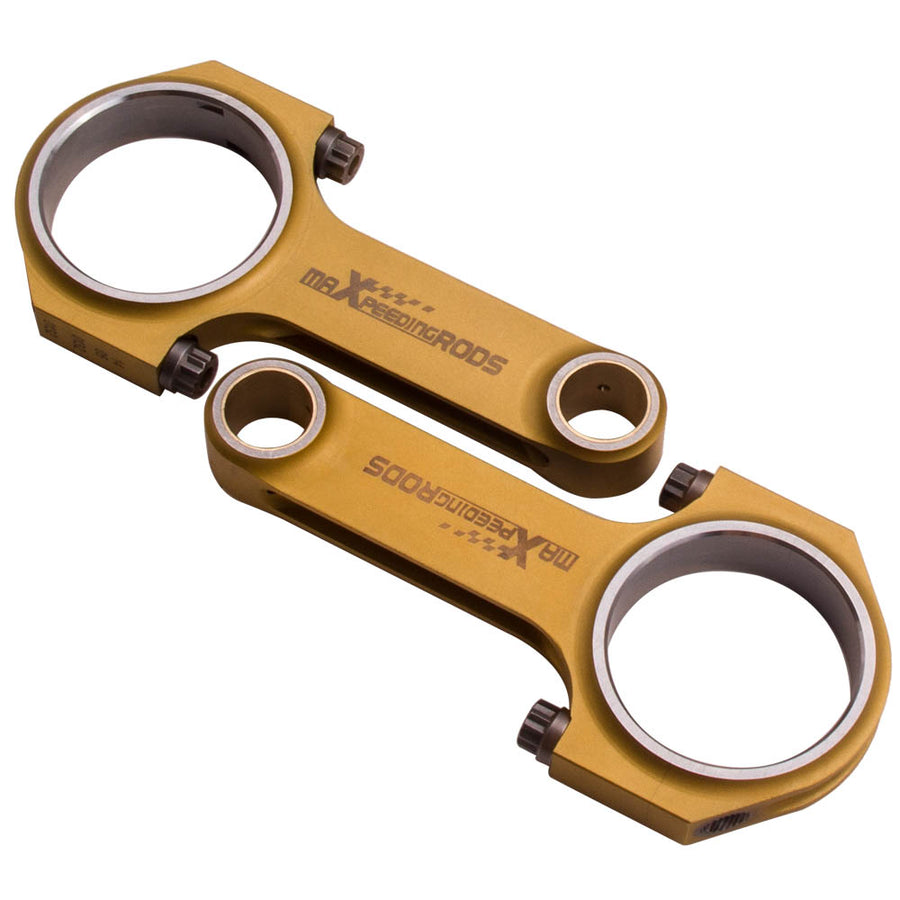

Titanizing Forged Connecting Rods+ARP2000 Bolts compatible for Porsche 912 356 1.6 5.354

Compatible Vehicles

• Porsche 912 356 1.6 5.354

Introduction

• Compatible for Porsche 356 / 912 Type 616 Flat-4：
• Compatible for Porsche 912 ALL 1965-1969 Coupe (1.6L Type 616 - Floating Pin Piston. Note: Not compatible for Porsche 356A 356C 1600 Engine)
• Compatible for Porsche 912 Targa 1967-1969 Targa (1.6L Type 616 - Floating Pin Piston. Note: Not compatible for Porsche 356A 356C 1600 Engine)
• Compatible for Porsche 912E 1976 Coupe (2.0L Type 4/912E - Floating Pin Piston. Note: Not compatible for Porsche 356A 356C 1600 Engine)
• Compatible for Porsche 356 1100 1948-1954 Coupe/Cabriolet (1.1L - Floating Pin Piston. Note: Not compatible for Porsche 356A 356C 1600 Engine)
• Compatible for Porsche 356 1300 1951-1954 Coupe/Cabriolet (1.3L - Floating Pin Piston. Note: Not compatible for Porsche 356A 356C 1600 Engine)
• Compatible for Porsche 356 1500 1951-1954 Coupe/Cabriolet (1.5L - Floating Pin Piston. Note: Not compatible for Porsche 356A 356C 1600 Engine)
• Compatible for Porsche 356B 1600 1959-1963 Coupe/Cabriolet/Roadster (1.6L - Floating Pin Piston. Note: Not compatible for Porsche 356A 356C 1600 Engine)

Specification

• Beam Style: H-beam Street/Strip
• Material: 4340 Chromoly Steel
• Finish: Shot-peened
• Wrist Pin Style: Floating
• Clearanced for Stroker: Yes
• Cap Retention Style: Through-bolt
• Connecting Rod Bolt Brand: ARP
• Connecting Rod Bolt Diameter: 5/16"
• Connecting Rod Bolt Material: Alloy Steel
• Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
• Upgrade Fasteners: ARP L19 (260,000 psi) optional
• Connecting Rod Bolt Head Style: 12-point
• CNC Machined: High Precision
• Rod Cap Alignment: Precision dowels
• Bore Tolerance: ±0.005 mm
• Balancing: ±1 gram per rod
• Weight Matched Set: Yes
• Remanufactured: No
• Testing: Magnafluxed, X-rayed, Ultrasonically tested
• Heat Treated: Yes

Dimension

• Connecting Rod Length Centre to Centre: 136.00mm / 5.354in
• Approximate Connecting Rod Weight:437g
• Big End Bore Diameter: 57.00mm / 2.244in
• Pin End Bore Diameter: 22.00mm / 0.866in
• Big End Width: 19.60mm / 0.772in
• Small End Width: 25.30mm / 0.996in

Feature

• 1.Premium 4340 Forged Steel & H-Beam Design (Built for High-Horsepower)
• Engineered from aircraft-quality 4340 chromoly steel with a classic H-beam profile. Fully shot-peened and heat-treated to ensure maximum tensile and compressive strength. Perfect for high-load street and strip (1/4-mile drag) racing applications.
• 2.Genuine ARP 2000 Bolts Included (Optional ARP L19 Upgrade Available)
• 100% packed with authentic ARP 2000 12-point bolts boasting a 220,000 psi yield strength. Also offers an optional upgrade to 260,000 psi ARP L19 fasteners, completely eliminating rod-cap separation at extreme high-RPM loads.
• 3.Factory-Balanced within ±1.0 Grams (Engineered for High-RPM Stability)
• Every single set undergoes dynamic balancing at the factory to maintain a strict weight variance of less than 1.0 grams per set. This precise QC standard ensures smooth power delivery and minimizes harmful harmonic vibrations at high RPMs.
• 4.Triple Non-Destructive Testing & Floating Pin Style (Race Ready)
• 100% magnafluxed, X-rayed, and ultrasonically tested to guarantee compatible for zero internal flaws or cracks. Features a high-lubrication bronze bushing for floating-style wrist pins, making it fully compatible with premium aftermarket forged pistons.
• 5.TS16949 / IATF 16949 Certified Facility (Standardized Production Control)
• Manufactured in a facility that has achieved the TS16949 (IATF 16949) automotive quality management system认证. This compliance ensures that our components follow standardized production, testing, and engineering workflows required for automotive manufacturing.

Performance Ratings

• Advertised Horsepower Rating: 200HP/piece
• Advertised RPM Rating: 7,000rpm

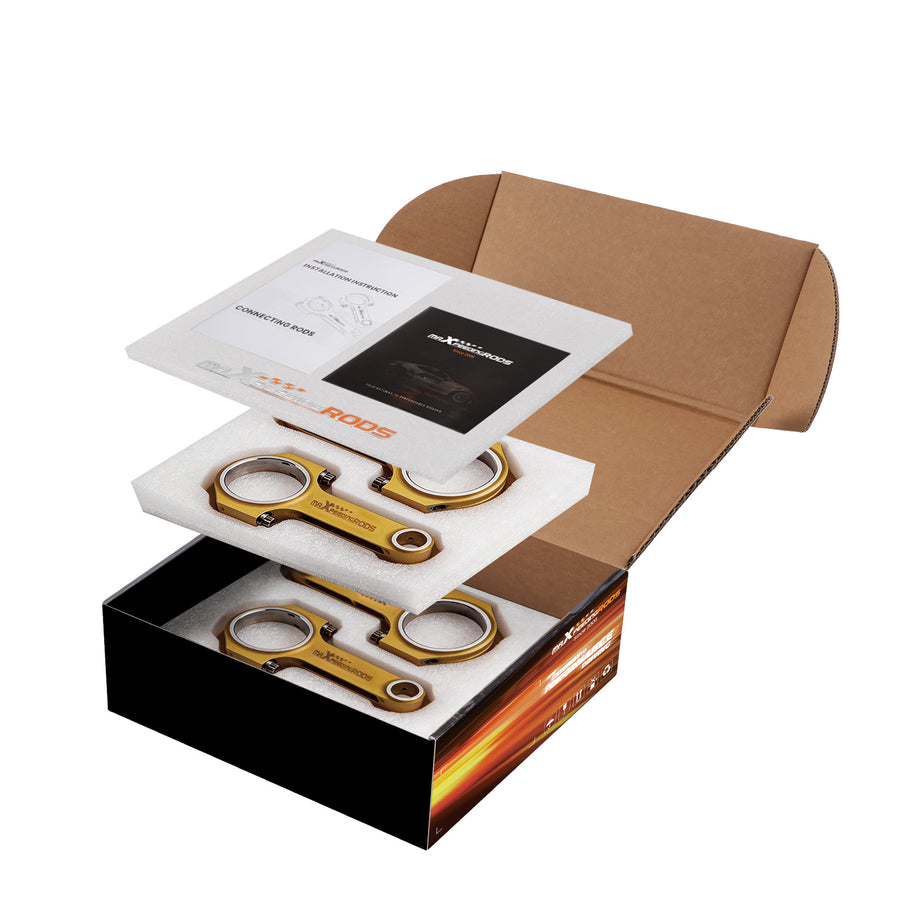

Package included

• Quantity: Sold as a set of 4
• Package Size: 28CM*20CM*10CM
