Compatible for Subaru Impreza WRX STI EJ20 EJ22 EJ25 Engine
compatible for Subaru Legacy EJ20 EJ22 EJ25 Engine
compatible for Subaru Impreza WRX STI compatible for Forester Legacy WRX 2.0L Turbo (EJ205 Engine) 2002-2005
compatible for Subaru Impreza WRX STi 2.0L Turbo (EJ207 Engine) 1998-present
compatible for Subaru Impreza WRX 2.5L Turbo (EJ255 Engine) 2006-2014
compatible for Subaru Impreza WRX STI 2.5L Turbo (EJ257 Engine) 2004-2016
compatible for Saab 9-2X 2005-2006
compatible for Isuzu Aska 1990-1993
compatible for Subaru Legacy for JDM 1989-2009
compatible for Subaru Forester for JDM SF series (1997 - 2002)
Compatible for Subaru Impreza WRX 2006-2014
compatible for Subaru Forester XT 2004-2013
compatible for Subaru Outback XT 2005, 2007-2009
compatible for Subaru impreza 95-01
compatible for Subaru Outback 95-96
Pin Type: Floating Pin Piston
Specification
*Type: Forged 4340 aircraft chrome moly quality steel for racing

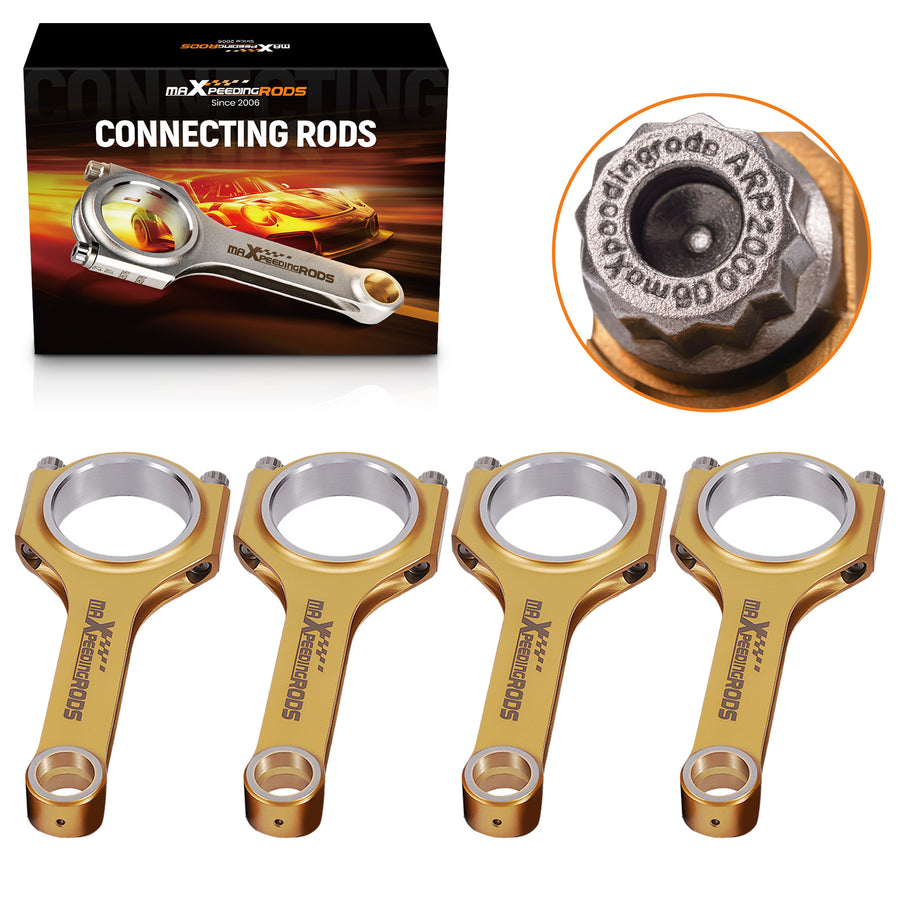

*H-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM
Dimension
Centre to centre length: 130.5mm/5.137"
Big end diameter: 55mm/2.165"
Small end diameter: 23mm/0.905"
Big end width: 21.4mm/0.843"
Small end width: 21.4mm/0.843"
Feature
The density of titanium is significantly lower than that of steel, while maintaining considerable strength, which means that it is lighter than steel, but the strength is very similar.
1. Titanizing can further improve the bending strength of the product;
2. Titanizing will not affect the weight of the connecting rod;
3. Provide a wear-resistant layer, which greatly prolongs the service life of the parts;
4. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED.
5. Material: Titanizing Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing.
6. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade.
7. H-Beam design reduces weight without compromising strength.
8.Heat-treating & Shot-peened for remained consistent and strong, Shot-peened finish to remove potential for stress risers.
9.High precision CNC machined,Precision rod cap alignment dowels.
10.Bores finished to +/- .005mm.
11.Balanced to within +/- 1 g per rod.
12. Each rod is magnetic particle tested to ensure free of flaws.
13.Use X-rayed, sonic tested.
14.Custom Service.
Note
*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
