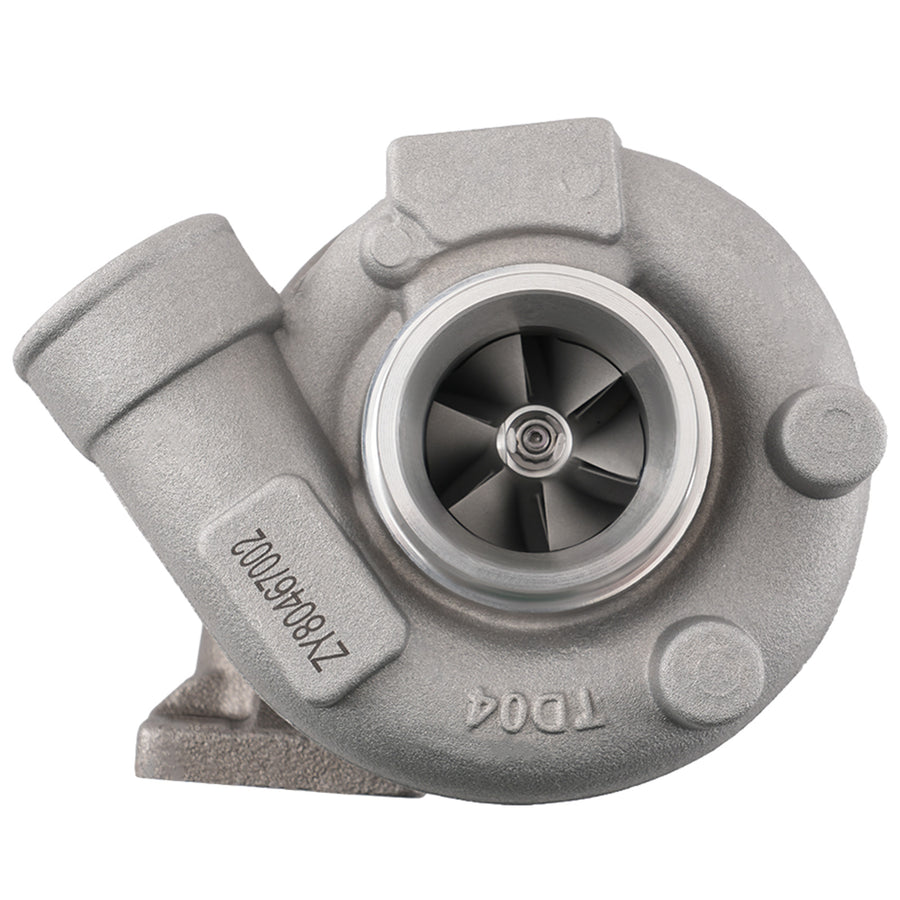

Compatible for Isuzu Earth Moving SK120-3 SK120-5 4.3L,
For Hitachi EX120-2 EX120-3 4.3L
compatible for Isuzu Hitachi Engine 4BD1T 4D31T 4.3L
Specification
Turbo Model: TD04HL-15G
Engine Code: SK120-5, 4BD1T, 4BD1
Cooling Type: Oil Cooling
Features: Individual
Bearing Type: Journal Bearing/Floating Bearing
Finish: Matte
Condition: 100% Brand New

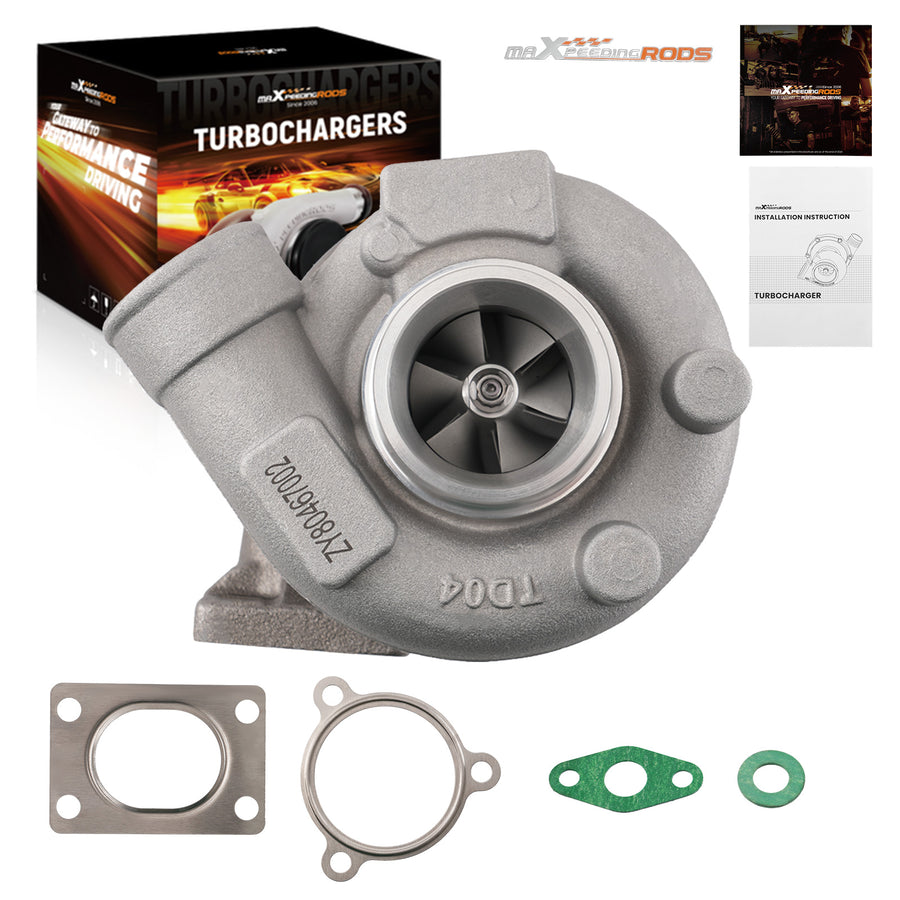

Accessories: You will get what you can see in the pictures exactly
Feature
* Product Material
1. Turbine housing: Ductile iron QT450-10- temperature resistant up to 700℃
2. Steel turbine wheel：K418 alloy - high oxidation stability and resistance up to 900℃
3. Compressor housing：ZL104 aluminium with lightweight
4. Compressor wheel：Cast aluminium blades – superior air tightness & corrosion resistance
* Product
1. OEM size can be directly replaced
2. Rich experience in turbo production and own factory
3. High-Speed oil seal ring and Precision clearance
* Technology Advantage:
1. 100% balancing Test by TURBOTECHNICS VSR3
2. G3-min-Flow VNT Turbo testing
3. Advanced Actuator Tester/Programmer
Note
* Before installing the new turbocharger, the cause that led to the failure of the turbo must be analysed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
* Please confirm your original turbo PART NUMBER before Purchasing.
* Professional installation is highly recommended,
* Before installation, please check the oil supply sufficient, clearnliness the air filter and gasoline , and the gasoline air tightness.
