Compatible Vehicles
- Universal turbo for V6 V8 Cars
- Perfect fit for Above 3.0L Engines, 6/8 cylinder
Features
- *Product Material

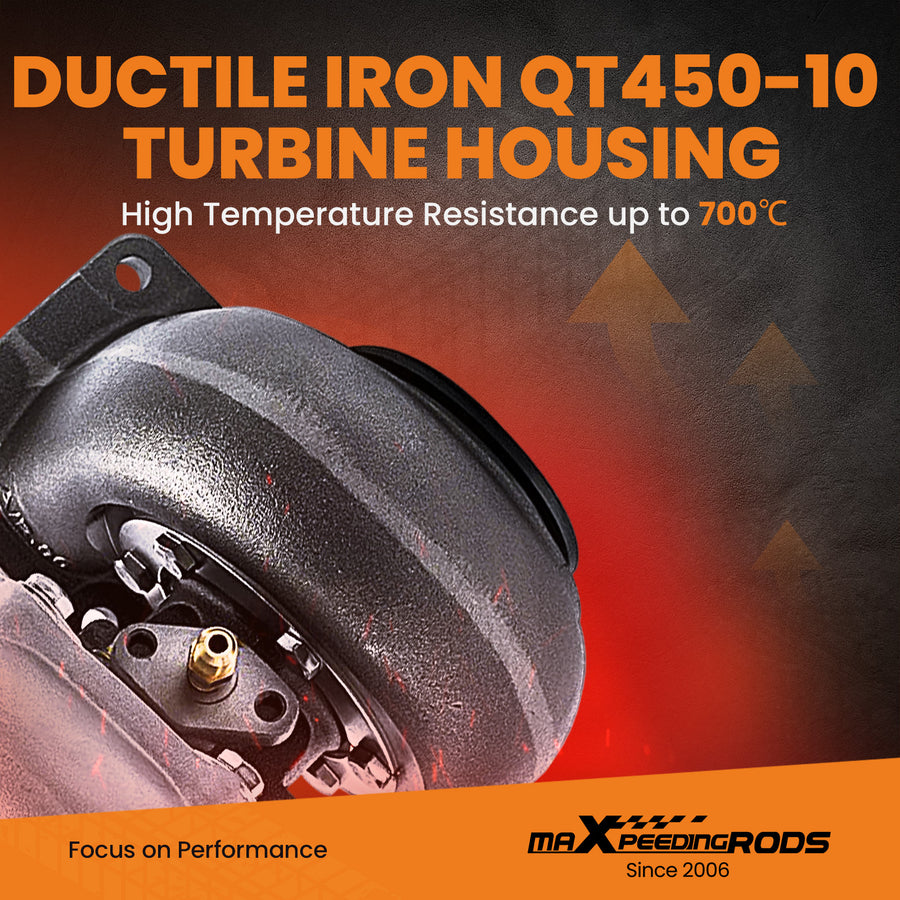

- 1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃
- 2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
- 3. Compressor housing: ZL104 aluminium with lightweight

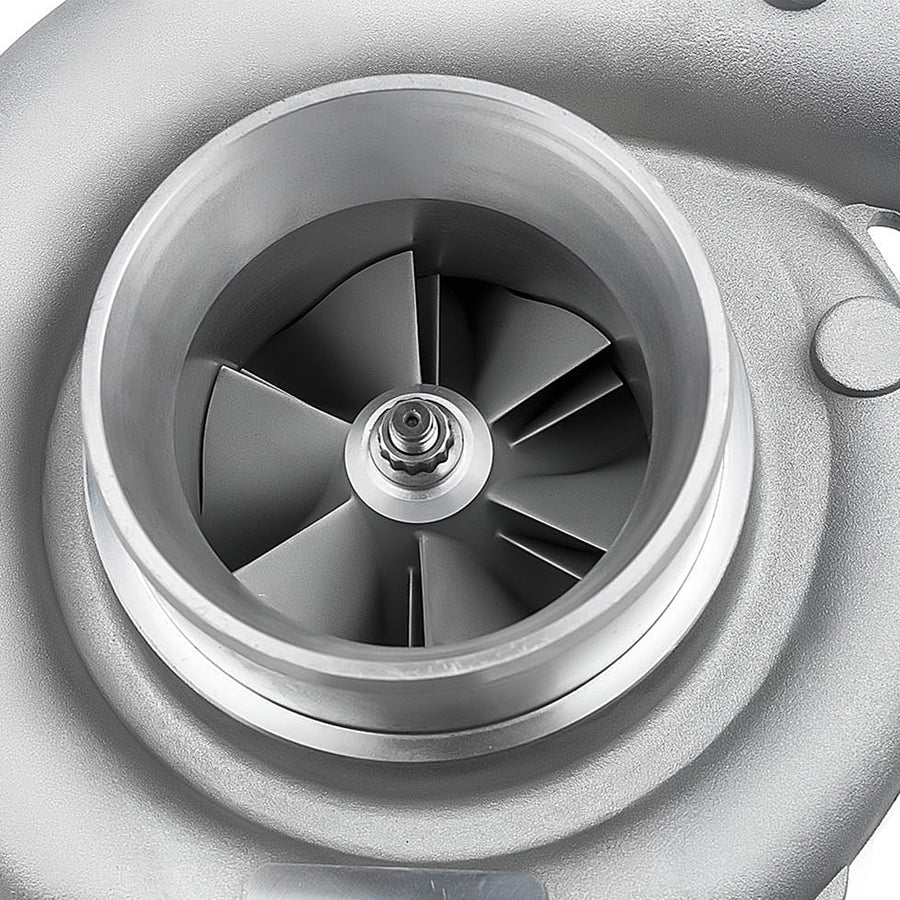

- 4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance
- *Product Features
- 1. Cost-effective turbo increase 20-40% power for your car
- 2. Rich experience in turbo production and own factory
- 3. High-Speed oil seal ring and Precision clearance
- 4. Built for durability and strength
- * Technology Advantage:
- 1. 100% balancing Test by TURBOTECHNICS VSR3
- 2. G3-min-Flow VNT Turbo testing
- 3. Advanced Actuator Tester/Programmer
Condition
- 100% brand new

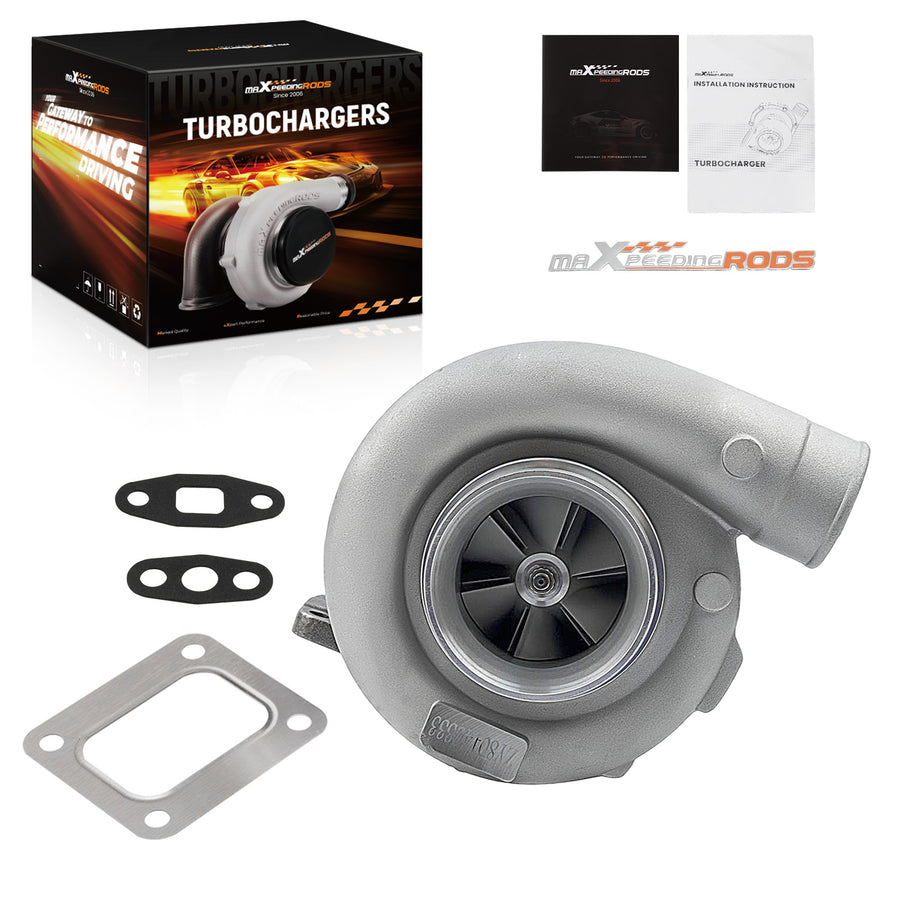

- Accessories: You will get exactly as shown in the picture above
Compressor Trim
56.1
Compressor Inducer Diameter
76.6
Compressor Exducer Diameter
102.3
Compressor A/R
0.8
Air Outlet
107mm
Air Inlet
130.9mm
Exhaust Inlet Flange
- T4 Flange
- Exhaust Outlet Flange: V-Band ( Size: OD. 91.95mm & ID. 74.5mm )
Turbine Inducer Diameter
73.5
Turbine Exducer Diameter
64.3
Turbine Trim
76.5
Turbine A/R
0.96
Oil Inlet
1/8"-27
Oil Outlet
2*M8*1.25
Bearing
Wet Float
Cooling Type
Oil Cooled
Wastegate
W/O Wastegate
Turbo Type
Individual
Thrust Bearing
270 degree
Horse Power
Boost Horse Power up to 500BHP
Package Size
29*27*24 cm
Package Weight
10000 g
Notice
- * Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
- * Make sure the oil drain line is lower than the turbo itself.
- * Ensure exhaust outlet are well sealed by welding
- * The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
- * This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
- * Before installing the new turbocharger, the cause that led to the failure of the turbo must be analysed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
- Notice
- All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
