T3 T4 Turbo Kit + Intercooler + Piping+ Wastegate compatible for BMW E36 E46 328i 325I

Compatible Vehicles

• Compatible for BMW E36 325i / 325is i6 1991-1995
• Compatible for BMW E36 328i / 328is i6 1994-1999
• Compatible for BMW E36 323i i6 1995-1999
• Compatible for BMW E36 M3 i6 1992-1999
• Compatible for BMW E46 323i / 323is / 323Ci / 323Ti i6 1997-2000
• Compatible for BMW E46 328i / 328Ci i6 1998-2000
• Compatible for BMW E46 325i / 325Ci / 325Xi / 325Ti i6 2001-2007
• Compatible for BMW E46 330i / 330Ci / 330Xi i6 2000-2007
• Note : This is universal application turbo, so modification might be required for some vehicles.

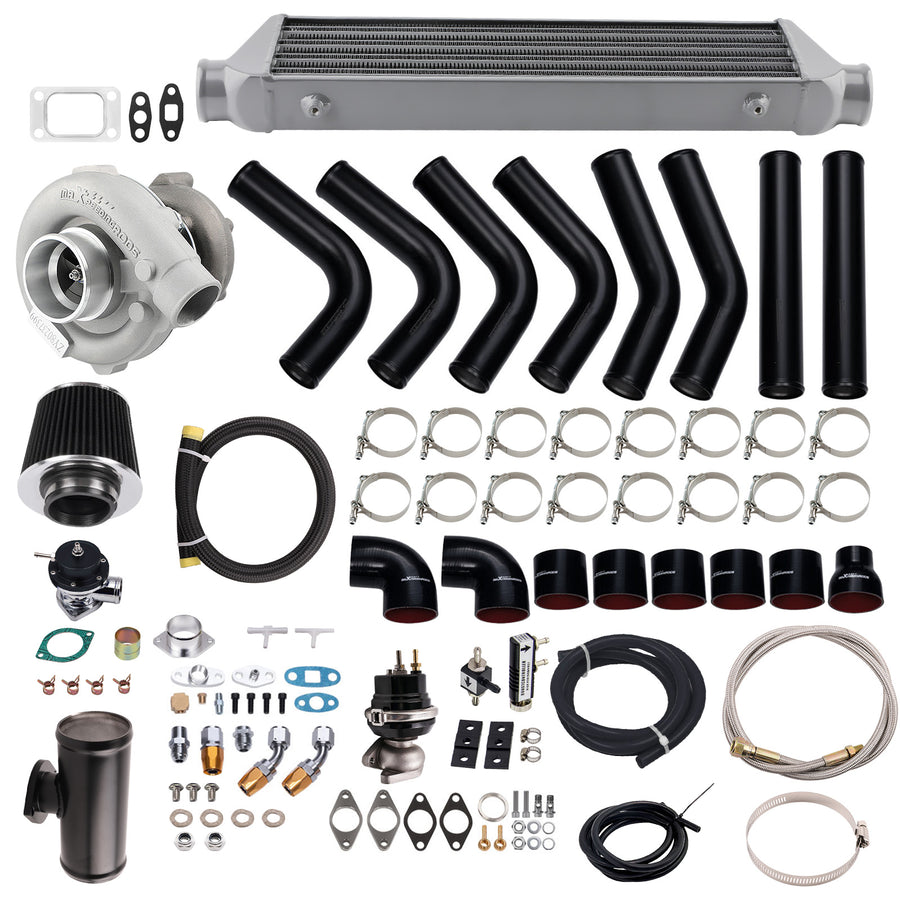

Package included

• 1x T3/T4 Turbocharger
• 1x Oil Feed / Return Line
• 1x 35/38mm Wastegate
• 1x Turbo Intercooler
• 1x Tubo Boost Controller
• 1x Type-S Blow Off Valve(Random Colour)
• 1x BOV Adapter/pipe
• 1x Turbo Piping Kit
• 1x Air filter

Note

• * Need modifications - Professionals ONLY (This is an aftermarket universal turbo kit for DIY purpose, and it's recommended to advanced players but not for beginners. )
• * we will not be responsible compatible for man-made installation damage.
• <div

Condition

100% Brand New

Product Specific

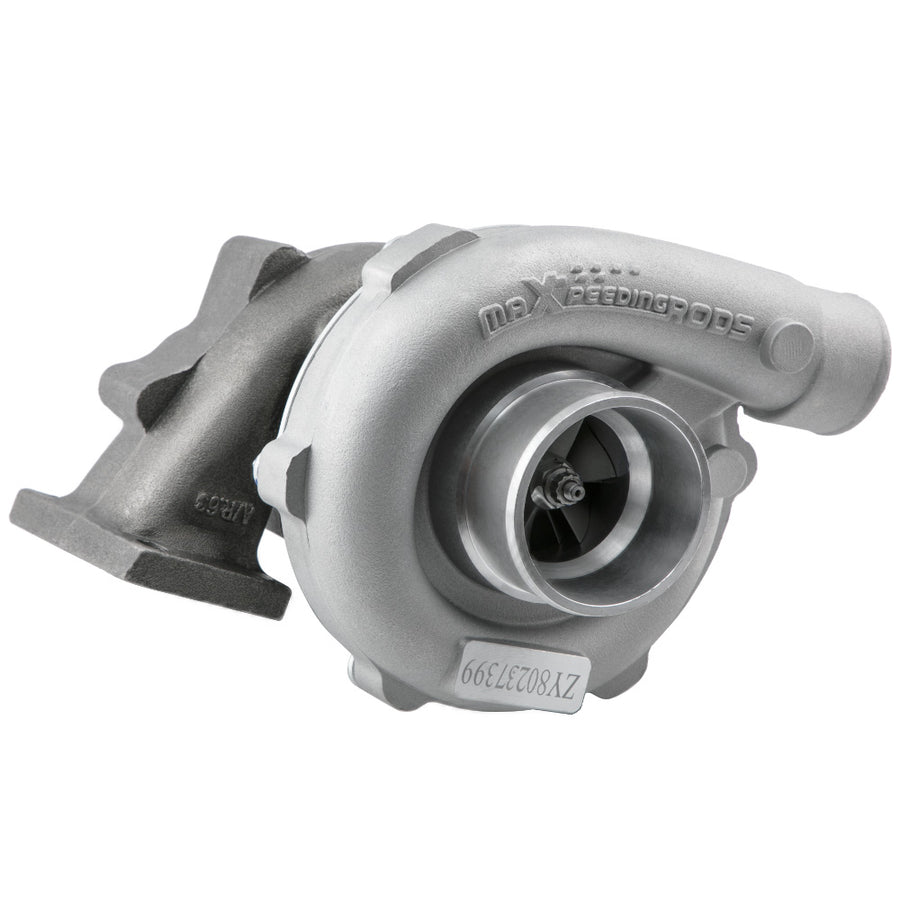

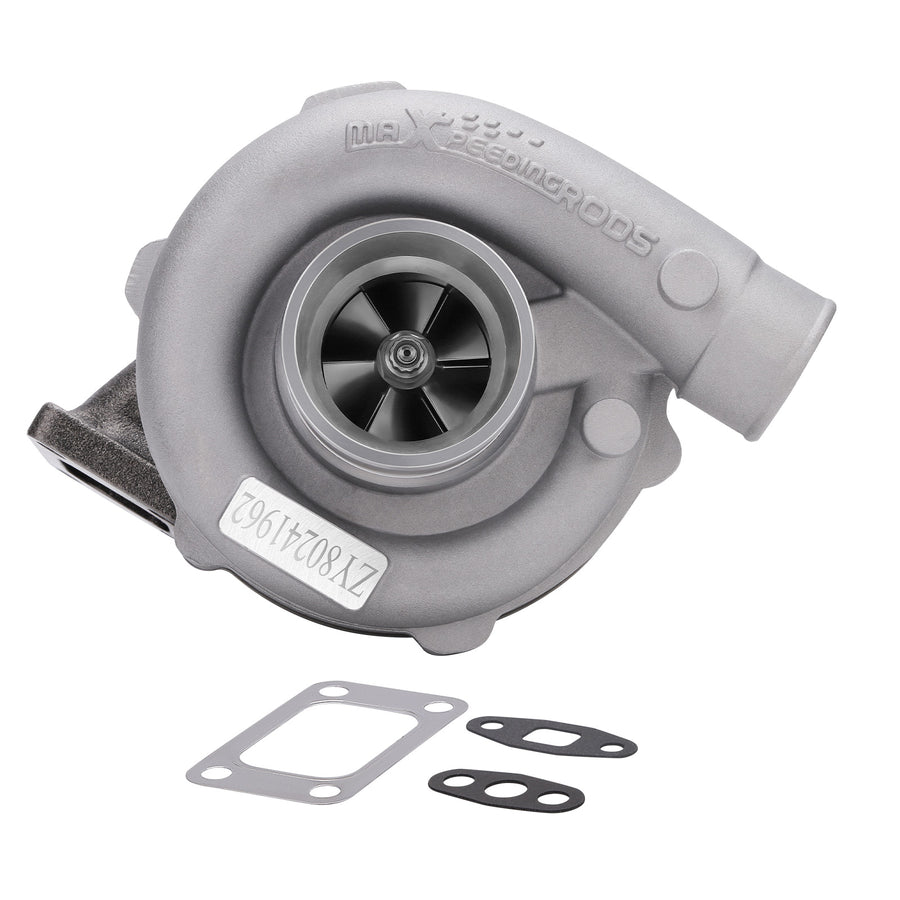

• 1 x T3/T4 Turbocharger:
• for 1.5L to 2.5L any 4/6 cylinder engine

Horse Power

400 HP

Compressor Inlet Diameter

72mm(2.8")

Compressor Outlet Diameter

53mm(2")

Oil Inlet

• 1/8 NPT
• Exhaust Inlet (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
• Exhaust Outlet (Turbo Pipe) Flange: 5 bolt Flange

Turbine Trim

74.2

Turbine Inducer Diameter

64.8 mm

Turbine Exducer Diameter

55.8mm

Turbine A/R

0.63

Compressor Trim

48.1

Compressor Inducer Diameter

52.7mm

Compressor Exducer Diameter

76 mm

Compressor A/R

0.5

Bearing

Wet Float Bearing

Turbocharger Overall size

• 270*220*220
• 1 x Intercooler:
• *Size 27'' x 7'' x 2.5'' inch. Inlet size is 2.5 inch.
• *Support up to 350 hp for this small intercooler size - tube and fin style .
• *Intercooler core size:  21*7*2.5
• 1 x Universal turbo intercooler piping kit:
• Straight Aluminium Pipe *2
• 45°Aluminium Pipe * 2
• 75°Aluminium Pipe * 2
• 90°Aluminium Pipe * 2
• 2.5" Straight Silicon Hose (Blue) * 6
• 2.5" 90 Degree Hose (Blue) * 2
• 2.5" Stainless Steel T-Clamp * 16

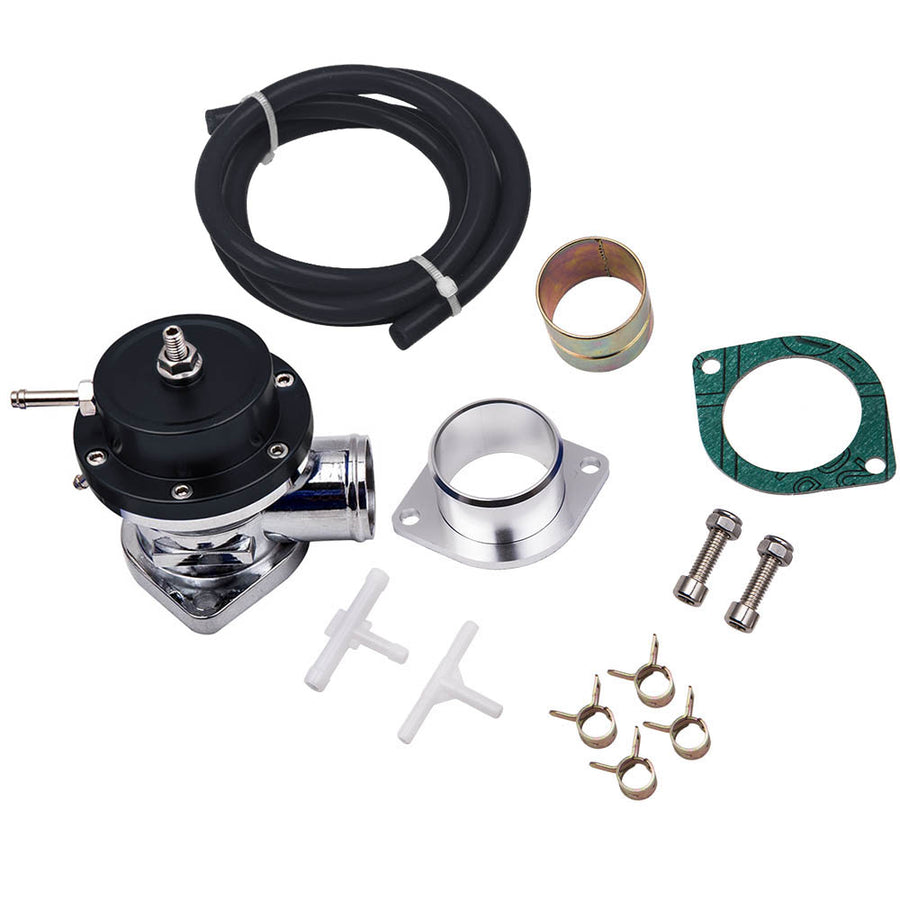

• 1 x Type-S Blow Off Valve:
• CNC Billet Aluminium Type RS Style Blow off Valve and 2.5" Inch Type S/Rs Flange Pipe.
• 25PSi Boost! Can hold up to 1000+ HP.
• 1 x BOV pipe:
• can be installed anywhere suitable

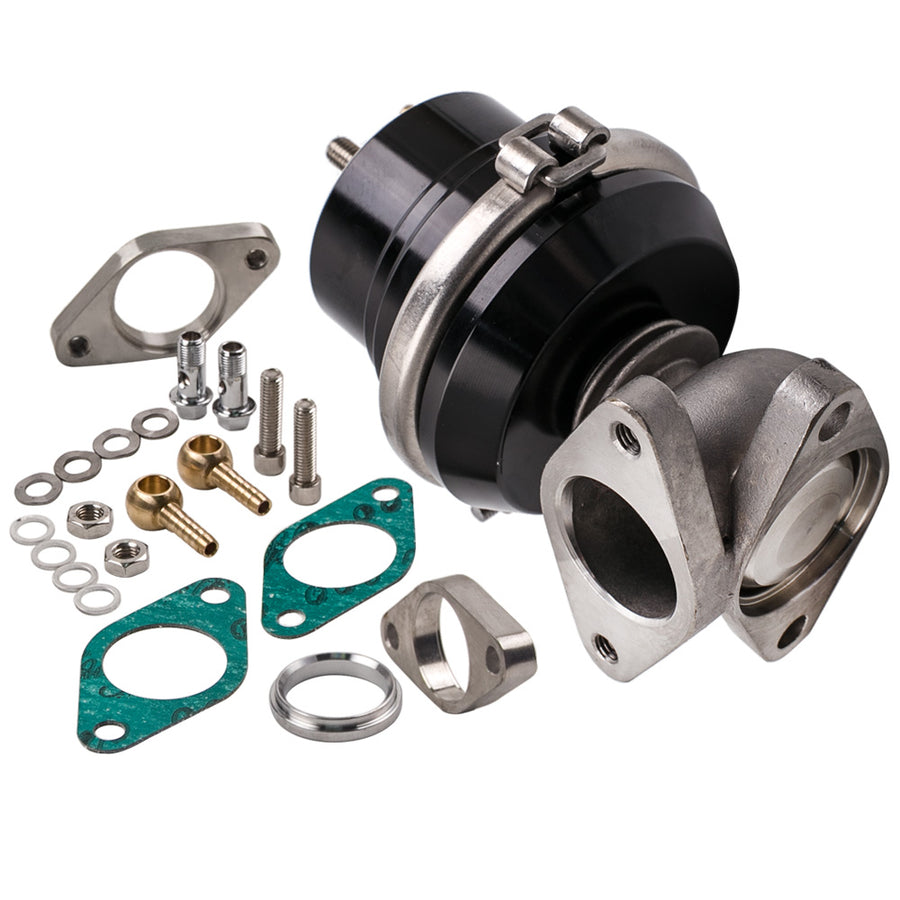

• 1 x  35/38MM Wastegate:
• 35/38mm External Waste Gate Kit
• 1 x Turbo Boost Controller:
• Up To 30 PSi Boost
• 1 x Turbo Oil Return / Feeding Line Kit:
• Turbo Oil Feed + Return Drain Line Kit Combo.
• It helps circulate oil from the turbocharger to the oil pan. The kit provides a anodized look, and gives a best cooling on your turbo and long lasting life.

Material

• Stainless Steel Braided
• 1 x INTAKE FILTER:

Inlet

3.0"

Overall Tall

3.5"

Mesh Tall

2.5"

Warranty

• One year
• Accessories: You will get exactly as shown in the picture above
