T3 T04E Billet Turbo .63 A/R W/ Internal Wastegate 420HP+Titanium Heat Shield

Compatible Vehicles

• Perfect for all 4 or 6 CYL, 1.5L to 2.5L engines
• *Notice:Please confirm that there is enough space in your car to install this turbo before purchasing.

Specification

Turbo

Features

• Turbo
• 1. Turbine housing: Silicon-Molybdenum alloy steel - High temperature resistance, highly stable and ductile, corrosion and crack resistant, increases Thermal Stability and reliability.
• 2. Turbine Wheel: K419 alloy - High temperature resistance, efficiently converts engine exhaust gasses into kinetic energy, resists thermal breakdown for smooth reliable operation.
• 3. Billet Compressor Wheel: Forged billet aluminium CNC machined compressor wheel - High efficiency, fast response, lower fuel consumption, smooth operation.
• 4. Oil Seal: High-speed steel oil seal ring - Abrasion and heat resistant, protects bearings, prevents oil leakage and smoking.
• 5. Appearance upgrade: New compressor wheel design

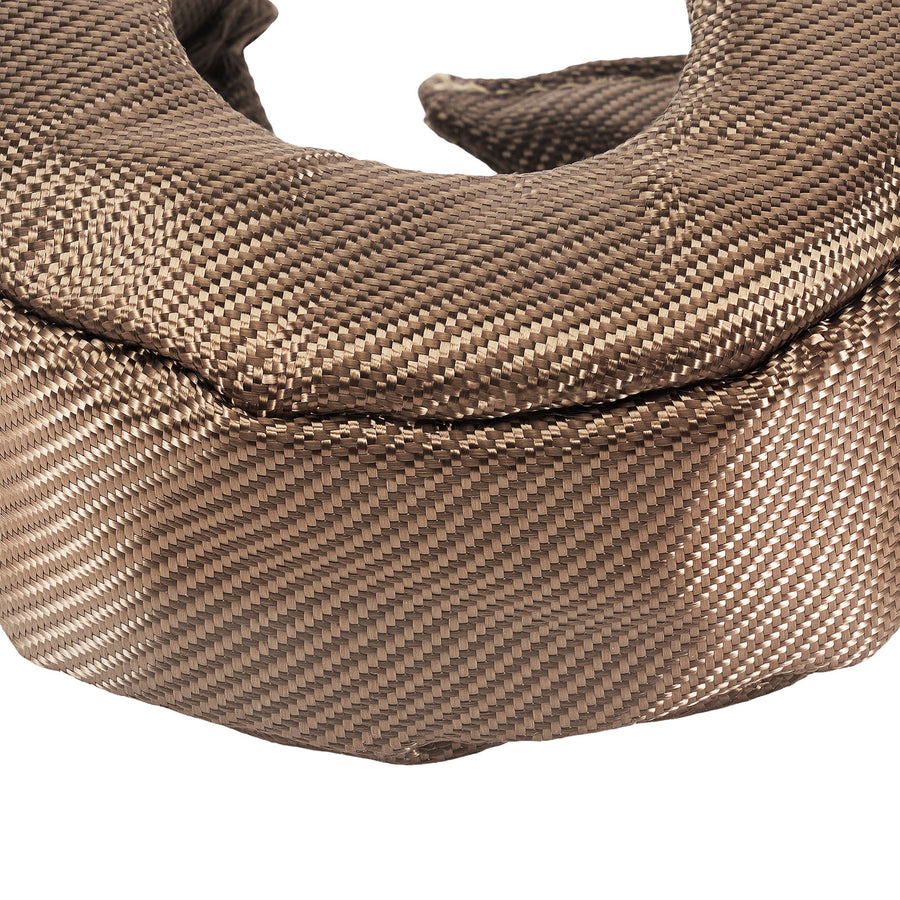

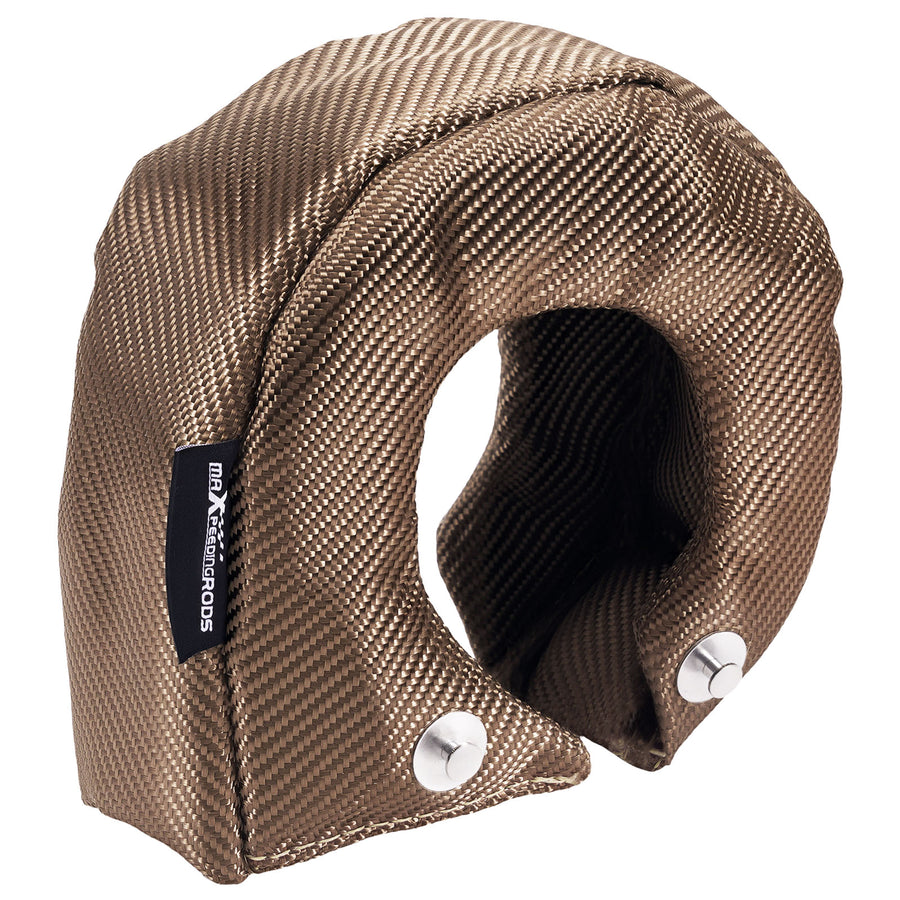

• Turbo Heat Shield
• 1. Keep crucial engine components protected from the heat of the turbo. while increasing spool time and reducing underhood temperatures.
• 2. Our high-quality basalt fibre can withstand high temperatures up to 800°C.
• NOTICE
• Turbo
• * Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
• * Make sure the oil drain line is lower than the turbo itself.
• * Ensure exhaust outlet are well sealed by welding
• * The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
• * This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
• * Before installing the new turbocharger, the cause that led to the failure of the turbo must be analysed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
• Turbo Heat Shield
• * Universally fits on any T3 turbocharger.
• * The Turbo Shield is non-flammable, the product may ignite if exposed to flammable fluids.
• * Please take all necessary precautions to insure that the oil supply line and all fluid fittings are in proper working order, sealed and without leaks.
• Notice
• All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
• <div

Condition

• 100% Brand New
• Accessories: You will get what you can see in the pictures exactly

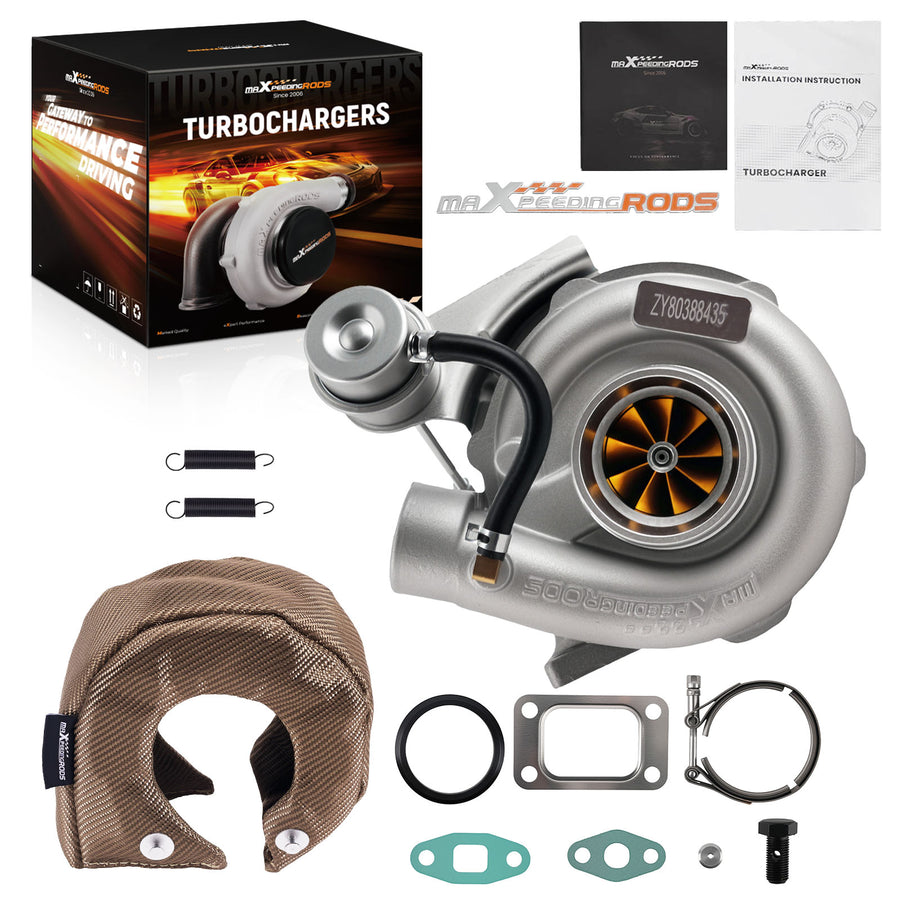

Package Included

• 1 x Turbocharger
• 1x Turbo Heat Shield
• All items exactly as shown in product images

Exhaust Inlet Flange

T3 4 bolt Flange

Exhaust Outlet Flange

V-Band Flange (ID/OD: 2.5"/3.1")

Turbine Trim

74.2

Turbine A/R

0.63

Turbine Inducer

64.8mm

Turbine Exducer

55.8mm

Turbine exhaust outlet

79mm

Turbine exhaust inlet

44.7mm(length)85.8mm(width)

Compressor Trim

48.1

Compressor A/R

0.5

Compressor Inducer

52.7mm

Compressor Exducer

76mm

Compressor outlet

78 mm

Compressor inlet

51.5 mm

Oil Inlet

M12*1.25 & 2*M8*1.25

Oil Outlet

2*M8*1.25

Bearing

Journal Bearing

Cooling Type

Oil Cooled

Wastegate

W/ Wastegate

Thrust Bearings

270 Degrees

Horsepower

Up to 420 HP

Turbo Type

Individual

Universal Fitment

Yes

Finish

Polished

Accessories

You will get exactly as shown as picture above

Package Size

30x 28x 24 cm

Package Weight

• 9180g
• Turbo Heat Shield

Material

Basalt fibre/Titanium Fibre
