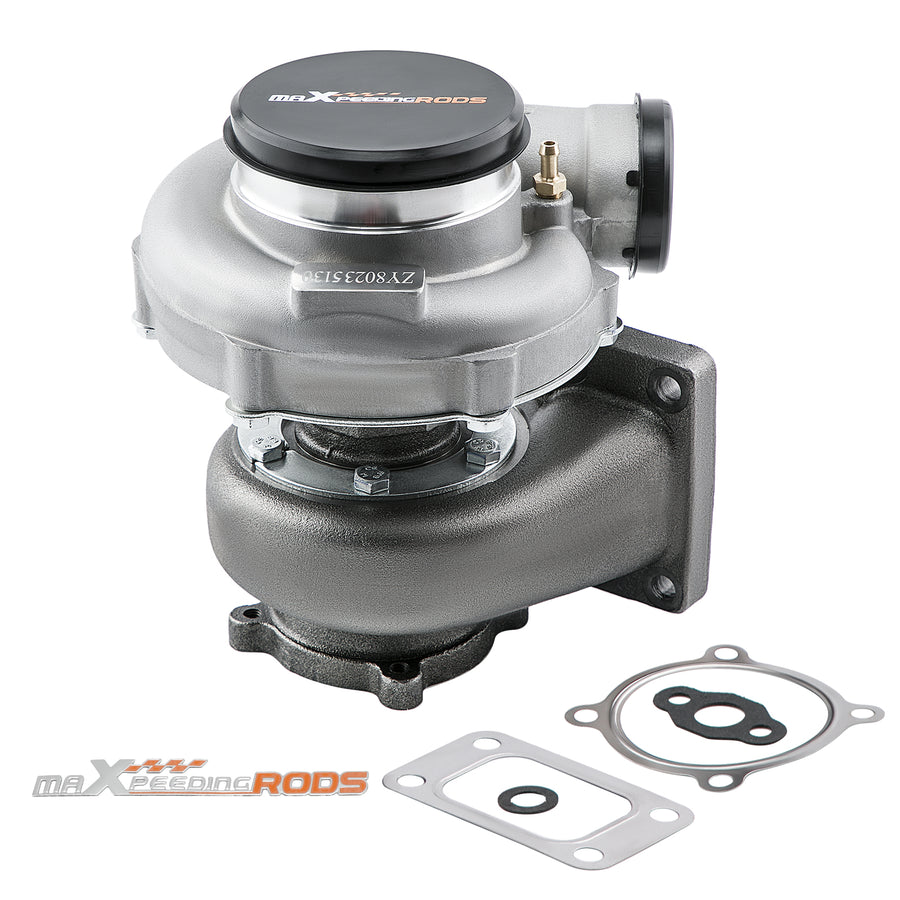

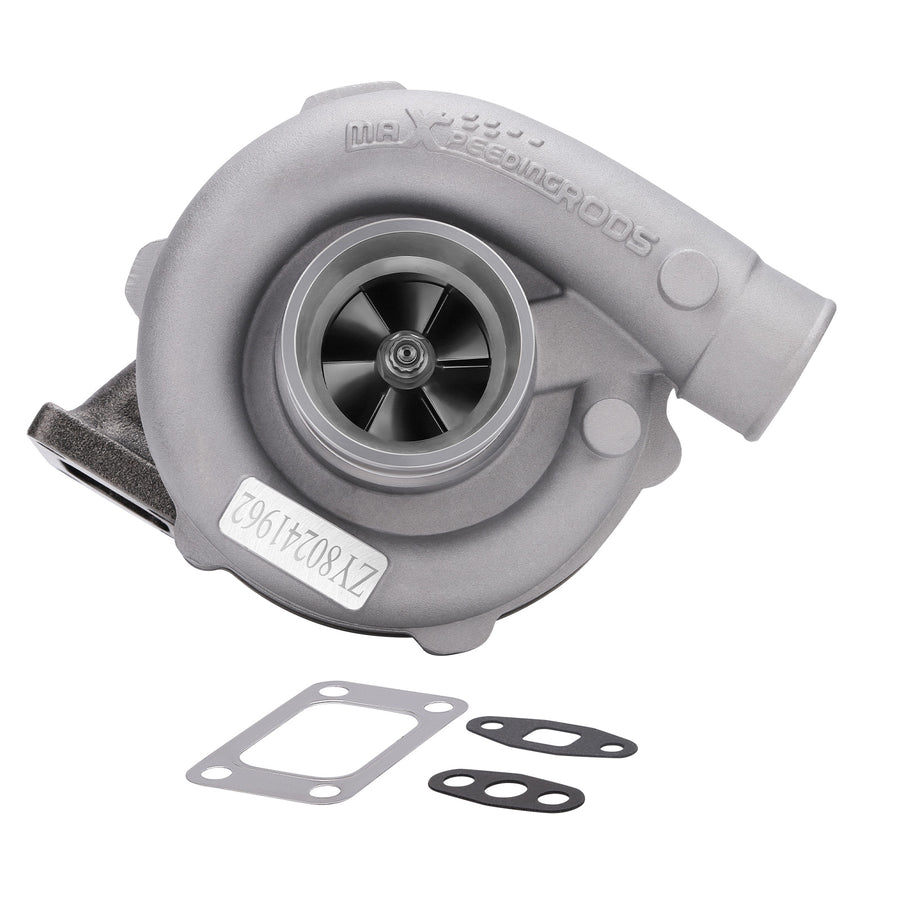

T04E Turbocharger + 8PSI Internal Wastegate 38mm+30 PSI Boost Controller Kit

Compatible Vehicles

• For 2.5L and up engines
• for 3.2L-5.0L engines, capable to 800HP

Introduction

A turbocharger (also called turbo), is a turbine-driven forced induction device that increases an internal combustion engine’s efficiency and power output by forcing extra air into the combustion chamber. The key difference between a turbocharger and a conventional supercharger is precisely that a turbocharger is powered by a turbine driven by the engine's exhaust gas. A turbo consists of a compressor, a cartridge, a turbine and an exhaust valve. provides universal turbochargers to enhance overall engine performance of your beloved car.

Specification

• Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
• Exhaust (Downpipe) Flange: Standard T3 5 bolt downpipe flange pattern
• Cooling Type: Oil Cooled
• Wastegate: External Wastegate
• Horse Power: Boost Horse Power up to 300+HP
• Compressor:
• Trim: 55
• Inducer Diameter: 50.5 mm
• Exducer Diameter: 76 mm
• A/R: 0.5
• Turbine
• Trim: 73
• Inducer Diameter: 65.5 mm
• Exducer Diameter: 55.9 mm
• A/R: 0.63

Note

• * Professional installation is highly recommended (No Instruction Included)
• * For any needs please contact us
• * This is universal application turbo, so modification might be required for some vehicles
