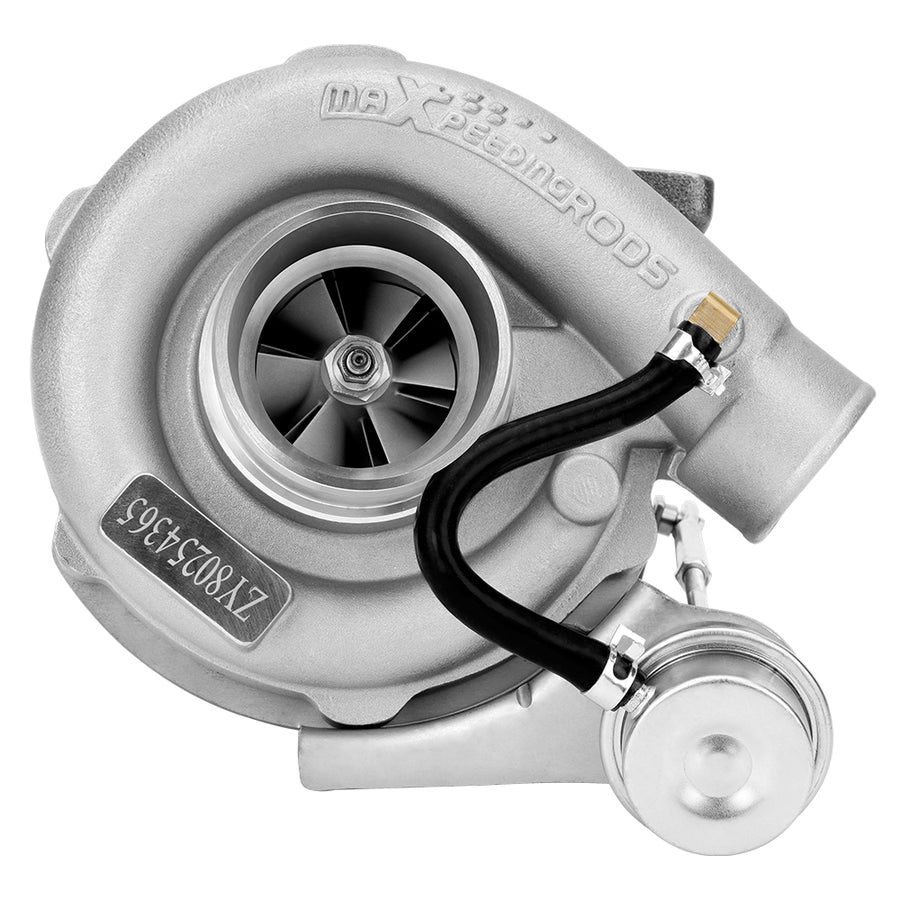

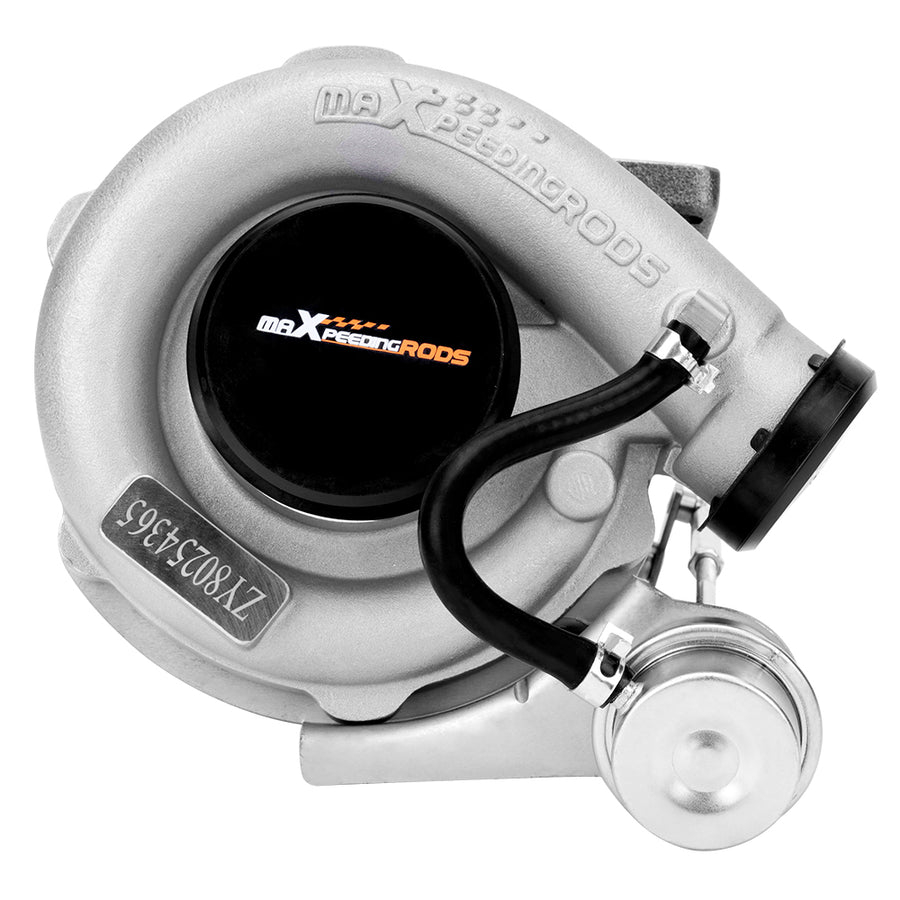

T04E T3 Turbo Turbocharger Kit 400+HP Stage III Wastegate+ 27x7x2.5 Intercooler

Compatible Vehicles

• T04E T3 Turbo Turbocharger Kit 400+HP Stage III Wastegate+ 27x7x2.5 Intercooler

Turbine Trim

74.2

Turbine A/R

0.63

Turbine Inducer

64.8mm

Turbine Exducer

55.8mm

Turbine exhaust outlet

79mm

Turbine exhaust inlet

44.7mm (length) / 85.8mm (width)

Compressor Trim

48.1

Compressor A/R

0.5

Compressor Inducer

52.7mm

Compressor Exducer

76mm

Compressor outlet

78 mm

Compressor inlet

51.5 mm

Oil Inlet

M12*1.25 & 2*M8*1.25

Oil Outlet

2*M8*1.25

Bearing

Journal Bearing

Cooling Type

Oil Cooled

Wastegate

W/ Wastegate

Thrust Bearings

270 Degrees

Horsepower

• Up to 420 HP

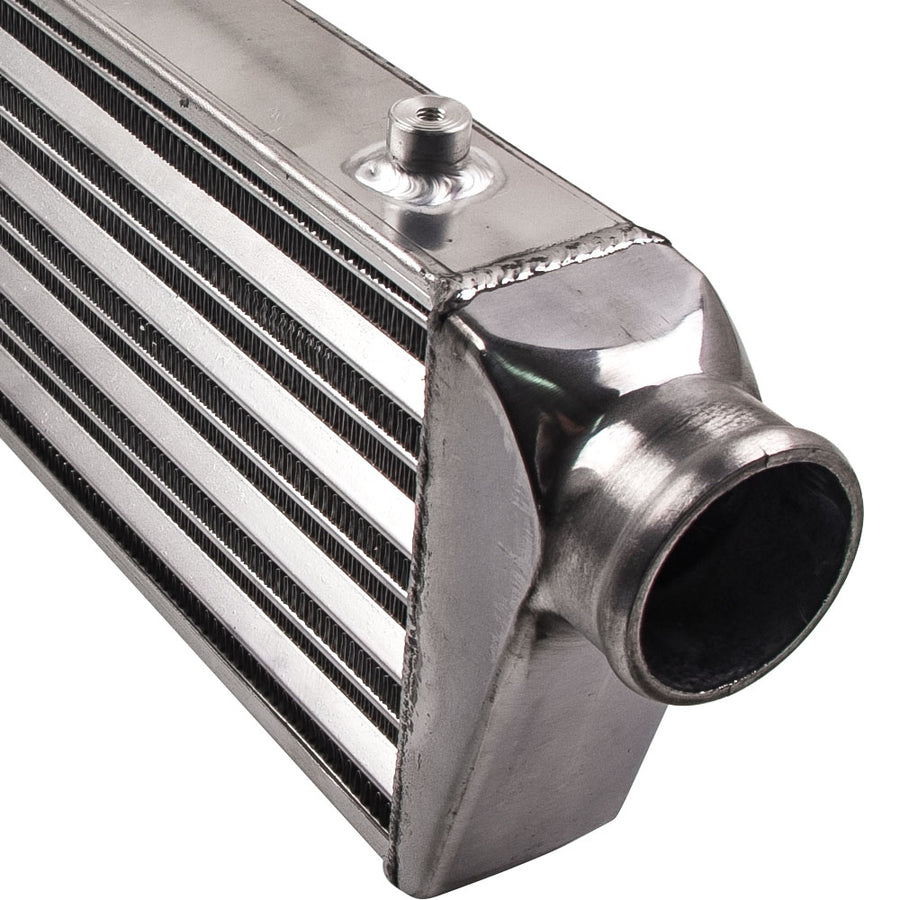

• 27x7x2.5 2.5" Universal Intercooler
• -Inlet/outlet size: 2.5"
• -Core size: 21"x 7"x 2.5"
• -Full size:  27.00" (L) X 7.00" (H) X 2.50"(W)
• -Compress Air Flow Rate<350Cubic Feet/Min, Rated up to500 Max HP
• -Pressure drop:  2~5psiat35psi, 0.2~0.5psiat15psi
• -Material:  Aluminium alloy
• -Core design: Tube & Fin
• Package include
• 1x T04E V-Band Turbocharger
• 1x 27x7x2.5 2.5" Universal Intercooler

NOTE

• * Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
• * Make sure the oil drain line is lower than the turbo itself.
• * Ensure exhaust outlet are well sealed by welding
• * The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
• * This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
• * Before installing the new turbocharger, the cause that led to the failure of the turbo must be analysed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
• Notice
• All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
