Compatible Vehicles

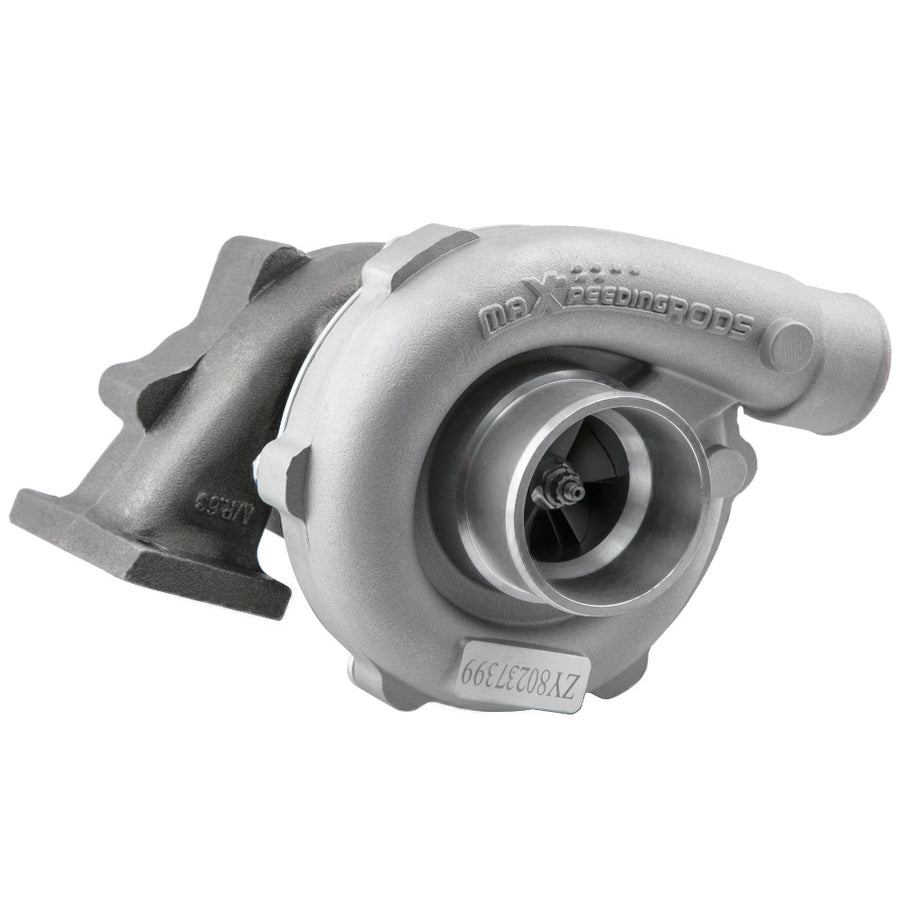

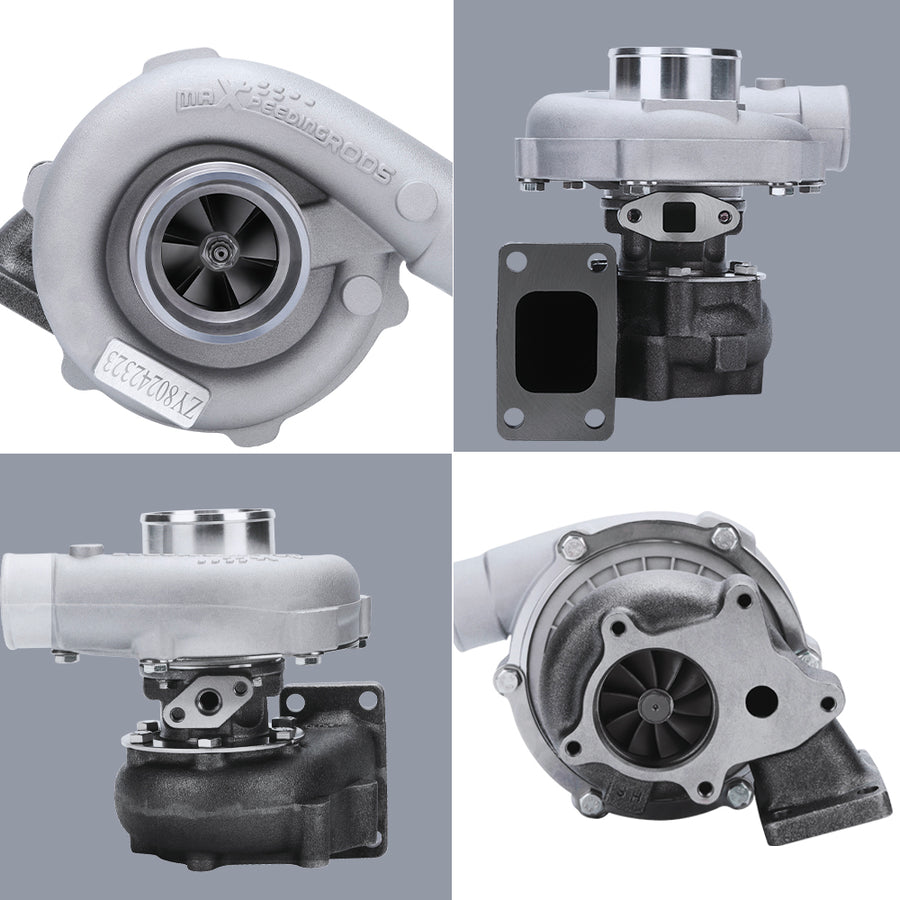

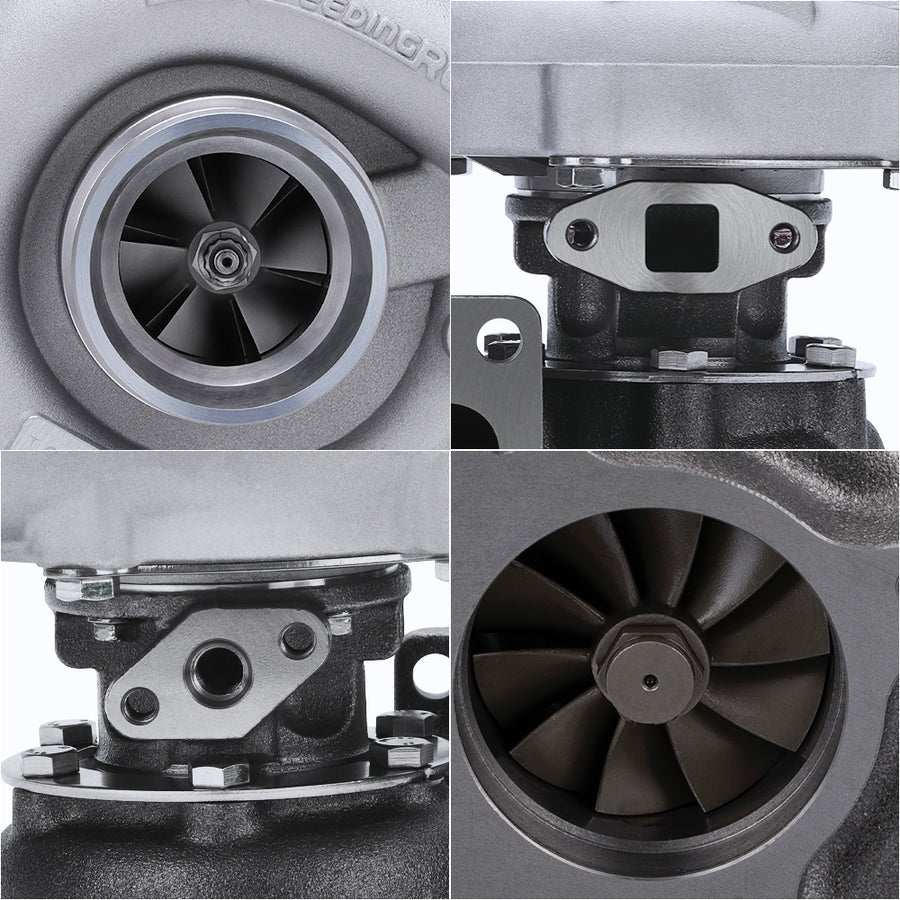

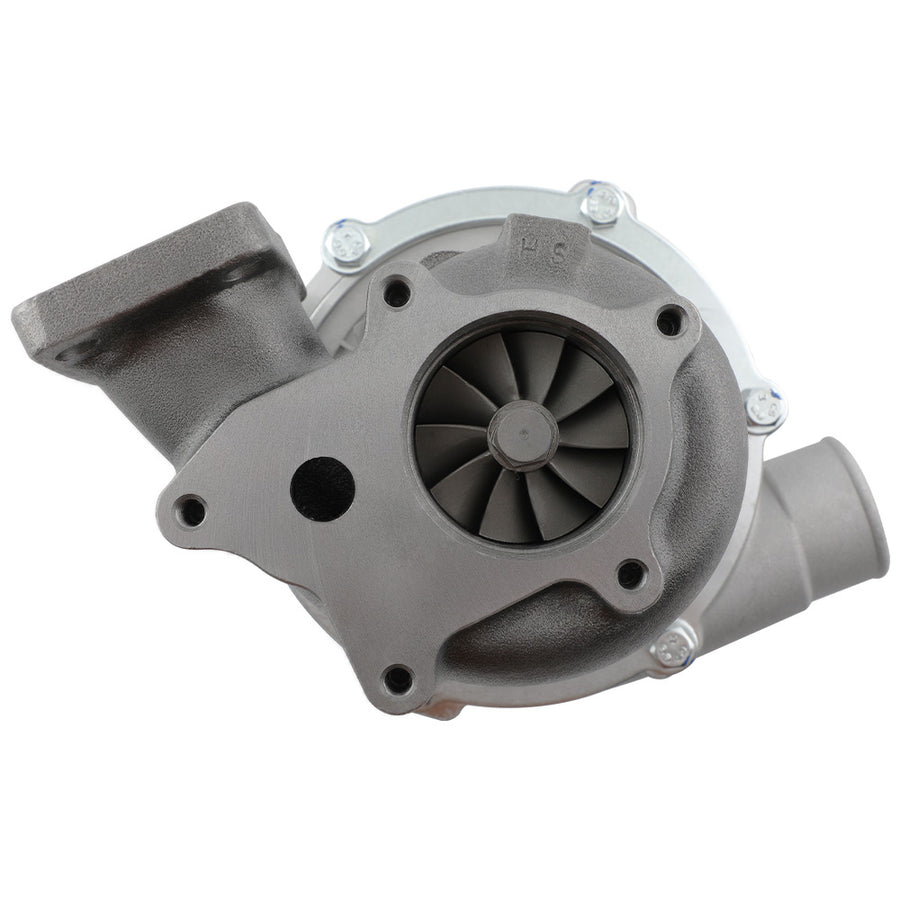

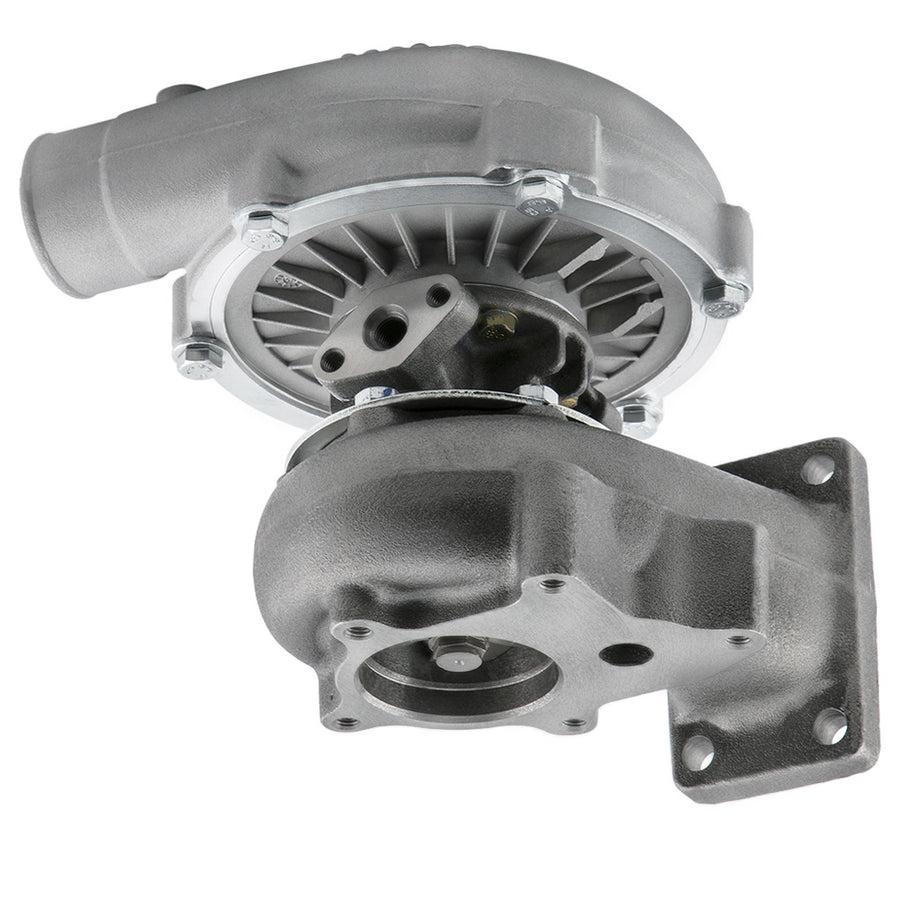

- T04E T3/T4 .63 A/R 74.2 TRIM TURBO/TURBOCHARGER COMPRESSOR 400HP BOOST STAGE III
Features

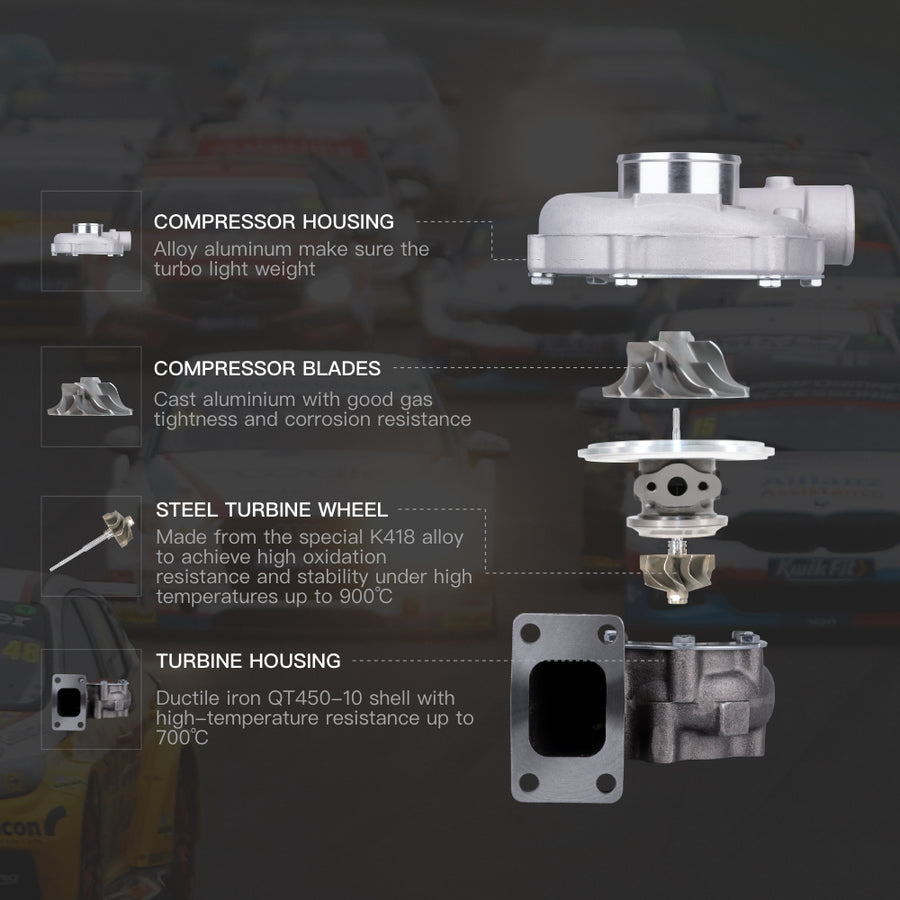

- *Product Material
- 1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃
- 2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
- 3. Compressor housing: ZL104 aluminium with lightweight
- 4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance

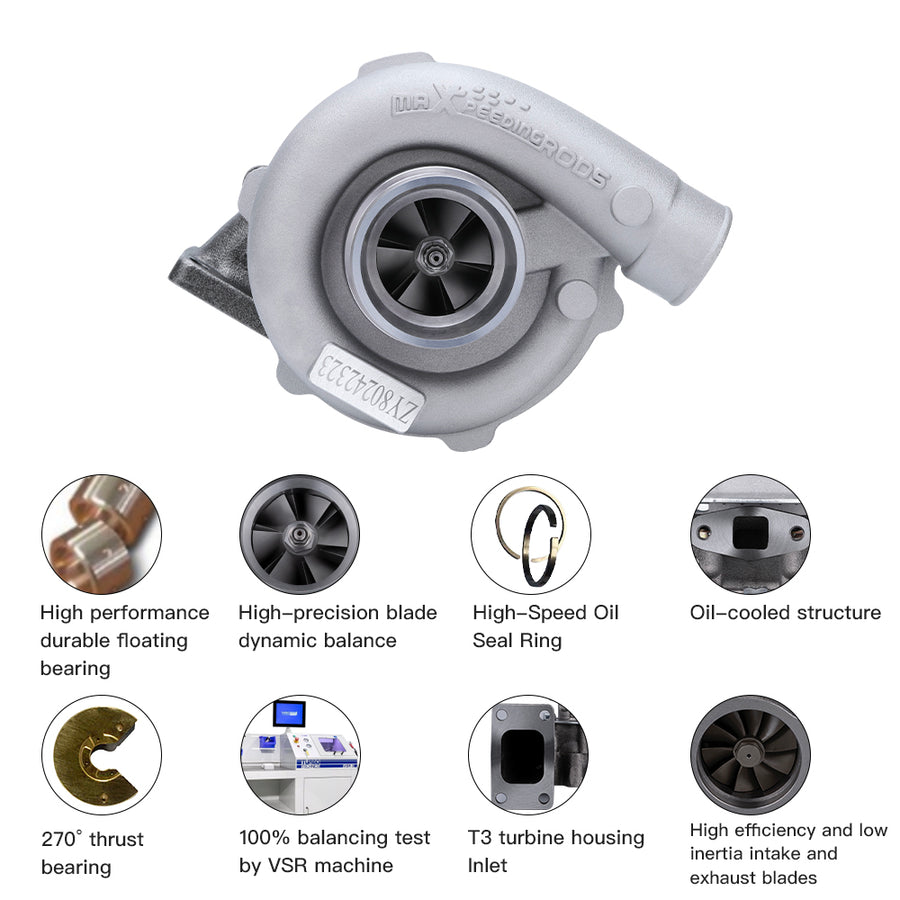

- *Product Features
- 1. Cost-effective turbo increase 20-40% power for your car
- 2. Rich experience in turbo production and own factory
- 3. High-Speed oil seal ring and Precision clearance
- 4. Built for durability and strength
- * Technology Advantage:
- 1. 100% balancing Test by TURBOTECHNICS VSR3
- 2. G3-min-Flow VNT Turbo testing
- 3. Advanced Actuator Tester/Programmer

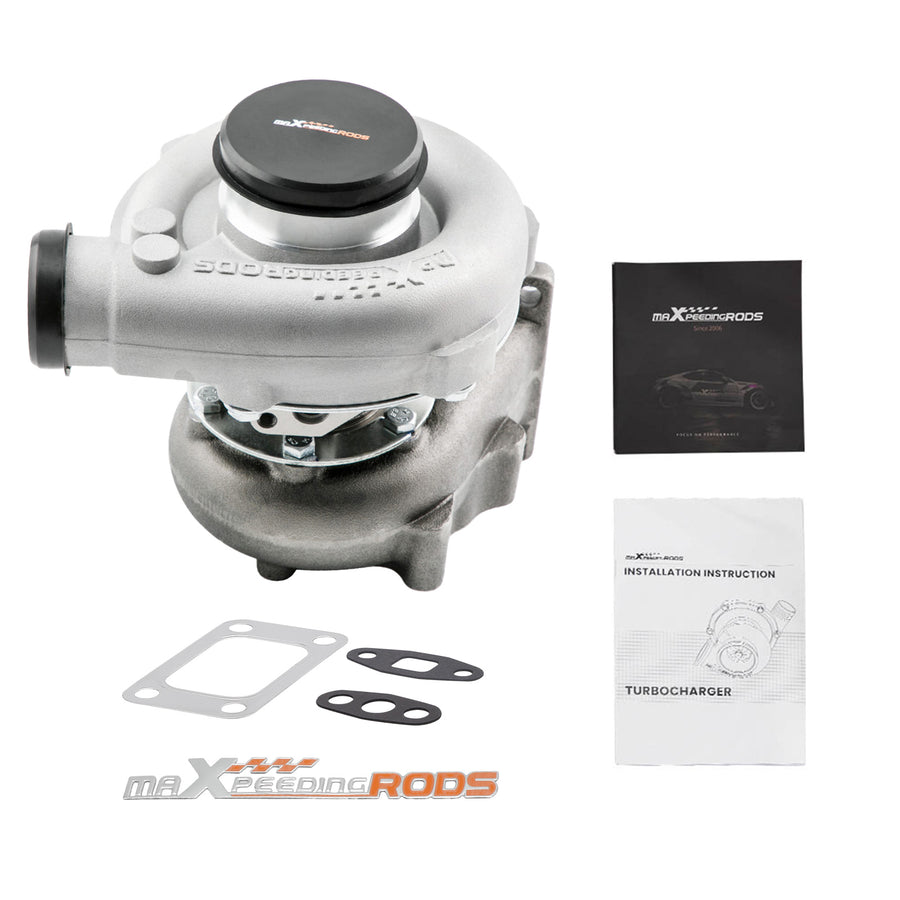

Package included
- 1xTurbocharger
- 1x Flange Gasket
- 2x Oil Port Gaskets
- 1x Manual
- 1x Brochure
- 1x Sticker
Condition
100% Brand New
Notice
- Please confirm that your car's displacement is between 1.5-2.5L .
- Please check the size before purchasing and make sure that your car has enough space to install this turbo.
Fit for
- For 1.5L to 2.5L any 4/6 cylinder engine
- Boost pressures are 7psi(.5 Bar) to 21psi(1.5 Bar)
Turbine Intake Flange
T3 T4 4 bolt Flange Patterns
Turbine Exhaust Flange
Standard T3 5 bolt flange pattern
Turbine Trim
74.2
Turbine A/R
0.63
Turbine Inducer
64.8mm
Turbine Exducer
55.8mm
Turbine exhaust inlet
44.5mm/81mm
Compressor Trim
48.1
Compressor A/R
0.5
Compressor Inducer
52.7mm
Compressor Exducer
- 76mm
- Compressor outlet: 45mm(inside diameter), 53mm(outer diameter)
- Compressor inlet: 68 mm(inside diameter), 72mm(outer diameter)
Oil Inlet
M12*1.25
Oil Outlet
2*M8*1.25
Cooling Type
Oil Cooling
Bearing Type
Journal Bearing/Floating Bearing
Thrust bearing
270 degrees
Horse Power
Up to 400 hp
Wastegate
Without Wastegate
Actuator Type
W/O Actuator
Turbo Type
Individual
Universal Fitment
Yes
Finish
Matte
Accessories
You will get exactly as shown as picture above
Package Size
27x 25x 24 cm
Package Weight
7250g
NOTE
- * Does NOT have a internal wastegate so you must have a external wastegate on your manifold.
- * Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
- * Make sure the oil drain line is lower than the turbo itself.
- * Ensure exhaust outlet are well sealed by welding
- * The degree of modification of the universal turbo depends on your individual vehicle.
- * Professional installation is highly recommended.
- * This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
- * Before installing the new turbocharger, the cause that led to the failure of the turbo must be analysed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
- Notice
- All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
