Steel Connecting Rods Rod compatible for Suzuki Hayabusa 1300 for GSX1300R Busa w/ Bolts

Compatible Vehicles

• Compatible for Suzuki Hayabusa 1300 compatible for GSX R1300
• compatible for Suzuki GSX1300R Hayabusa "99-07"
• Small end diameter:20mm/0.787"
• Pin Type: Floating Pin Piston

Specification

• *Type: Forged 4340 aircraft chrome moly quality steel for racing

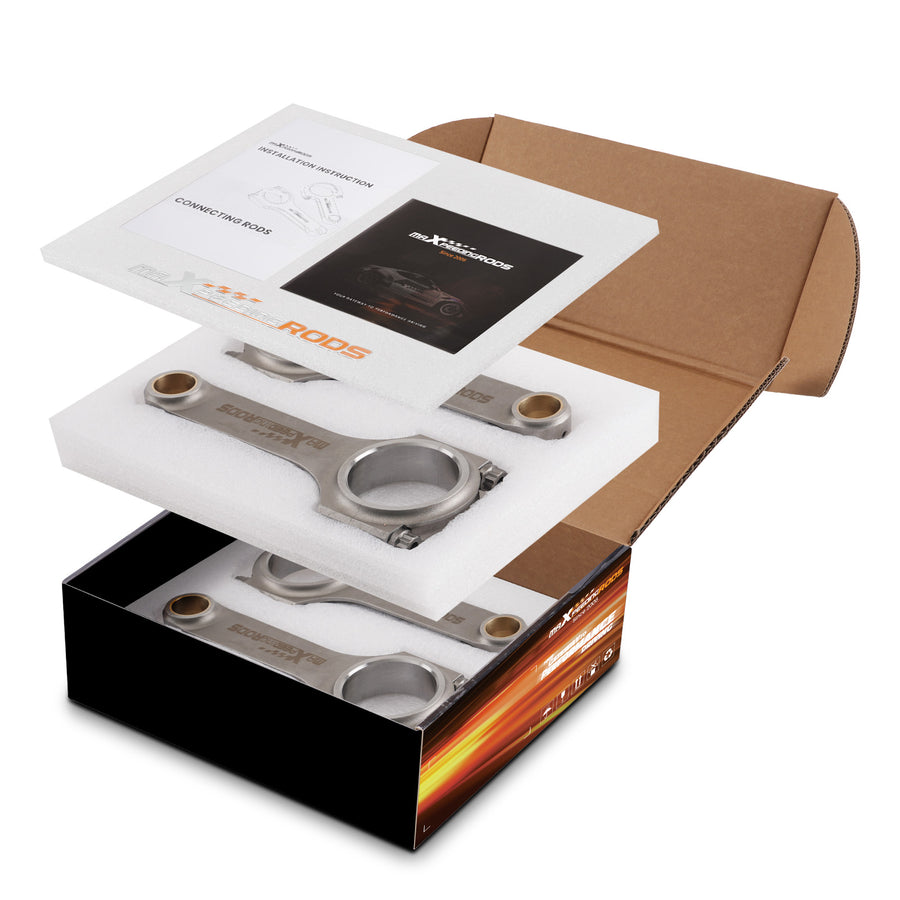

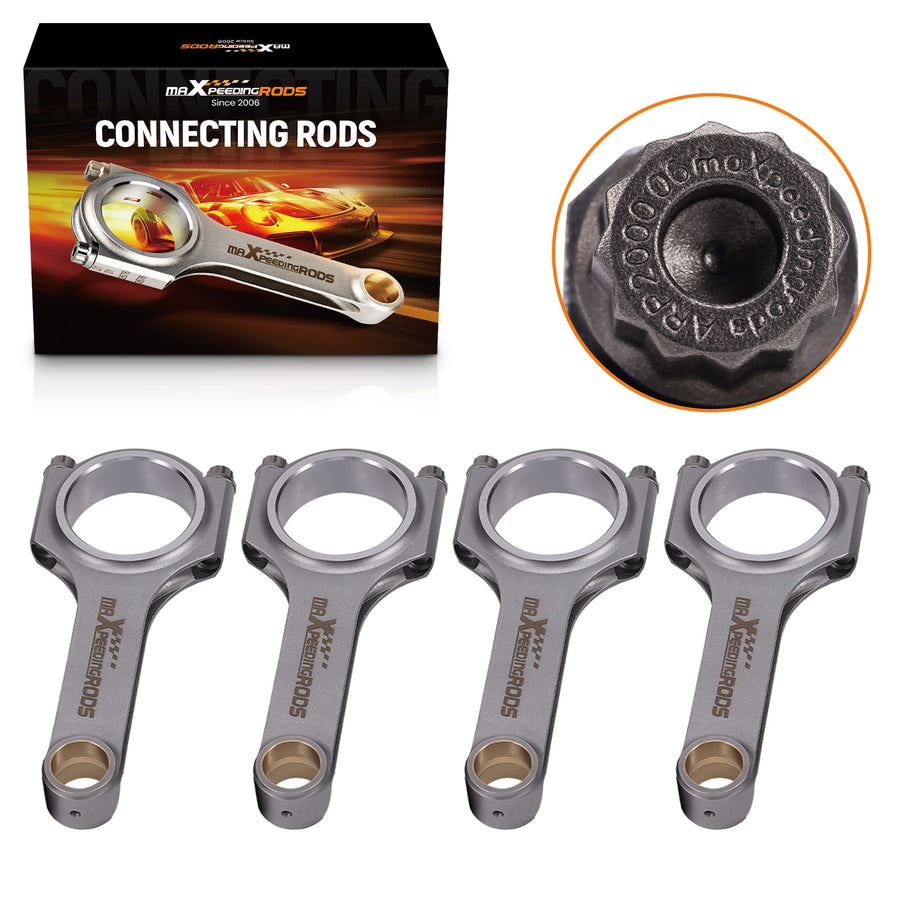

• *H-beam Conrods Quantity: 4 Pieces as showing in picture
• *Bolts: Including ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
• *The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
• *Advertised Horsepower Rating:200HP/piece
• *Top acceleration: 9000rpm
• *package size：28CM*21CM*10CM

Dimension

• Centre to centre length:119.5mm/4.705"
• Big end diameter:41mm/1.614"
• Small end diameter:20mm/0.787"
• Big end width:21mm/0.827"
• Small end width:21mm/0.827"

Feature

• 1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
• 2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
• 3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
• 4. H-Beam design reduces weight without compromising strength；
• 5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
• 6.High precision CNC machined,Precision rod cap alignment dowels；
• 7.Bores finished to +/- .005mm；
• 8.Balanced to within +/- 1 g per rod；
• 9. Each rod is magnetic particle tested to ensure free of flaws；
• 10.Use X-rayed, sonic tested；
• 11.Custom Service.

Note

• *Professional installation is highly recommended ；
• *Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
