Compatible Vehicles
- S400S062 S475 Turbocharger T6 Twin Scroll 95.7/88.1mm 500-1050hp 171702
Features
- *Product Material
- 1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃
- 2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃
- 3. Compressor housing: ZL104 aluminium with lightweight
- 4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance
- *Product Features
- 1. Cost-effective turbo increase 20-40% power for your car
- 2. Rich experience in turbo production and own factory
- 3. High-Speed oil seal ring and Precision clearance
- 4. Built for Thermal Stability and strength
- * Technology Advantage:
- 1. 100% balancing Test by TURBOTECHNICS VSR3
- 2. G3-min-Flow VNT Turbo testing
- 3. Advanced Actuator Tester/Programmer
Note
- * Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.
- * Make sure the oil drain line is lower than the turbo itself.
- * Ensure exhaust outlet are well sealed by welding
- * The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.
- * This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.
- * Before installing the new turbocharger, the cause that led to the failure of the turbo must be analysed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
- Notice
- All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
- <div
Condition
- 100% Brand New

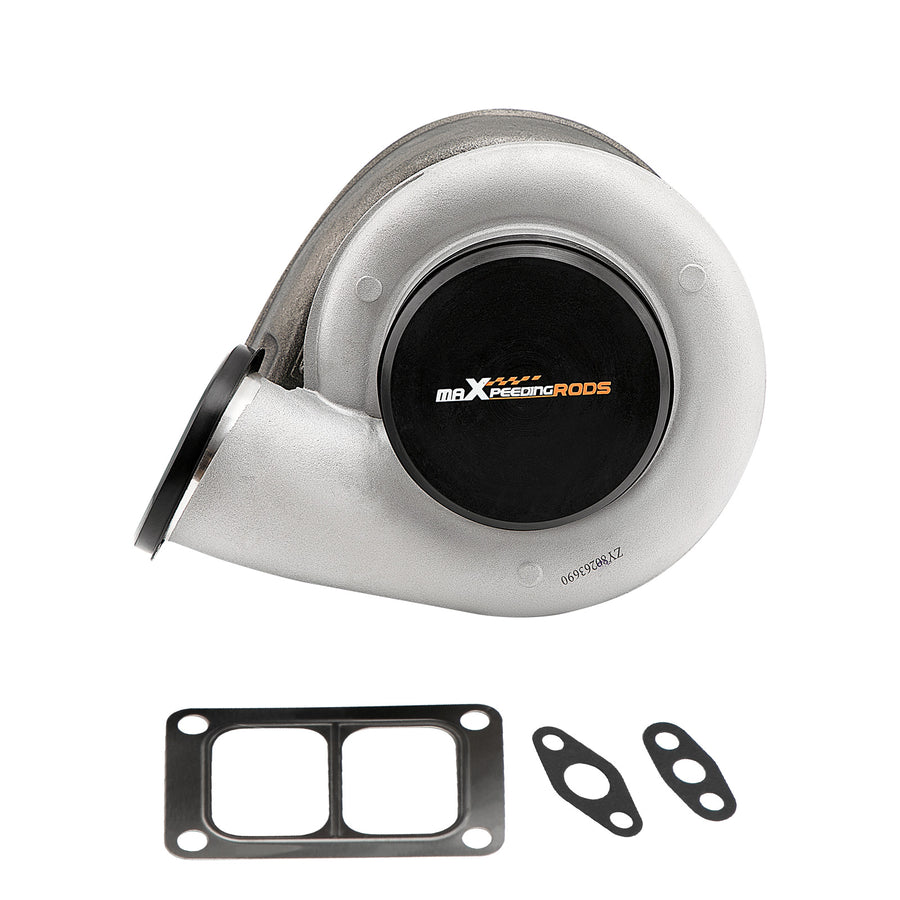

- Accessories: You will get exactly as shown in the picture above
Applications
- For DDC-MTU Truck with Series 60 Engine 2000-2008
- for Navistar Truck with Series 60 Engine 2000-2008
- for Int Harvester Truck with Series 60 Engine 2000-2008
- for 4.0L-6.0L Car engine
- Replacement & Part Number:
- 171702, 171703, 171691, 171701, 23518588
- 23518567, 23518597, 23523197, 2585838C91
- S400SX4, S475, for S400, T6,
Turbine A/R
1.32
Turbine Inducer
95.7mm
Turbine Exducer
88.1mm
Turbine Trim
84.7
Turbine Wheel
10 Blades
Turbine Exhaust Inlet
Twin Scroll T6 Flange
Turbine Exhaust Outlet
5″ for S400 compatible for Marmon
Compressor Inducer
74.5mm
Compressor Exducer
107mm
Compressor Trim
48.5
Compressor Wheel
7+7 Blades
Compressor air inlet
5.00" ported anti-surge
Compressor Air Outlet
4.21" charge pipe outlet
Oil Inlet
1/4"-19 & M8H
Oil Outlet
2*M8*1
Wastegate
W/O Wastegate
Turbo Model
S400S062
Engine Code
Series 60
Cooling Type
Oil Cooling
Bearing Type
Journal Bearing
Thrust Bearing
270 degree
Horsepower
500-1050 HP
Turbo Type
Twin Scroll
Package Size
38x 35 x 35 cm
Package Weight
23000g
