Replacement for G25-550 Ball Bearing Billet Turbo 550HP Universal for 1.4 - 3.0L

Compatible Vehicles

• 1.4L- 3.0L engine displacements and capable of producing up to 550 horsepower

Specification

• Horsepower: 300HP-550HP
• Displacement: 1.4L-3.0L
• Compressor
• Compressor Inducer: 48.35mm
• Compressor Exducer: 60mm
• Compressor Trim: 65
• Compressor A/R: 0.70
• Compressor Air Inlet : 3 Inch
• Compressor Air Outlet: 2 Inch
• Turbine
• Turbine Inducer: 53.9mm
• Turbine Exducer: 49.55mm
• Turbine Trim: 84
• Turbine A/R: 0.49
• Turbine Inlet : T25 Flange
• Turbine Outlet: 3.55 Inch (90mm)O.D. w/81mm centring ring V-Band
• Turbo Model：Replacement for G25-550
• Cooling Type: Water+Oil Cooling
• Bearing Type: Dual Ceramic Ball Bearing
• Actuator: 0.85-2 Bar
• Oil Restrictor Size: 1mm
• Oil Inlet Size: 7/16-24
• Oil Outlet Size: φ13.5-2*M8*1.25
• Water Thread Size: M14*1.5

Feature

• *Product Material
• 1. Turbine housing ：Stainless steel turbine housing - temperature resistant up to 1020℃
• 2. Steel Turbine Wheel：K419 alloy - high oxidation stability and resistance up to 1000℃
• 3. Compressor housing：ZL104 aluminium with lightweight
• 4. Billet Compressor Wheel: Forged CNC full-machined billet aluminium compressor wheel provides a larger horsepower range and maximum boost response
• 1. Excellent high temperature resistance，high efficiency and thermal stability
• 2. Rich experience in turbo production and own factory
• 3. High-Speed oil seal ring and Precision clearance
• * Technology Advantage:
• 1. 100% balancing Test by TURBOTECHNICS VSR3
• 2. G3-min-Flow VNT Turbo testing
• 3. Advanced Actuator Tester/Programmer

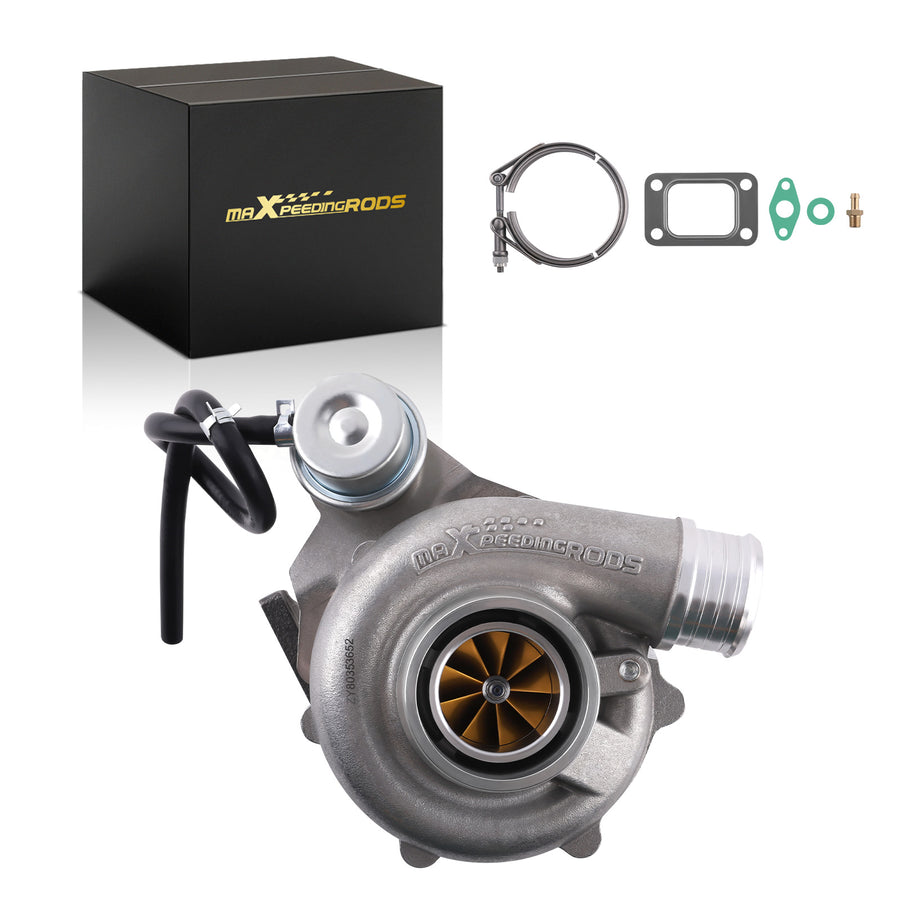

Package included

• 1x Turbocharger
• 2x Oil Gaskets
• 1x Flange Gasket
• 1x V-BAND
• 1x Oil Inlet Bolt
• 1x Manual
• 1x Brochure
• 1x Sticker

Note

• Note 1：All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
• Note 2: Not For Sale or Use in Carlifornia, or New York(for all vehicles registered in these states)
