Compatible Vehicles
- For F150 2004-2008 4WD
- For F150 2009-2020 All Models
Introduction

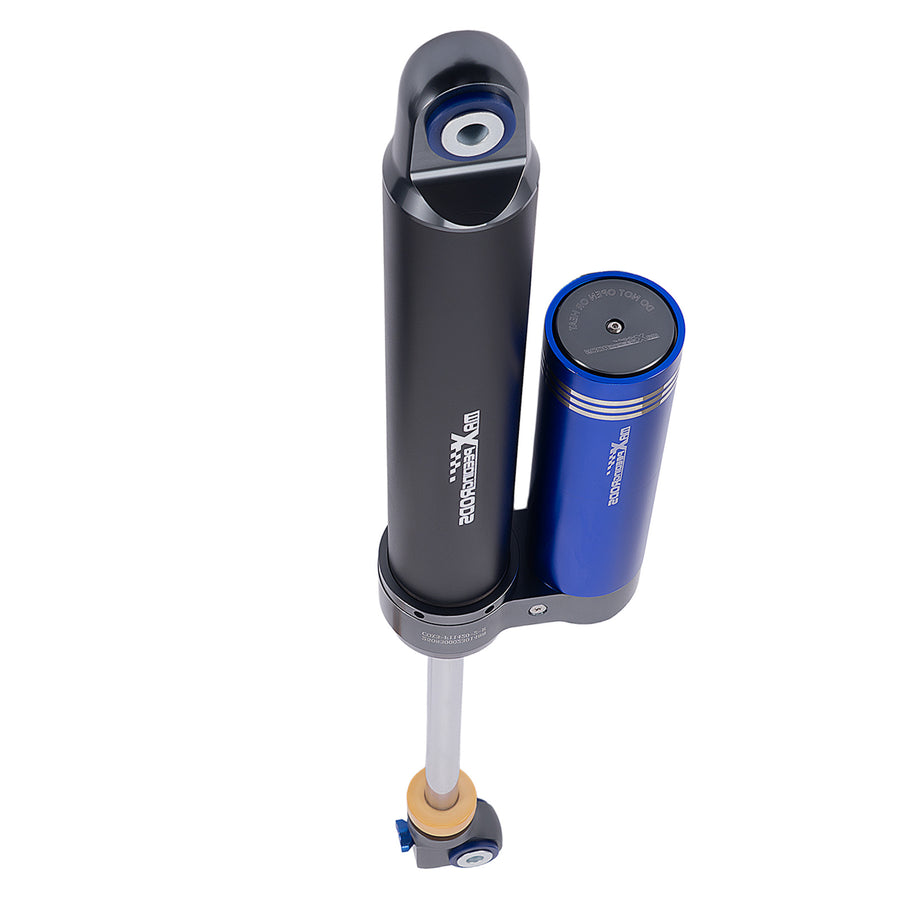

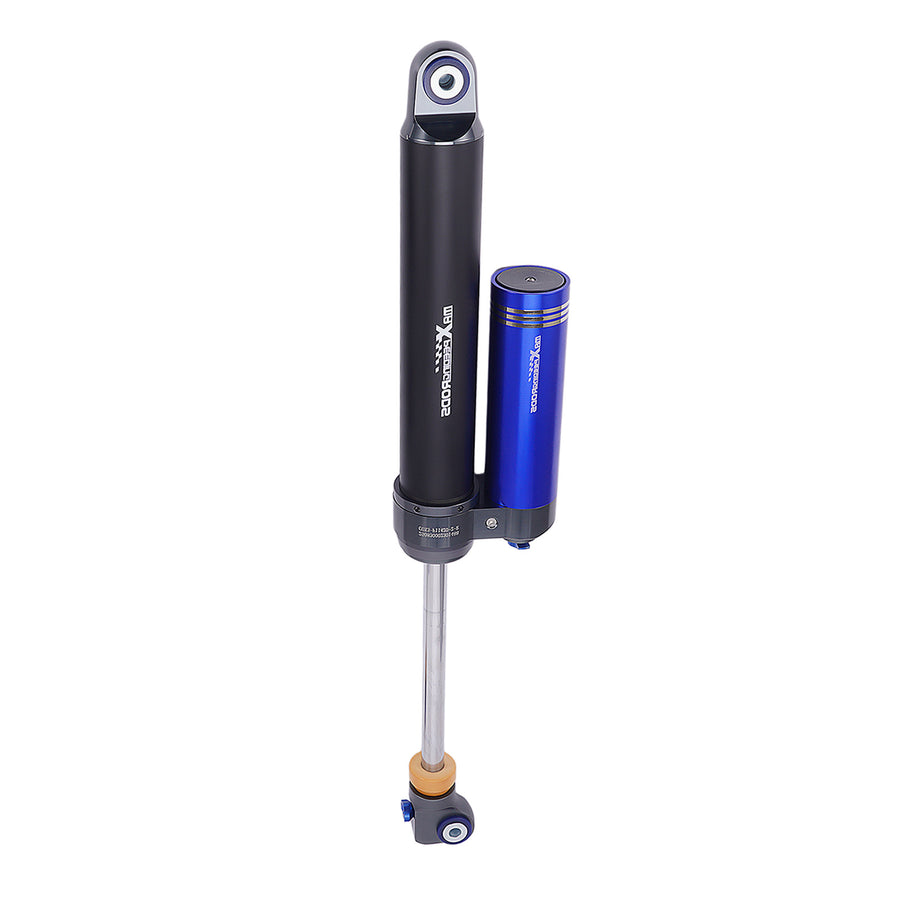

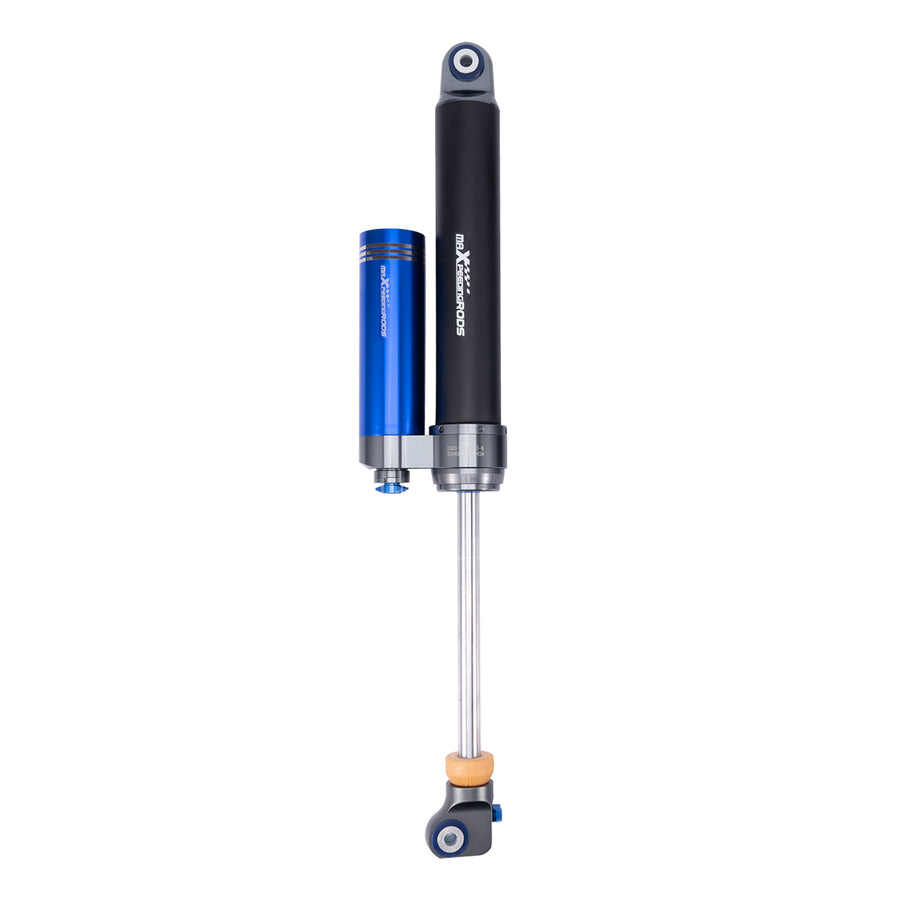

- X3 Series Remote-Reservoir Shocks
- The upgraded system enhances off-road capabilities for SUVs and pickup trucks through an innovative external nitrogen reservoir with oil-gas separation technology. The optimised design features an expanded gas compression chamber for improved shock stroke efficiency, coupled with an enlarged oil chamber that increases fluid capacity while enhancing heat dissipation and fade resistance. With precision-engineered dual compression/rebound damping adjustability, the system maintains vehicle stability across diverse terrains by dynamically adapting to both high-frequency vibrations and sustained impacts through advanced thermodynamic management.
Specification
- Height adjustable: rise 0-1.5 inches
- Body Outer Diameter (mm)：65*370
- Body Material:45# steel
- Top Mount:EYELET BUSHING
- Bottom Mount:EYELET BUSHING
- Compressed Length (mm):474
- Extended Length (mm):751
- Reservoir Outer Dimensions:Φ65×200
- Reservoir Inner Dimensions:Φ57×200
- Reservoir Type:Piggyback
- Shaft Length (mm):395
- Travel (mm): 277
- Type:Coilover shock
Feature
- 1. Enhanced Nitrogen Reservoir Design
- The expanded inner diameter of the nitrogen cylinder optimizes gas chamber volume and thermal dissipation surface area, ensuring stable damping performance under prolonged high-intensity operation.
- 2. Dual-Mode Adjustability
- A precision-engineered 10-stage rebound and compression damping adjustment mechanism provides extended parameter adaptability, balancing terrain-specific stiffness control with ride comfort optimization.
- 3. Oversized Damping Architecture
- The enlarged inner diameter of the damping tube enhances fluid dynamics efficiency, while the reinforced rebound disc configuration improves vibration absorption capacity for superior impact management.
- 4. Advanced Surface Engineering
- High-frequency quenching and hard chrome plating processes on the piston rod surface deliver enhanced wear resistance. T6 heat-treated 6063 forged aluminium maintains structural integrity while achieving weight reduction.
- 5. Dual Compression/Rebound Damping Adjustment
- The X3 Series features synchronized compression and rebound damping tuning capabilities, with terrain-specific recommendations provided for optimal setting combinations across diverse operating conditions (e.g., high-speed gravel, rock crawling, paved-road cruising).
Package included

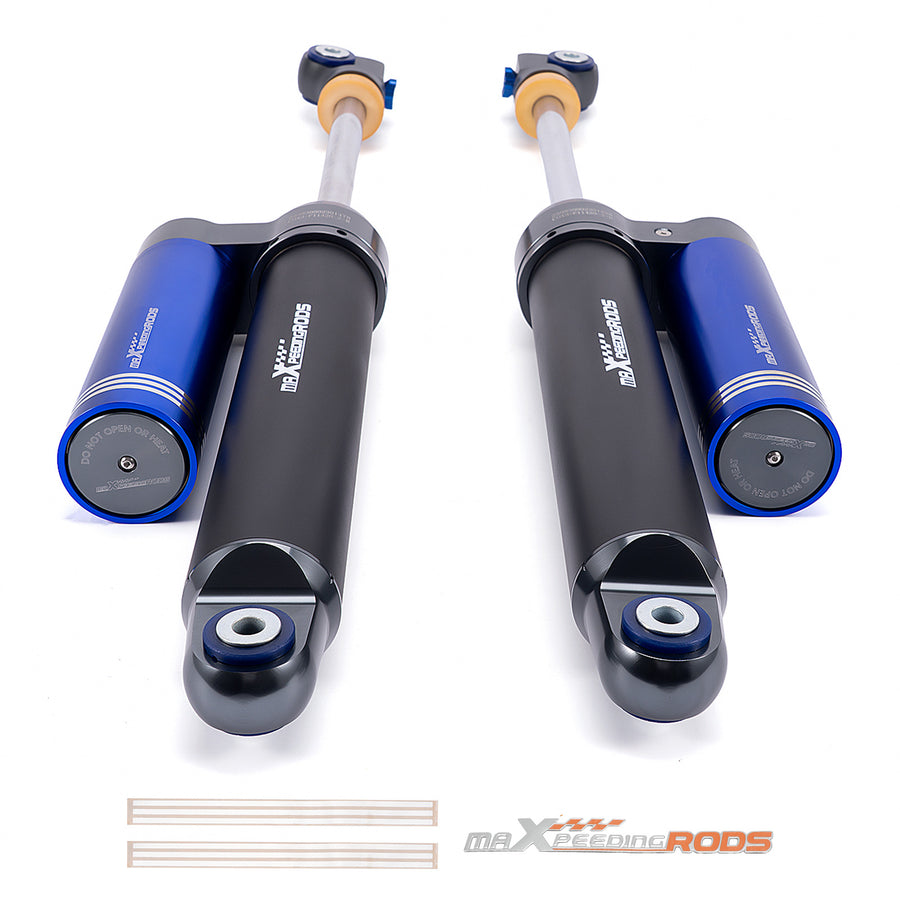

Rear coil-overs*2
Note
All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
