Compatible Vehicles
- Compatible for Tesla model 3 2017+ RWD / rear motor
Introduction
The OXP Series offers factory improvement coil-overs designed for direct replacement without modifications. They feature pre-set damping valves and variable stiffness springs that enhance ride comfort while preserving the vehicle's original height. Additionally, racing damping oil ensures stable operation across varying temperatures. Each front coil-over is equipped with OEM-standard top mounts, allowing for quick installation.
Specification
- Top mounts: Front top mounts included, rear OE top mounts required
- Damping adjustable: Not available
- Camber adjustable: Not available
- Height adjustable: Yes, lowering 0-25mm depending on the vehicle models
- Spring rate front: 6.0 kg/mm(336 lbs/in)
- Spring rate rear: 6.5 kg/mm(364 lbs/in)
- Front spring inner diameter: 64-84 mm
- Rear spring inner diameter: 92-102 mm
- Spring length front: 320 mm
- Spring length rear: 330 mm
- Colour: Black body with black spring
Dimension
- Package Size: 76.8*55.9*20.4 cm
- Weight: 39600 g
Feature
- 1. Preset For Optimal Damping:
- Optimal damping preset ensures the piston to provide sufficient damping force at various displacements, achieving a more comfortable riding experience compared to the OEM settings.
- 2. High-tensile Springs:
- Use variable stiffness springs to effectively balance comfort and support, improving handling and stability while turning.
- 3. Equipped with OEM-Standard Top Mounts:
- Designed for quick, no-modification installation, the OEM-standard top mount uses superior rubber to reduce noise, vibration, and harshness.
- 4. Upgraded Damper Oil:
- The high-viscosity index racing damping oil provides stable damping characteristics and reduced viscosity changes across varying temperatures.
- 5. Excellent Sealing:
- Constructed with high-quality sealing materials to effectively prevent leakage and enhance efficiency.
- 6. Lower Mount:
- Made from heavy-duty 20# steel with a consistent thickness of electrophoretic paint finish, it ensures excellent corrosion resistance.
- 7. Twin-Tube Structure:
- The separate oil and gas chambers provide a longer damping stroke than mono-tube, delivering excellent handling and control in various driving conditions.
- 8. Piston Rod:
- Made from 45# reinforced steel and tested for 3 million cycles, featuring a corrosion-resistant coating to significantly extend service life.
- 9. Spring compatible for Seat and Locking Ring:
- Made from anodized AL6061 aluminium, these lightweight, corrosion-resistant components offer excellent structural rigidity and minimize noise when used with rubber gaskets.
- 10. Dust Cover:
- Made from TPV plastic, the extended dust cover offers superior protection for the damper by preventing dust intrusion and extending the service life of the damping system.

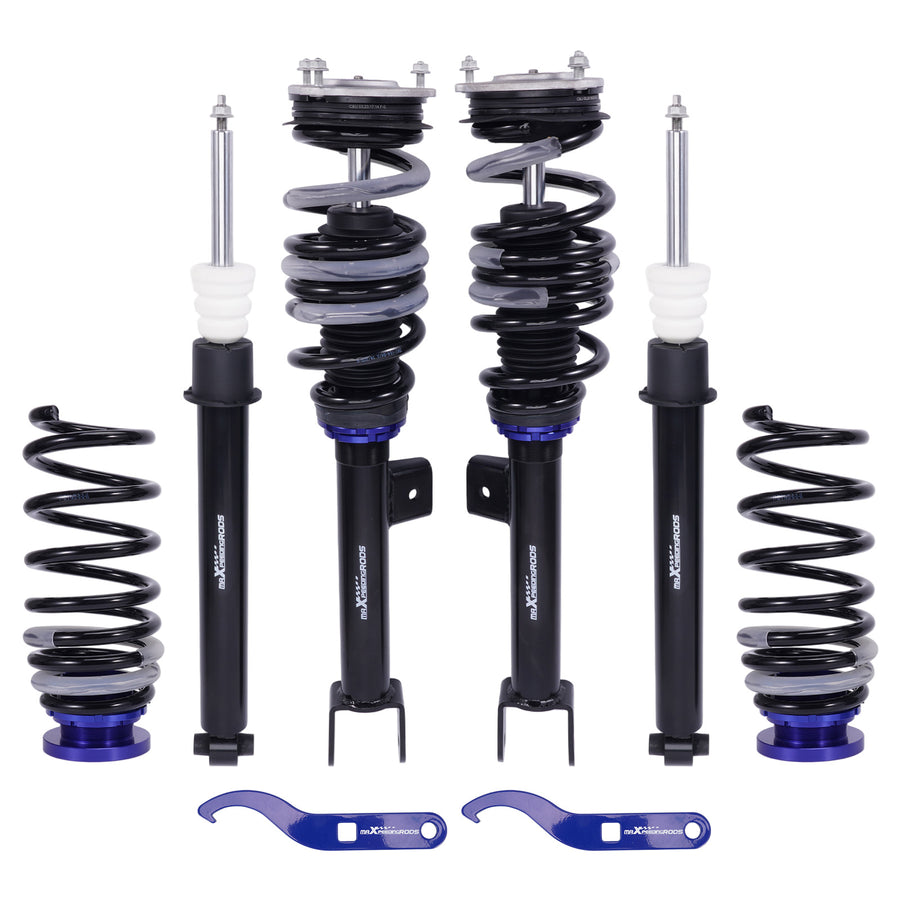

Package included
- Package included：

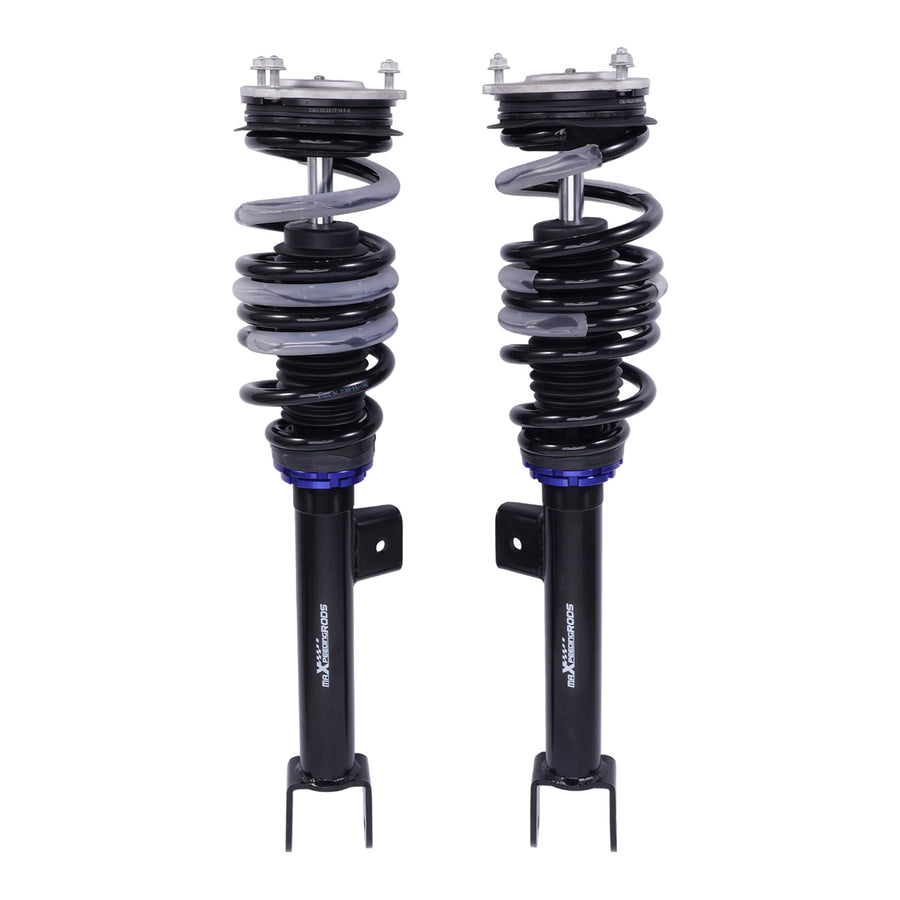

- 2 x Front coil-overs

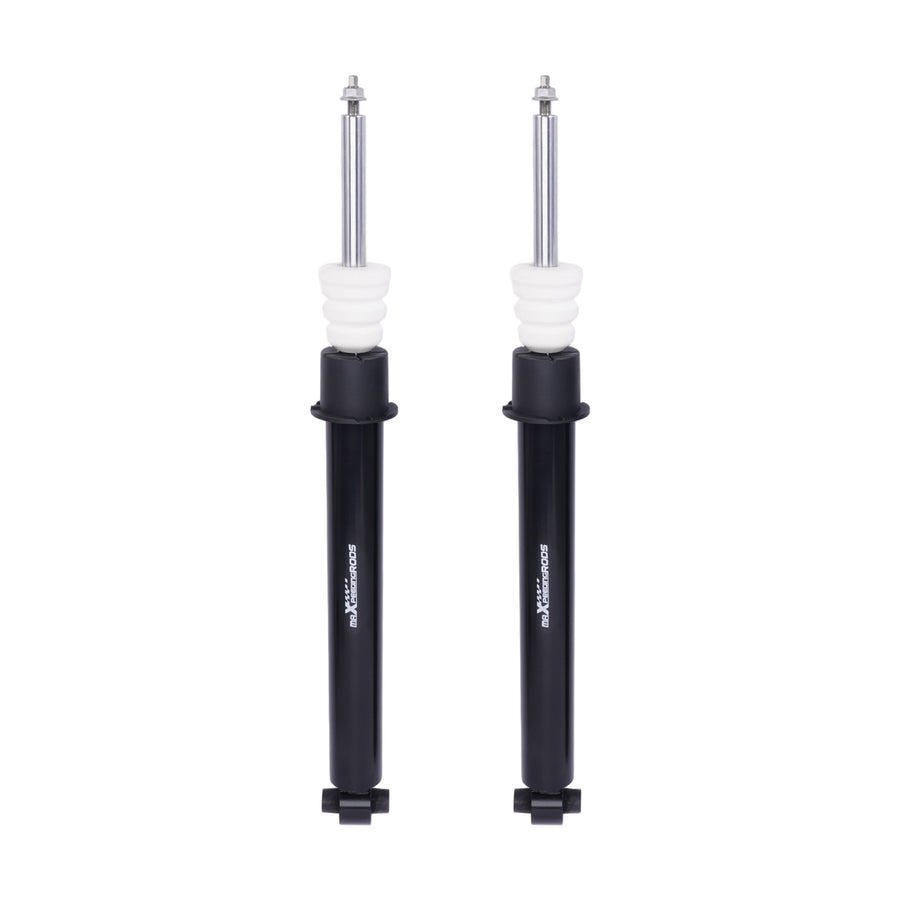

- 2 x Rear coil-overs
- 2 x C spanners
