Compatible Vehicles
- Compatible for Dodge Dakota L4 2.5L 4WD(Four Wheel Drive) 1997
- compatible for Dodge Dakota V6 3.9L 4WD(Four Wheel Drive) 1997
- compatible for Dodge Dakota All Engine 4WD(Four Wheel Drive) 1998-1999
- compatible for Dodge Durango All Engine 4WD(Four Wheel Drive) 1998-1999
Specification
- Hose Port Type:O-Ring
- Steering Wheel Position: LHD
- Pitman Arm included: NO
- gear ratio :15.87
- Input Shaft Diameter:18.4MM /0.724 IN
- Output Shaft Diameter:30MM /1.181 IN
- Number of Mounting Holes:3
- Input Shaft Spline Count:30
- Input Shaft Type: Spline+single flat+glooved
- Pressure Port Thread Size:M18X1.5
- Return Port Thread Size:M16X1.5
- Total Turns Lock To Lock:4.2
Feature
- 1.Built to strict quality control standards 100% factory tested
- 2.Easy Installation
- 3.The steering gear box is the heart of the vehicle’s steering system.
- It guides the wheels’ movement in conjunction with the direction that the steering
- wheel is rotated, helping achieve ideal steering response for more efficient driving.
- 4.Steering Gear Boxes are re-engineered, built and tested to match O.E. performance.
- Each unit features 100% new O-rings and lip seals to ensure leak-free, long-lasting performance.
- 5.Shafts are surfaced to precise specifications to eliminate premature seal wear and extend gear life.
- 6.100% hydraulic testing measures for proper flow, leakage and performance to
- ensure perfect fit and function.
Package included

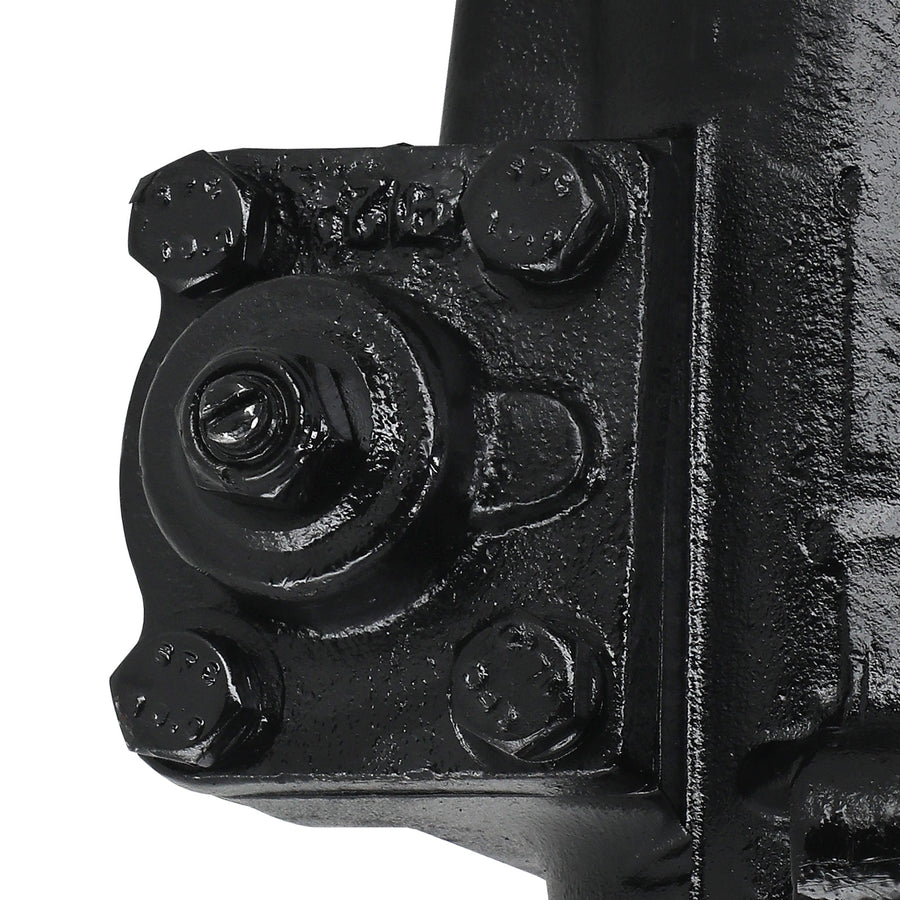

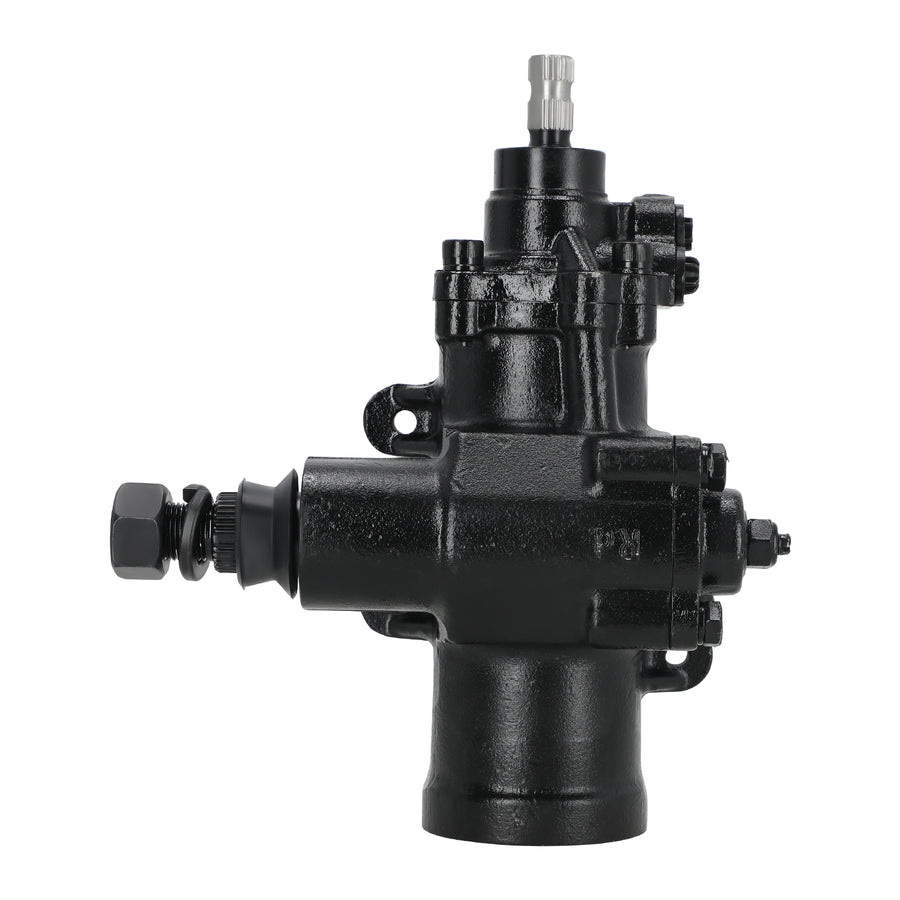

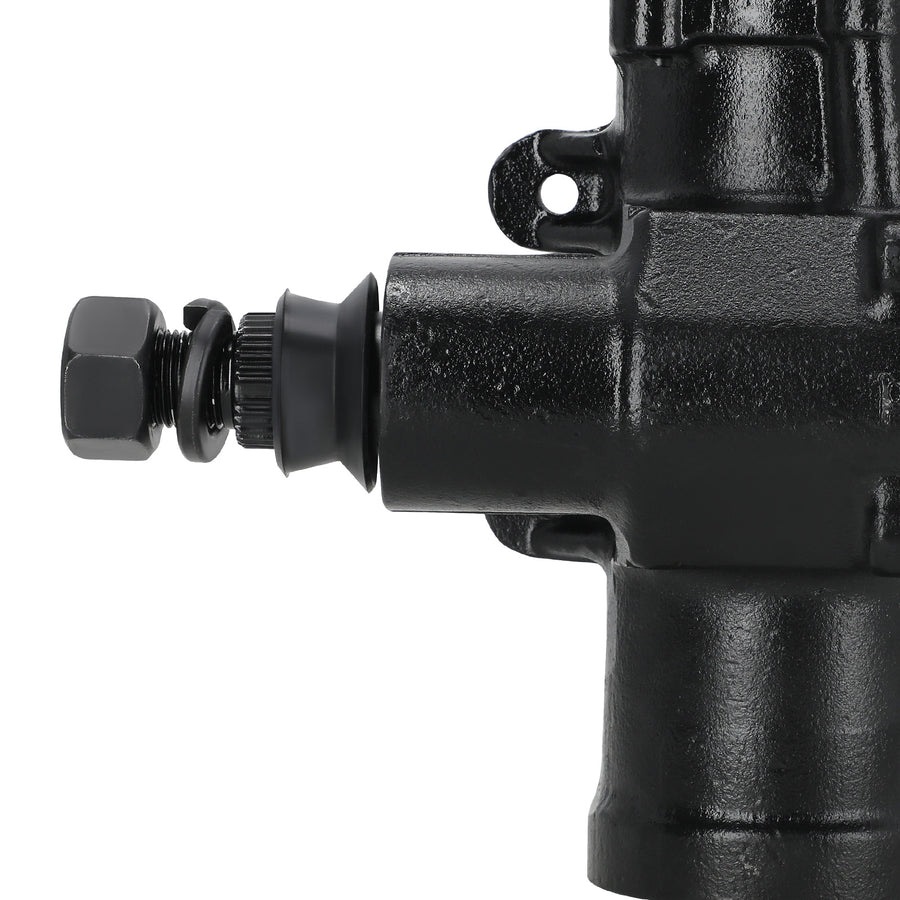

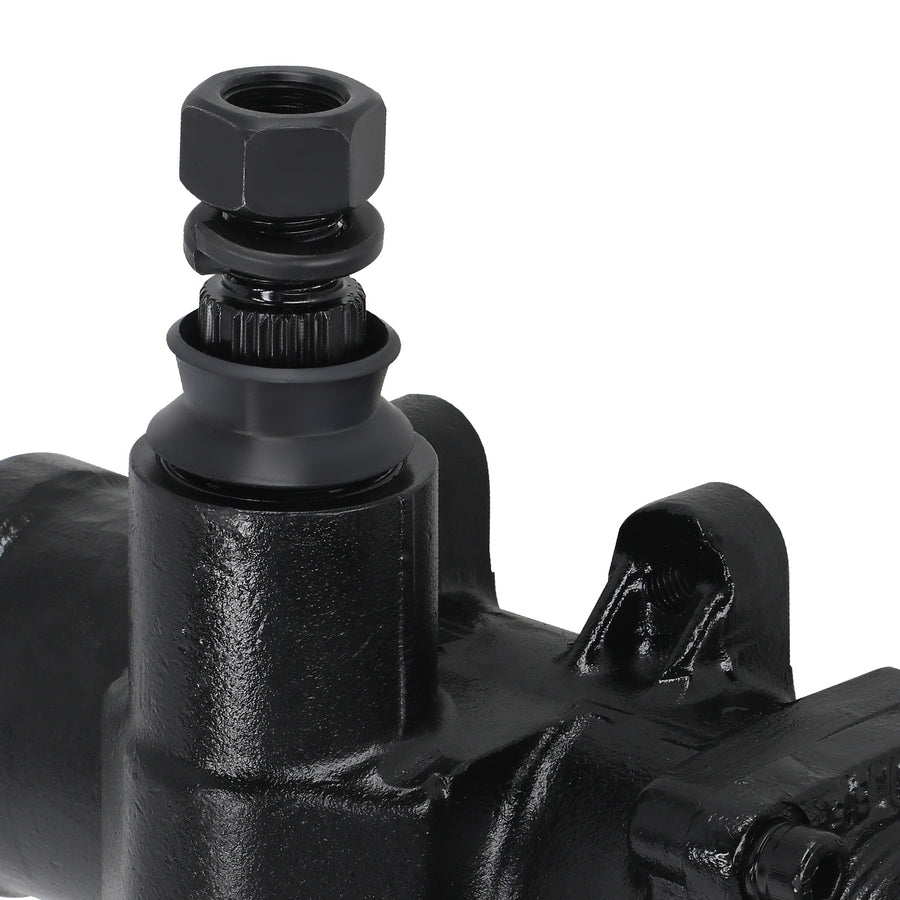

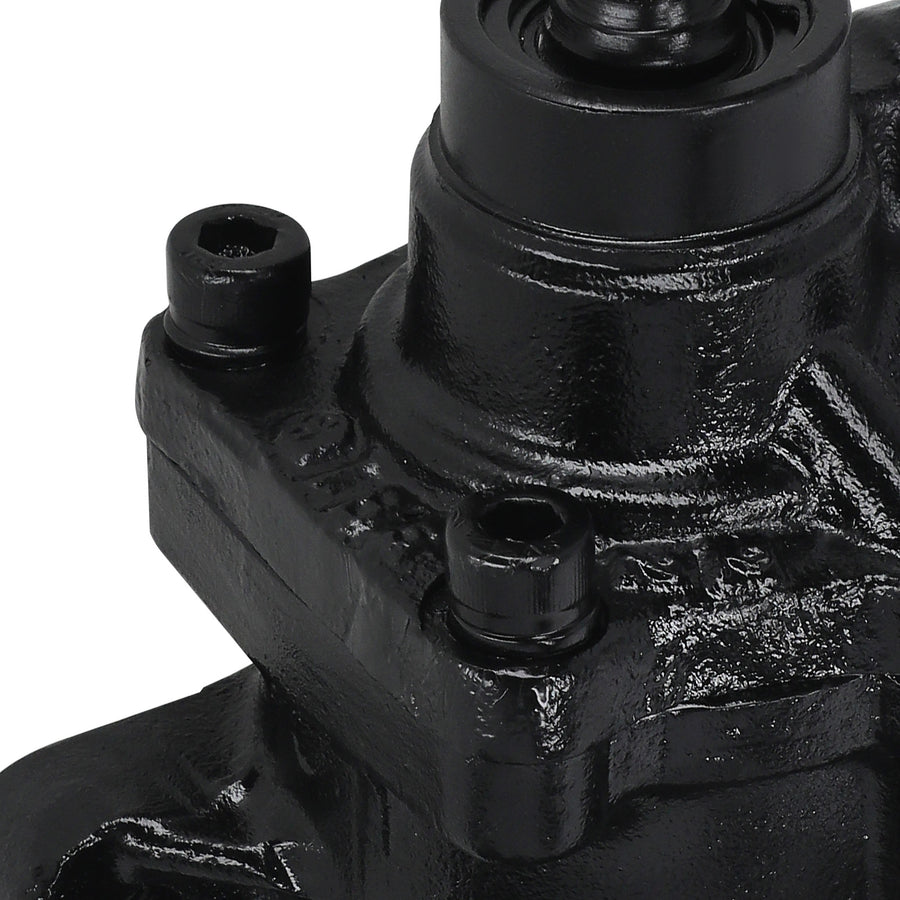

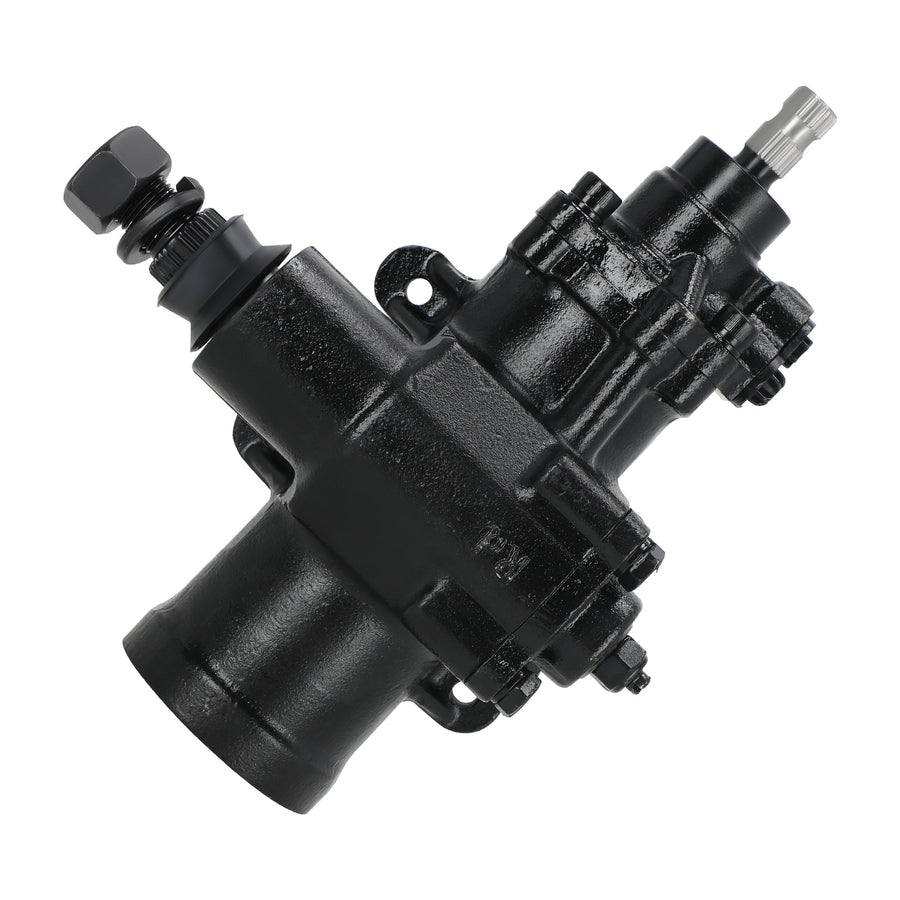

1 × Power Steering Gear Box(Showing as the picture)
Note
- 4WD(Four Wheel Drive) Only
- If your car has these symptoms, it means you need to replace your Power Steering Gear Box.
- • No power steering assist in one direction or both.
- • Leaks from seals or housing.
- • Clunk or popping noise.
- • Excessive play in steering wheel at centre before wheels start turning.
- • Binding or catching while turning.
- • Vehicle drifts or wanders while driving straight.
OE/Part number
27-7588，277588， 52103501AA, 52106257AB, 52106501AA，18200527-101, 18200527-102，18200527101, 18200527102
