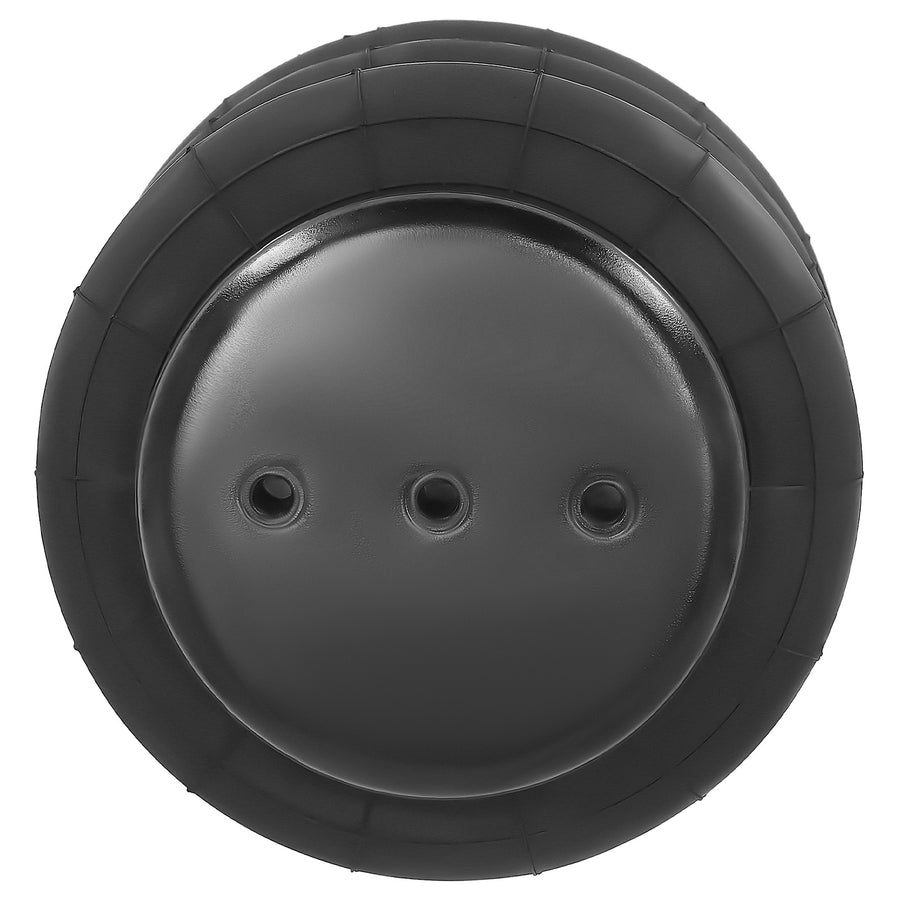

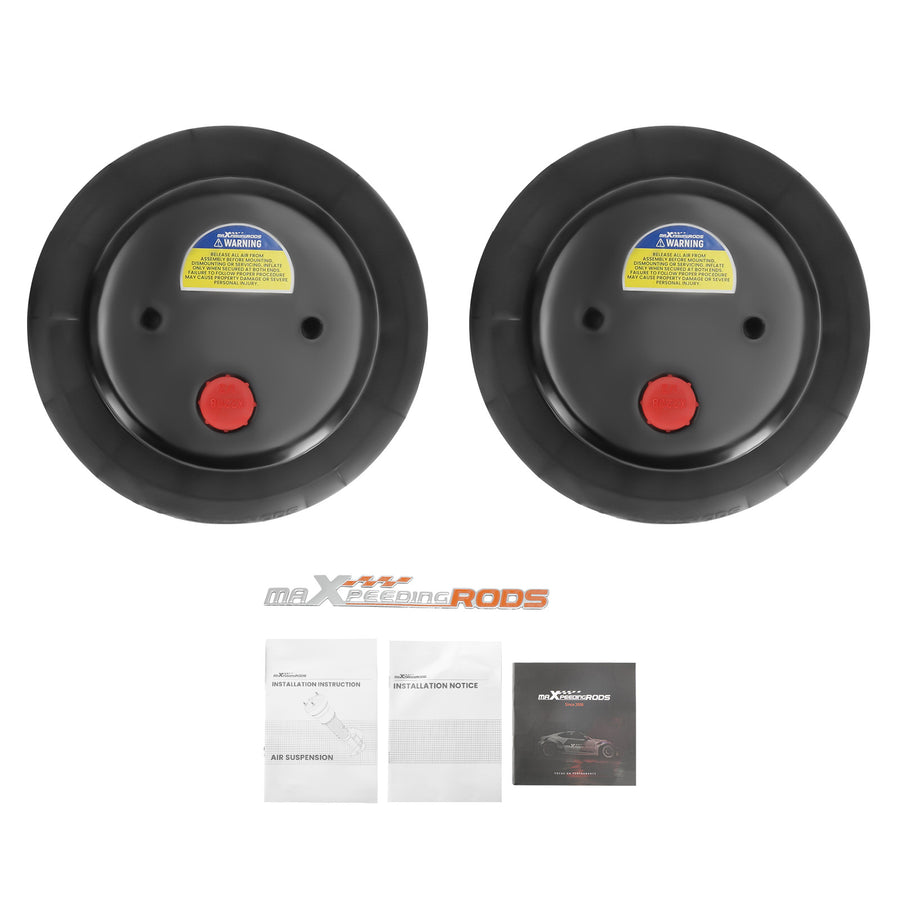

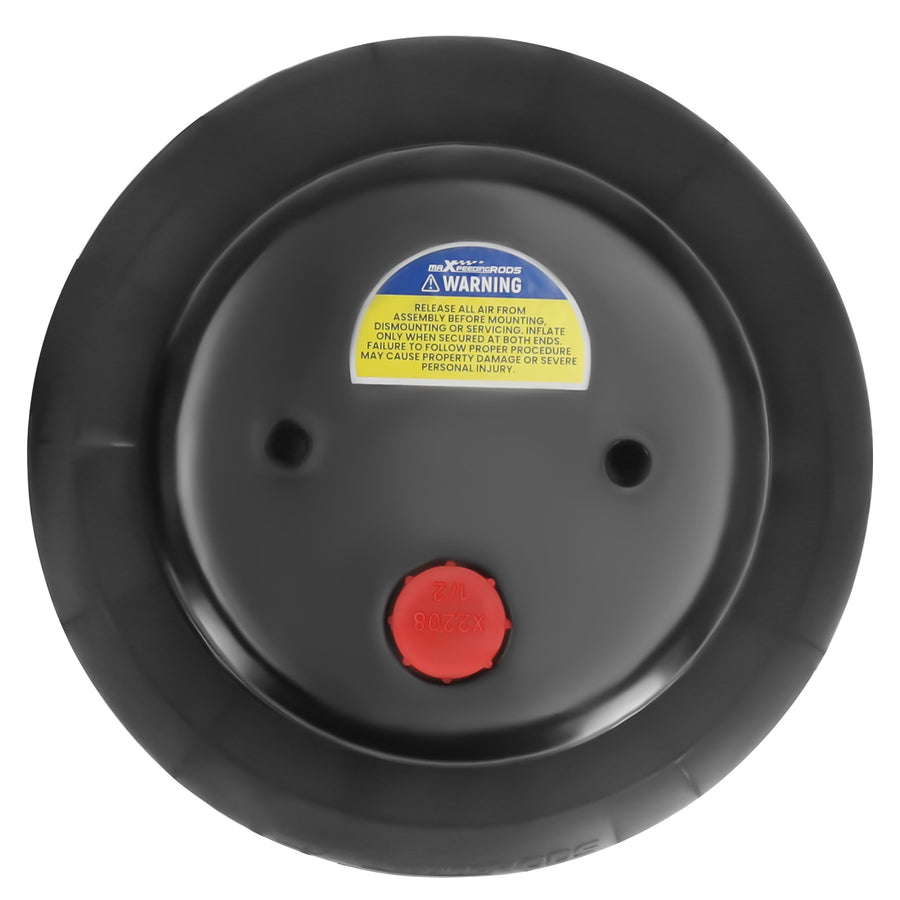

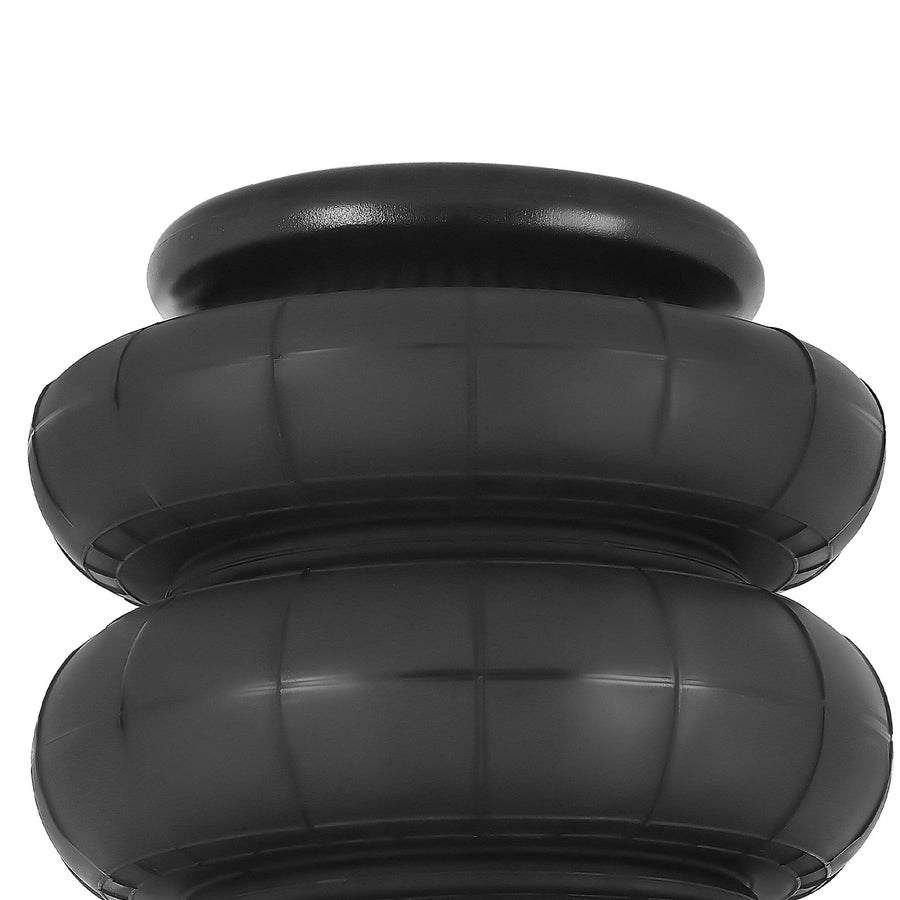

Pair Triple Bellow 2600 Bags 1/2

Compatible Vehicles

• For most bus/truck&trailer, compatible for Mini Trucks, Light Duty, and Subframe Vehicles

Specification

• Condition: New
• Part Type: Air Suspension Spring
• Placement on Vehicle: Rear,Front
• Quantity: 2 pieces (for rear, front, left, right)
• Length, width and height (cm): 40*28*22 cm
• Weight: 6.1 Kg

Feature

• PREMIUM MATERIALS & TECHNOLOGY
• Multi-ply air spring sleeve minimizes noise.
• Heavy-duty crimping rubber and connection compatible for seat withstand 2 MPa+ pressure, preventing detachment.
• TPV dust cover: better flexibility and lifespan than TPE.
• RIGOROUS TESTING
• 100% air tightness tested.
• Endurance tested over 5 million cycles.
• Operates in -58°F (-50°C) to 302°F (150°C) extremes.
• TRUSTED QUALITY
• Manufactured to strict standards and ISO 9001 compliant.
• Precise OE fit and performance.
• CNC machined components.
• PERFORMANCE & COMFORT
• Restores ride height and enhances comfort.
• High compressive strength and excellent sound insulation ensure driving comfort and safety.
• Efficient heat dissipation ensures durability.
• Easy to install, with no special tools required.
• INSTALLATION TIPS
• Replace the old air fitting with a new one, insert the air tube into the air fitting cap to establish a proper connection.

OE/Part number

• Stroke/Closed:220 mm
• Max height:330 mm
• Min height:110 mm
• Design Height:250 mm/9.8"
• Top plate diameter:131 mm
• Airport size: 1/2-14NPT Single Port
• All mounting holes size:3/8-16UNC
• Independent Test Pressure: at least 290psi
• Recommended working range: 0psi - 170psi
• Air spring bag capacity：2600LBS/Side
