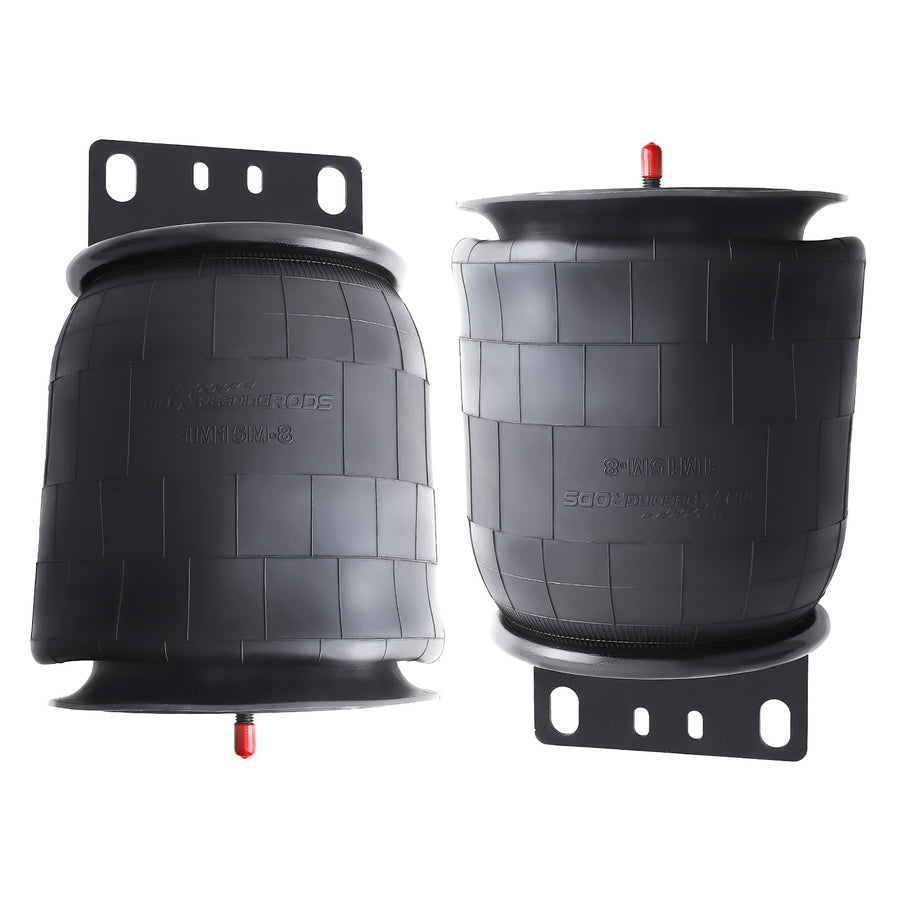

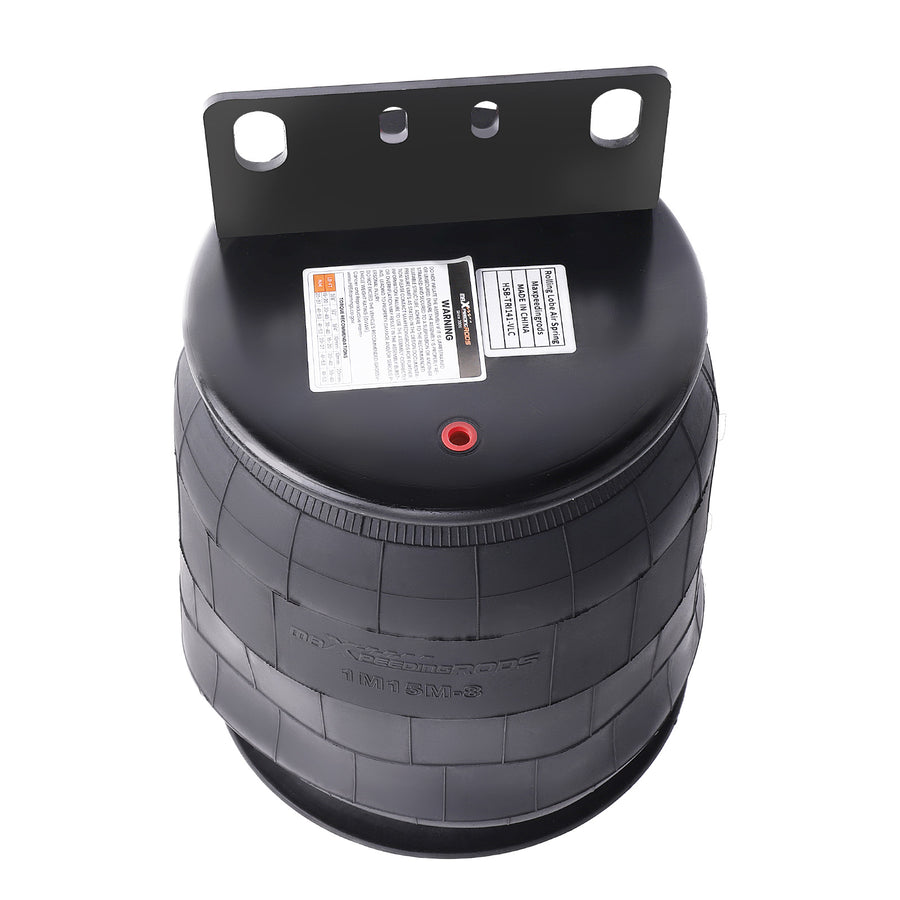

Pair Air Suspension Bellows For FirestoneW01-358-9375 ContiTech 161006 161087

Compatible Vehicles

• FirestoneW01-358-9375 ContiTech 161006 161087

Specification

• Top plate screw (nut) teeth: 1/2-13UNC
• The screw centre distance of the top cover plate:157.5mm / 6.2inch
• Screw (nut) teeth of the bottom cover plate: 1/2-13UNC
• Air hole/air inlet: 1/4NPT
• Top plate diameter: 231mm / 9.1 inch
• Diameter of the bottom cover: 257mm / 10.1 inch
• Stroke: from 175mm/ 6.9 inch to 550mm/21.7 inch
• Intern Jounce Bumper: NO
• Quantity: 2 Pieces
• Condition: Brand New
• Material: Natural rubber
• Package Length, width and height: 71*37*55cm/28*14.6*21.7 inch
• Package Wight: 22 Kg/48 LBS

Feature

• 1、Highest leak test ratio: 100% Air Tightness Testing.
• 2、Tested over 4,000,000 times, most air springs are only tested 1,000,000 times.
• 3、Temperature Range ≥-40°F/≤158°F: Premium Natural Rubber Material.
• 4、The thickness of the rubber is 4.5-5.00mm.
• 5、12.9 grade high strength steel studs.
• 6、Withstand 2Mpa of air pressure before the rubber burst.
• 7、Careful evaluation of OEM specifications.
• 8、Strict quality control.
• 9、Sturdy & Durable Material.
• 10、Reduces Damage of Trailer, Cab And Truck Body.
• 11、Reduce driver discomfort and dangerous fatigue, improve driver safety.
• 12、Allow perfect load equalization between axles. Provide constant-level hauling.
• 13、Increase life of tyres and brake linings.
• 14、Substantially reduce breakage and maintenance of other vehicle components.

OE/Part number

• Replacement for Firestone W01-358-9373, W01-455-9373, W01-358-9375
• replacement for Goodyear 1R12403, 1R12-403, 1S12030, 1S12-030, 1R12-404, 1S12-031, 1R12-488, 566-24-1-012, 566-24-3-097
• replacement for ContiTech 161006, 161087, 64265, 64336, 9 10-18.5 P 440, 9 10-18.5 P 519, 910-18.5P451, 910185P440, 910175P451
• compatible for Ford 4C4O5580CA, 4C4Z5580CA
• replacement for Navistar FSIW013589373, FLTA1R12403
• Other parts number:
• Compatible for Hendrickson: 51722001, 51722002, 571220001, 571220002, 57122001, 57122-001, 57122002, 57122-002, 57122002L, 57122-002L, 571221, 57122-1, 571222, 57122-2, 50899-1, 50899-2
• for IHC: 1R12-1056, 2036090C1, 2992101C1
• for Automann: AB1DK23M-9373, 566.CT64265
• for HD value: HDV9373
• for Airtech: 39373KPP
• for World american: WA01-93730
• for Meritor: FS9373, MAF9373
• for Stemco: 1R12-395, 1R12-396, 1R12-400, 1R12-401, 1R12-402, 1R12-403
• for Triangle: 8451
• compatible for Mack: 364QS27, 57QL414M
