Compatible Vehicles
- Universal
- Fit for most 1/2, 3/4 and 1 ton pickups and vans
- Note: 1/2, 3/4, and 1 ton are truck classes, not exact weights—meaning light-, medium-, and heavy-duty pickups and vans like F-150, F-250, and F-350.
Introduction
Control your air springs from inside the cab with just one button — no need to get out. This universal kit works with most light to medium-duty trucks and vans.
Specification
- Condition: Brand New
- Drilling Required: Yes
- Installation instruction included
Feature
- Control & Monitoring
- Monitor and adjust air pressure from the driver's compatible for seat
- Single-path controls for one pair of air springs
- Performance & Compatibility
- Ideal for light to medium-duty use, occasional hauling or towing
- Compatible with any brand of air spring
- Maximum pressure: 100 psi | Recommended: 5–70 psi
- Durability & Protection
- Flame-retardant wiring harness
- Waterproof compressor casing
- Strict quality inspection for long-term reliability
- Installation & Components
- Pre-assembled wiring for faster, easier setup
- Includes onboard compressor, single‑gauge dash panel, air lines, and hardware
Package included
- Package includes（as the picture shows):

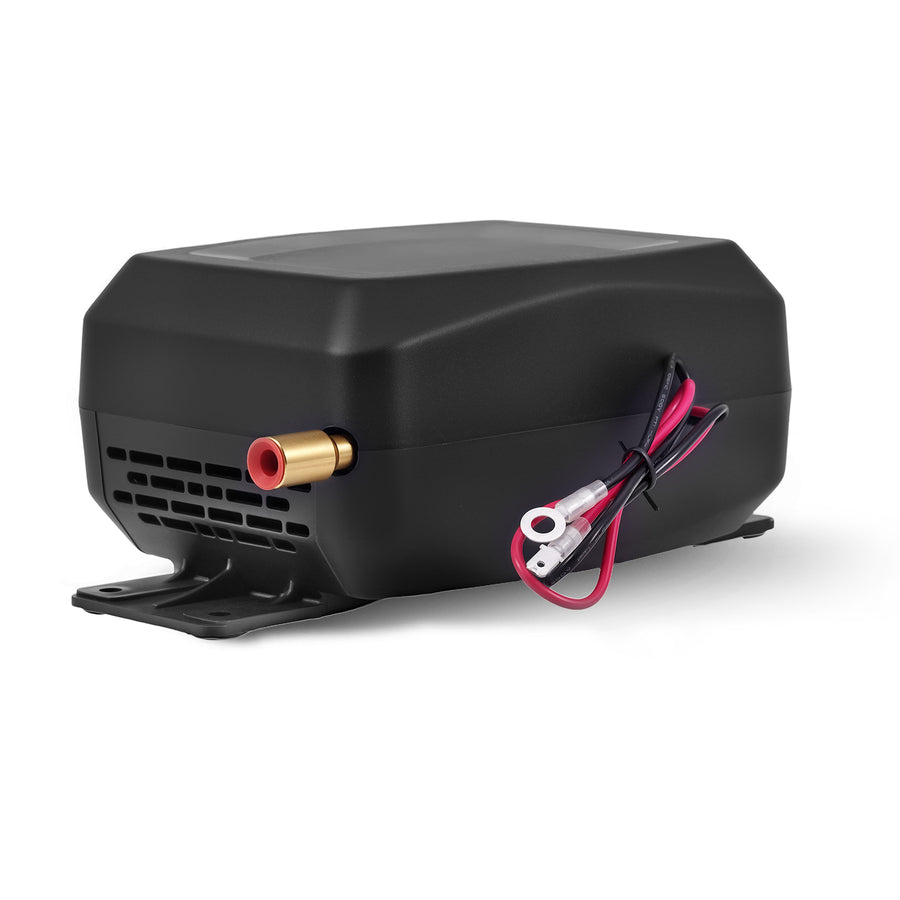

- 1 x Air Compressor（Black）

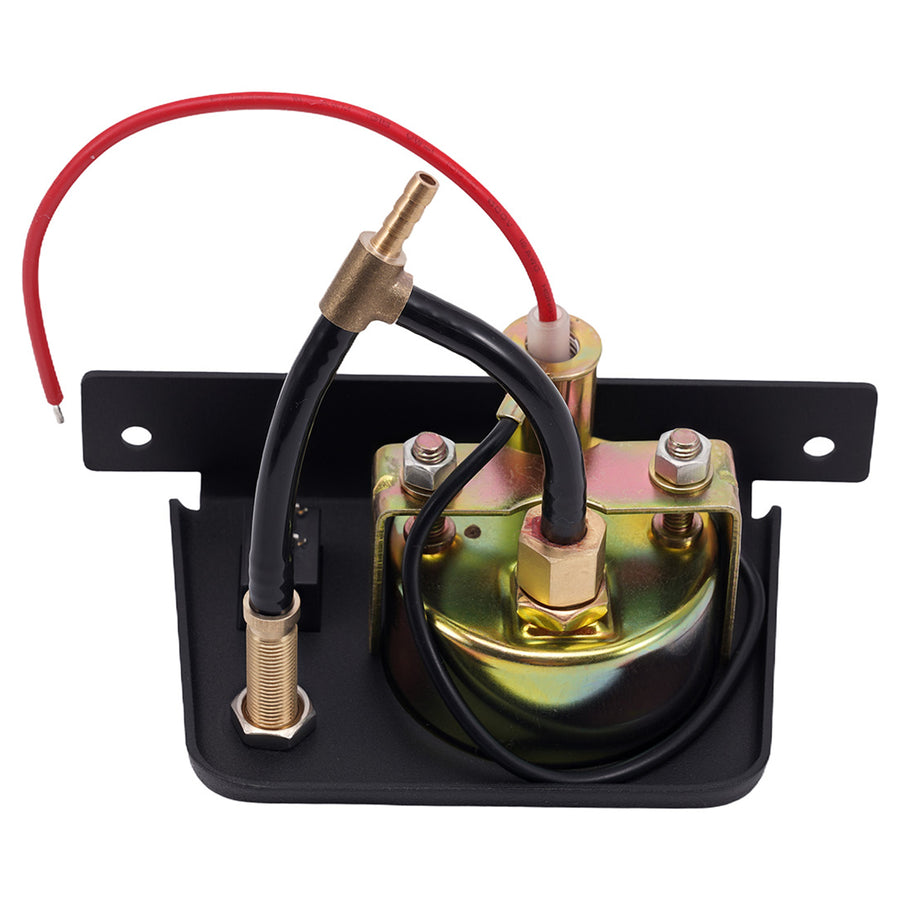

- 1 x Gauge panel （Push buttons for up and down）
- 1 x Air Line φ1/4"（5 M)
- 1 x Air compressor wire harness
- 1 x Backlight wire harness
- 2 x 1/4" Quick-connect tee
- And some other accessories
AIR TIGHTNESS TEST
- AIR TIGHTNESS TEST
- · After inflating the air spring bag, inspect all air line fittings for potential leaks.
- · Spray soapy water on the fittings. If there is a leak, expanding bubbles will appear around the leaking area.
- · If the leak is at the tubing connection, ensure the cut is square and the tube is fully inserted into the fitting.
- · If the leak is at the threaded air fitting, tighten it another quarter turn and test again.
- . Before driving, ensure the entire system is leak-free, airtight, and that all air lines and wiring harnesses are securely fastened.
