Compatible Vehicles
- Compatible for Honda Civic 1988-1991 EC ED EE EF Rear fork type bracket model only (EC8\EC9\ED2\ED3\ED4\ED5\ED6\ED7\EE1\EE2\EE3\EE4\EE5\EE9\EF1\EF2\EF3\EF4\EF5\EF9)
Introduction
-B3 series(also called -SLC) based on -B2 series(also called -SNA) coilovers, which is also height adjustable but adds damping adjustment ability by a knob the top of the shaft. They are also made for street use, but the 24 level rebound damping control allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.
Specification
- Front and Rear top mount: rubber
- Damping: 24 levels rebound damping adjustable
- Spring rate Front: 8 kg/mm (448 lbs/in)
- Spring rate Rear: 5 kg/mm (280 lbs/in)
- Spring length Front: 180mm
- Spring length Rear: 180mm
- Adjustable height: lowering 1-3inch
- Coilover overall length Front: 365mm-410mm
- Coilover overall length Rear: 435mm-480m
- Shock type: Twin tube
- Spring Preload: 7-10 mm
- Colour: grey body with black spring
Dimension
- Package dimension : 71*51*21
- Weight: 22260g
Feature
- 1. Lowered height adjustment from 1" - 3" which allow lower centre of gravity and also add a more aggressive stance
- 2. A 24 rebound damping adjustment level allows you the ability to perfectly dial in your coilover setup. You will experience better ride quality in all road conditions.

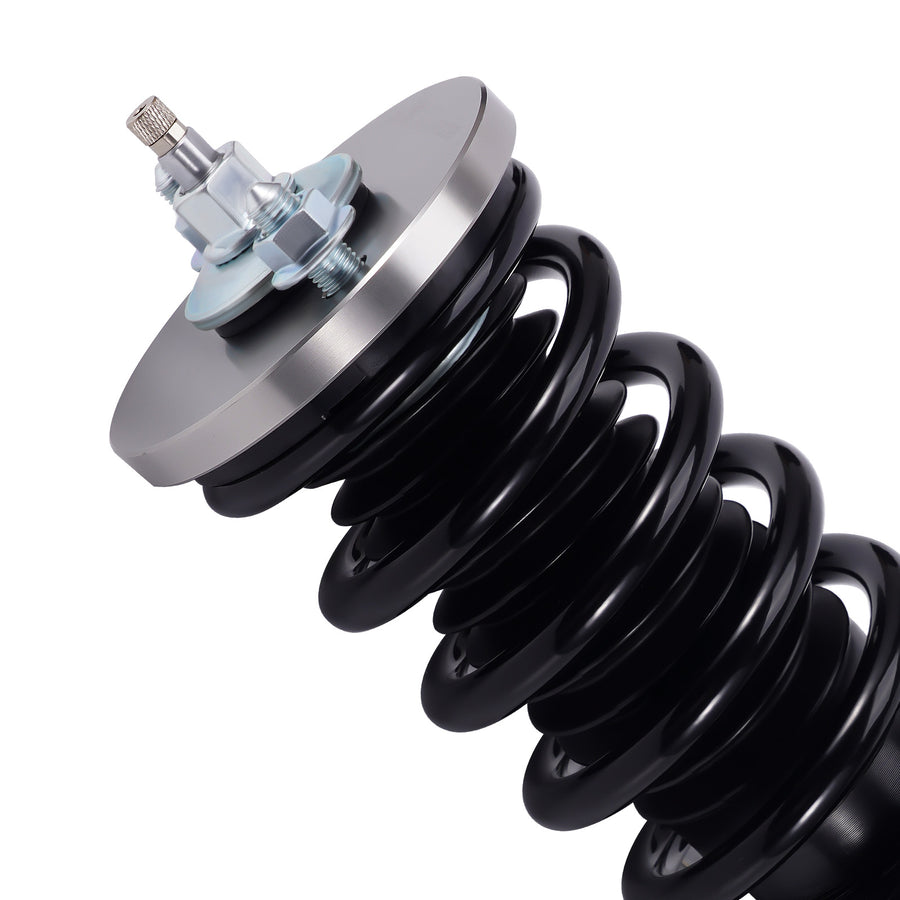

- 3. Rubber top mounts help to deliver a smooth and forgiving ride for city use at any speed and rubber joints assist in absorbing hard impacts.
- 4. Twin-Tube structure allows sufficient stroke within the shock absorber.
- 5. Complete Suspension Kit of 4 Shock Absorbers & 4 Springs for an easy installation.
- 6. Separate height adjustment does not affect damper stroke.
- 7. Height can be adjusted with coilovers installed on the vehicle.
- 8. High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
- 9. Height Adjustment tools included.

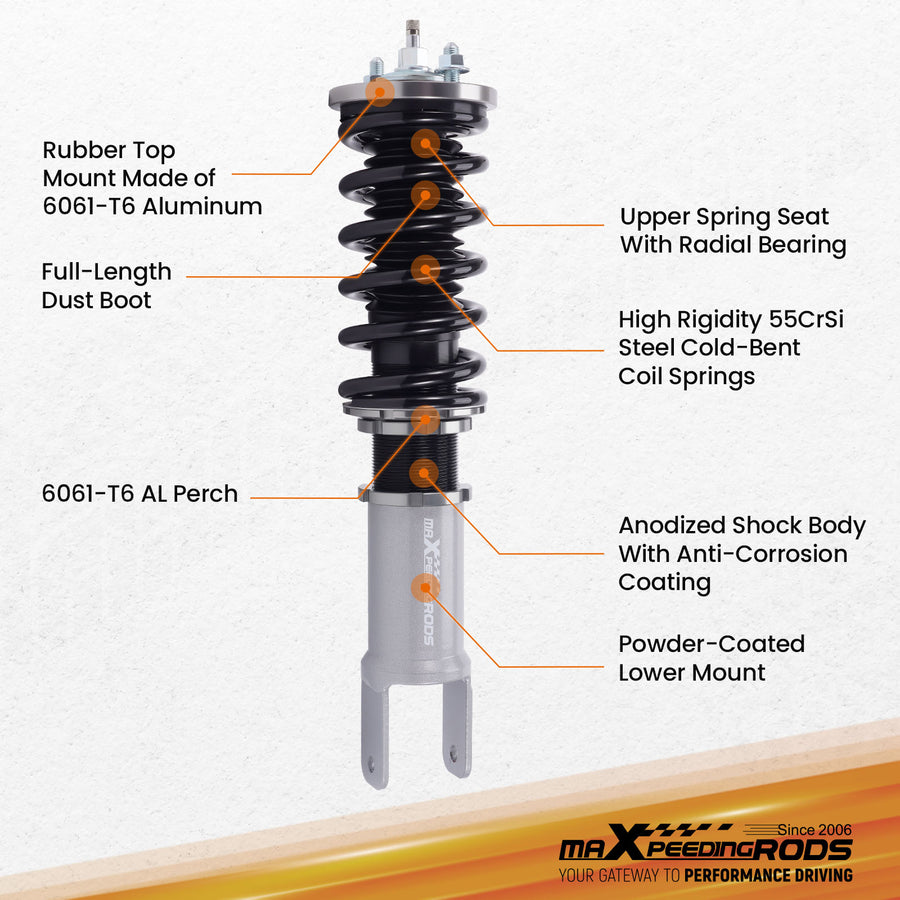

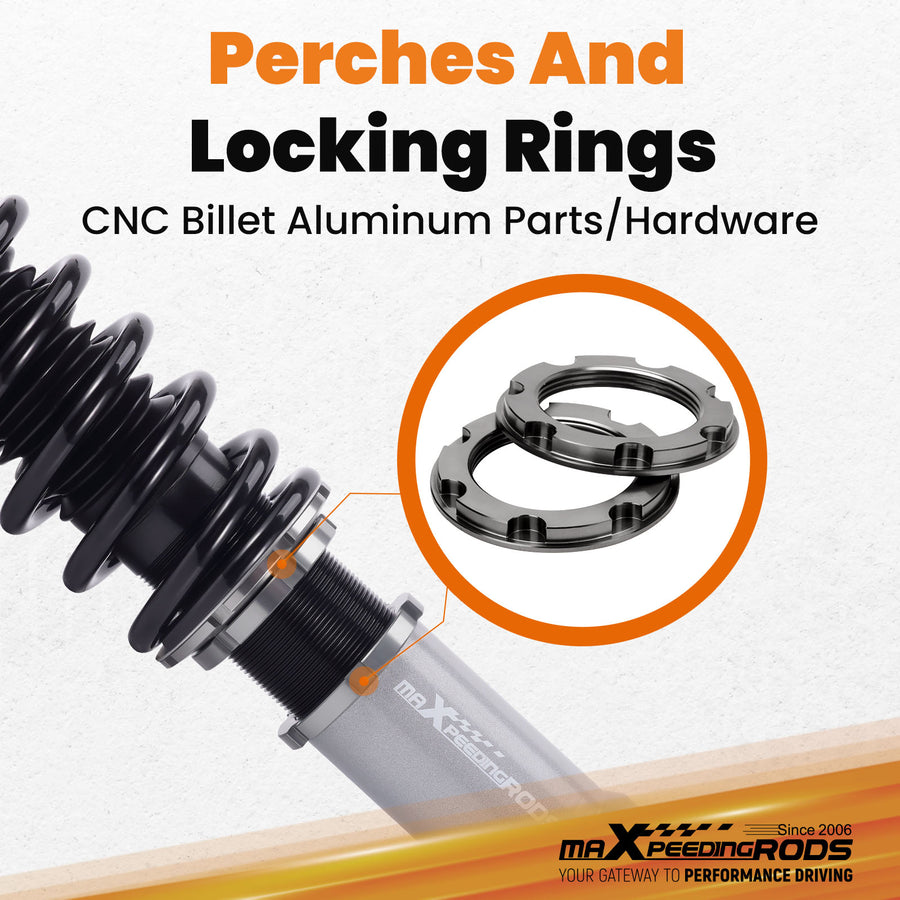

- 10. Most pieces in our coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminium resulting in lightweight, durable and rust resistant components.
- 11. Steel shock bodies with special surface treatment to improve the durability.
- 12. Full rebuildable.
Package included
- Complete coilovers assembly 2 front and 2 rear
- A pair wrench for height adjustment
Note
- For some vehicles, you will need sleeves and
- washers that already included in our package.
