Compatible Vehicles
- Compatible for Honda civic VII DX/EX/GX/HX/LX/Si Coupe (EM2) 2001-2005
- compatible for Honda civic VII DX/EX/GX/HX/LX/Si Sedan (ES, ET) 2001-2005
- NOTE： not fit for Hybrid
Introduction
T7 coil-overs are designed for daily street use and Junior track use. It features racing damping oil, an upgraded racing spring, height adjustable, and an adjustable camber plate( applicable for some vehicles), which offers you a lowered stance and enhanced handling.
Specification
- Front top mount structure: Pillow ball
- Rear top mount structure:Standard rubber
- Damping adjustable: Available, 24 levels of rebound damping force
- Camber adjustable: Not available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring rate Front: 8 kg/mm (448 lbs/in)
- Spring rate Rear: 6 kg/mm (336 lbs/in)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 62 mm
- Spring length Front: 200 mm
- Spring length Rear: 140 mm
- Spring Preload advised: 7-10 mm
- Colour: Black body with grey spring
Dimension
- Package size : 70*50*20 cm
- Weight: 23800 g
Feature
- 1)Racing damping oil and spring rates set for occassinal track use and daily street use;
- 2)With better damping setting,you will get better performance and enhanced handling;
- 3) Lowered height adjustment from 25-75mm (depends on vehicle models)which allow lower centre of gravity and also add a more aggressive stance;
- 4) Adjustable pre-load spring tension to reduce the shaking motion to a certain extent;
- 5) 24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coilovers system.;

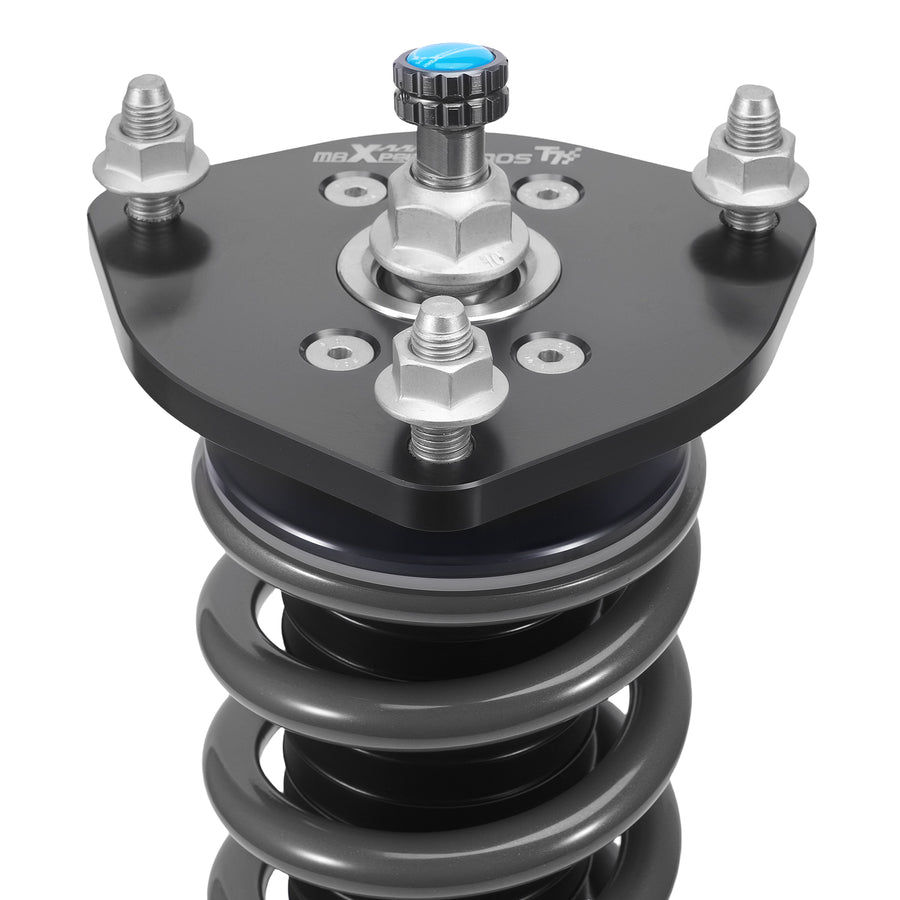

- 6) CNC machined Aluminium top mounts and lockers-- - excellent strength, and save weight;

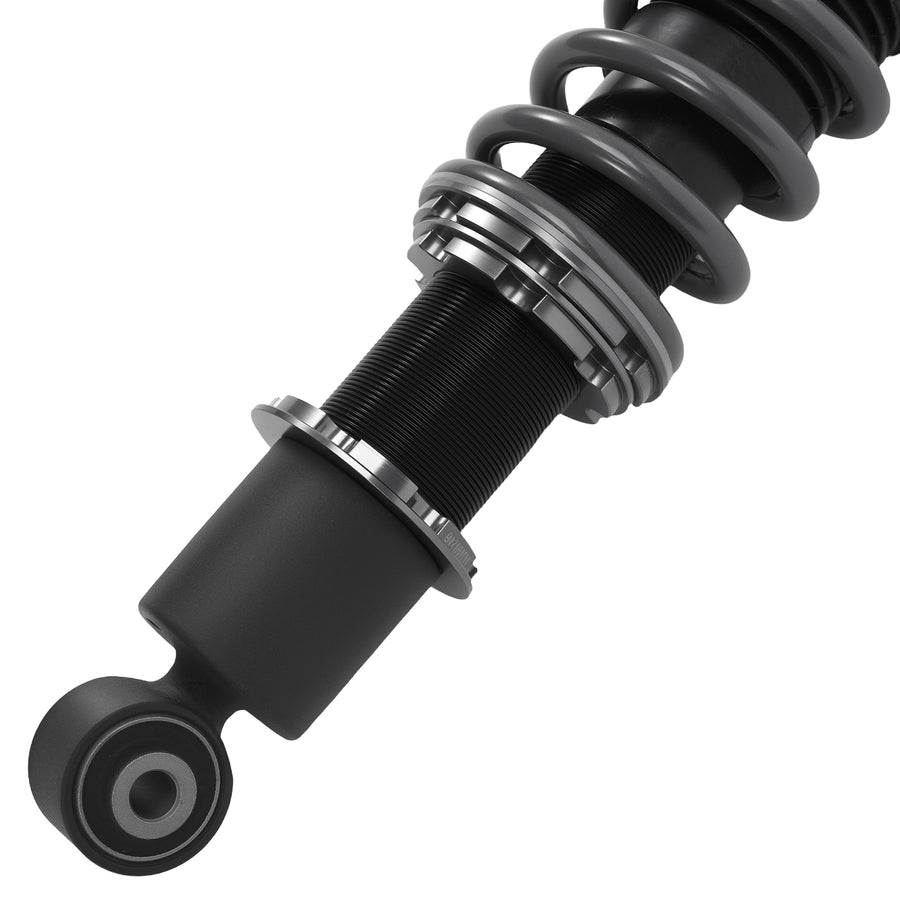

- 7) Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable;

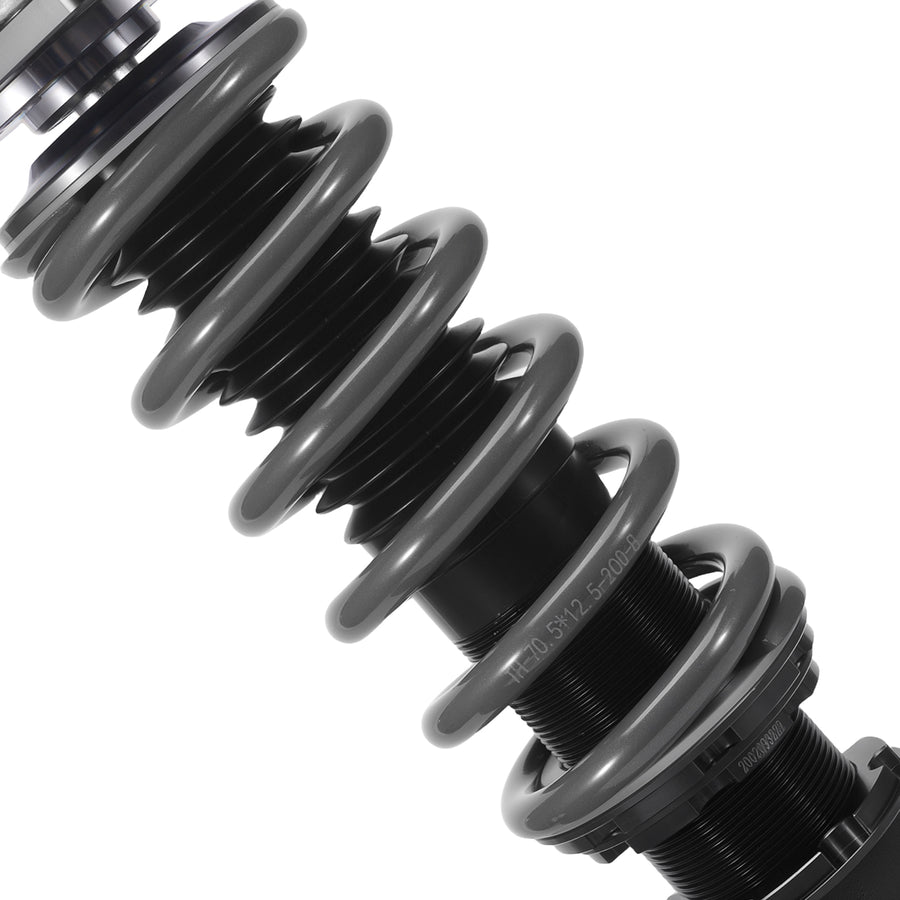

- 8) All inserts come with fitted long rubber boots--- To protect the damper more well and be durable;
- 9)Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
- 10) Corrosion Finish - Anodized Aluminium And Powder Coated Carbon Steel Parts, matt finished surface
- 11) Test for the best---Every parts were tested on our professional machine before assembled and tested by our professional racers on road.
- 12) Clean room assembled---maintain higher level of accuracy and reliability.

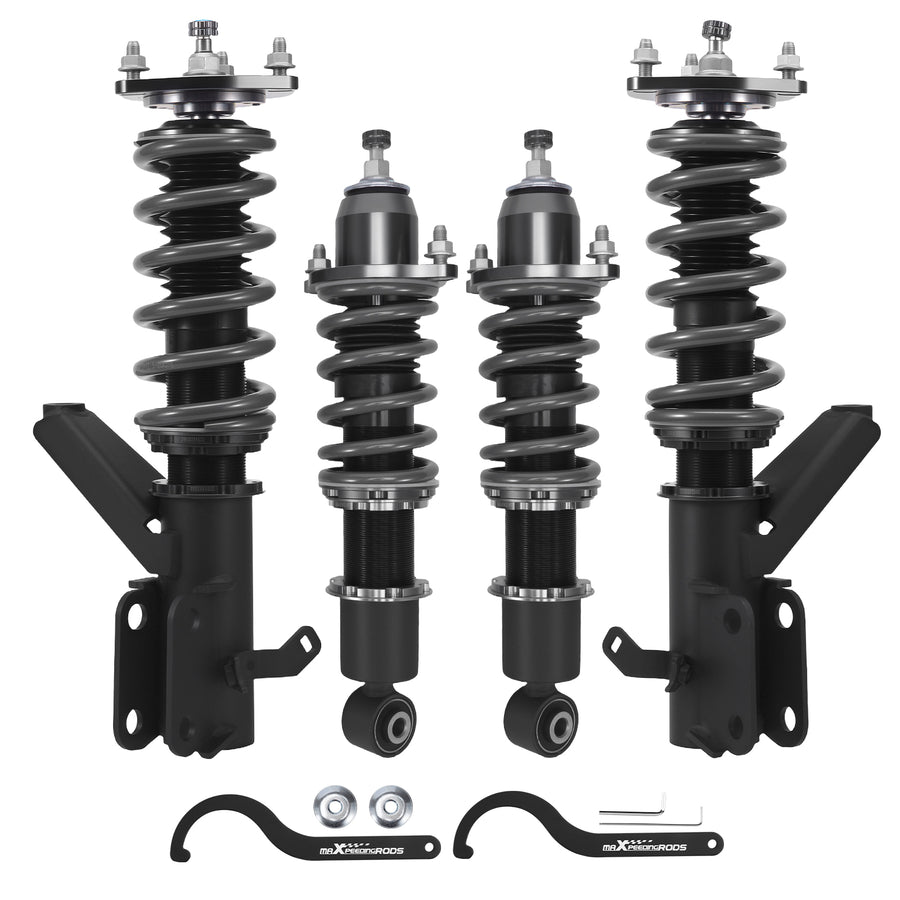

Package included
- Package included：
- 2x Front coil-overs
- 2x Rear coil-overs
- 2x C spanners
- 2x Allen wrench
- 1x sticker
Note
- 1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
- 2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
- 3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
- 4. Examine the clearance between tyres and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
- 5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-5 months will keep it smooth and clean, which helps to extend the lifetime.
