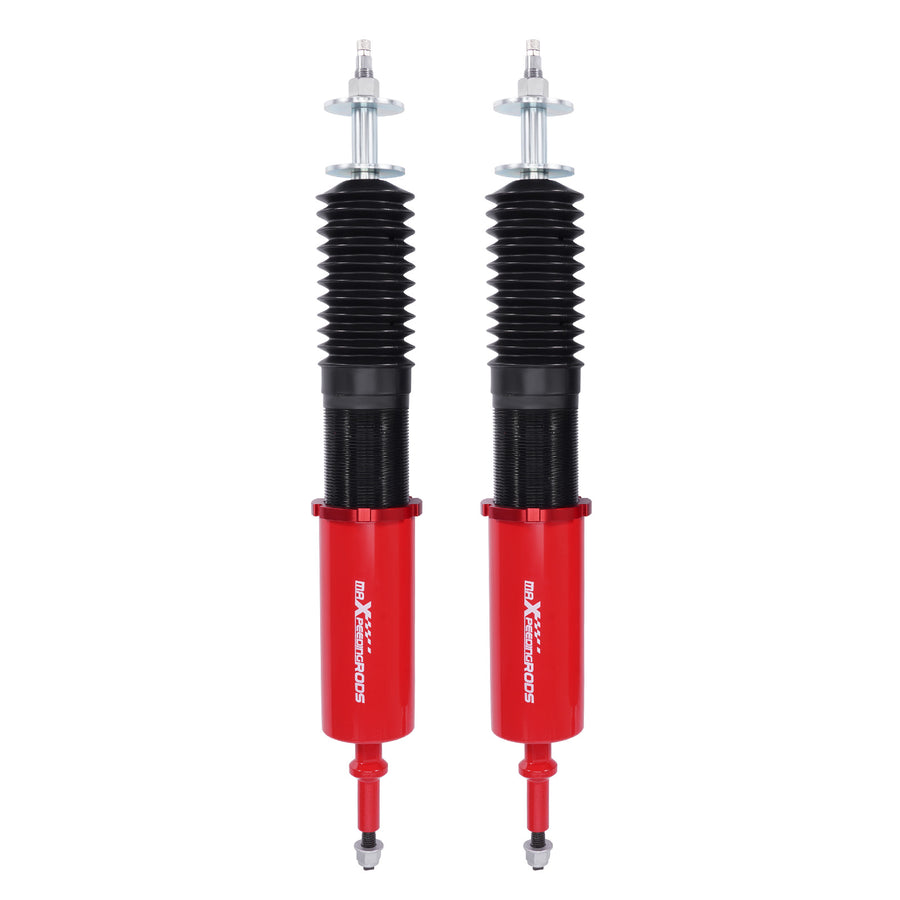

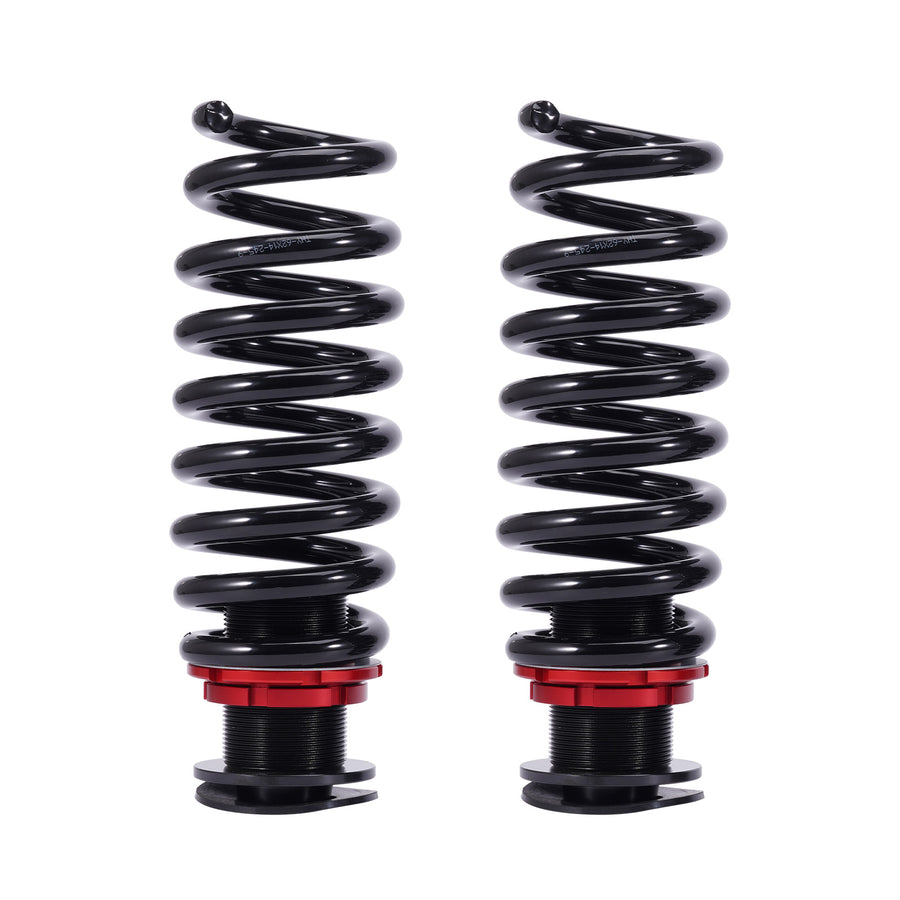

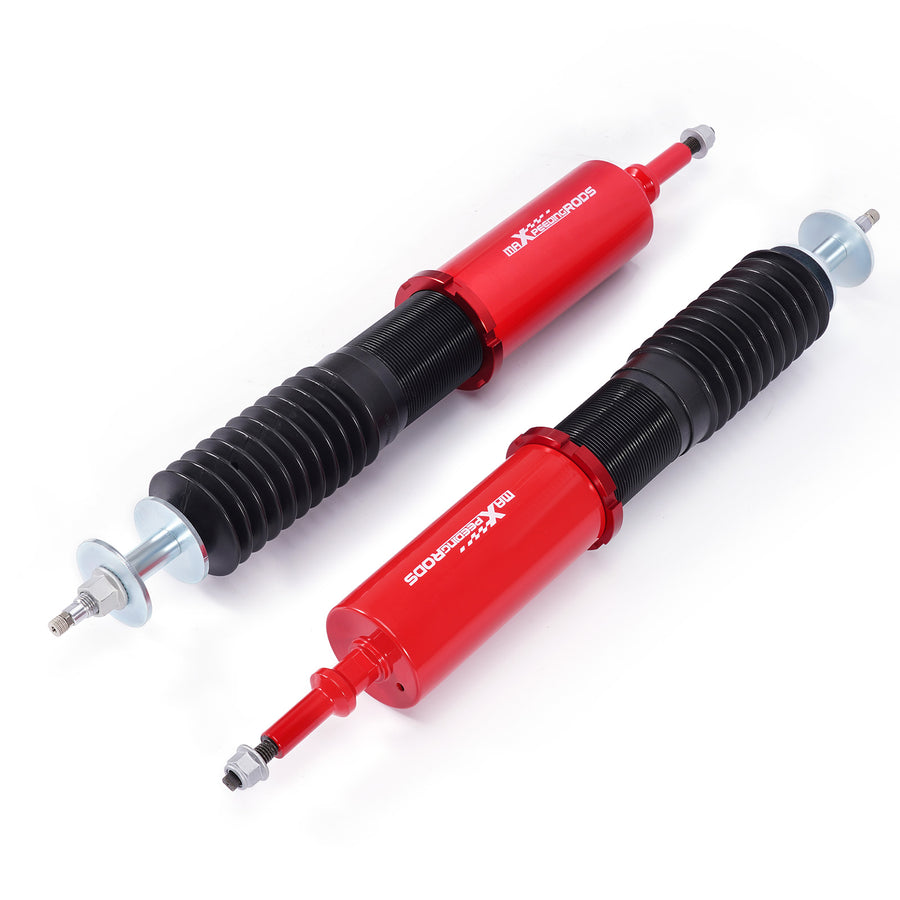

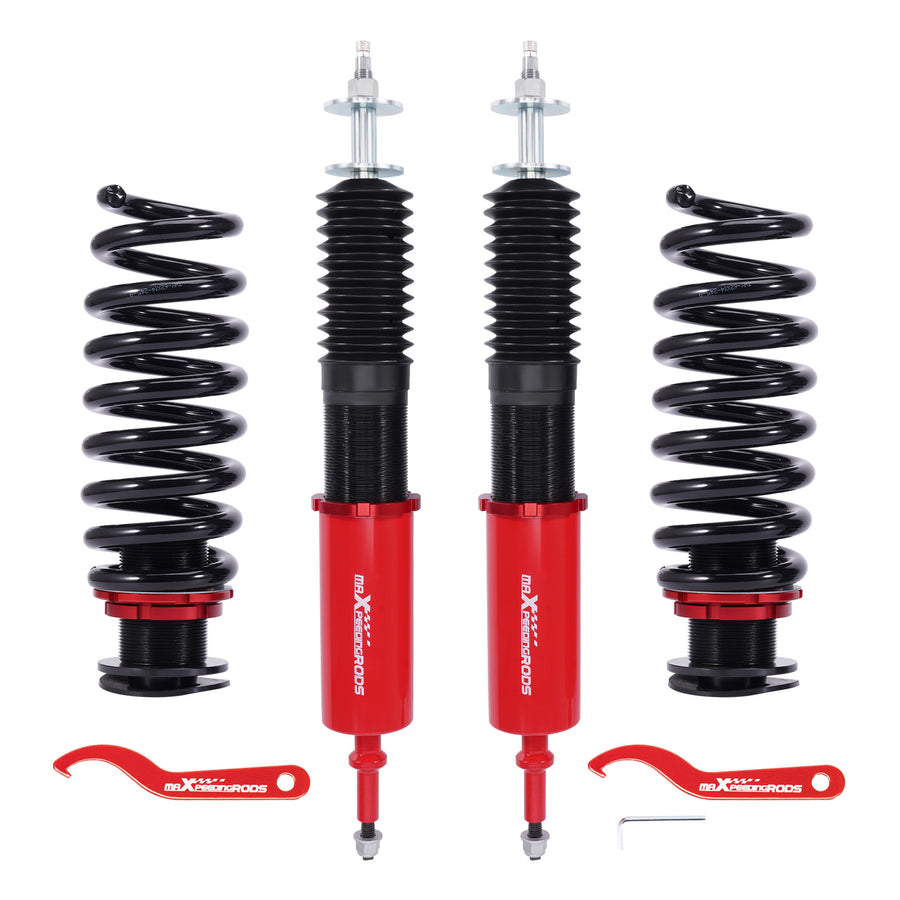

Rear Coilovers Lowering Kit compatible for BMW 3-SERIES AWD (E90/E92) 06-13

Compatible Vehicles

• BMW 3-SERIES AWD (E90/E92) 06-13

Rear top mount structure

• OE top mount required
• Damping adjustable: Available, 24 levels of rebound damping force
• Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Shock structure type

Twin -tube

Spring Rate Rear

9 kg/mm (504 lbs/in)

Rear spring inner diameter

62 mm

Spring length Rear

245 mm

Spring Preload advised

7-10 mm

Damping rod diameter Rear

• Φ12.5 mm
• Damping  thread Rear: M55×2 mm
• Twin -tube Diameter Rear: 55 mm

Rod End Thread Rear

• M12×1.25 mm
• Coil-overs  overall length Rear: 530 mm - 580 mm / 20.86"-22.83"
