Compatible Vehicles
- Compatible for Honda Civic 1988-1991 EC ED EE EF Rear fork type bracket model only (EC8\EC9\ED2\ED3\ED4\ED5\ED6\ED7\EE1\EE2\EE3\EE4\EE5\EE9\EF1\EF2\EF3\EF4\EF5\EF9)
- Compatible for Honda CR-X 1988-1991 ED EE EF Rear fork type bracket model only
- (ED8\ED9\EE6\EE8\EF6\EF7\EF8)
- Compatible for Honda Civic 1992-1995 EG EH EJ Rear fork type bracket model only (EG3\EG4\EG5\EG6\EG7\EG8\EG9\EH1\EH2\EH3\EH4\EH5\EH8\EH9\EJ1\EJ2\EJ3)
- Compatible for Honda CR-X del Sol 1992-1995 EG (EG1) Rear fork type bracket model only
- compatible for Honda Civic 1996-2000 EJ EK EM Rear fork type bracket model only (EJ5\EJ6\EJ7\EJ8\EJ9\EK1\EK2\EK3\EK4\EK5\EK8\EK9\EM1)
- Compatible for Acura Integra 1990 -1993 DA DB Rear fork type bracket model only
- compatible for Acura Integra 1994-2001 DC2 DC4 Rear fork type bracket model only
- Note: for some vehicles, you will need sleeves and washers that are already included in our package.
Introduction

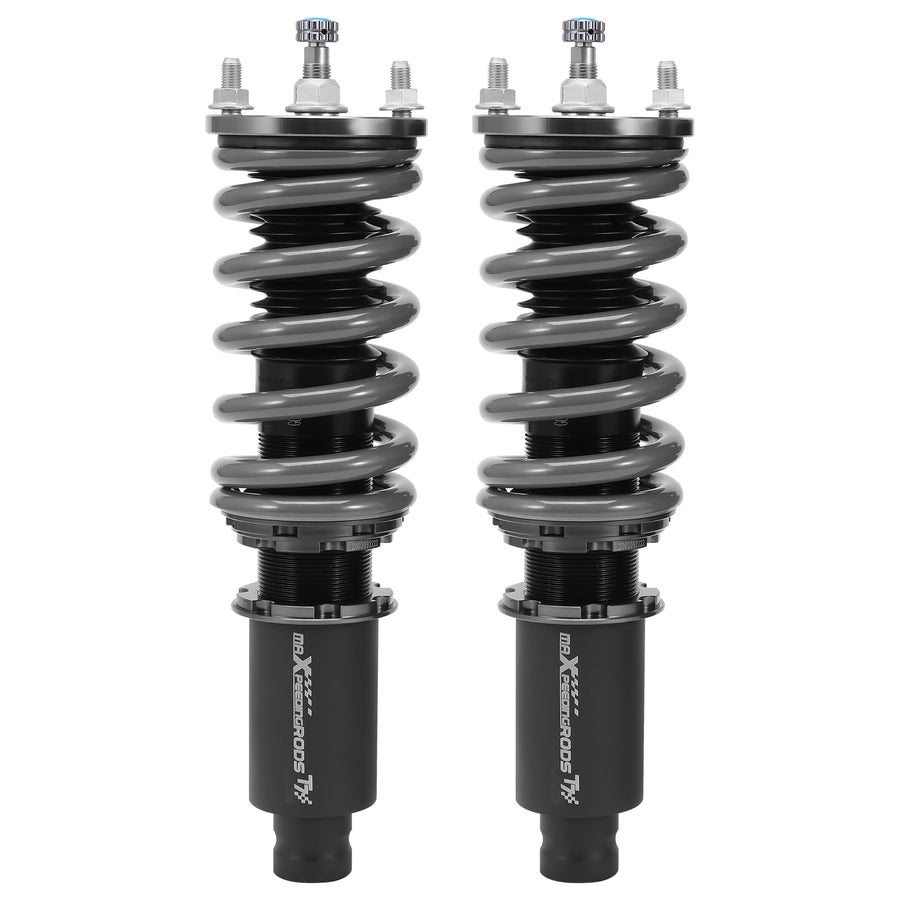

T7 coil-overs are designed for daily street use and Junior track use. It features racing damping oil, an upgraded racing spring, height adjustable, and an adjustable camber plate( applicable for some vehicles), which offers you a lowered stance and enhanced handling.
Specification
- Front top mount structure: Pillow ball
- Rear top mount structure: Standard rubber
- Damping adjustable: Available, 24 levels of rebound damping force
- Camber adjustable: Not available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring rate Front: 11 kg/mm (616 lbs/in)
- Spring rate Rear: 7 kg/mm (392 lbs/in)
- Spring inner diameter Front: 70.5mm
- Spring inner diameter Rear: 70.5mm
- Spring length Front: 180mm
- Spring length Rear: 180mm
- Spring Preload advised: 7-10 mm
- Colour: Black body with grey spring
Dimension
- Package Size: 64*50*20 cm
- Weight: 22500 g
Feature
- 1)Professional racing technology for junior track use and daily street use, providing better performance and enhanced handling.
- 2)Lowered height adjustment from 25-75mm(depending on vehicle models) which adds a more aggressive stance and a lower centre of gravity.
- 3)Adjustable pre-load spring tension reduces shaking motion.
- 4)A 24-level adjustable damper allows you to dial in your coil-overs system perfectly.
- 5)CNC machined aluminium top mounts and lockers have excellent strength and save weight.
- 6)Highly durable and reliable heavy-duty steel lower mounts.
- 7)All inserts come with fitted long rubber boots to protect the damper and be durable.
- 8) Twin-tube structure provides excellent handling & control characteristics for most driving conditions.
- 9)Corrosion finish anodized aluminium and powder-coated carbon steel parts with a matt-finished surface.
- 10)Every part was tested on our professional machine before being assembled and tested by our professional racers on the road.
- 11)Clean room assembled maintains a higher level of accuracy and reliability.
Package included
- Package included：
- 2x Front coil-overs
- 2x Rear coil-overs
- 2x C spanners
- 2x Allen wrench
- 1x Sticker
Note
- 1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
- 2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
- 3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
- 4. Examine the clearance between tyres and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
- 5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
