Compatible Vehicles
- Compatible for Infiniti M35x 06-10 AWD
- compatible for Infiniti M45x 06-10 AWD
- compatible for Infiniti G35x 03-08 AWD
- compatible for Infiniti G37x 08-13 AWD
- Note:
- 1.Will not fit RWD model.
- 2.The rear is true coilovers instead of divorced coils.
Introduction
T6 lowering coil-over, standard with adjustable rebound damping, separate height adjustment without changing preload, developed damping oil and upgraded racing springs, adjustable camber plate（for some vehicles), and decent outlook, offers you more ability to tune your suspension on performance and gives your vehicle more impressive appearance. Besides, all our coil-overs are assembled in a dust-free factory, which turns out good quality and long life.
Specification
- Top mounts: Front and rear standard rubber top mounts
- Damping adjustable: Available, 24 levels of rebound damping force
- Camber adjustable: Not available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring Rate Front: 12kg/mm (672 lbs/in)
- Spring Rate Rear: 10kg/mm (560 lbs/in)
- Spring length Front: 160 mm
- Spring length Rear: 200 mm
- Front spring inner diameter: 62 mm
- Rear spring inner diameter: 62 mm
- Spring Preload advised: 7-10 mm
- Colour: Black body with blue spring
Dimension
- Package Size: 64*50*20 cm
- Weight: 23900 g

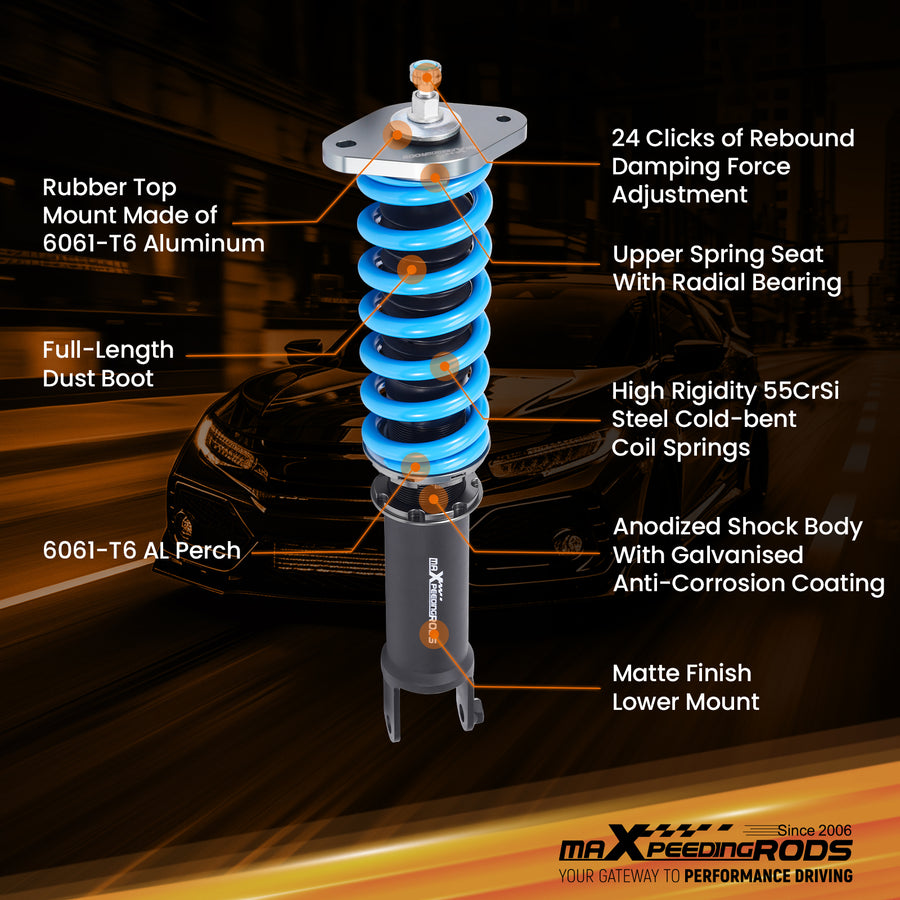

Feature
- 1. Lowered height adjustment from 25-75mm which allows a lower centre of gravity and also adds a more aggressive stance
- 2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
- 3. 24 levels adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
- 4. CNC machined Aluminium top mounts and lockers-- - excellent strength, and save weight
- 5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
- 6. Upgraded spring --- more than 600,000 times continuously test to assure its high tensile strength.
- 7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
- 8. With a better-damping setting, you will get better performance and comfort at the same time.
- 9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
- 10. Anti-corrosion Finish - Anodized Aluminium And Powder Coated Carbon Steel Parts
- 11. Test for the best---Every part was tested on our professional machine before being assembled and tested by our professional racers on the road.
- 12. Clean room assembled---maintain a higher level of accuracy and reliability.
- 13. Upgraded damper oil---make damping more stable and smooth in a wide temperature range.

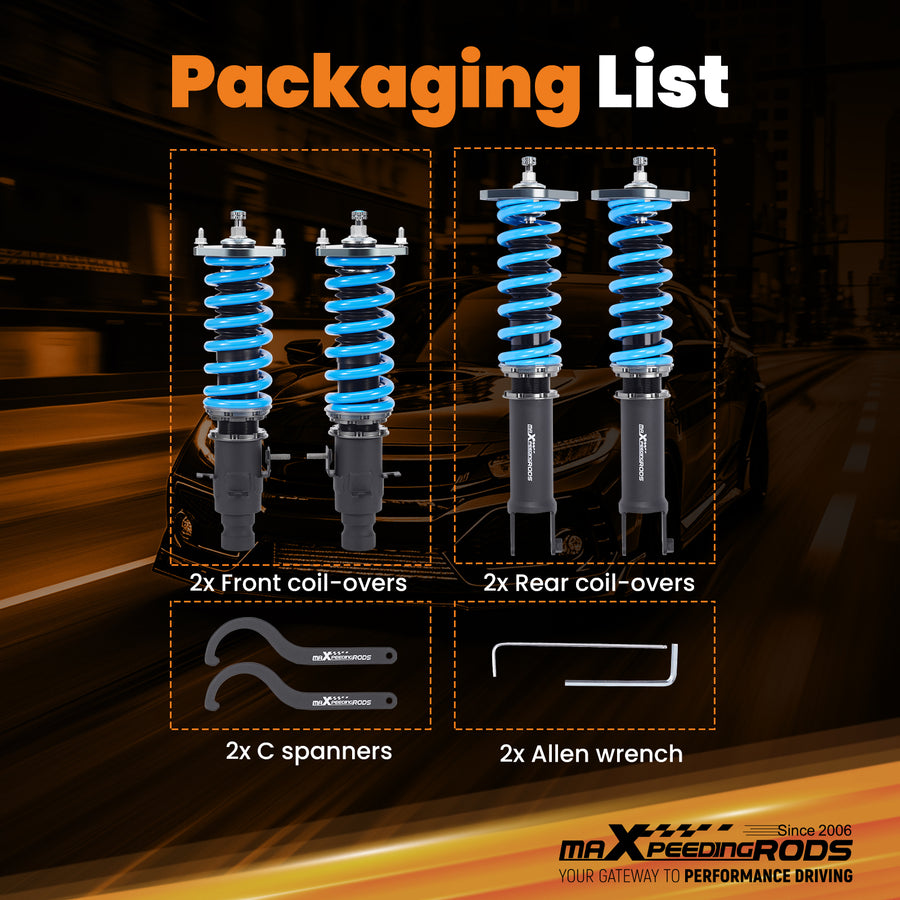

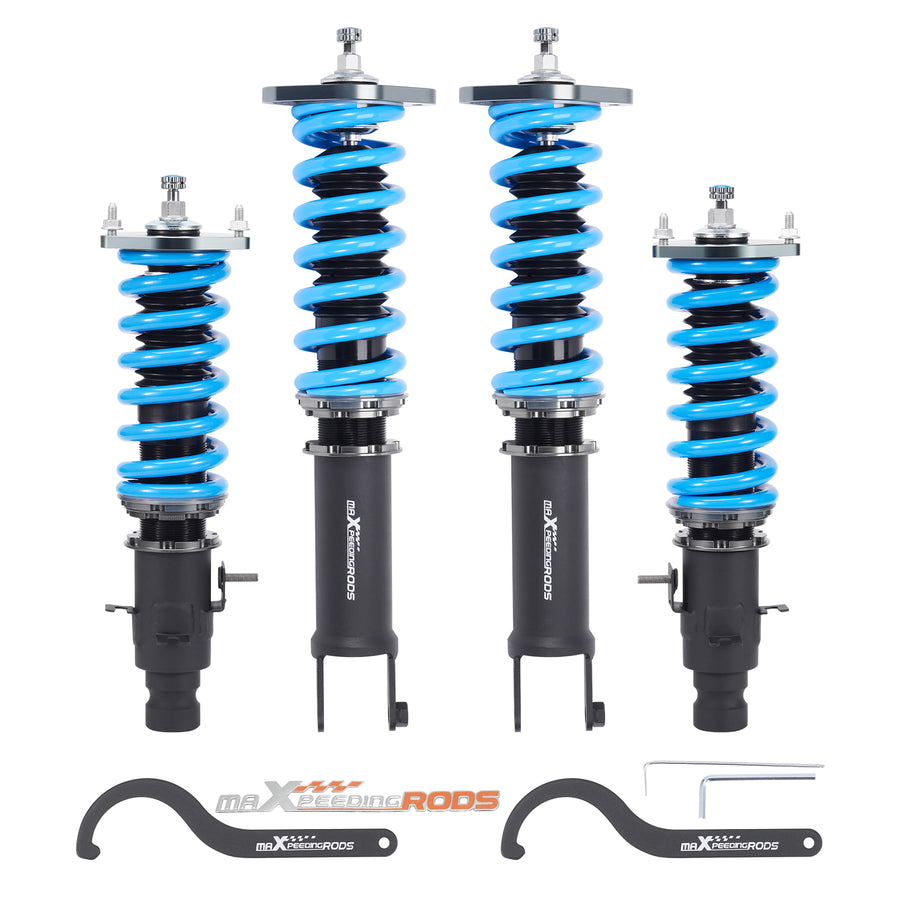

Package included
- Package included：
- 2x Front coil-overs
- 2x Rear coil-overs
- 2x C spanners
- 2x Allen wrench
- 1x Sticker
Note
- 1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
- 2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
- 3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
- 4. Examine the clearance between tyres and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
- 5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
