Compatible Vehicles
- Compatible for SUBARU IMPREZA Sedan GD (GD/GG, GD/GGS) 09/1999-06/2009
- compatible for SUBARU IMPREZA Station Wagon GG (G3, GD/GG, GD/GGS) 10/2000-12/2008
Introduction
The C1 series is designed for those who want to lower their vehicle without sacrificing daily driving comfort. Enjoy improved handling and a smoother ride. Featuring adjustable height and a preset for optimal damping, this series enables you to reduce ride height while maintaining overall comfort.
Specification
- Front and Rear Top Mounts: OE top mounts required
- Damping Adjustable: Not available
- Height Adjustable: Available, lowering 25-55 mm depending on the vehicle models
- Main spring rate front: 6 kg/mm (336 lbs/in)
- Main spring rate rear: 3.6 kg/mm (202 lbs/in)
- Main spring length front: 170 mm
- Main spring length rear: 270 mm
- Helper spring rate front:1 kg/mm (56 lbs/in)
- Helper spring length rear:102 mm
- Front spring inner diameter: 62 mm
- Rear spring inner diameter: 62-86 mm
- Spring Type Front: Linear spring & Helper spring
- Spring Type Rear: Progressive spring
- Spring Material: 55CrSi steel
- Shock Body Material: Stainless steel
- Colour: Silver body with golden spring
Dimension
- Package Size: 64*51*20 cm
- Weight: 25800 g
Feature
- 1. The stainless steel shock body offers excellent corrosion resistance and durability, prolonging the lifespan of the coil-overs.
- 2. The factory preset damping and newly designed damping valve will optimise comfort, handling, and performance.
- 3. Height adjustment enables precise tuning of the vehicle's stance, improving comfort and handling for a better driving experience.
- 4. High-strength variable stiffness springs balance comfort and support, improving handling and stability during cornering.
- 5. High Viscosity Index Damping Oil delivers reliable damping performance and minimizes viscosity fluctuations across a range of temperatures.
- 6. Twin-tube damping technology offers outstanding comfort and stability, ensuring a smooth ride across different road conditions.
- 7. The 45# reinforced steel piston rod offers high strength, durability, and wear resistance for enhanced stability.
- 8. Anodized AL6061 aluminium spring seats and locking rings are lightweight, corrosion-resistant, and strong.
- 9. The extended dust cover protects the damper from dust intrusion and prolongs the damping system's service life.
- 10. High-quality sealing materials effectively prevent damper oil leakage, thus enhancing operational efficiency and reliability.
- 11. The rubber buffer provides excellent elasticity and shock absorption for a comfortable ride.

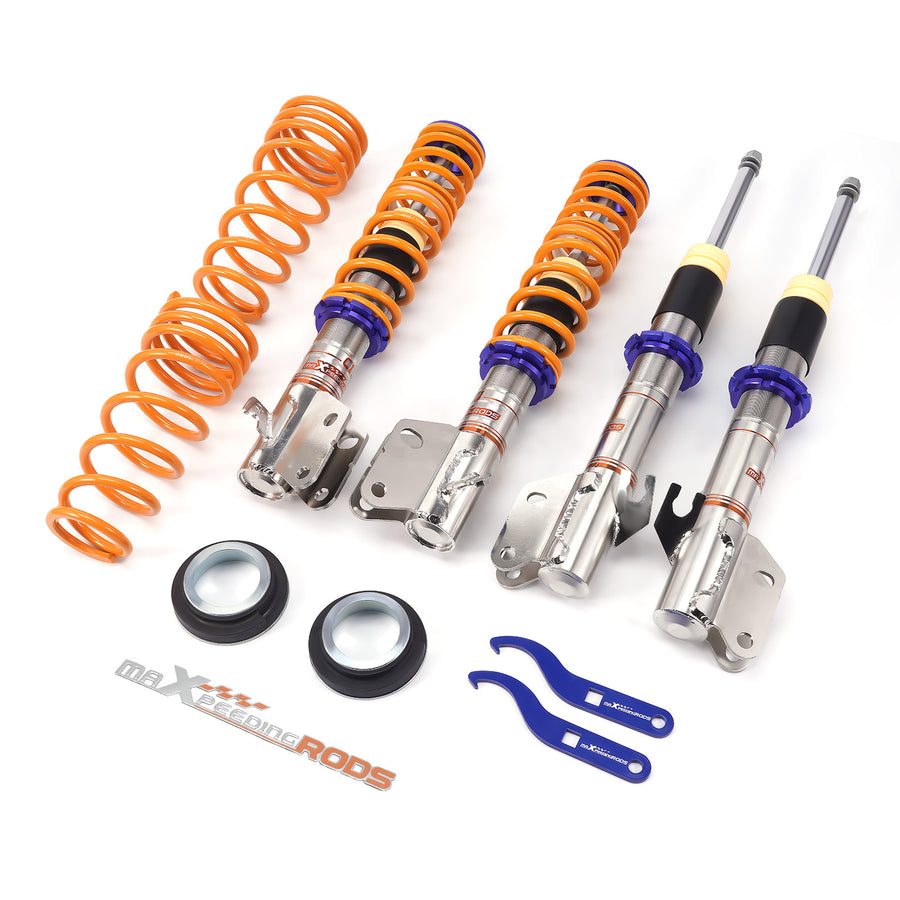

Package included
- Package included：
- 2 x Front coil-overs
- 2 x Rear coil-overs
- 2 x C spanners
