Compatible Vehicles
- Compatible for Subaru Impreza WRX STI (RIM P.C.D.=114.3) 2008-2014 only
- compatible for Subaru Impreza WRX STI A-LINE (RIM P.C.D.=114.3) 2008-2014 only
Introduction
MXR-B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles), which offer you a lowered stance, and improved performance for your daily use vehicle.
Specification
- Front top mount: pillow ball with camber plate
- Rear top mount: pillow ball
- Damping adjustable: Not available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Camber adjustable: Available
- Spring rate Front: 8 kg/mm (448lbs/in)
- Spring rate Rear: 7 kg/mm (392 lbs/in)
- Spring length Front: 230mm
- Spring length Rear: 180mm
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 70.5 mm
- Spring Preload advised: 7-10 mm
- Colour: Red body with black spring
Dimension
- Package Size: 64*51*21 cm
- Weight: 26650 g
Feature
- 1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower centre of gravity and also add a more aggressive stance
- 2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
- 3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
- 4. CNC machined Aluminium top mounts and lockers-- - excellent strength, and save weight
- 5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
- 6. High tensile spring--- 600,000 times continuously test to assure its high tensile strength.
- 7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
- 8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
- 9. Corrosion Finish - Anodized Aluminium And Powder Coated Carbon Steel Parts

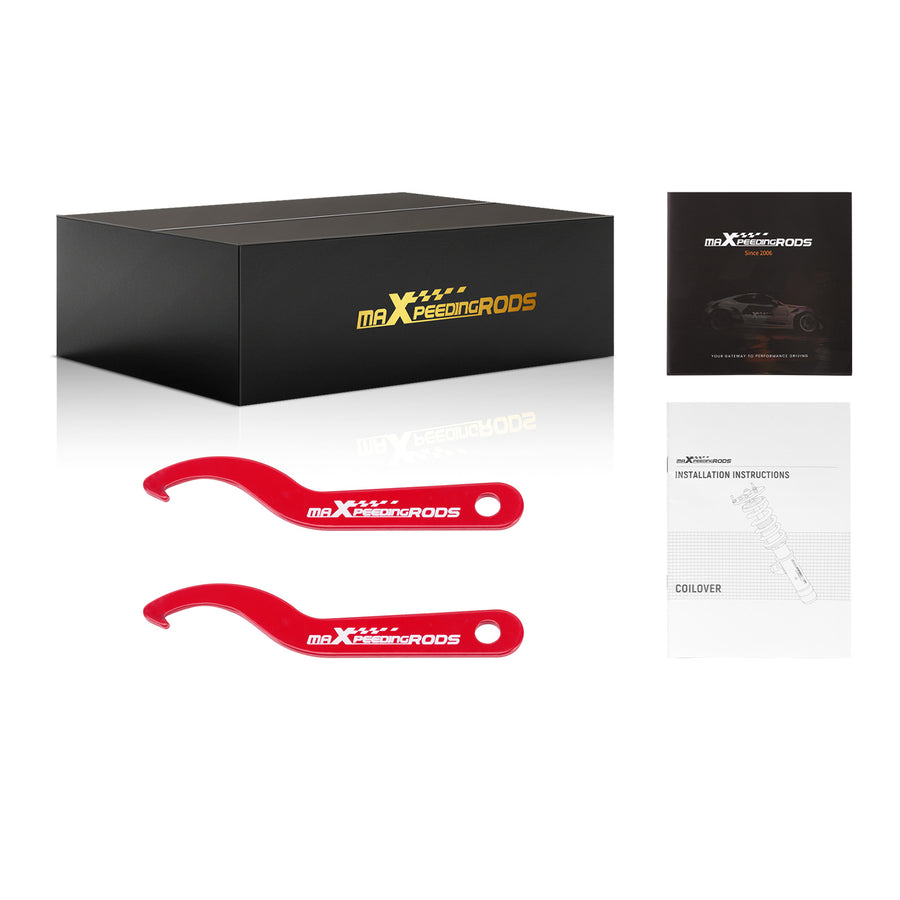

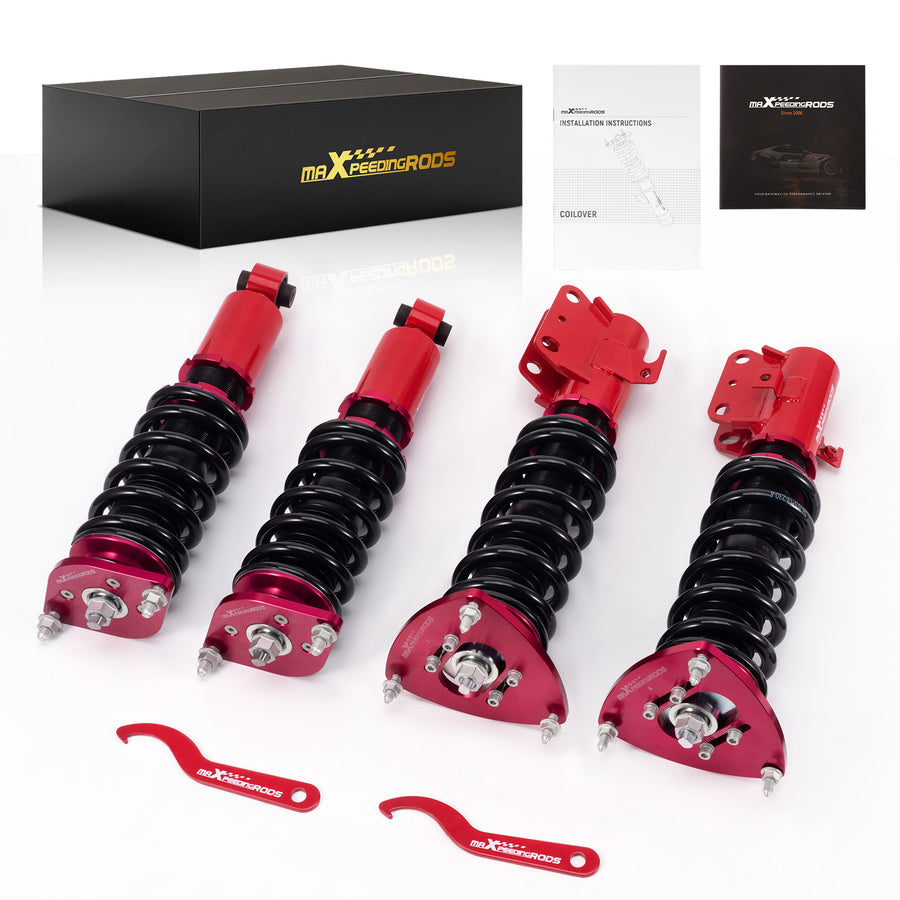

Package included
- Package included：
- 2 x Front coil-overs
- 2 x Rear coil-overs
- 2 x C spanners
