Compatible Vehicles
- Compatible for Lexus SC430 UZZ40R 2001-2010
Introduction
MXR-B3 is based on MXR-B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.
Specification
- Front top mount structure: Standard rubber
- Rear top mount structure: Standard rubber
- Damping adjustable: Available, 24 levels of rebound damping force
- Shock structure type: twin -tube
- Camber adjustable: Available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring Rate Front: 8 kg/mm (448 lbs/in)
- Spring Rate Rear: 7 kg/mm (392 lbs/in)
- Front spring inner diameter: 62 mm
- Rear spring inner diameter: 62 mm
- Spring length Front: 200 mm
- Spring length Rear: 230 mm
- Spring Preload advised: 7-10 mm
- Colour: Red body with black spring
Dimension
- Package Size: 69.9*50.8*20.1 cm
- Weight: 26000 g

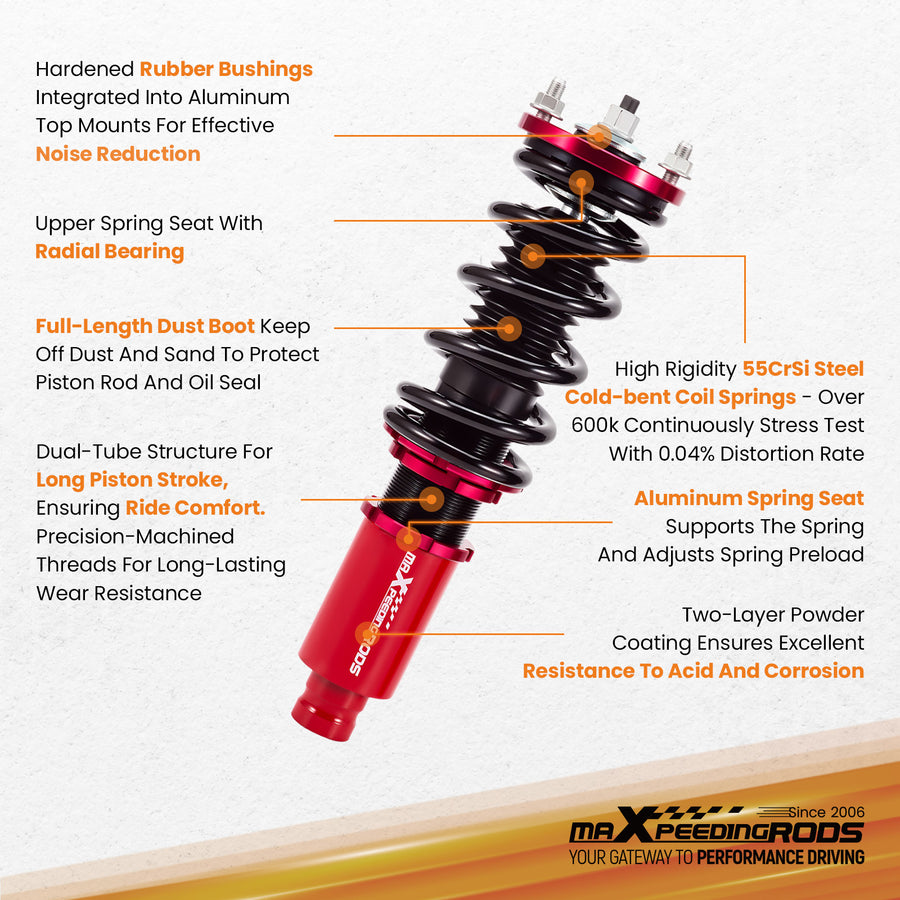

Feature
- 1. Lowered height adjustment from 25-75mm(depends on vehicle models) which allows a lower centre of gravity and also adds a more aggressive stance
- 2.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
- 3. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
- 4. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response. ( for some models)
- 5. CNC machined Aluminium top mounts and lockers-- - excellent strength, and save weight
- 6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
- 7. High tensile spring--- 600,000 times continuously test to assure its high tensile strength.
- 8. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
- 9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
- 10. Corrosion Finish - Anodized Aluminium And Powder Coated Carbon Steel Parts

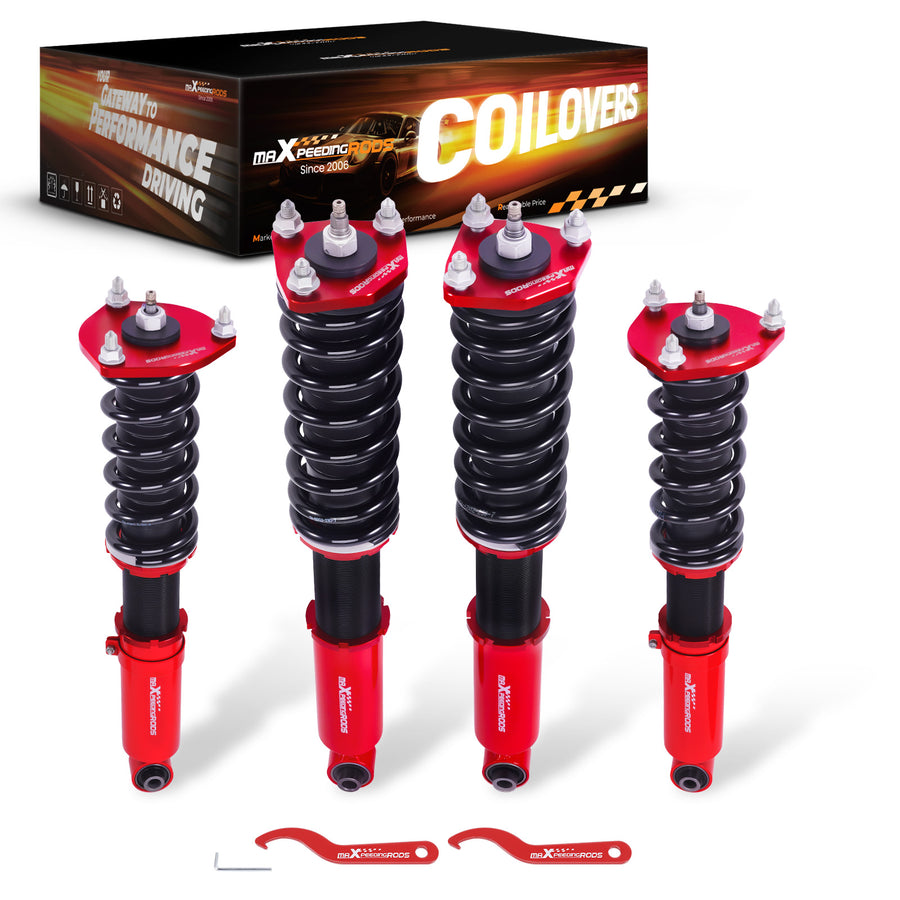

Package included
- Package included：
- 2x Front coil-overs
- 2x Rear coil-overs
- 2x C spanners
- 2x Allen wrench
- 1x Sticker
Note
- 1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
- 2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
- 3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
- 4. Examine the clearance between tyres and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
- 5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
