Compatible Vehicles
- Compatible for Hyundai Tiburon 2nd. Gen 2003-2008 US Model
- compatible for Hyundai Coupe 2002–2009 (Europe and Middle East)
- Compatible for Hyundai Tuscani 2003-2008 (South Korean)
Introduction
MXR-B3 is based on MXR-B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.
Specification
- Front top mounts: Pillow ball with camber plate
- Rear top mounts: Pillow ball
- Damping adjustable: Available, 24 levels of rebound damping force
- Camber adjustable: Available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models-
- Spring rate Front: 8 kg/mm (448 lbs/in)
- Spring rate Rear: 6 kg/mm (336 lbs/in)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 70.5 mm
- Spring length Front: 230 mm
- Spring length Rear: 230 mm
- Spring Preload advised: 7-10 mm
- Colour: Golden body with black spring
Dimension
- Package size : 70*50*20 cm
- Weight: 29300 g
Feature
- 1. Enhanced Handling and Stability:
- These springs effectively lower your vehicle's centre of gravity, improving cornering stability and reducing body roll for a more responsive and controlled driving experience.
- 2. Precision Engineering for Superior Functionality:
- Each spring is expertly designed to match your vehicle's specific weight and dynamics, ensuring optimal handling and comfort.
- 3. High-Quality Materials:
- Made from SAE 9254 cold-wound steel, providing long-lasting durability. It has high strength and good elasticity, maintaining stable mechanical properties in high-temperature environments.
- 4. Superior Corrosion Resistance:
- Treated with an advanced anti-corrosion coating, significantly extended lifespan, making them reliable for any driving environment. This coating protects against moisture, salt, and chemicals, ensuring consistent durability over time.
- 5. Compatibility and Easy Installation:
- These springs are designed for direct installation and are compatible with OEM or aftermarket shocks, allowing for a hassle-free upgrade with minimal modifications.
- 6. Rigorous Testing:
- Undergone extensive testing, including 200,000-cycle fatigue test and 720-hour salt spray test. These tests ensure exceptional durability and corrosion resistance, allowing them to perform reliably under repeated stress and in harsh environments.

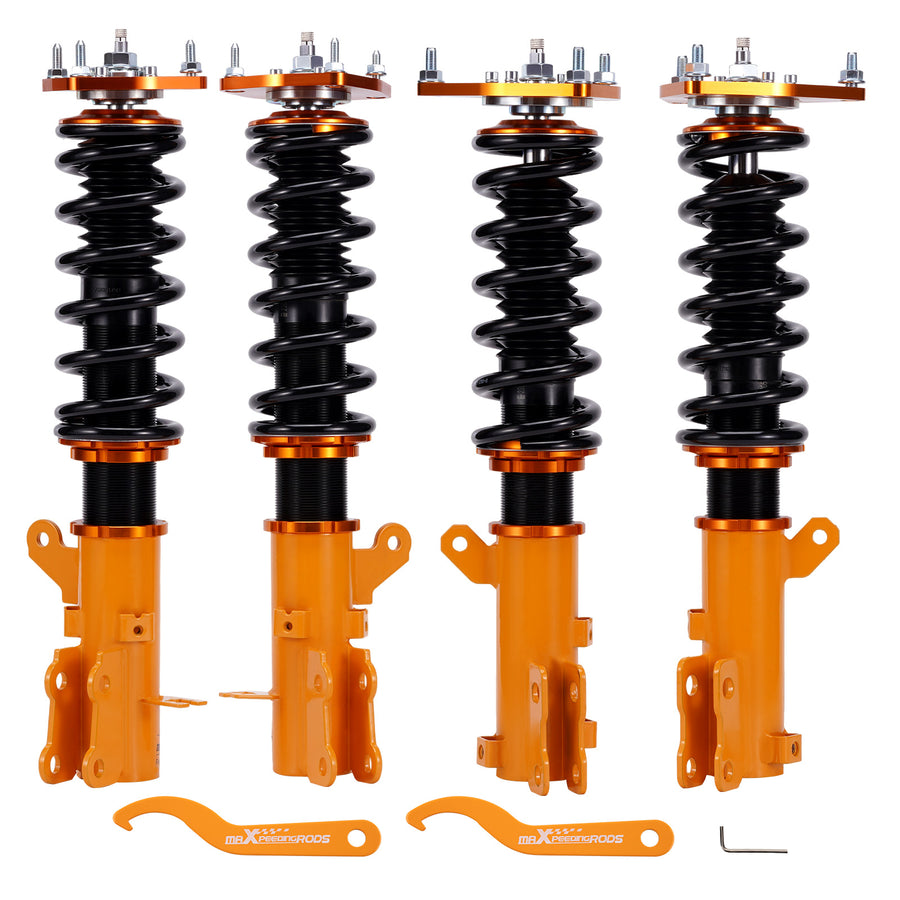

Package included
- Package included：
- 2x Front coil-overs
- 2x Rear coil-overs
- 2x C spanners
- 1x Allen wrench
Note
- 1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
- 2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
- 3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
- 4. Examine the clearance between tyres and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
- 5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-24 months will keep it smooth and clean, which helps to extend the lifetime.
