Coilovers 24 Way Damper Struts Shocks Kit compatible for Honda Accord 03-07

Compatible Vehicles

• Honda Accord 03-07

Front top mount

Pillow ball

Rear top mount

• Standard rubber
• Damping adjustable: Available, 24 levels of rebound damping force

Camber adjustable

• Not available
• Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Spring Rate Front

10 kg/mm (560 lbs/in)

Spring Rate Rear

6 kg/mm (336 lbs/in)

Front spring inner diameter

70.5 mm

Rear spring inner diameter

70.5 mm

Spring length Front

230 mm

Spring length Rear

230 mm

Spring Preload advised

7-10 mm

Warranty

• One year warranty for any manufacturing defect

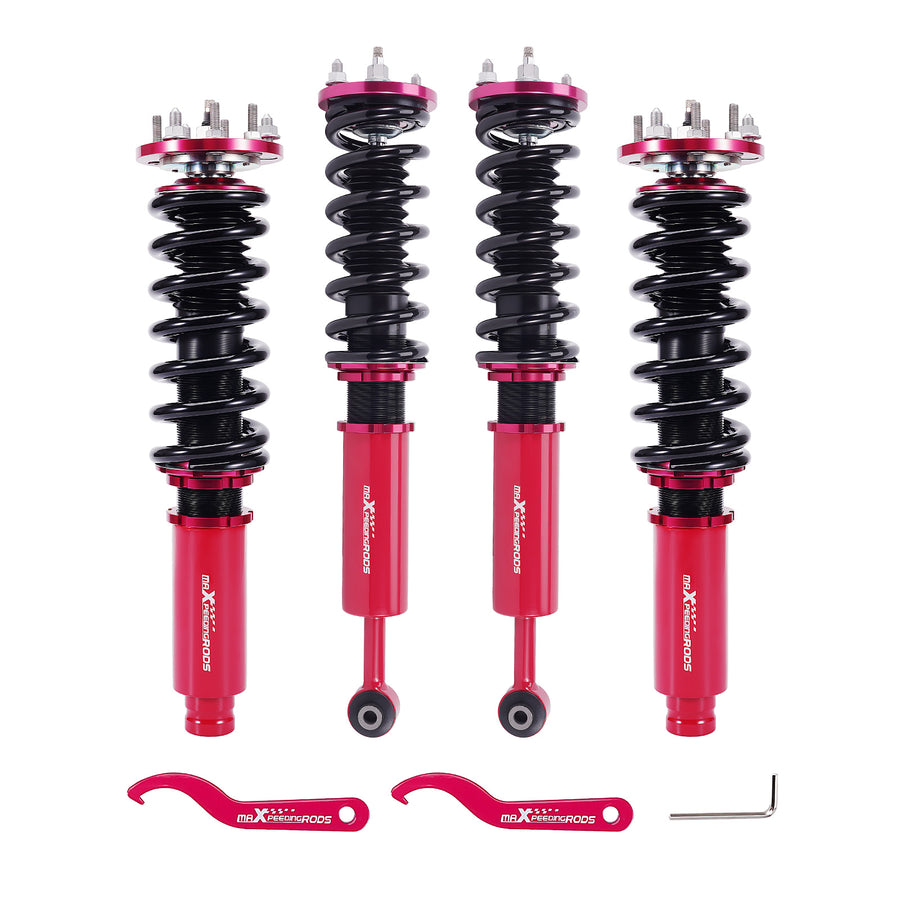

• Package included
• 2x Front coil-overs
• 2x Rear coil-overs
• 2x C spanners
• Dimension

Package Size

70*50*20 cm

Weight

• 28100 g
• Feature
• 1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower centre of gravity and also add a more aggressive stance
• 2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
• 3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)

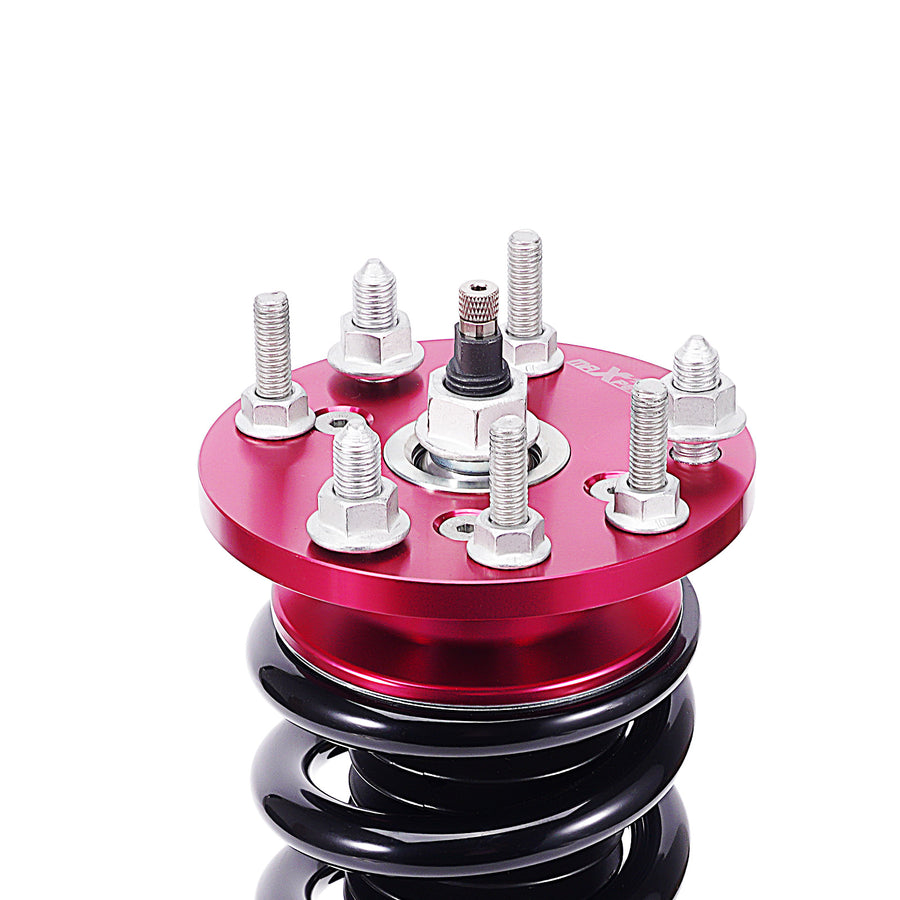

• 4. CNC machined Aluminium  top mounts and lockers-- - excellent strength, and save weight
• 5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
• 6. High tensile spring---  600,000 times continuously test to assure its high tensile strength.
• 7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
• 8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
• 9. Corrosion Finish - Anodized Aluminium And Powder Coated Carbon Steel Parts
• Notice1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
• 2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
• 3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
• 4. Examine the clearance between tyres and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
• 5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
• Notice
• All modifications must be installed by licensed mechanics and in compliance with your local modification regulations
