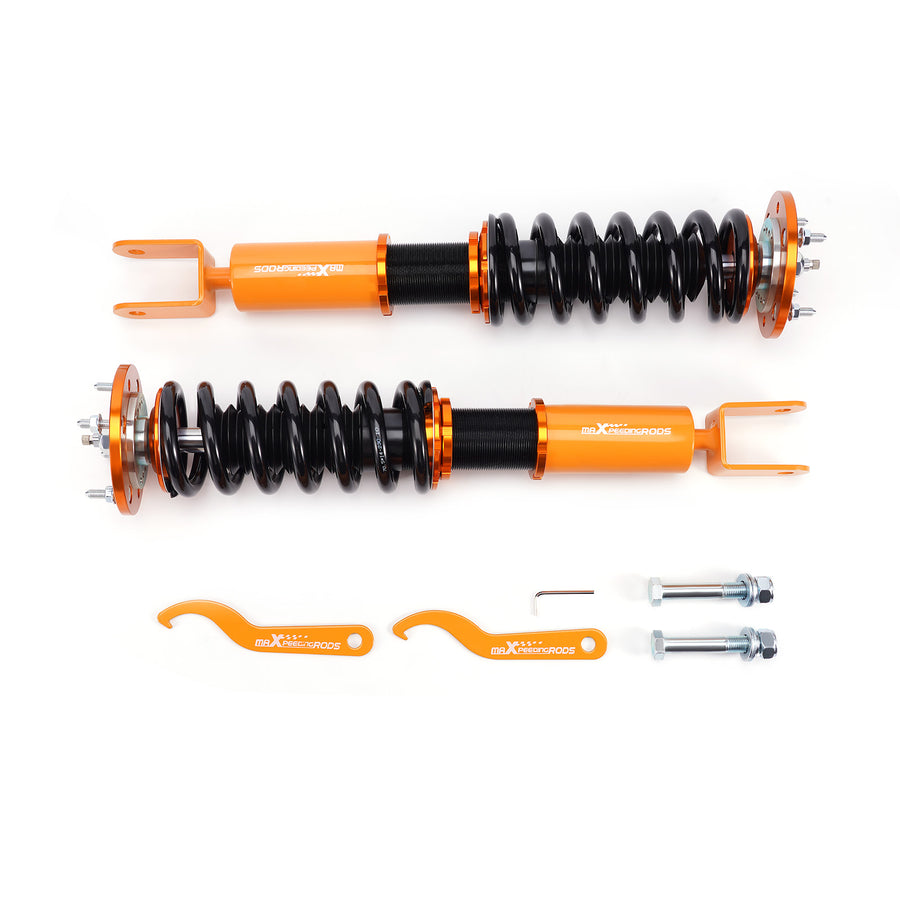

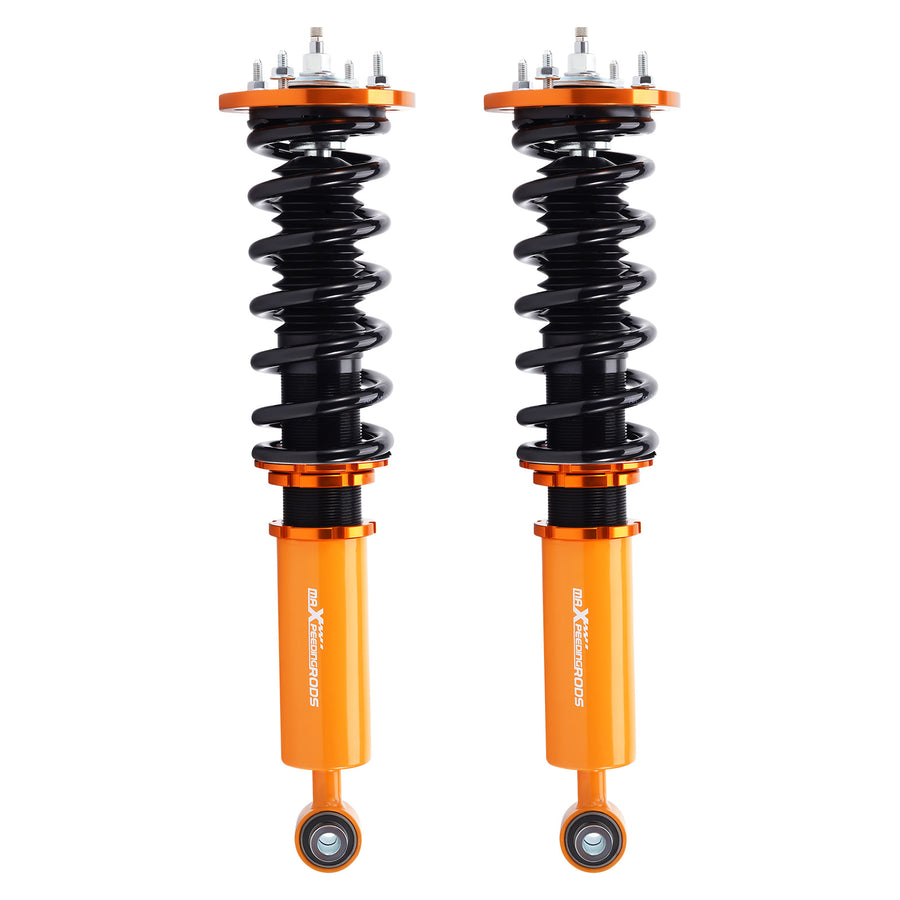

Adjustable Coilovers Lowering Kit compatible for Jaguar XF 09-15 Front Fork

Compatible Vehicles

• Compatible for Jaguar XF (X250) RWD 2009-2015 without electronic suspension
• Note: Front fork is not compatible with AWD.

Introduction

-B3 is based on -B2 coil-overs, which are also height adjustable. They are also made for street use, but the 24-level rebound damping control allows you the ability to perfectly dial in your coil-over setup. You will experience better ride quality in all road conditions.

Specification

• Front top mount: Pillow ball
• Rear top mount: Standard rubber
• Damping adjustable: Available, 24 levels of rebound damping force
• Camber adjustable: Not available
• Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
• Spring Rate Front: 10 kg/mm (560 lbs/in)
• Spring Rate Rear: 6 kg/mm (336 lbs/in)
• Front spring inner diameter: 70.5 mm
• Rear spring inner diameter: 70.5 mm
• Spring length Front: 230 mm
• Spring length Rear: 230 mm
• Spring Preload advised: 7-10 mm
• Colour: Golden body with black spring

Dimension

• Package size : 71*50*20 cm
• Weight: 27300 g

Feature

• 1. Lowered height adjustment from 25-75mm (depends on vehicle models) which allows a lower centre of gravity and also adds a more aggressive stance
• 2.24 levels of adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
• 3. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
• 4. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response. ( for some models)
• 5. CNC machined Aluminium top mounts and lockers-- - excellent strength, and save weight
• 6. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
• 7. High tensile spring--- 600,000 times continuously test to assure its high tensile strength.
• 8. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
• 9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
• 10. Corrosion Finish - Anodized Aluminium And Powder Coated Carbon Steel Parts

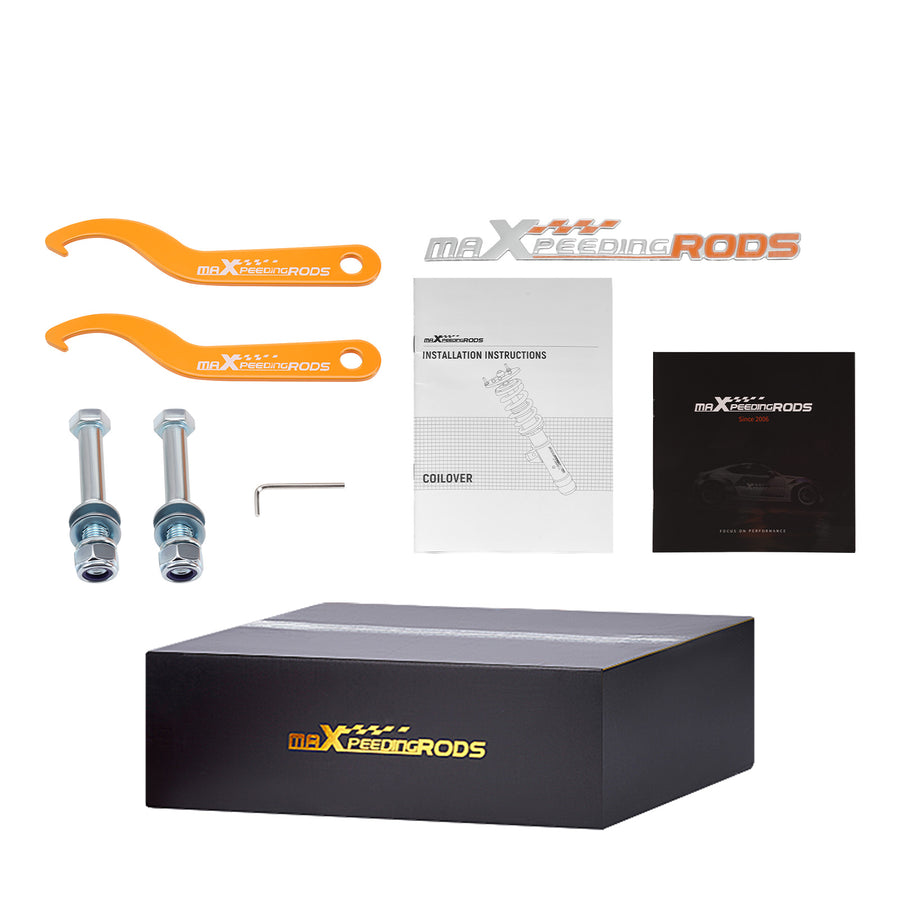

Package included

• Package included：

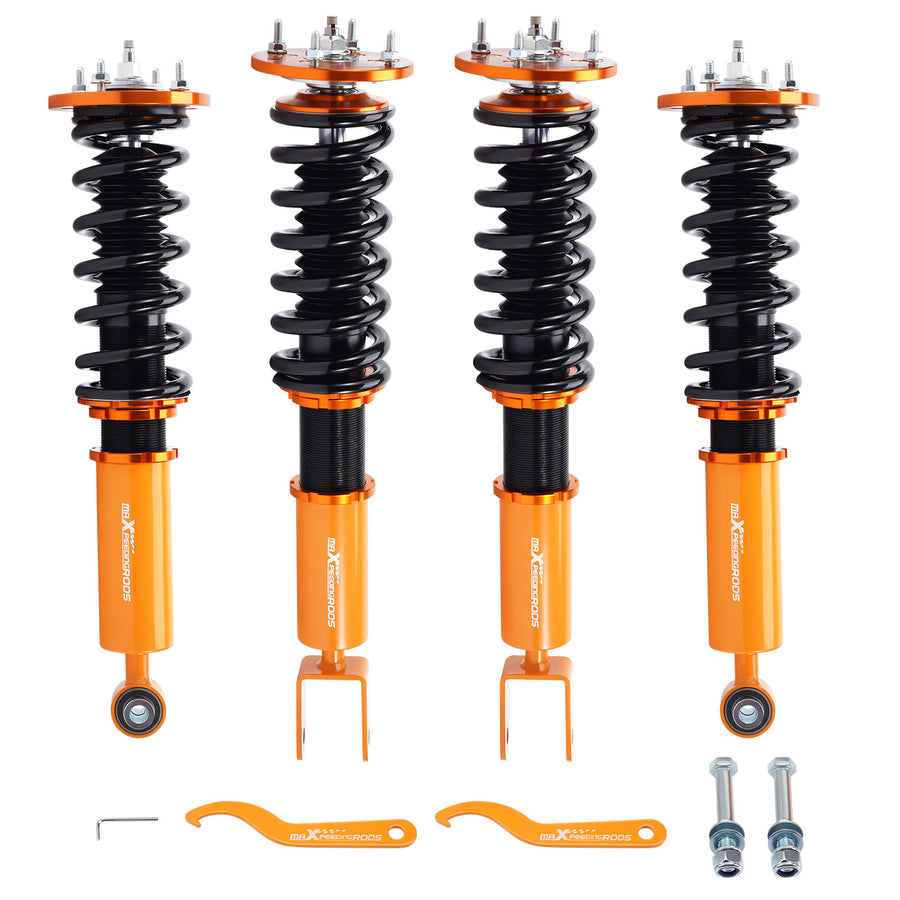

• 1 x Set of Coilover Spring Kit (2 Front + 2 Rear)
• 1 x Pair of wrenches for height adjustment
