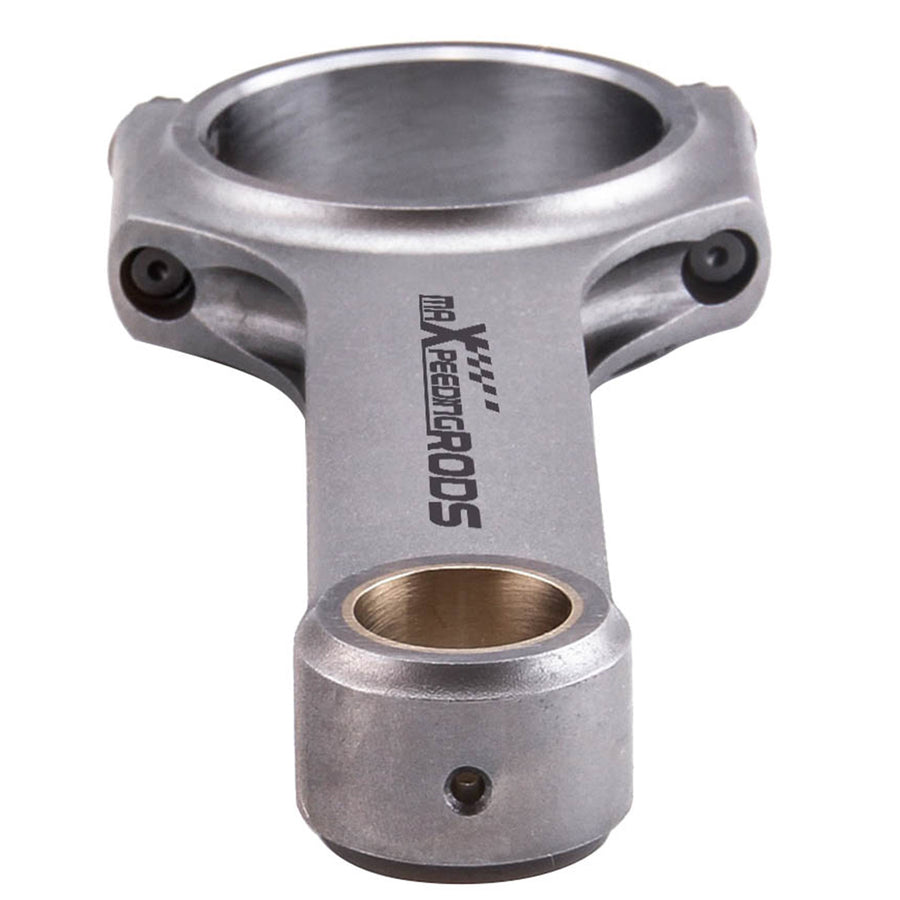

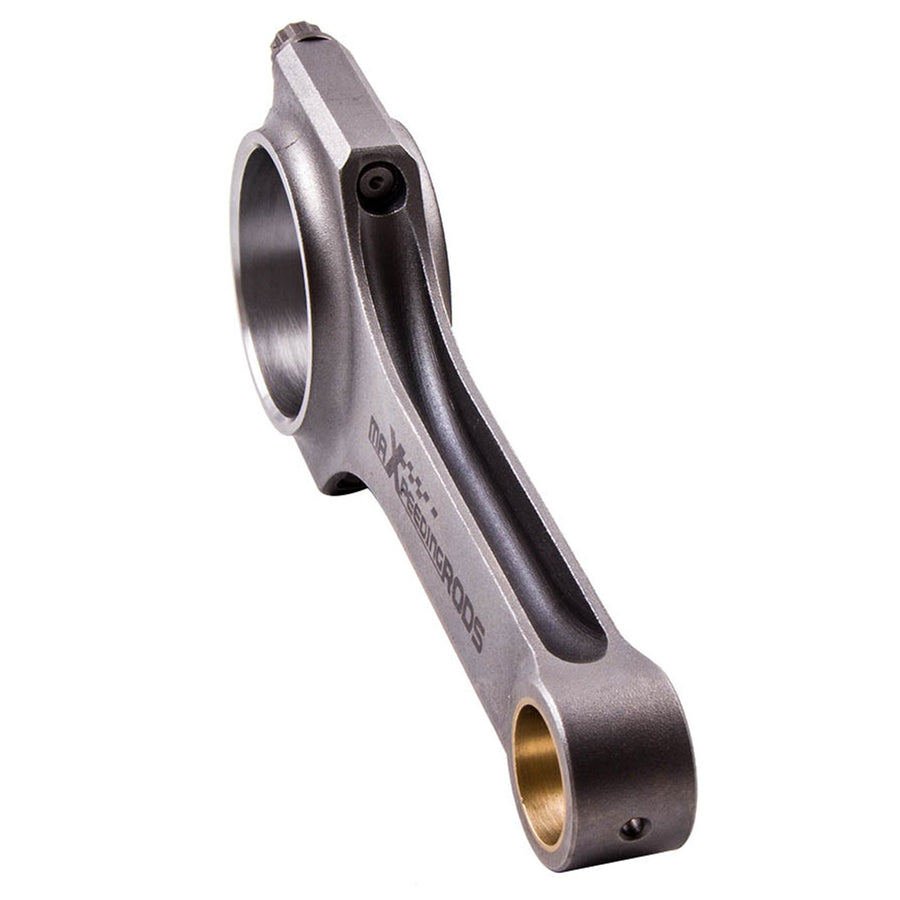

6.125 H-Beam Connecting Rods Set compatible for Chevy LS .927 Pin

Compatible Vehicles

• Compatible for Chevrolet Small block（2.100" rod journal）
• For General Motors/Compatible for GM/Chevrolet - LS-Series V8 engine

Specification

• Beam Style: H-beam Street/Strip
• Material: 4340 Chromoly Steel
• Finish: Shot-peened
• Wrist Pin Style: Floating
• Clearanced for Stroker: Yes
• Cap Retention Style: Through-bolt

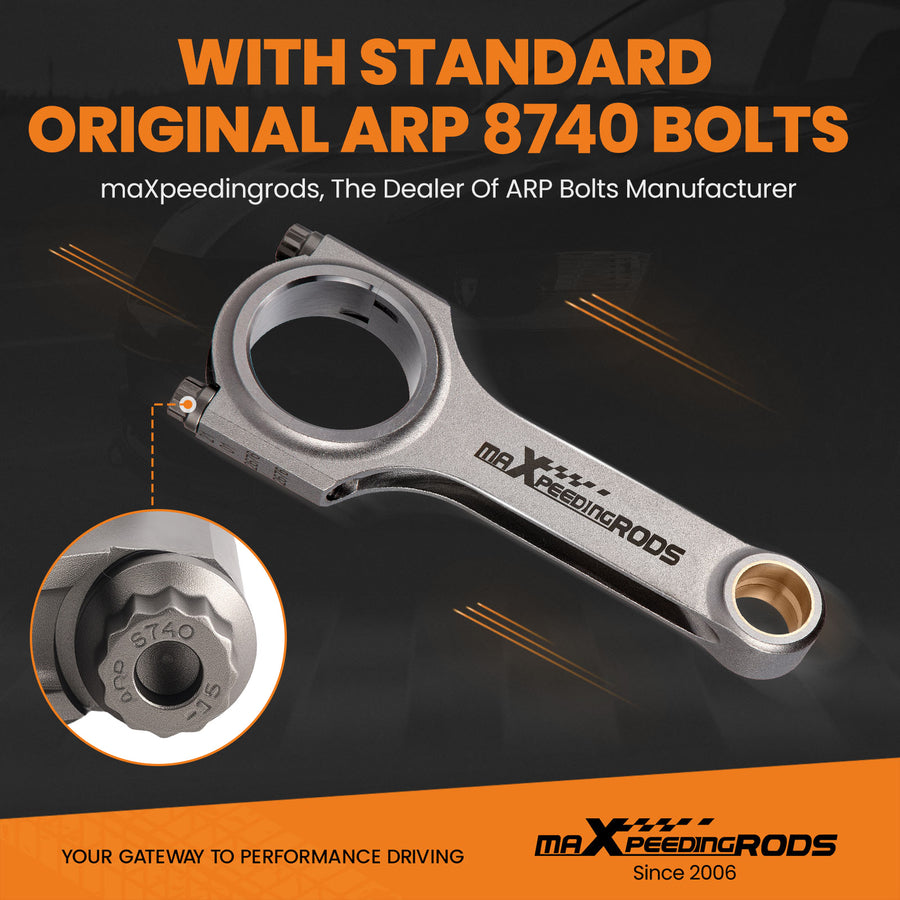

• Connecting Rod Bolt Brand: ARP
• Connecting Rod Bolt Diameter: 7/16"
• Connecting Rod Bolt Material: Alloy Steel
• Fastener Yield Strength (psi): 190,000 psi (ARP 8740)
• Connecting Rod Bolt Head Style: 12-point
• CNC Machined: High Precision
• Rod Cap Alignment: Precision dowels
• Bore Tolerance: ±0.005 mm
• Balancing: ±1 gram per rod
• Weight Matched Set: Yes
• Remanufactured: No
• Testing: Magnafluxed, X-rayed, Ultrasonically tested
• Heat Treated: Yes

Dimension

• Connecting Rod Length Centre to Centre: 155.58mm/6.125in
• Approximate Connecting Rod Weight: 668g
• Big End Bore Diameter: 56.52mm/2.225in
• Pin End Bore Diameter: 23.55mm/0.927in
• Big End Width: 23.90mm/0.941in
• Small End Width: 25.65mm/1.010in

Performance Ratings

• Advertised Horsepower Rating: 200HP/piece
• Advertised RPM Rating: 8500rpm

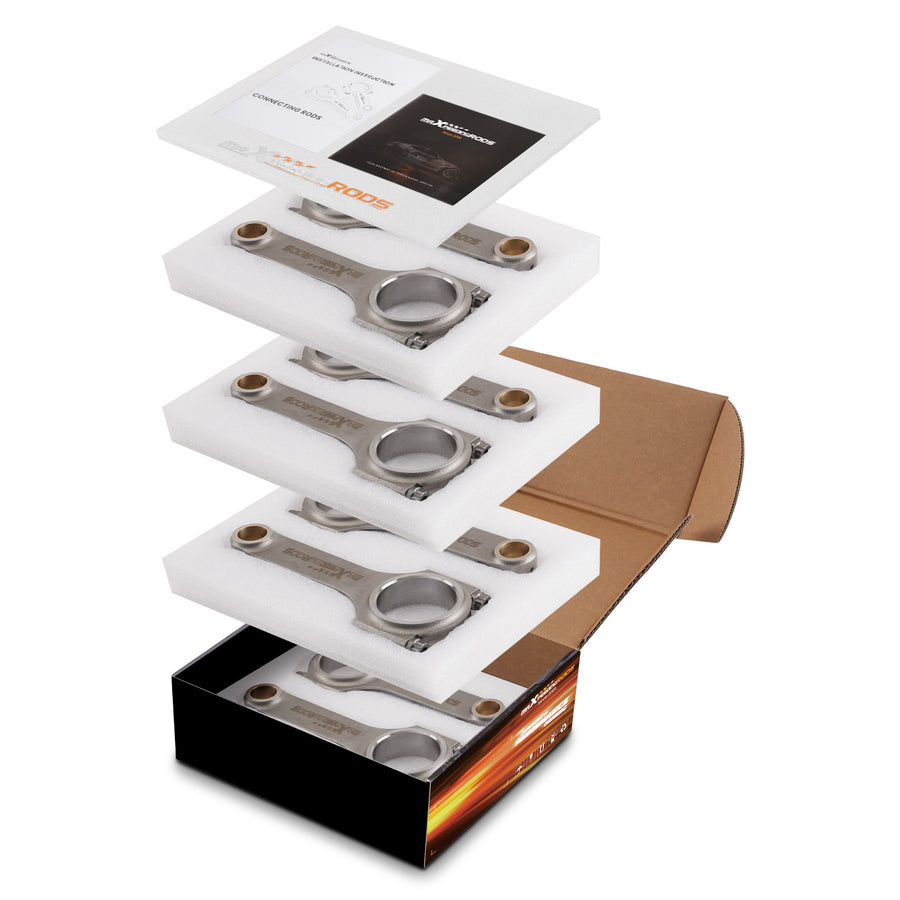

Packaging

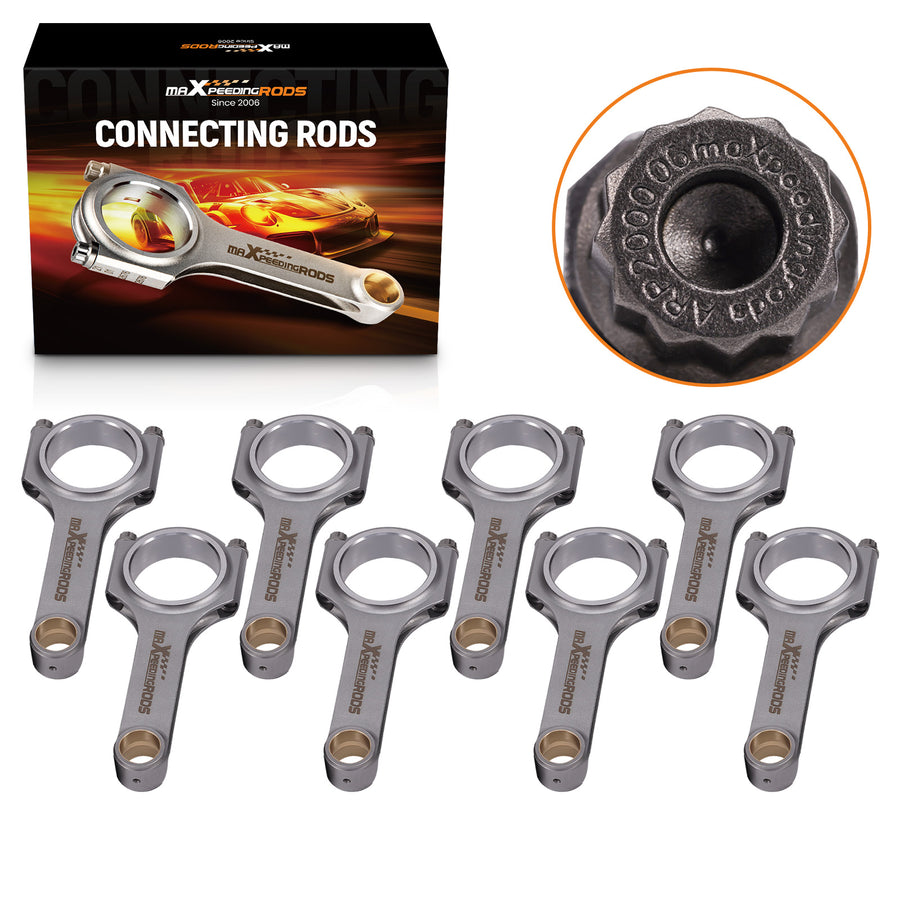

• Quantity: Sold as a set of 8
• Package Size: 28CM*20CM*17CM
