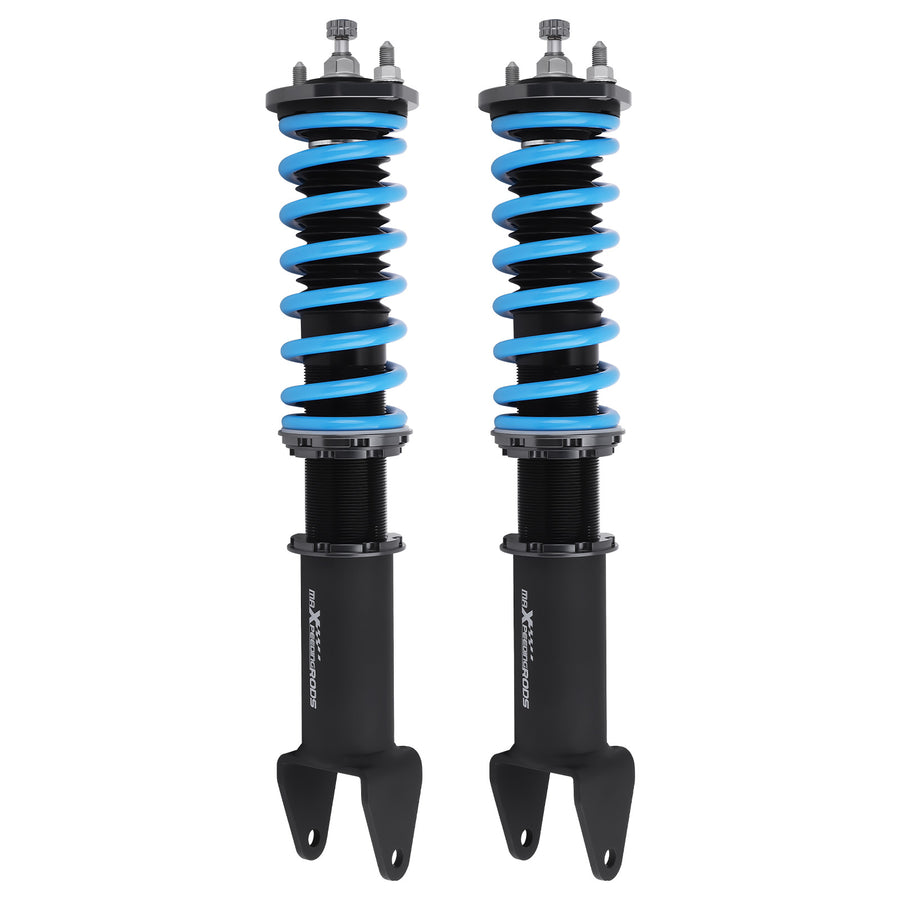

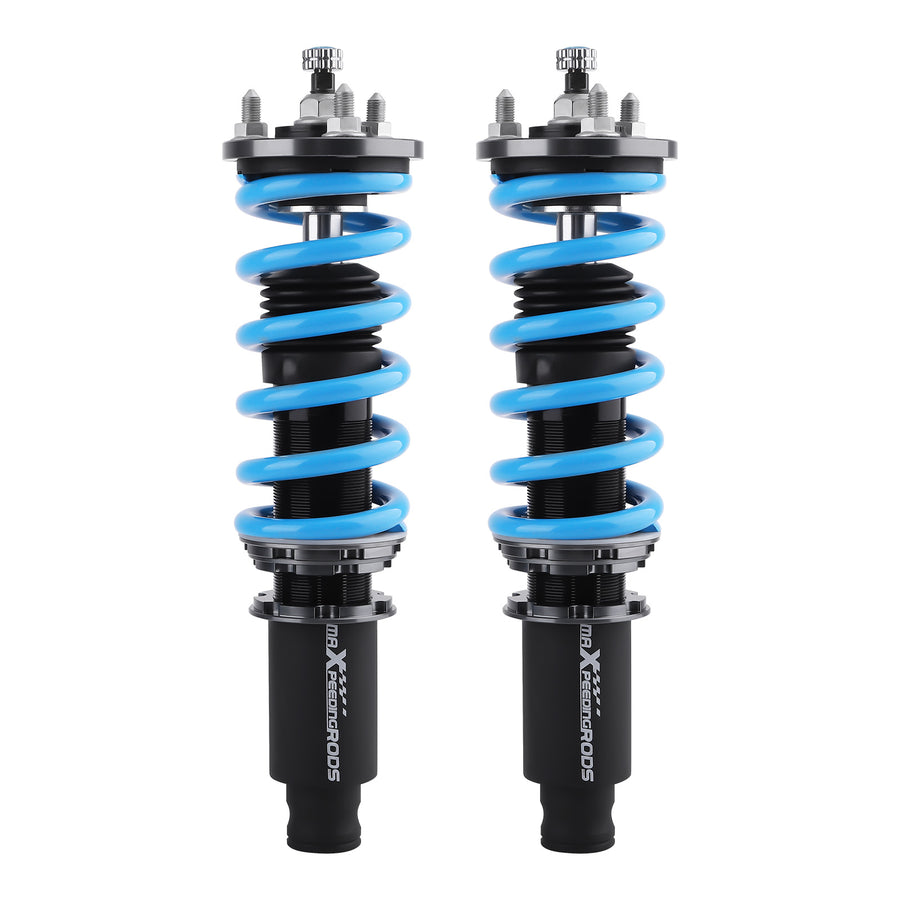

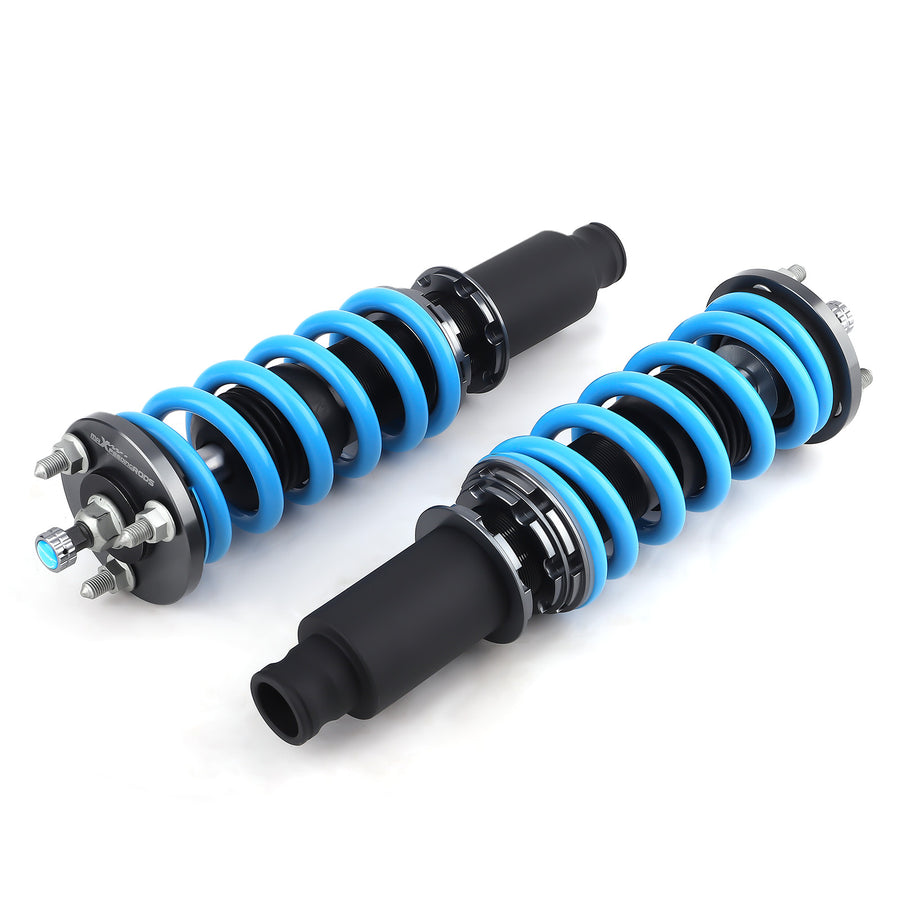

24-Step Adjustable Coilover Suspension compatible for Honda Prelude 88-91

Compatible Vehicles

• Compatible for Honda Prelude 1988-1991

Specification

• Front top mount structure: Standard rubber
• Damping adjustable: Available, 24 levels of rebound damping force
• Shock structure type: twin -tube
• Camber adjustable: Available
• Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
• Spring Rate Front: 10 kg/mm (560 lbs/in)
• Spring Rate Rear: 5 kg/mm (280 lbs/in)
• Front spring inner diameter: 62 mm
• Rear spring inner diameter: 62 mm
• Spring length Front: 180 mm
• Spring length Rear: 200 mm
• Spring Preload advised: 7-10 mm
• Colour: Black body with blue spring

Dimension

• Package Size: 70*50*20 cm
• Weight: 23050 g

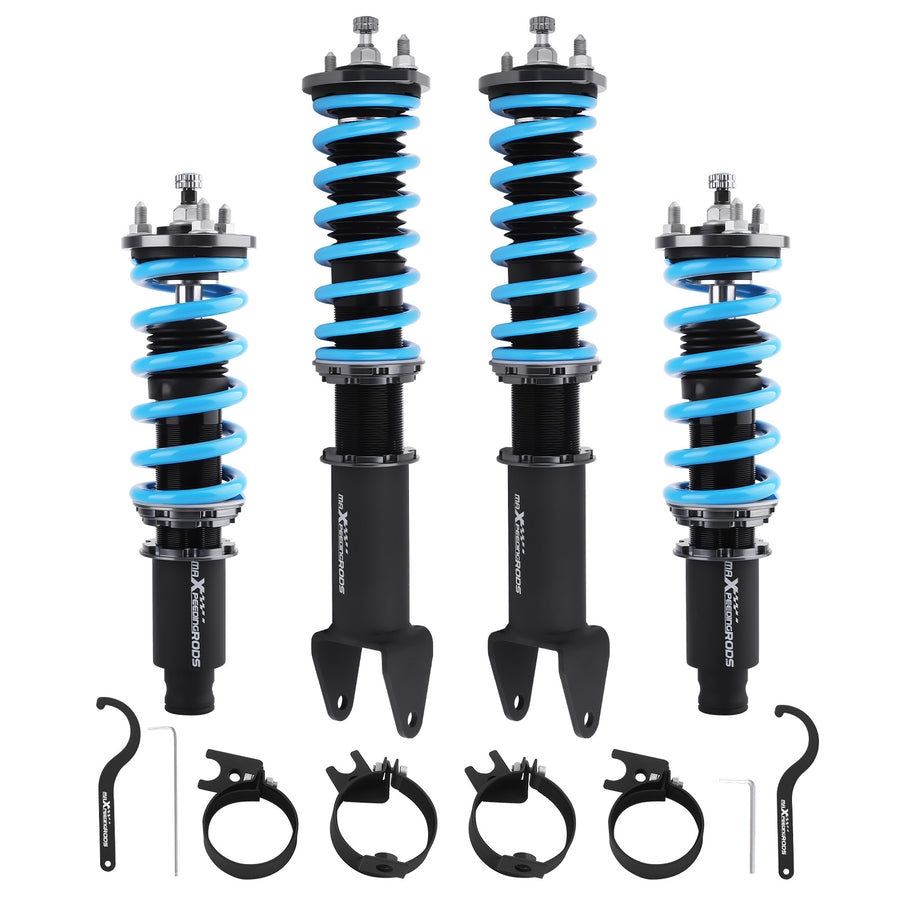

Package included

• Package included：
• 2x Front coil-overs
• 2x Rear coil-overs
• 2x C spanners
• 2x Allen wrench
• 1x Sticker

Note

• 1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
• 2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
• 3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
• 4. Examine the clearance between tyres and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
• 5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
