Compatible Vehicles
- Compatible for BMW E30 316/316i/ 318i/ 320i/ 323i/ 325i/ 324D/324TD Saloon 1982.11-1991.1
- Notice:
- Compatible for BMW E30 Saloon 51mm front strut diameter only
- The coilovers will compatible for BMW E30 316/316i/ 318i/ 320i/ 323i/ 325i/ 324D/324TD Saloon 1982 -1988 models, but it may not lower the car as much as the late model, because the rear chassis is different .
- Compatible for BMW E30 316 1988.11-1991.1,the coilovers can fit earlier models except 1.Pre 1988 1.6L & 1.8L.
Introduction

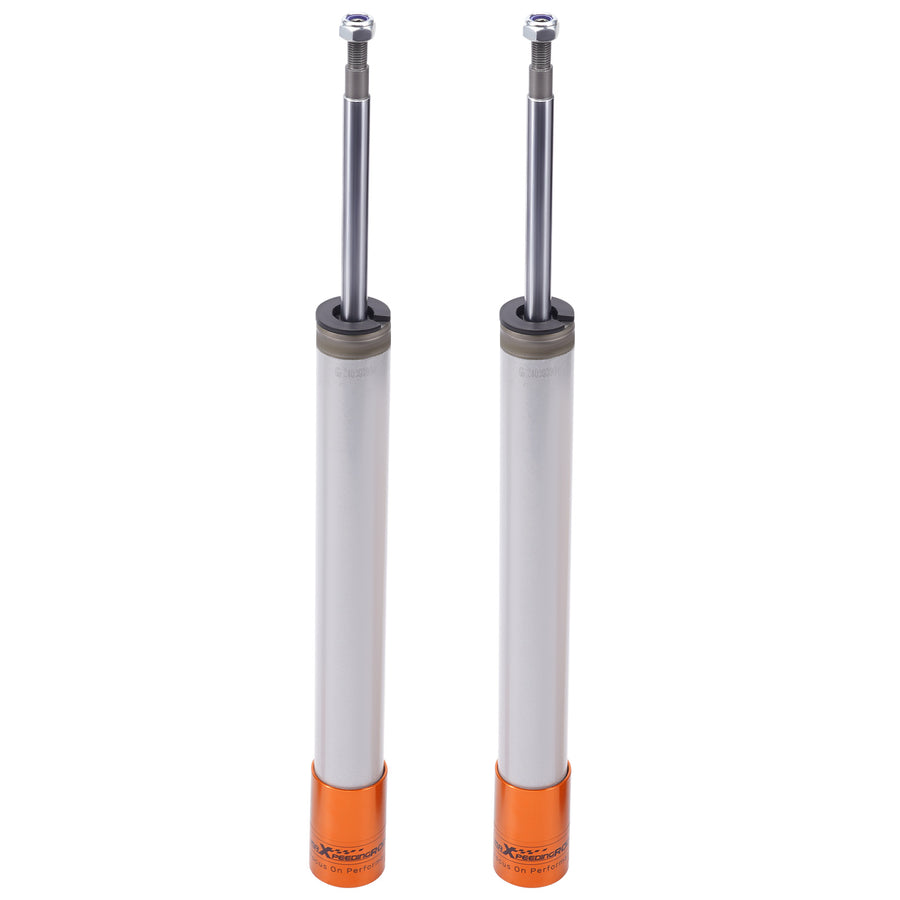

' MXR-B1 series is ideal for those who want to change the old worn-out strut but improve handling at the same time. It features height adjustable and maintains the OE ride quality to the greatest extent.
Specification
- Top mounts: Front and rear OE top mounts required
- Damping adjustable: Not available
- Camber adjustable: Not available
- Height adjustable: Yes, lowering 0-25mm depending on the vehicle models

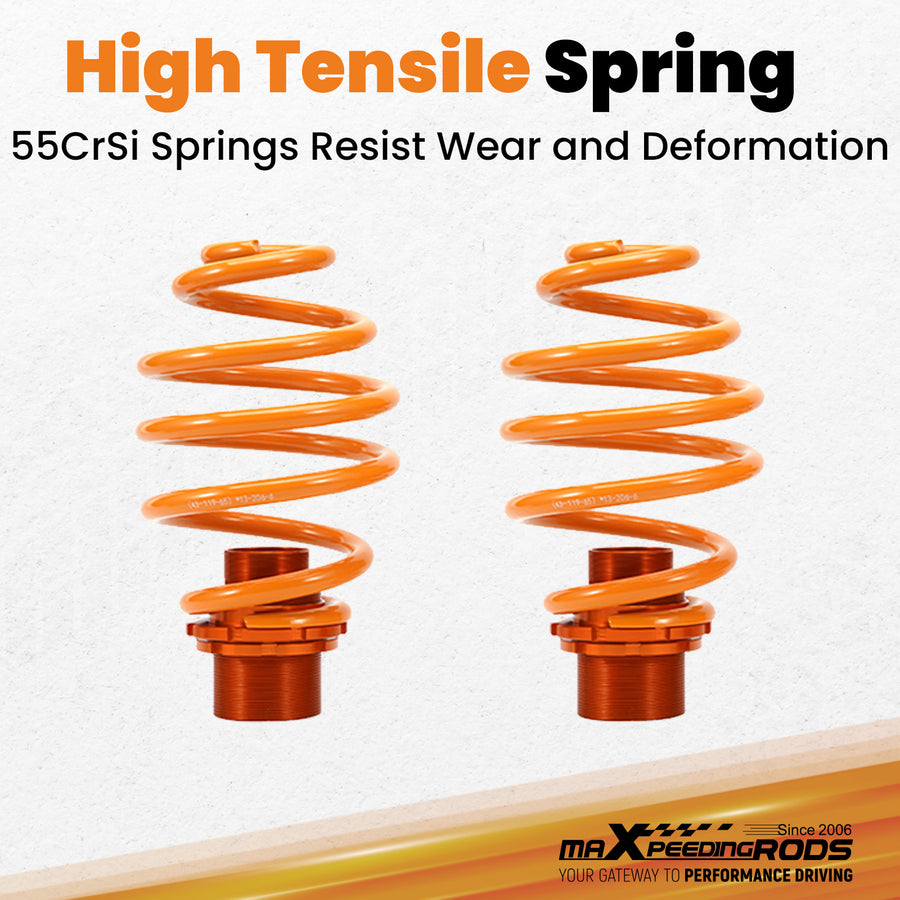

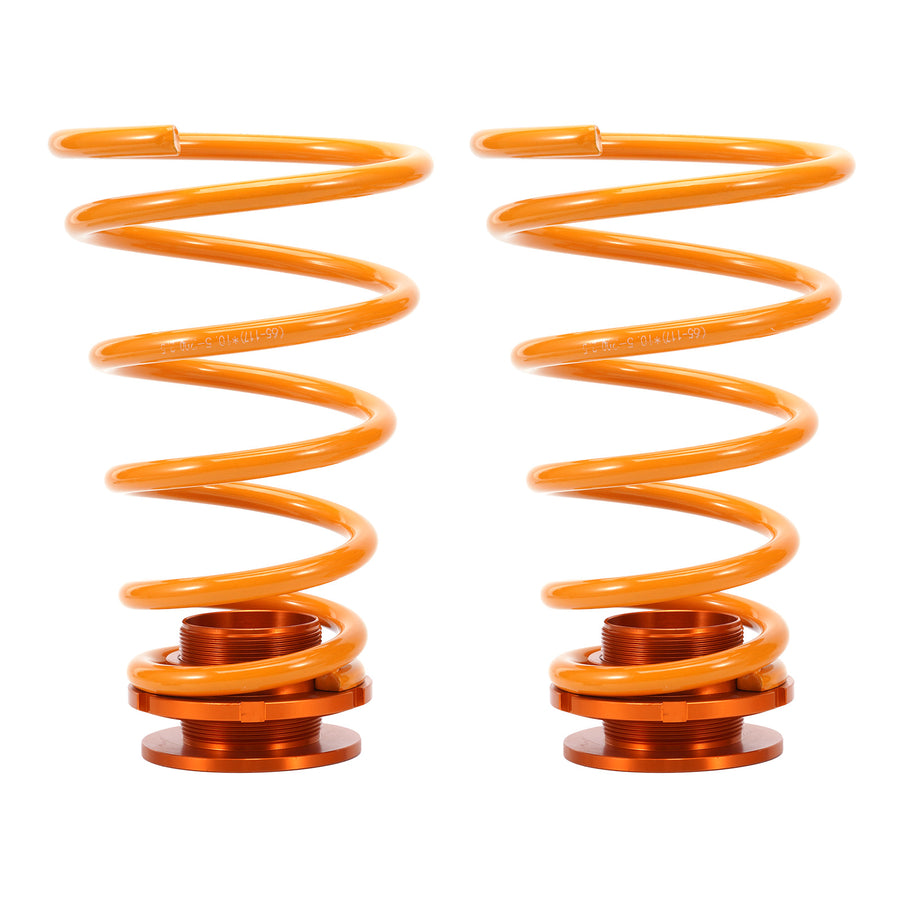

- Spring Rate Front: 2.5 kg/mm (140 in/lbs)
- Spring Rate Rear: 6 kg/mm (336 in/lbs)
- Front spring inner diameter: 65-117 mm
- Rear spring inner diameter: 43-119-65 mm
- Spring length Front: 200 mm
- Spring length Rear: 206 mm
- Spring Preload advised: 7-10 mm
- Colour: Silver body with golden spring
Dimension
- Package size : 70*50*20 cm
- Weight: 20750 g
Feature
- 1. 0-25mm(depends on vehicle models) lower height adjustable
- 2. Dust boot, solid rubber bump stops

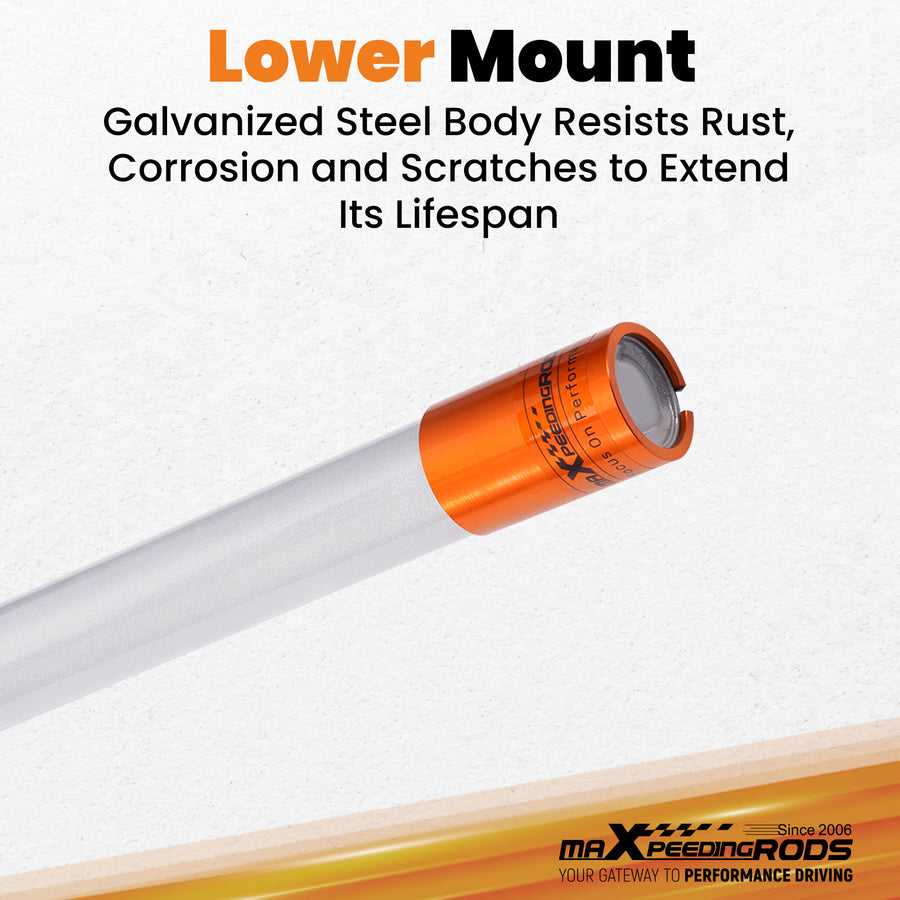

- 3. Weight Saving Aluminium Components And heavy duty Steel Lower Mount Brackets
- 4. Simple install, Easy to adjust.
- 5. Use the vehicle's original upper mounts (not included in our product kit).
Package included
- Package included：
- 2x Front coil-overs
- 2x Rear coil-overs
- 2x C spanners
Note
- 1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.
- 2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.
- 3. Impact wrench is prohibited during the installation, it will loosen or damage the product.
- 4. Examine the clearance between tyres and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)
- 5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-4 months will keep it smooth and clean, which helps to extend the lifetime.
