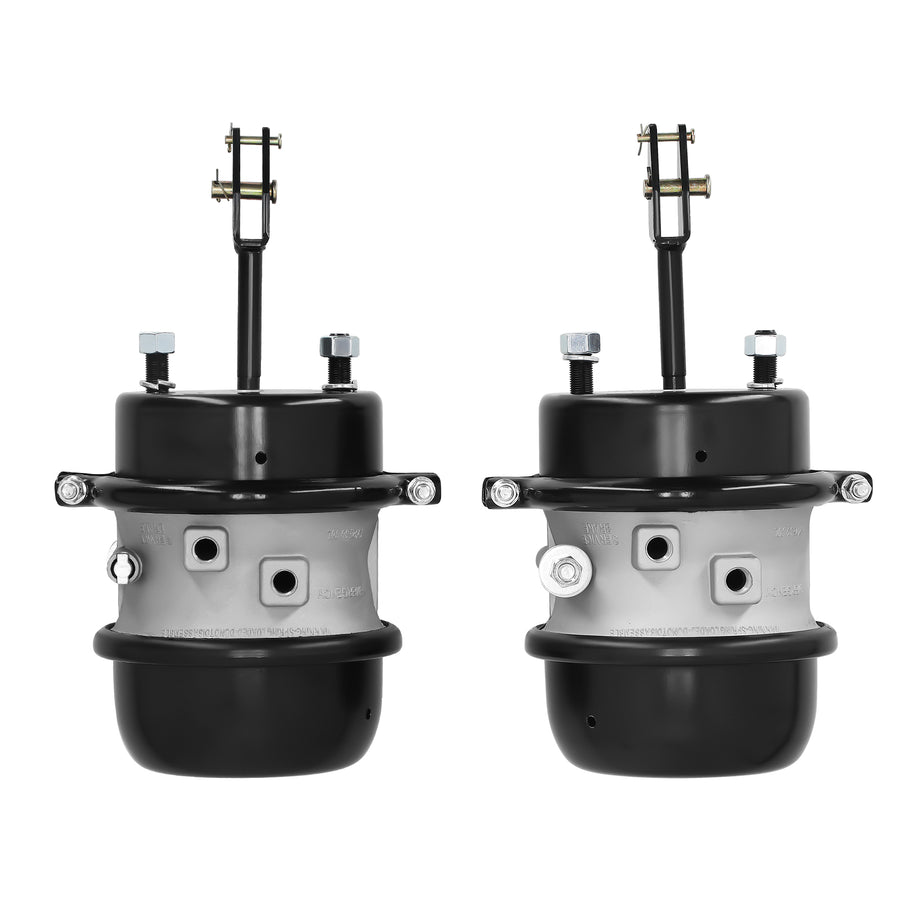

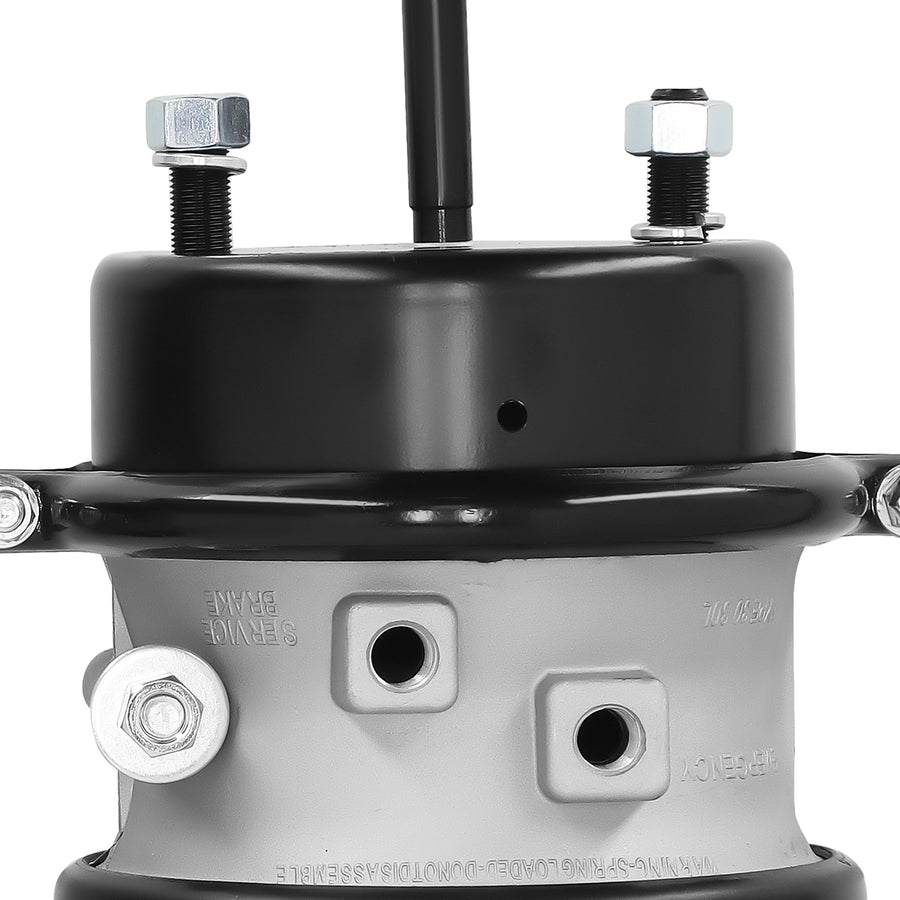

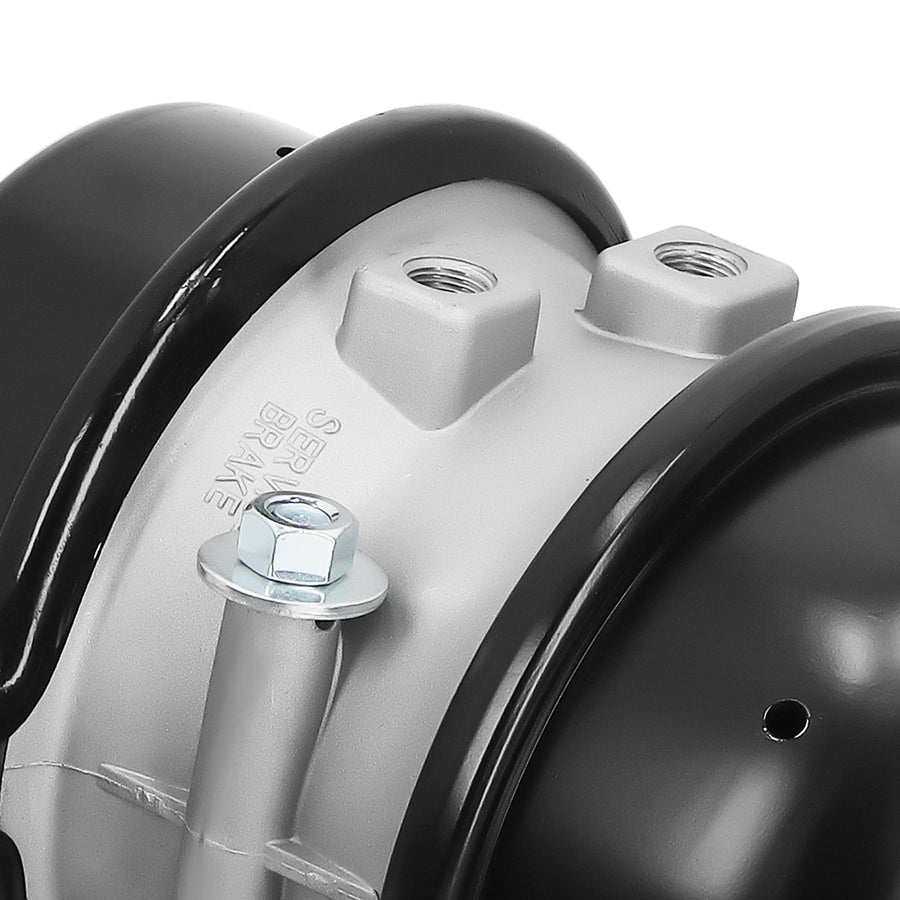

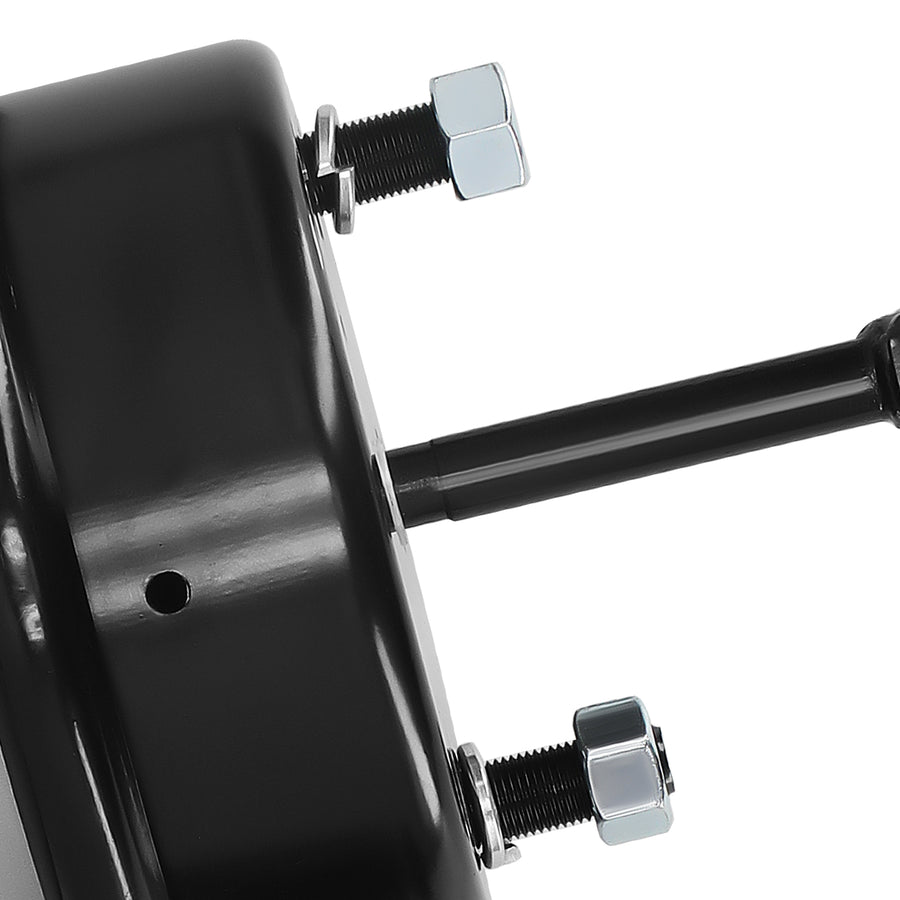

Long Stroke Air Brake Chamber 3030 3 76mm Replace For Bendix BTS-3030LS-WCR

Compatible Vehicles

• For Haldex: GC3030LCW
• For Bendix: NT3030ELS-WC
• compatible for Freightliner: HDX1373030215
• For Others: BTS-3030LS-WCR, GTA-3030LS-WCR

Specification

• Condition : New
• Actuator Type Size : 3030
• Stroke Type : Long
• Available Stroke : 3", 76mm
• Length from mounting bracket to the end of Spring Housing : 9-7/8", 251mm
• Length of Piggyback : 7-3/8", 187mm
• Dimension at rolled Spring Housing flange : 8-5/16", 211mm
• Dimension at Service Clampband : 10-3/16", 259mm
• Pushrod Length from the face of Service Housing : 1"
• Distance to Clevis Pin centerline from the face of Service Housing : 2-1/4"
• Weight : 21.9 lbs. , 9.9 kg.
• Packaging Type: Box
• Fitment Type: Direct Replacement

Feature

• - High-Quality Torque Long Stroke Air Brake Chamber Type 30/30 Welded Clevis
• - Package includes 2 Long Stroke Air Brake Chambers
• - Combination with Welded Clevis - Long Stroke - Size 3030 - Square Bosses
• - Superior Power Spring Technology; Advanced powder coating process;
• - Resists corrosion and fatigue
• - Double O-ring Centre seal; Two o-rings for positive sealing and plastic bearings for long life
• - World Class Diaphragm; High-quality rubber compound, resistant to heat and cold
• - Rugged Service Housing; 9 gauge steel, powder-coated
• - Self-piloting Dust Shield
• - Sizes to fit all drum brake applications

Note

• ●Please confirm your vehicle condition and OE number before placing an order!
• ●Please note that this is an after-sales part, not an original part.
• ●We suggest that you seek professional installation to avoid unnecessary trouble.
• ●If you have any questions, please contact us.

OE/Part number

• GC3030LCW,
• NT3030ELS-WC,
• HDX1373030215,
• BTS-3030LS-WCR,
• GTA-3030LS-WCR,
• NT3030ELSWC,
• BTS3030LSWCR,
• GTA3030LSWCR
