compatible for Mazda Miata /MX-5 B6 1.6 16-valve DOHC 1989-1993
compatible for Mazda Xedos 6 / Eunos 500 1.6 L B6-9/B6-E I4 1992–1999
compatible for Kia Mentor / Shuma / Spectra 1.6 L B6 I4 1997–2003
compatible for Kia Rio First generation 1.6 L B6 I4 (petrol) 1999–2005
compatible for Mazda Familia / 323 1.6 L B6 I4 1985–1989
compatible for Ford Tonic GT-X Fifth Generation 1985–1989
compatible for Mazda Familia / 323 1.6 L B6 I4 Sixth generation 1989–1994
Compatible for Mazda BP 1.8 Engine :
Compatible for Mazda Familia GT (European & Australian Market) 1989-1994
compatible for Ford Laser TX3 (Australian Market)1989-1994
compatible for Ford Laser KJ GLXi (Australian Market)1994-1998
compatible for Mazda Artis "LX" VICS jm1 (North America Market)1994-1998
compatible for Mazda Protege LX (with VICS)1990-1994
compatible for Mazda Protege ES (Australian Market: 1994-1998 )1995-1998
compatible for Mazda Infini 1990
compatible for Mazda Protege GT (Canadian Market)1990-1991 and 1993
compatible for Mazda 323 (European Market)1990-1993
compatible for Ford Escort GT and LX-E 1991-1996
compatible for Mercury Tracer LTS 1991-1996
compatible for Kia Sephia RS, LS, for GS 1995-1997
compatible for Mazda Familia (Japanese Market) 1994-1998
compatible for Mazda Lantis 1994-1998
compatible for Mazda MX-5/Miata (did not have VICS until 1999) 1994-1997
compatible for Suzuki Cultus Crescent/Baleno/Esteem 1996-1998
Specification
*Type: Forged 4340 aircraft chrome moly quality steel for racing

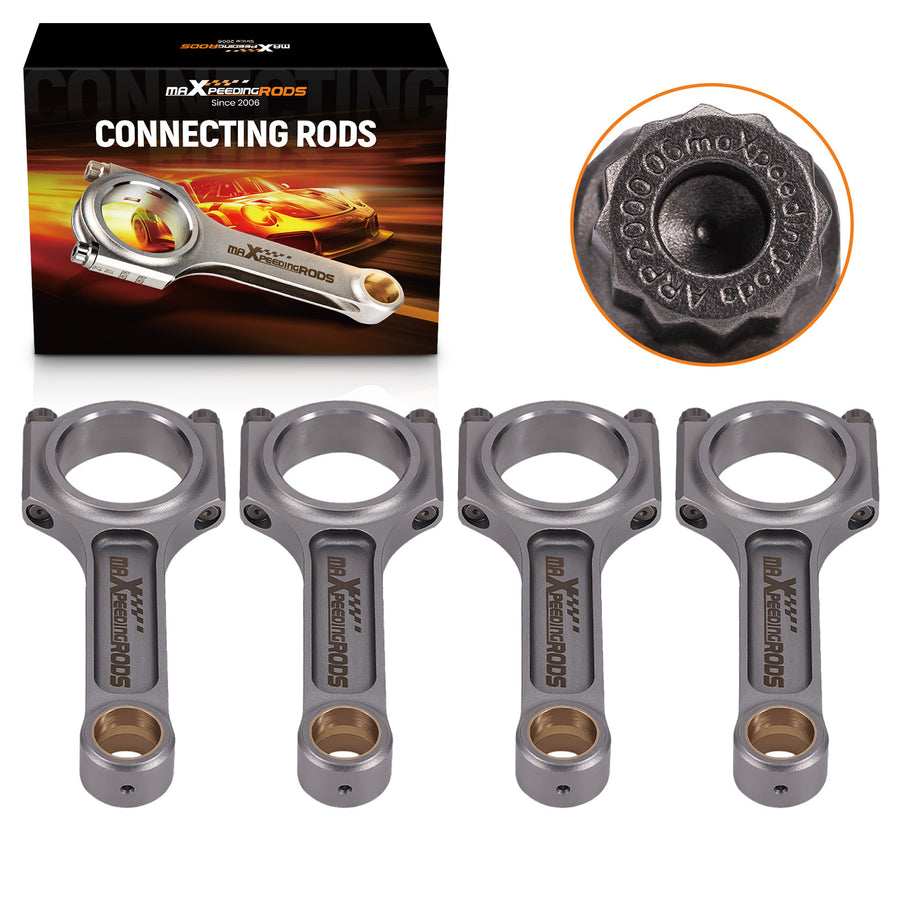

*I-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 5/16" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM
Dimension
Centre to centre length:133mm/5.236"
Big end diameter:48mm/1.89"
Small end diameter:20mm/0.787"
Big end width:21.84mm/0.86"
Small end width:21.84mm/0.86"
Feature
1.TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；

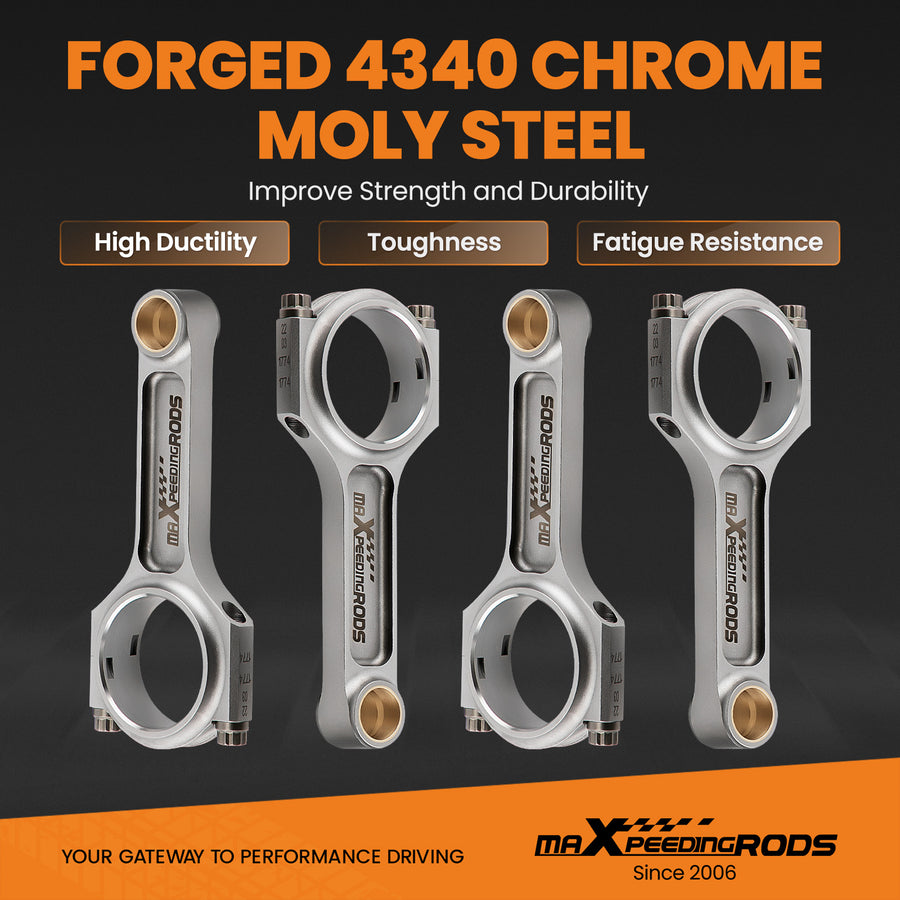

2.Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3.ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；

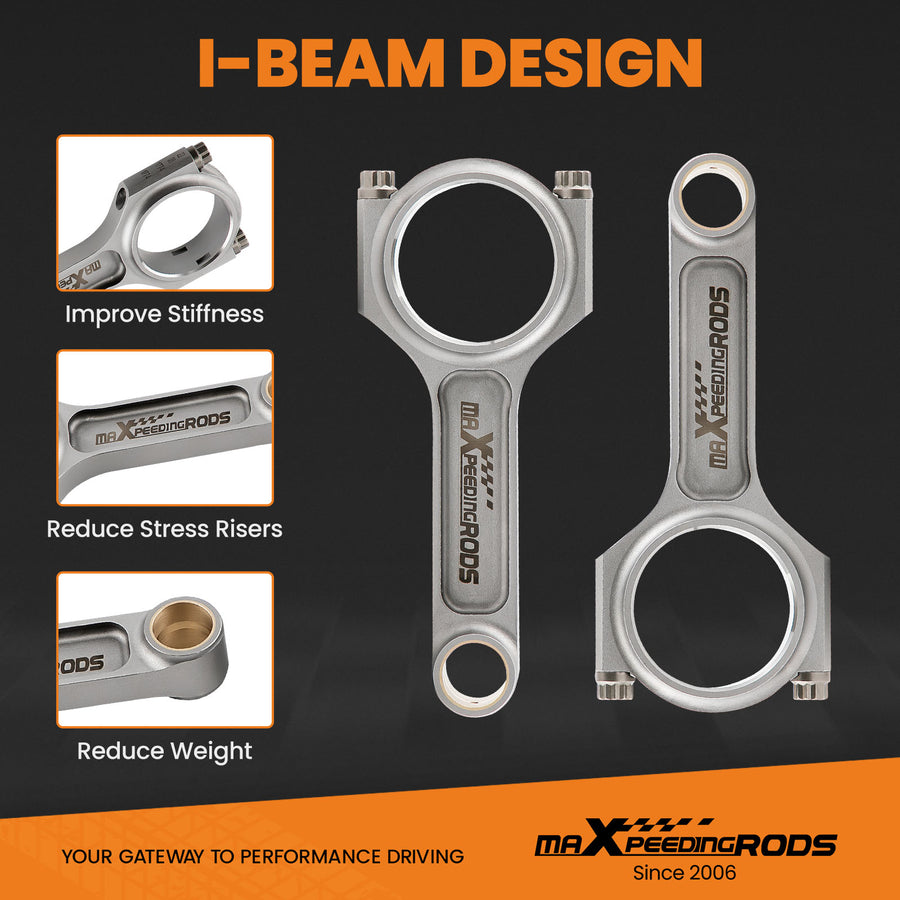

4.I-Beam reduce inertial force withstand the high gas pressure；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .005mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.
Note
"*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs."
