I-Beam Forged EN24 4340 Connecting Rods compatible for BMW 328i 528i E36 E46 M52B28 5.315

Compatible Vehicles

• Compatible for BMW 328i 528i E36 E46 M52B28 M50B25
• Fitment Details:
• Compatible for BMW 3 Series E36 1990-2000 325i 328i
• compatible for BMW 3 Series E46 1998-2007 325i 328i 330i 325 Ci 328 Ci 330 Ci 325 xi 328 xi 330 xi
• compatible for BMW 5 Series E12 1972-1981 Saloon 528i
• compatible for BMW 7 Series E38 1994-2001 Saloon 728i X 728i, iL
• compatible for BMW Z3 E36 1997-2003 Coupe 2.8i
• compatible for BMW Z3 Roadster E36 1995-2003 Convertible 2.8i
• Pin Type: Floating Pin Piston

Specification

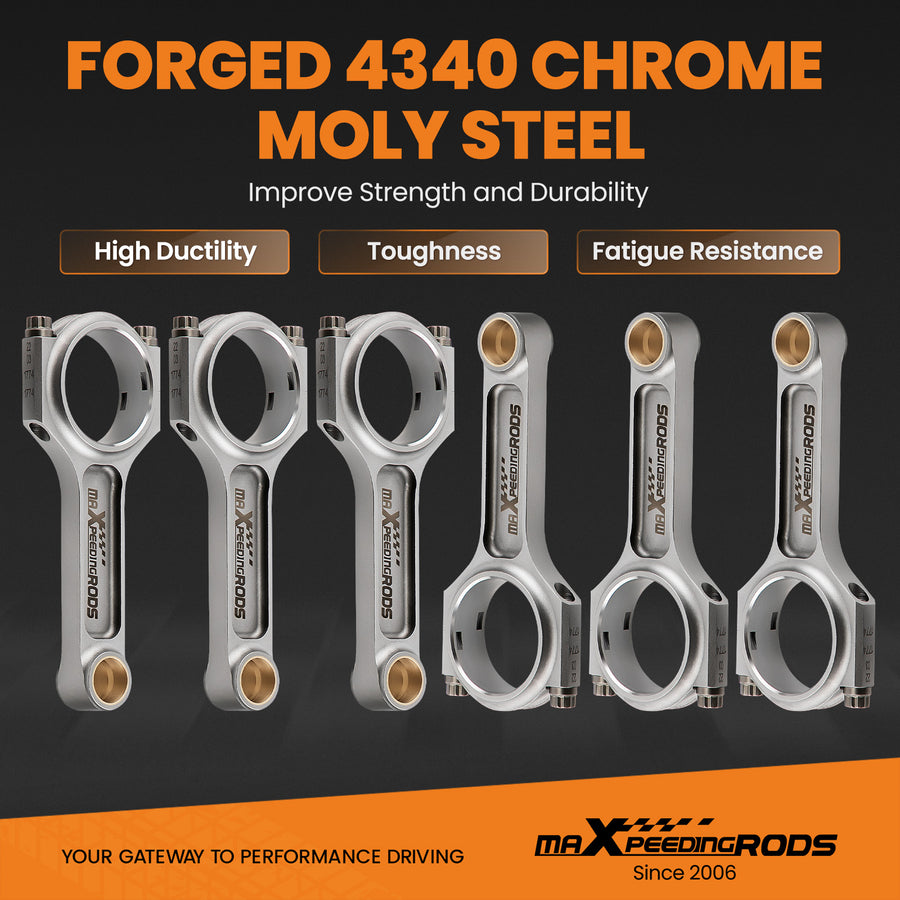

• *Type: Forged 4340 aircraft chrome moly quality steel for racing

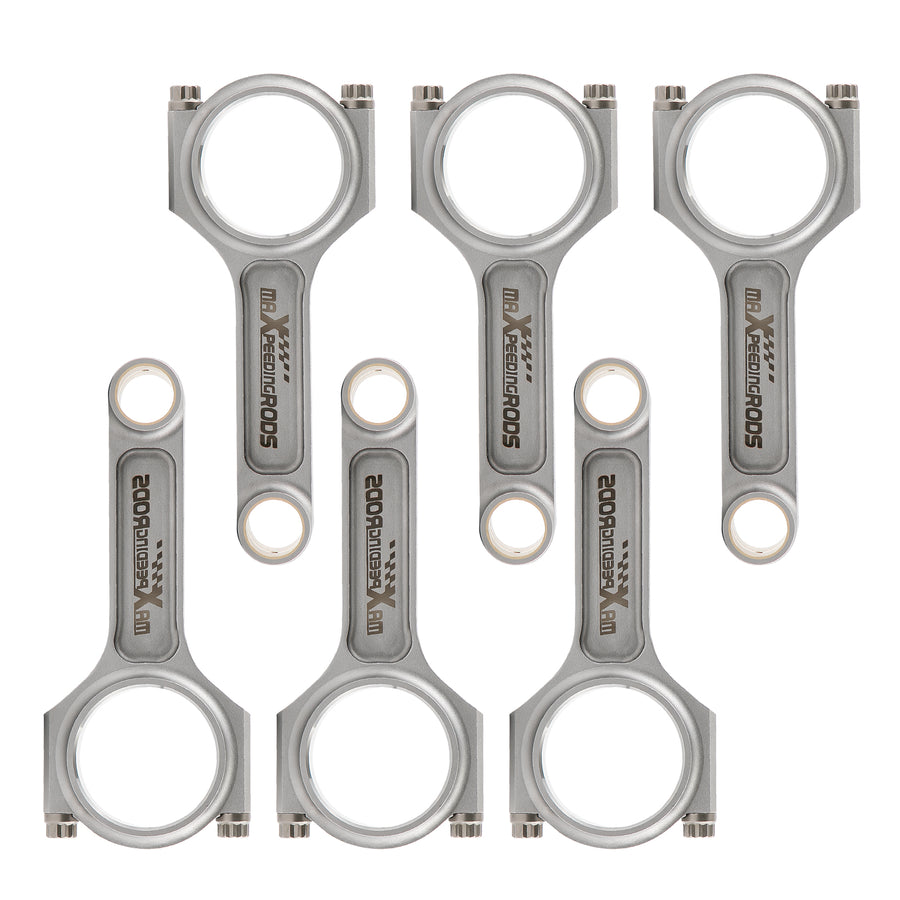

• *I-beam Conrods Quantity: 6 Pieces as showing in picture

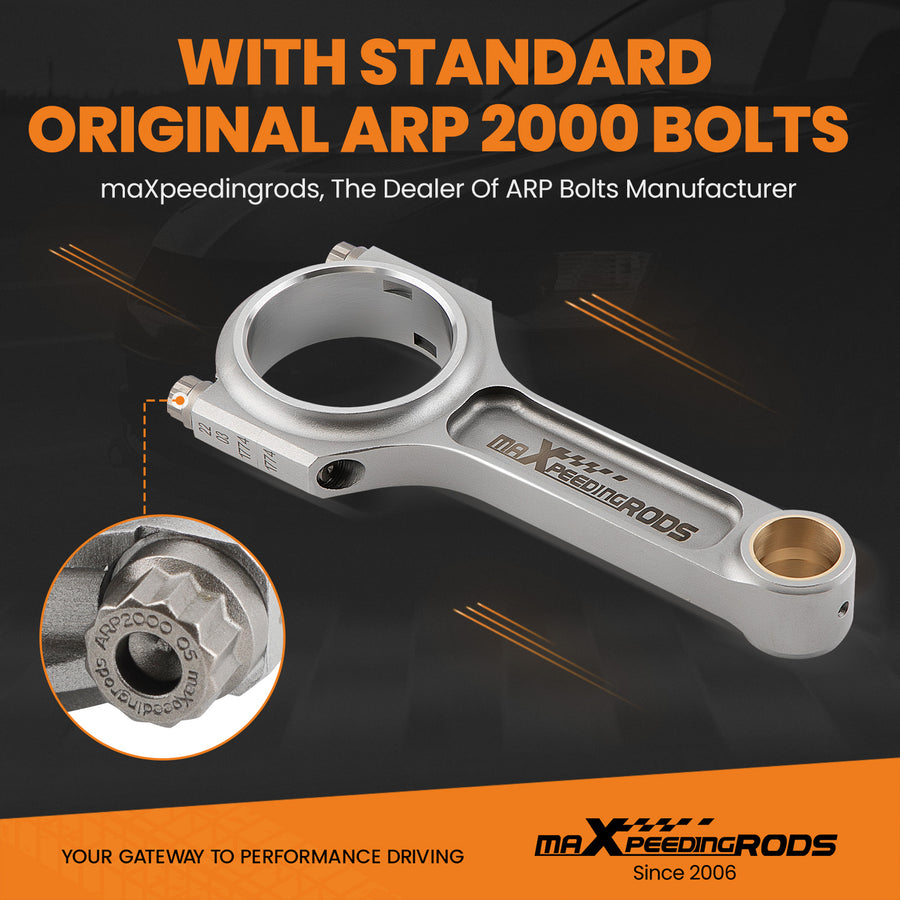

• *Bolts: Including ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
• *The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
• *Advertised Horsepower Rating:200HP/piece
• *Top acceleration: 9000rpm
• *package size：28CM*21CM*14CM

Dimension

• Centre to centre length: 135mm/5.315"
• Big end diameter: 48mm/1.89"
• Small end diameter: 22mm/0.866"
• Big end width: 21.9mm/0.862"
• Small end width: 21.9mm/0.862"

Feature

• 1.TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
• 2.Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
• 3.ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；

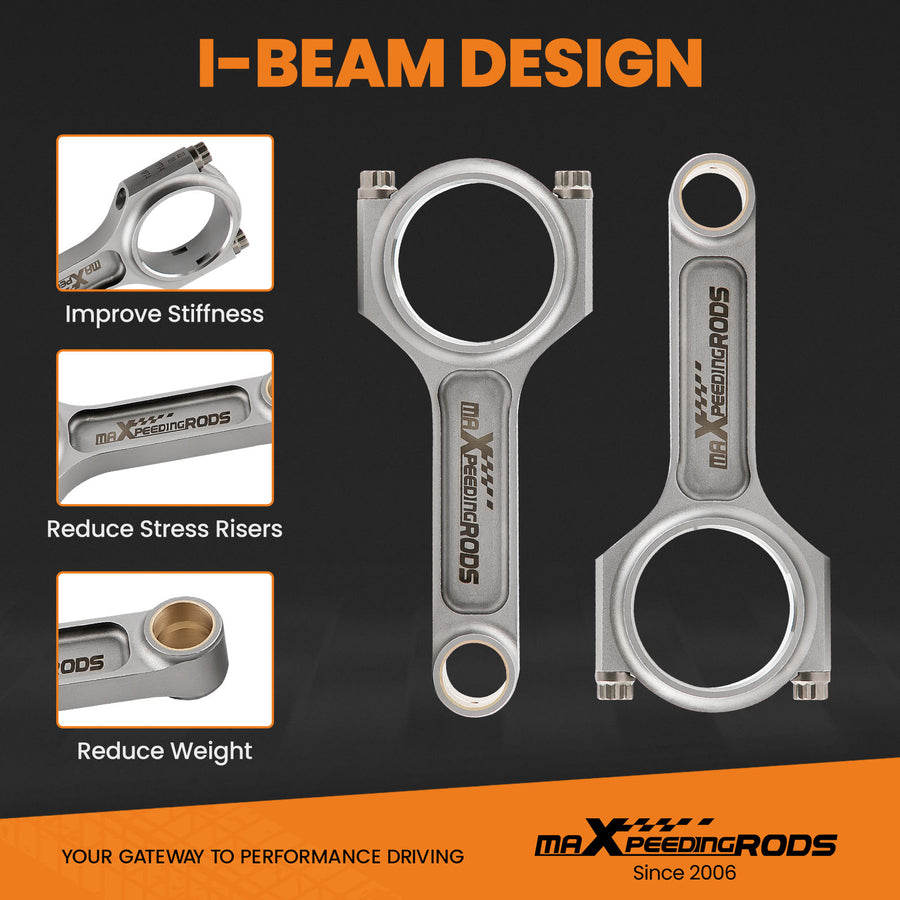

• 4.I-Beam reduce inertial force withstand the high gas pressure；
• 5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
• 6.High precision CNC machined,Precision rod cap alignment dowels；
• 7.Bores finished to +/- .005mm；
• 8.Balanced to within +/- 1 g per rod；
• 9. Each rod is magnetic particle tested to ensure free of flaws；
• 10.Use X-rayed, sonic tested；
• 11.Custom Service.

Note

• *Professional installation is highly recommended ；
• *Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
