Compatible for Honda Acura B18C1 B18C5 GSR Integra R 94-01
compatible for Honda Quint Integra compatible for Acura Integra Generation 3: Series DB8, DC2
compatible for Acura Integra (GSR/TypeR) 94-01 B18c1/B18c5
compatible for Honda B18c1/B18c5 (Dohc Engine) 1997-1998,1999 CDM, 2000-2001 compatible for Acura Integra USDM/CDM Type R
Specification
*Type: Forged 4340 aircraft chrome moly quality steel for racing

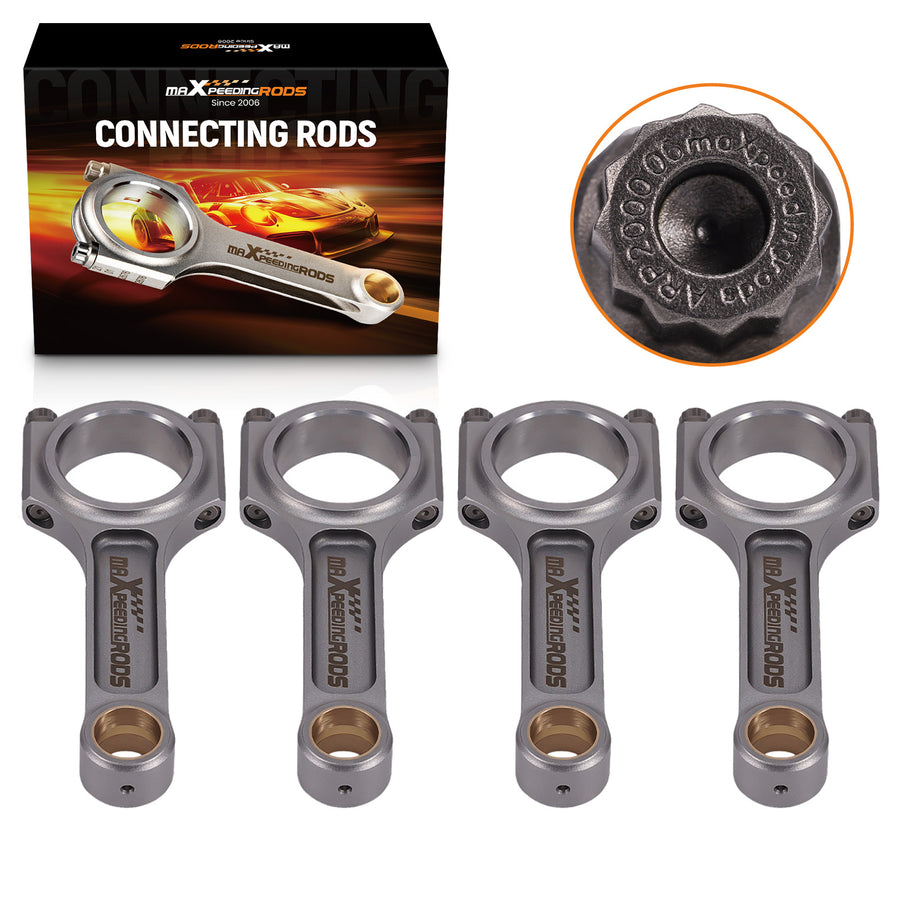

*I-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 3/8" bolts (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM
Dimension
Centre to centre length:138mm/5.433"
Big end diameter:48mm/1.89"
Small end diameter:21mm/0.827"
Big end width:21.8mm/0.858"
Small end width:23.5mm/0.925"
Feature
1.TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；

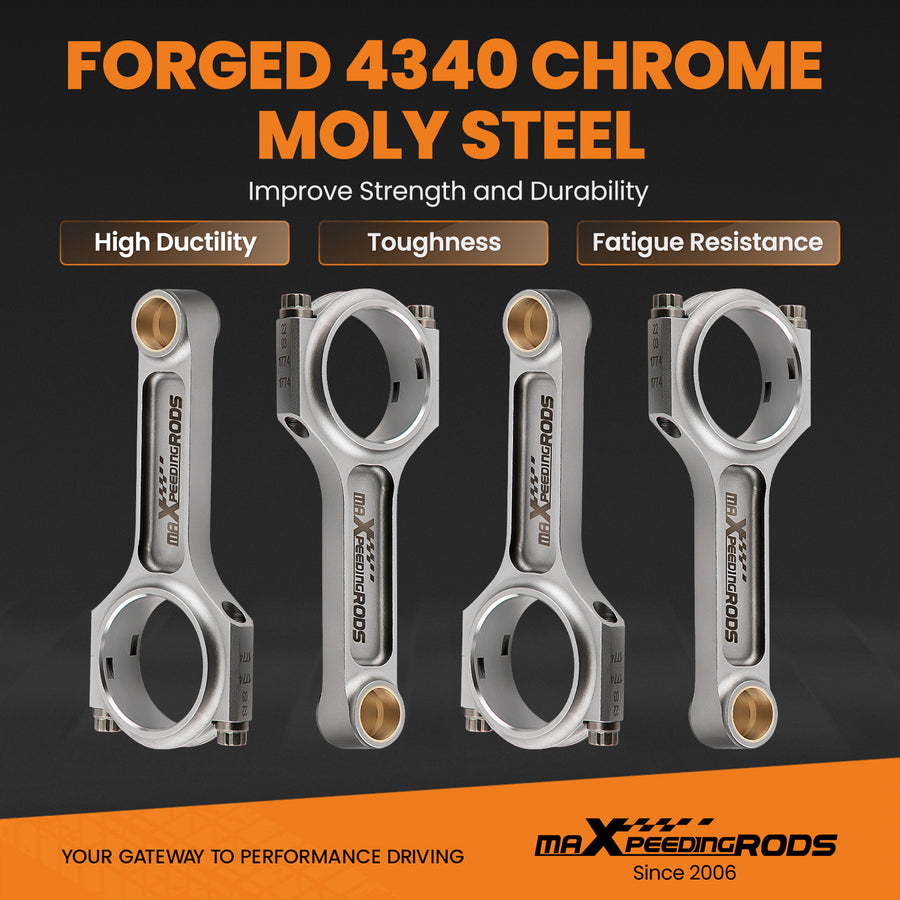

2.Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3.ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；

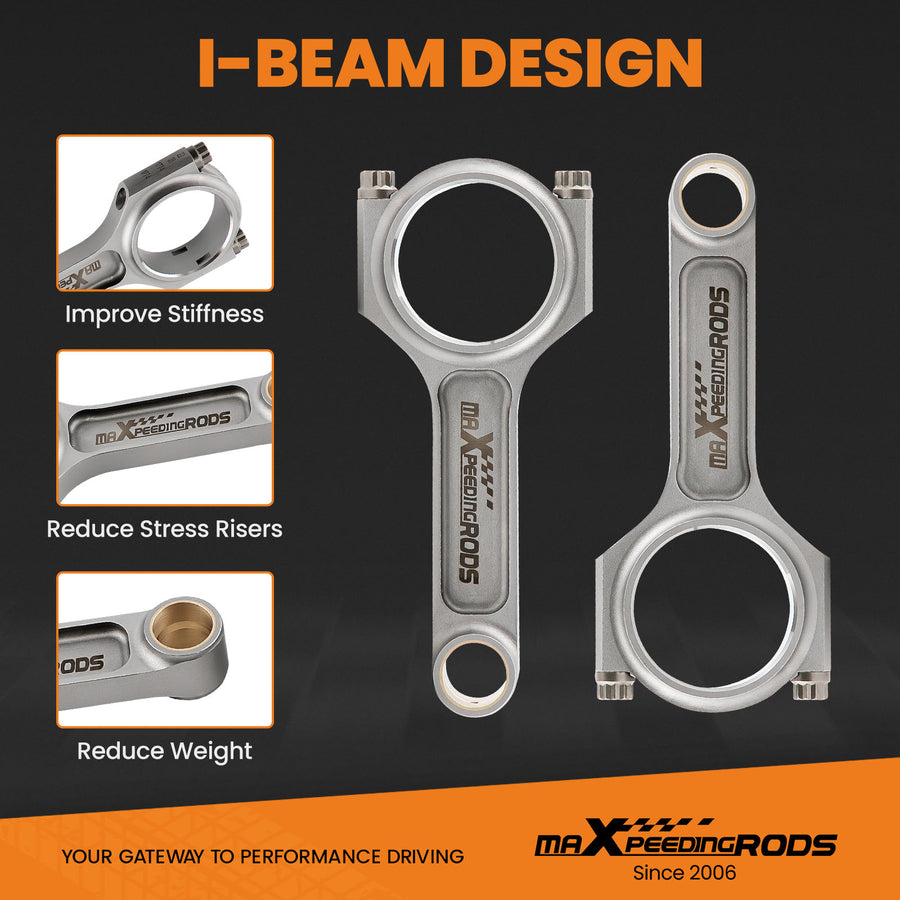

4.I-Beam reduce inertial force withstand the high gas pressure；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .005mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.
Note
*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
