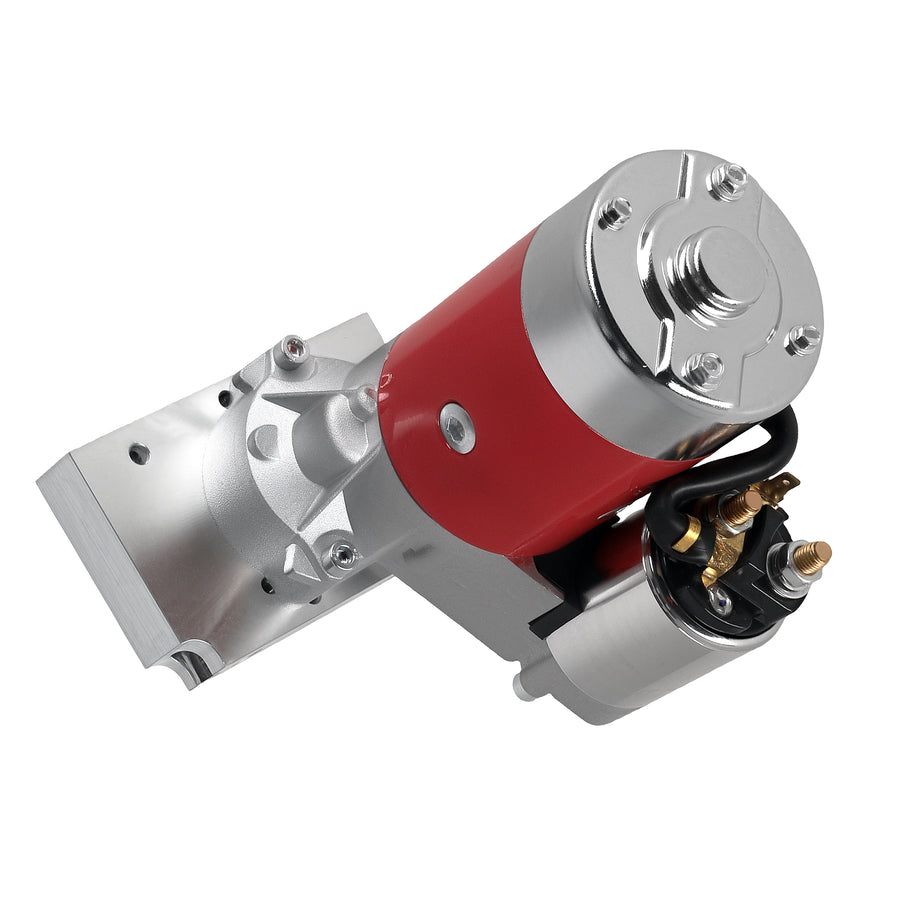

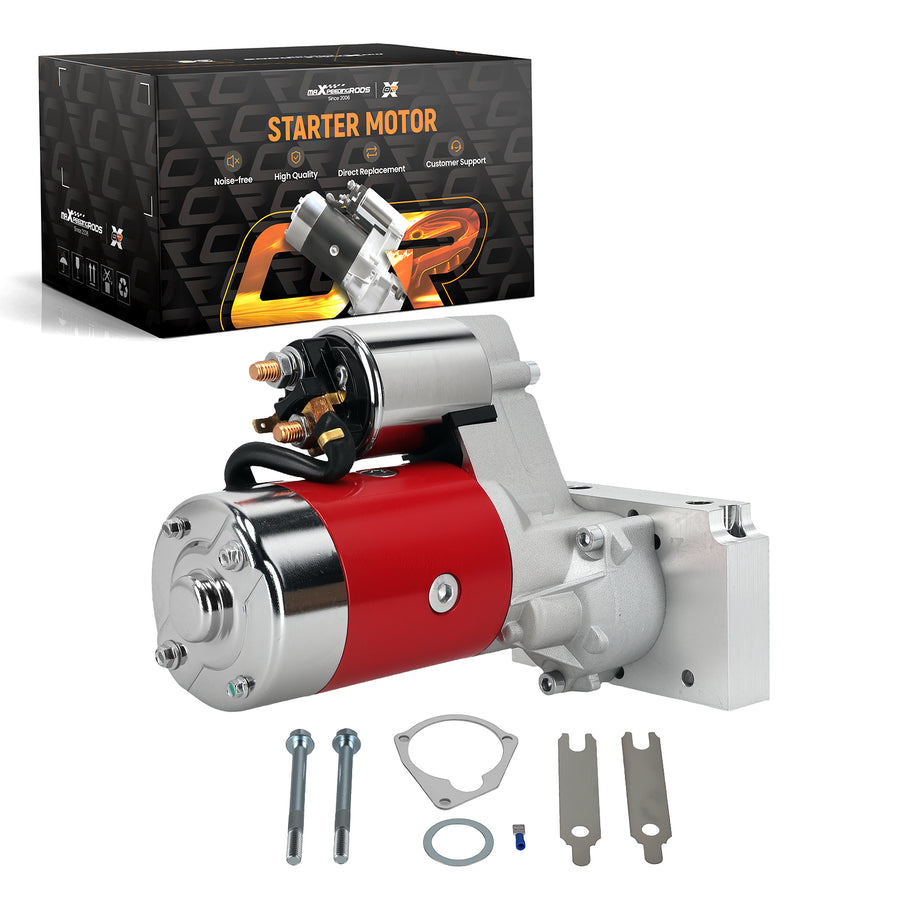

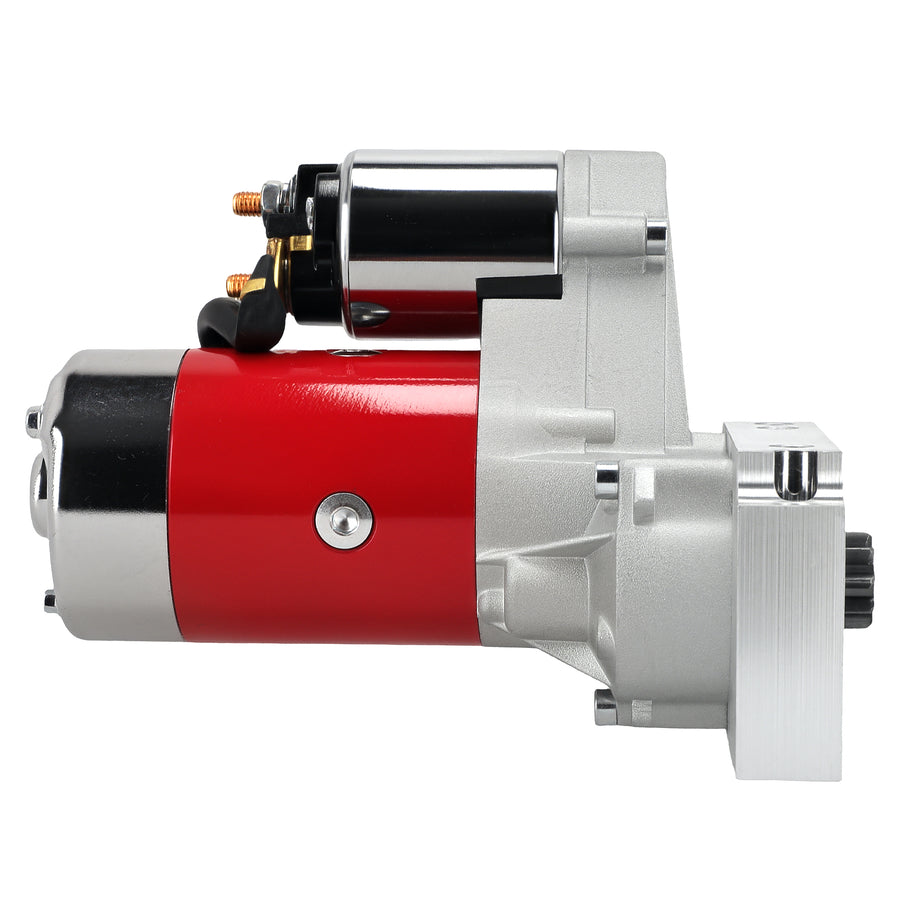

High Torque Small & Big Block Starter Motor compatible for CHEVY HD 3HP 305 350 454

Compatible Vehicles

• Compatible for Chevrolet Small & Big Block 262-454 CID V6-V8, w/ AT or MT, w/ 153-Tooth or 168-Tooth Flywheel (up to 18:1 Compression Ratio)

Feature

• Heavy Duty 2.0kW, 3HP, OSGR, 12 Volt, CW, 9-TOOTH Pinion
• Ideal for High Compression Engines up to 18:1 Compression
• Soolid Billet Aluminium Mounting Block
• Torate Motor Position for Additional Clearance
• Full Ball Bearing Design
• Compact Design for More Clearance between Oil Pan & Headers
• Larger Field Windings, Stronger Armature, Bigger Brushes and 1 inch Longerh than the S1935N

Note

• * Professional installation is highly recommended (No Instruction Included).
• * For any needs please contact us.
• <div

OE/Part Number

• 18493, 18493N, PP106, PE106, 91-25-1201, 91251201, 91-25-1201N, 91251201N, S1963N,
• 244-1603, 2441603, 4N1603, 441603, 44-1603, 114999, 18493N-C, 18493NC

Material

Aluminium

Voltage

12

Type

3HP / 3Horsepower

Tooth Flywheel

153 168

Number of Teeth

9

Power

2kW / 2.68HP

Rotation

Clockwise / CW

Starter Type

OSGR

Gear OD

0.988in / 25.1mm

Version

• High Torque Version / 3-Clocking Positions
• Mtg Ear 1 Hole: 10mm Unthreaded
• Mtg Ear 2 Hole: 10mm Unthreaded
• Mtg Ear 3 Hole: 10mm Unthreaded

Installation Note

• To use this type of starter you must verify that it has three bolt holes on the starter pad. You will use two of the three holes to mount this starter but they must be straight across from each other to accept this starter. This starter cannot be installed if the two holes are staggered.
• PS: Check your block for starter bolt pattern used, 454 blocks many times had a staggered bolt starter.
